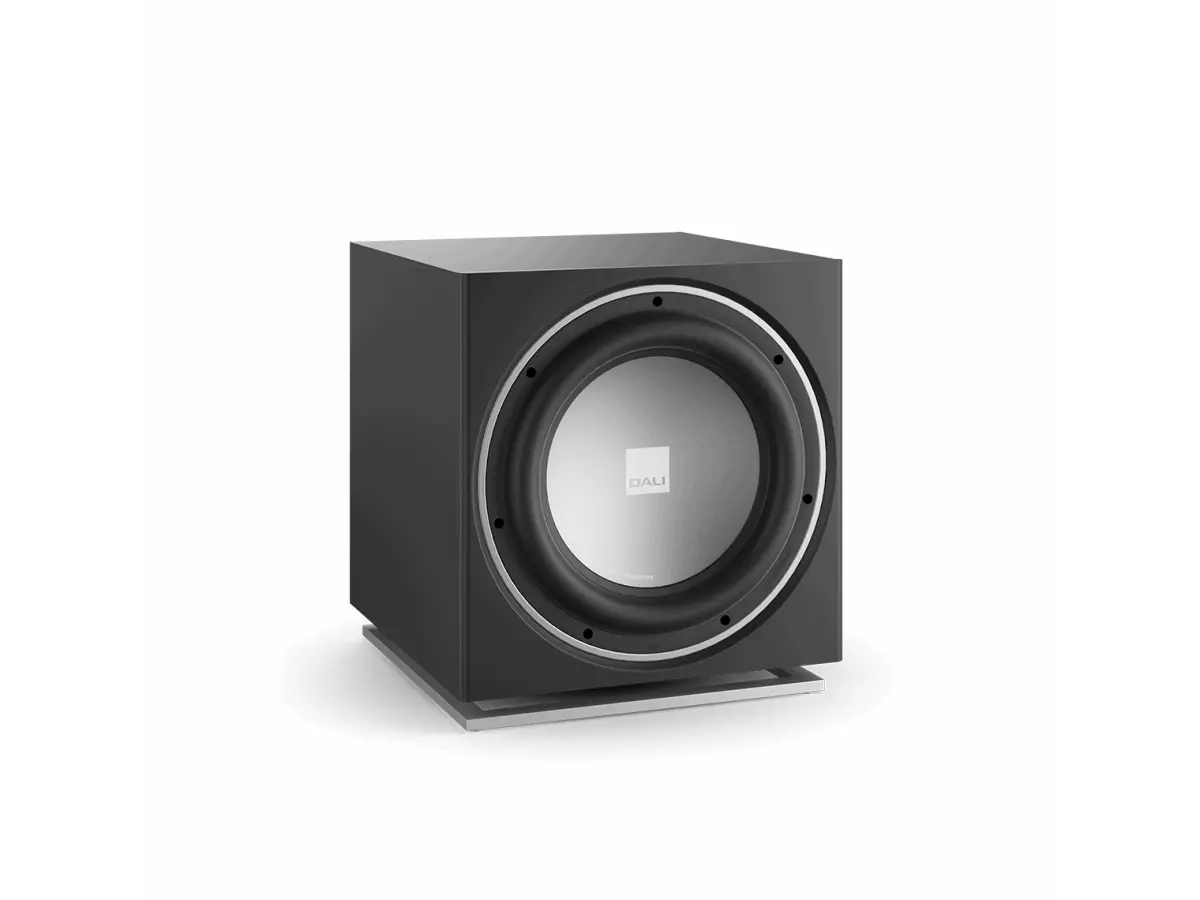

DALI E-12F

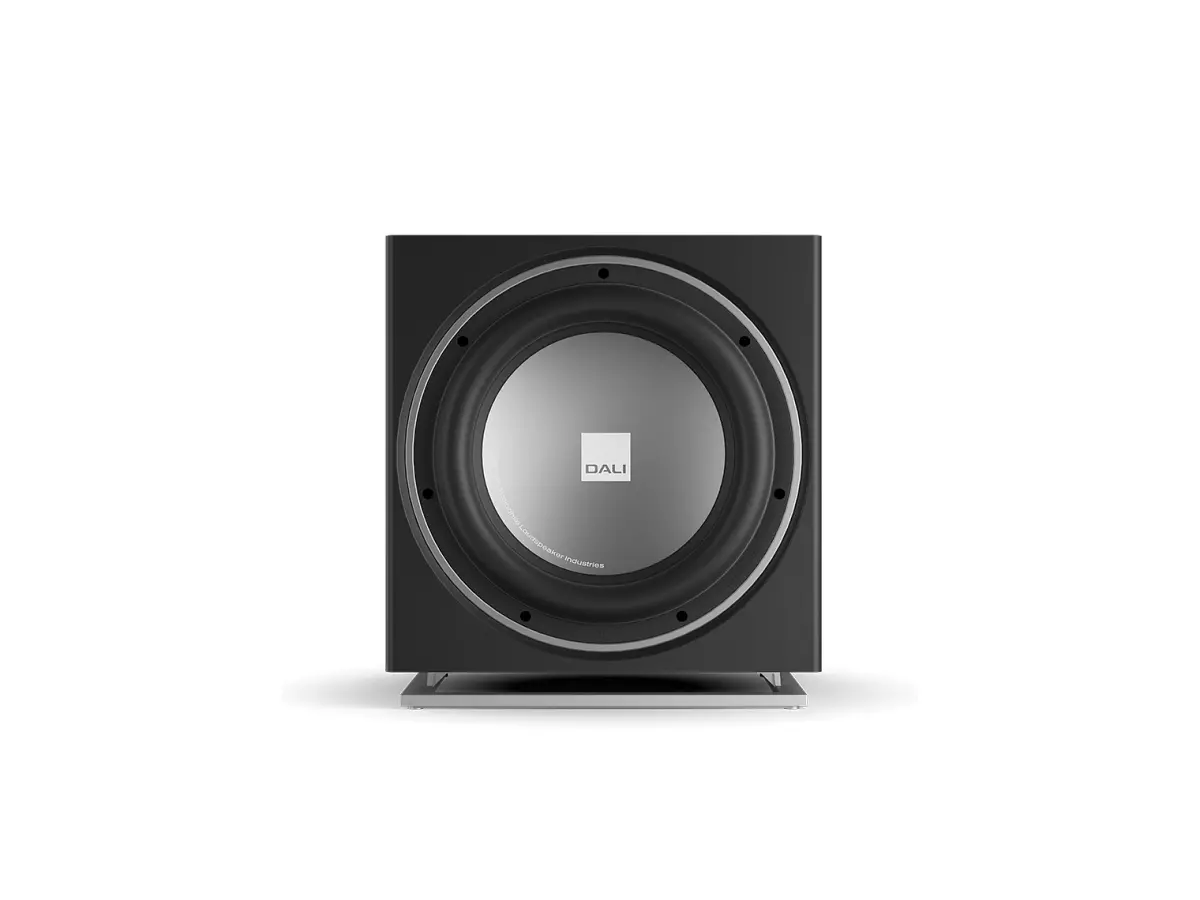

The SUB E-12 F is designed to add depth and intensity to both music and movie soundtracks, delivering powerful and precise performance thanks to its high-level technical features. At the heart of the system is a long-throw 300 mm aluminum woofer, capable of moving large volumes of air without losing control, driven by a 170/220-watt Class D amplifier module that ensures both efficiency and dynamics. The reflex system, tuned to 36 Hz, is supported by a four-layer magnet that guarantees speed and depth in the low frequencies.

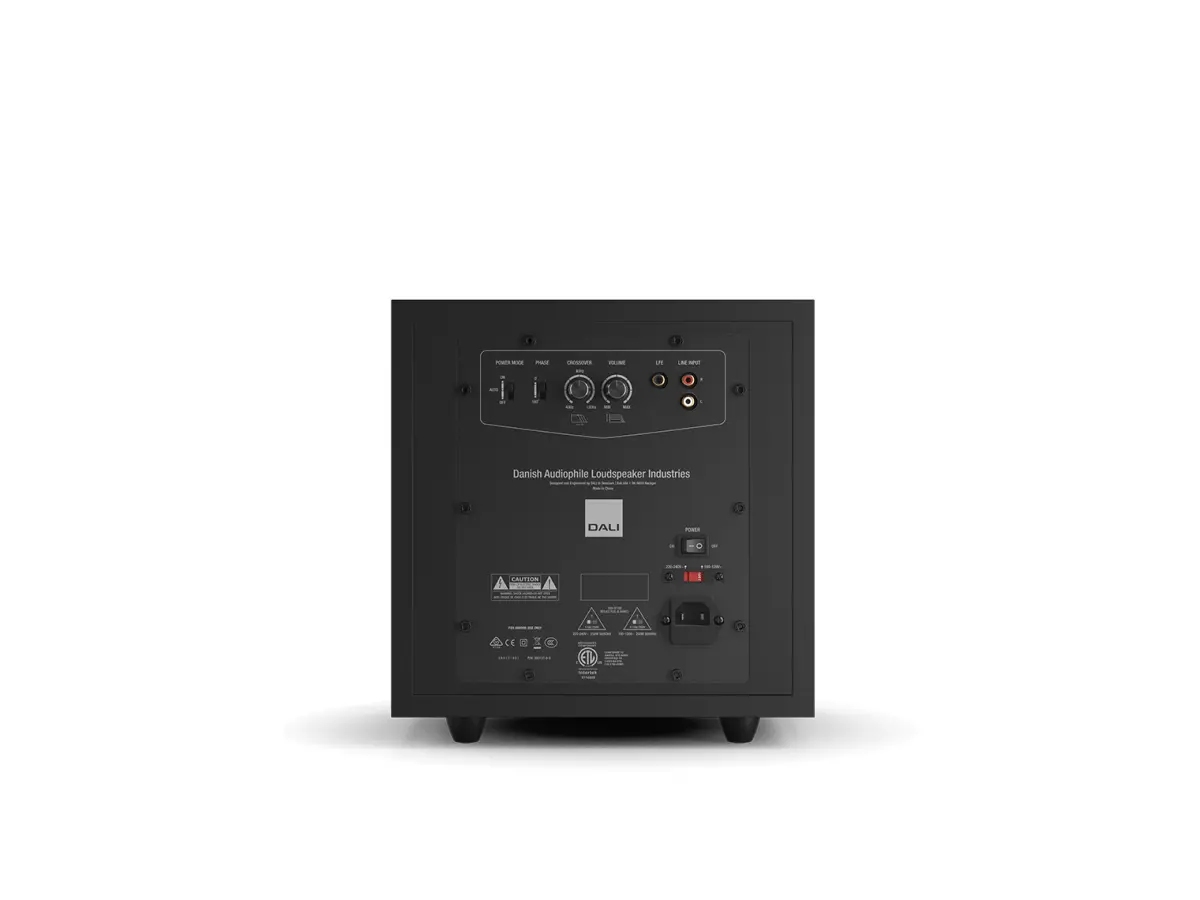

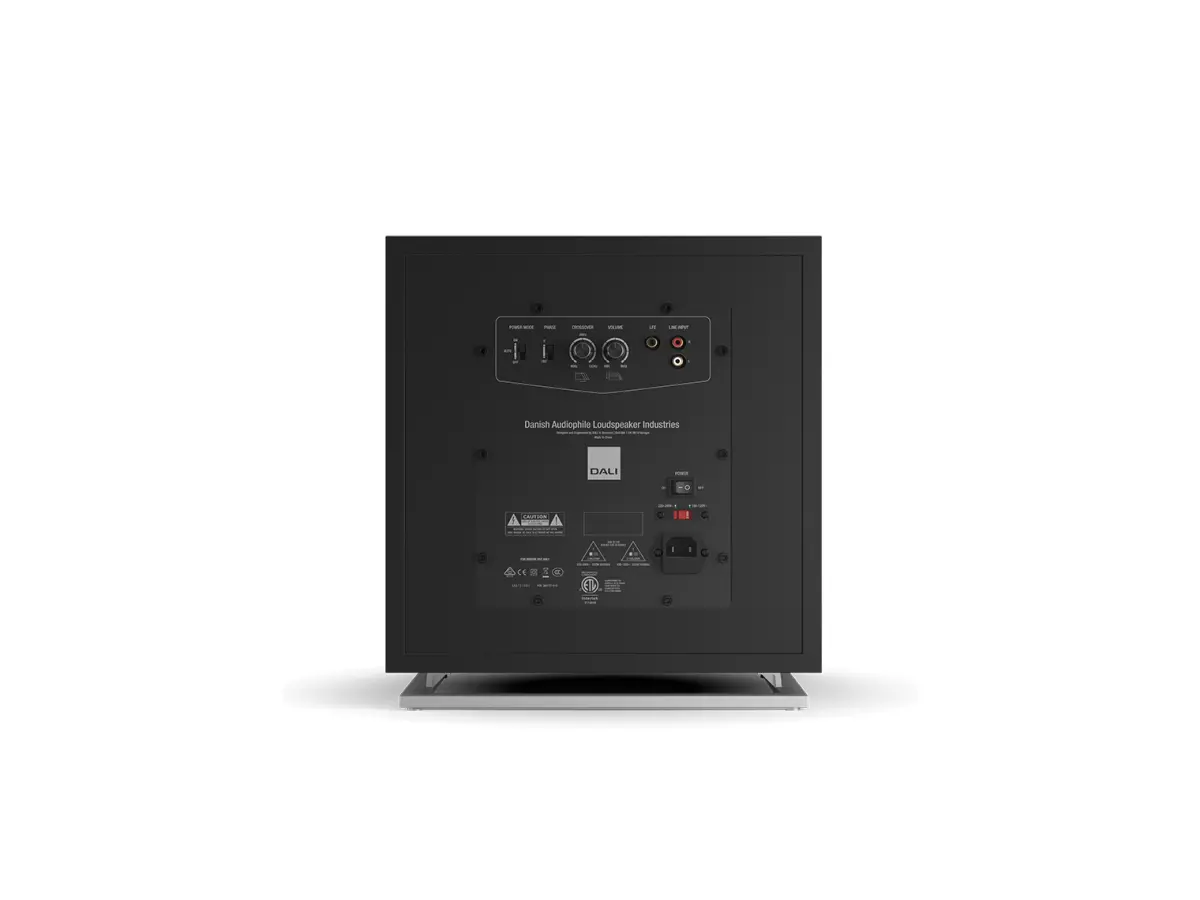

With LFE and RCA inputs, it is versatile and easily integrated, whether in a home theater system connected directly to an AV receiver, or in a two-channel stereo setup. Controls include an active crossover adjustable between 40 and 120 Hz, level adjustment, and phase control from 0 to 180 degrees, with the option of automatic or manual power-on, making it adaptable to any room and listening preference.

The design also features an integrated protection system that prevents overloads and potential damage, ensuring long-term reliability. The reflex port, positioned on the bottom panel, directs airflow toward the floor to make the most of room acoustics, while four integrated feet maintain the optimal distance for correct and regular air circulation. The SUB E-12 F proves to be an ideal companion for those seeking greater depth and realism in their listening experience, pairing naturally with the Zensor series but performing equally well in any configuration.

Technical specifications:

• Type: active bass-reflex subwoofer
• Frequency response: 28–190 Hz
• Crossover frequencies: 40–120 Hz
• Phase adjustment: 0–180 degrees
• Built-in amplifier: 170–220 watts, Class D
• Driver: 300 mm long-throw aluminum woofer
• Connections: LFE; RCA
• Dimensions (H x W x D): 370 x 340 x 380 mm
• Weight: 14.7 kg
