ACOUSTIC SOLID PHONO MM/MC

Dual-Mono phono preamplifier with active and passive RIIA equalization.

It stands out for its exceptional versatility, precisely adapting to a wide range of cartridges thanks to six separate dip switches for each channel. This configuration allows for fine adjustment of the gain, which can be set between 32 and 64 dB, optimizing the sound performance based on the characteristics of the cartridge used. For MC cartridges, the resistance can be adjusted from 47 kOhm to values between 50 and 680 Ohms in 10 Ohm increments, providing extremely detailed control of the load impedance. MM cartridge users also benefit from precise capacitive adjustment, allowing further adaptation of the system’s response to achieve a balanced and faithful sound.

Technical Specifications:

• Phono input compatible with MM and MC cartridges
• Separate power supply included

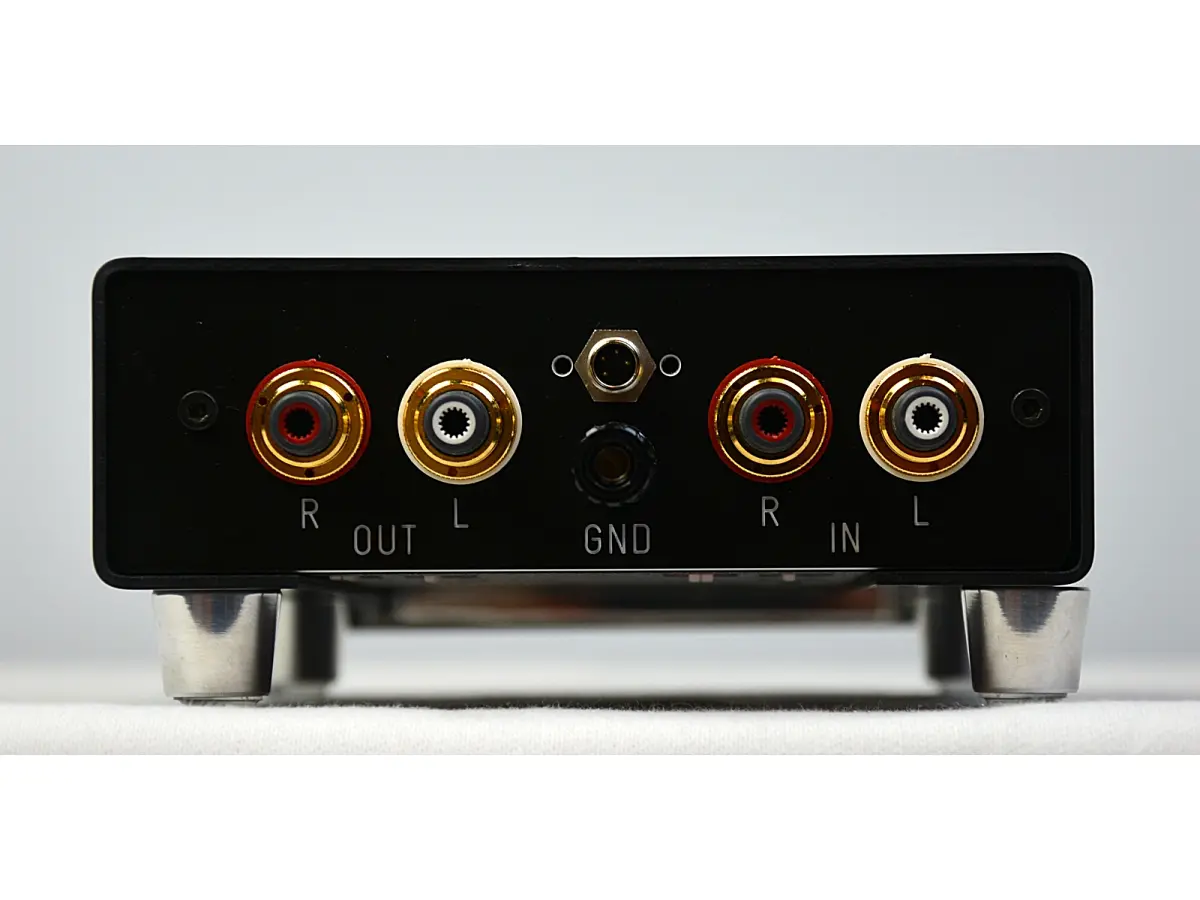

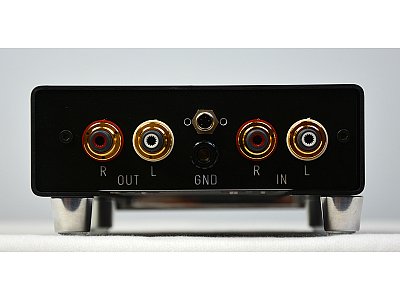

• Audio analog inputs: RCA
• Audio analog outputs: RCA
• Frequency response: 10 Hz to 20 kHz (±0.2 dB)
• Total harmonic distortion: less than 0.005%
• Signal-to-noise ratio: greater than 99 dBA for MM, greater than 76 dBA for MC (referenced to 2 V RMS)
• Crosstalk attenuation: greater than 103 dB (referenced to 2 V RMS)
• Selectable input impedance: from 50 Ohm to 680 Ohm in 10 Ohm increments and 47 kOhm
• Adjustable input capacitance: from 100 pF to 600 pF in 50 pF increments
• Adjustable gain: from +32 dB to +64 dB at 1 kHz, in 4 dB increments
• Maximum output voltage: 10 V RMS
• Maximum output current: 35 mA RMS
• Output impedance: 50 Ohm
• Dimensions (L x W x H): 14 x 17.8 x 6.4 cm
• Weight: 1 kg
