MCINTOSH MA 6700

Pre owned. In good condition. It has some minor signs of wear that are not clearly visible in the photos. Supplied with remote control, without original packaging.

Solid-state stereo integrated amplifier that combines a preamplifier section, a 200-watt-per-channel power amplifier stage, a phono input and a digital-to-analog conversion section in a single unit. The preamplifier section is derived from the design used in the C48 and provides six line-level inputs, including one balanced input, as well as fully separate MM and MC phono inputs from the point where the input signal is split.

The power amplifier delivers 200 watts per channel and uses McIntosh Autoformer output transformers, designed to maintain the same available power with 2, 4 or 8-ohm loudspeakers. Power Guard technology prevents clipping and protects the amplifier stage and loudspeakers under overload conditions.

The digital section incorporates a DAC and provides an asynchronous USB input, one optical input and one coaxial input, supporting signals up to 32-bit/192 kHz. The converter can therefore be used to connect external digital sources and computers directly, integrating digital playback into the amplifier configuration.

For analog sources, dedicated MM and MC phono inputs are provided, with separate circuitry, while the preamplifier section features an independent recording selector, a preamplifier output and the possibility of separating the preamplifier and power amplifier stages. Bass and treble tone controls are also provided and can be bypassed when not required.

The MA6700 can also be integrated into multichannel audio-video systems thanks to the Home Theatre Pass Through function, which allows it to be used together with a home theater processor or AV receiver. It is also prepared for the installation of an optional tuner module for AM/FM radio reception, with the ability to store up to 20 stations.

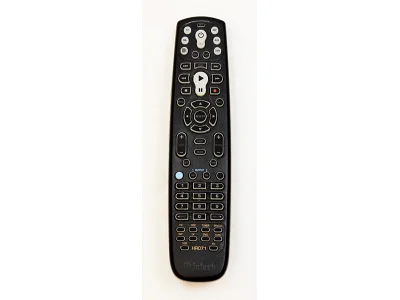

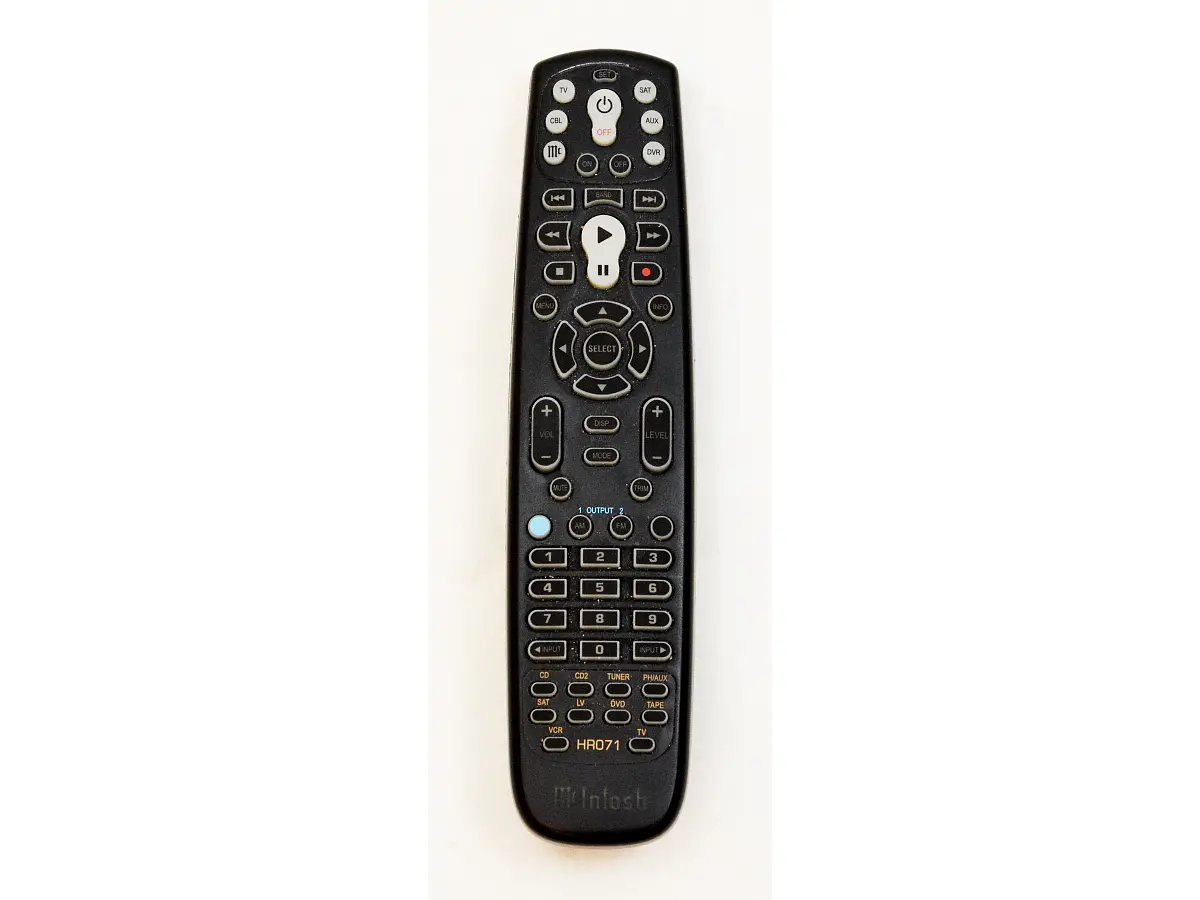

For headphone listening, it features a dedicated High Drive headphone amplifier, while the equipment also includes a headphone output and a multifunction remote control. The main functions of the unit can therefore be controlled without operating the front panel directly.

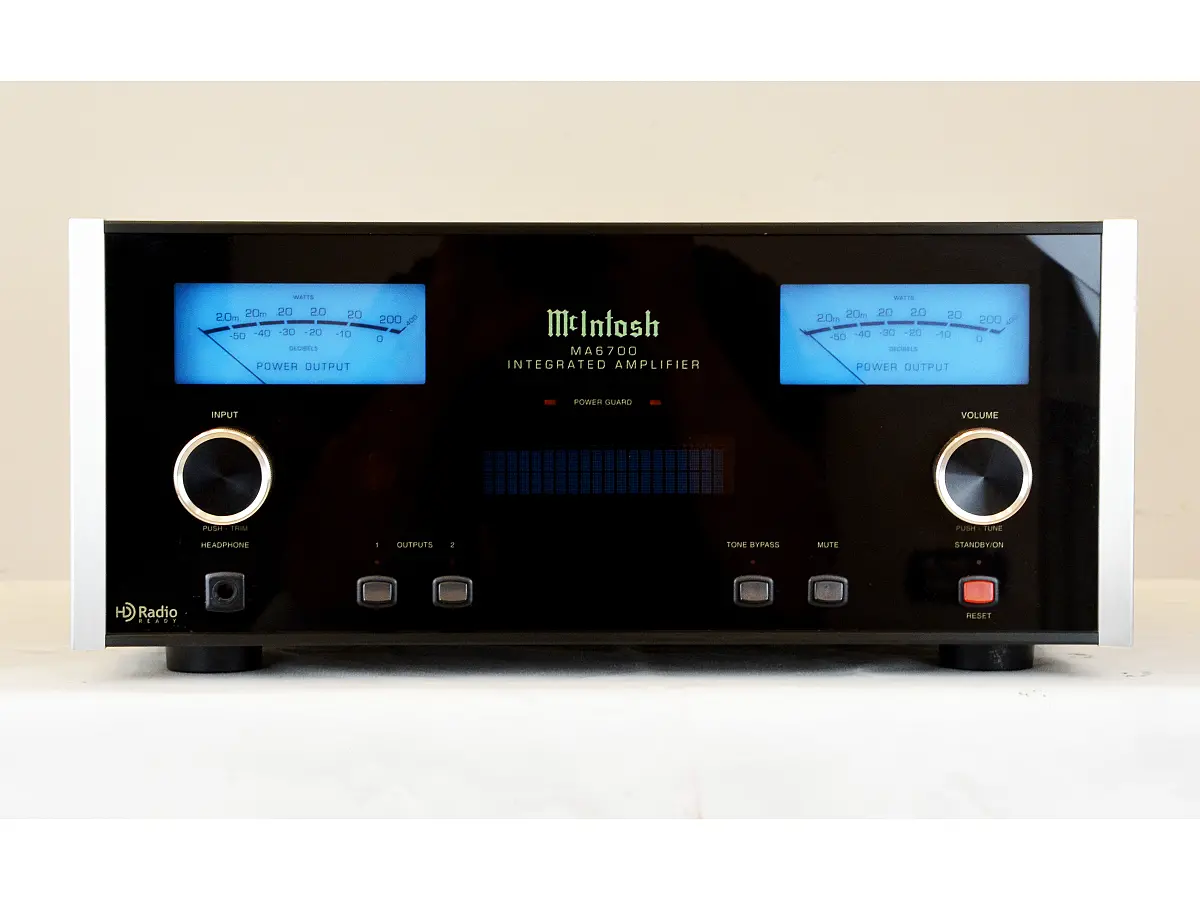

The front panel incorporates distinctive elements of McIntosh products, including two backlit VU meters and a glossy black glass front panel. Information is displayed through a dot-matrix display, complemented by the characteristic illumination associated with the brand.

Technical specifications:

• Type: solid-state stereo integrated amplifier
• Continuous power per channel: 200 W
• Load impedance: 2; 4; 8 ohms
• Rated power band: 20 Hz - 20 kHz
• Total harmonic distortion: 0.005% maximum
• Frequency response: 20 Hz - 20 kHz (+0/-0.5 dB); 10 Hz - 100 kHz (+0/-3 dB)
• Dynamic Headroom: 2 dB
• Damping factor: >40
• Input impedance: High Level 20 kOhms; Phono MM 47 kOhms/50 pF; Phono MC 50/100/200/400/1000 ohms/100 pF; Power Amp In 10 kOhms
• Input sensitivity: High Level 250 mV unbalanced/500 mV balanced; Phono MM 2.5 mV; Phono MC 0.25 mV; Power Amp In 1.4 V
• Maximum input signal: High Level 8 V unbalanced/16 V balanced; Phono MM 80 mV; Phono MC 8 mV; Power Amp In 16 V
• Preamplifier output: 1.4 V unbalanced; 8 V maximum
• Preamplifier output impedance: 220 ohms
• Headphone output: 20 - 600 ohms
• Signal-to-noise ratio: High Level 95 dB; Phono MM 84 dB; Phono MC 82 dB; Power Amplifier 113 dB
• Intermodulation distortion: 0.005% maximum
• Power Guard: <2% THD with up to 16 dB overdrive at 1 kHz
• Gain: High Level-Rec Out 0 dB; High Level-Output 1/2 15 dB; Phono MM-Rec Out 40 dB; Phono MC-Rec Out 60 dB; Phono MM-Output 1/2 55 dB; Phono MC-Output 1/2 75 dB; Power Amplifier 29 dB
• Tone controls: bass ±12 dB at 30 Hz; treble ±12 dB at 10 kHz
• Analog inputs: 6 line-level inputs, including 1 balanced; Phono MM; Phono MC; Power Amp In
• Digital inputs: USB; optical; coaxial
• Digital formats: optical 16/24-bit, 32 - 96 kHz; coaxial 16/24-bit, 32 - 96 kHz; USB 16/24/32-bit, 32 - 192 kHz
• Integrated DAC: yes
• Analog outputs: 2 preamplifier outputs; Rec output
• Functions: Home Theatre Pass Through; preamplifier/power amplifier separation; independent recording selector
• Trigger: 12 V DC, 25 mA
• Dimensions (W x H x D): 445 x 193 x 559 mm
• Weight: 34.1 kg
