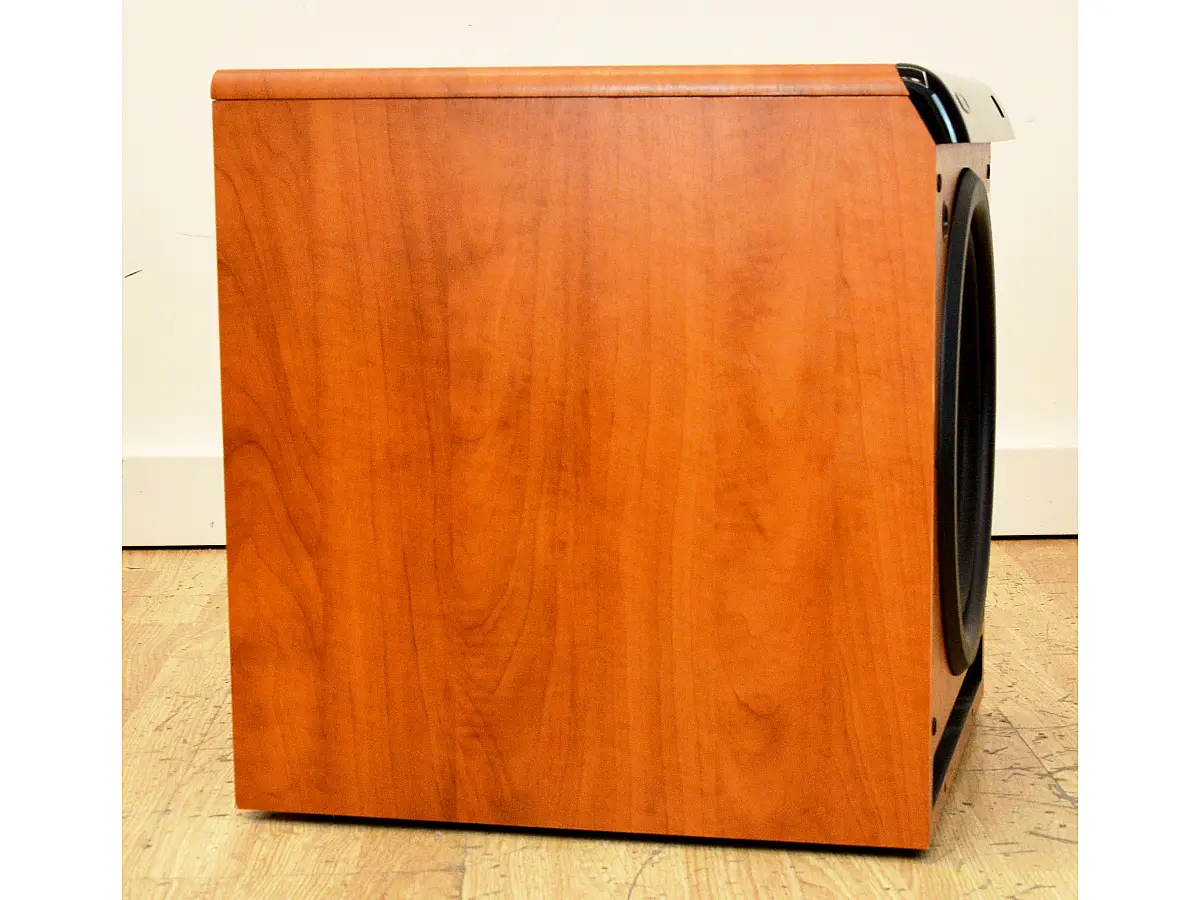

VELODYNE CHT-12Q

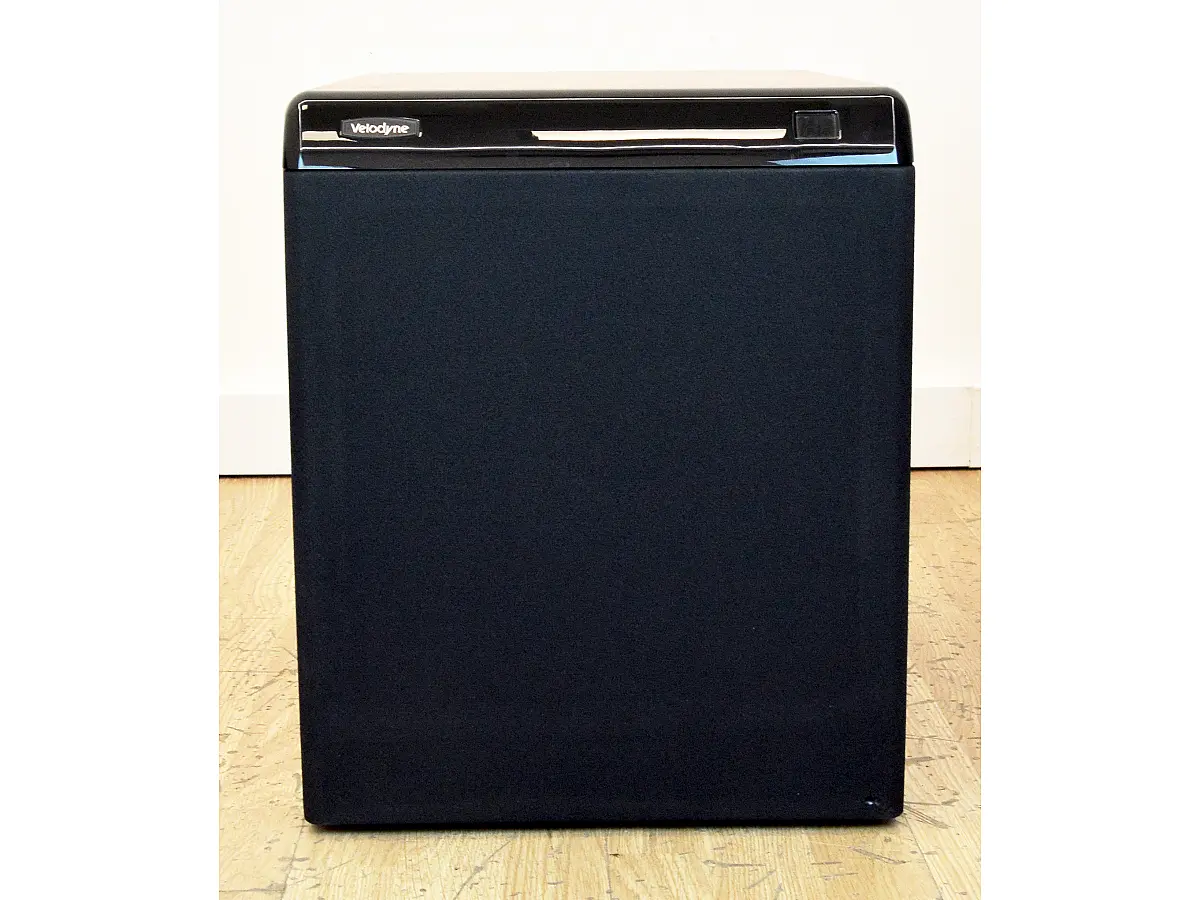

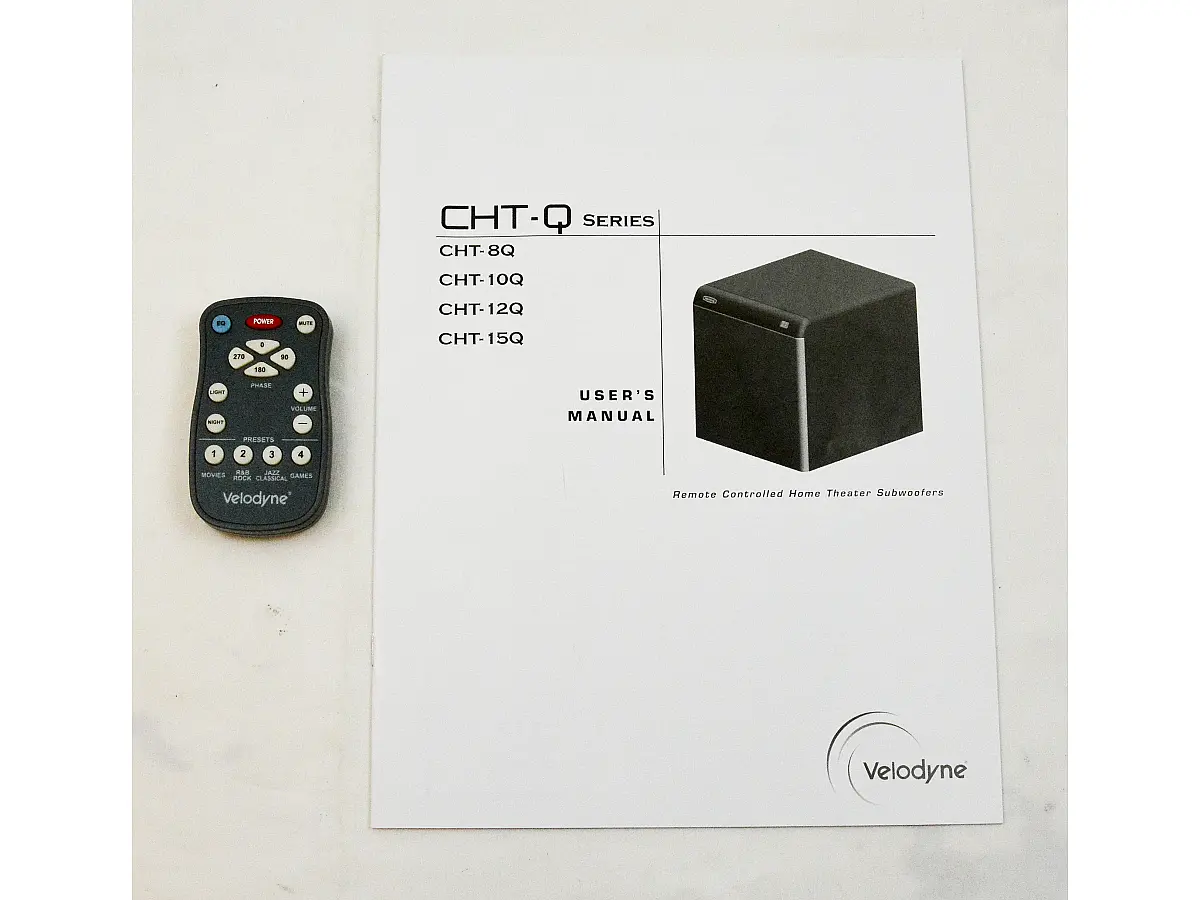

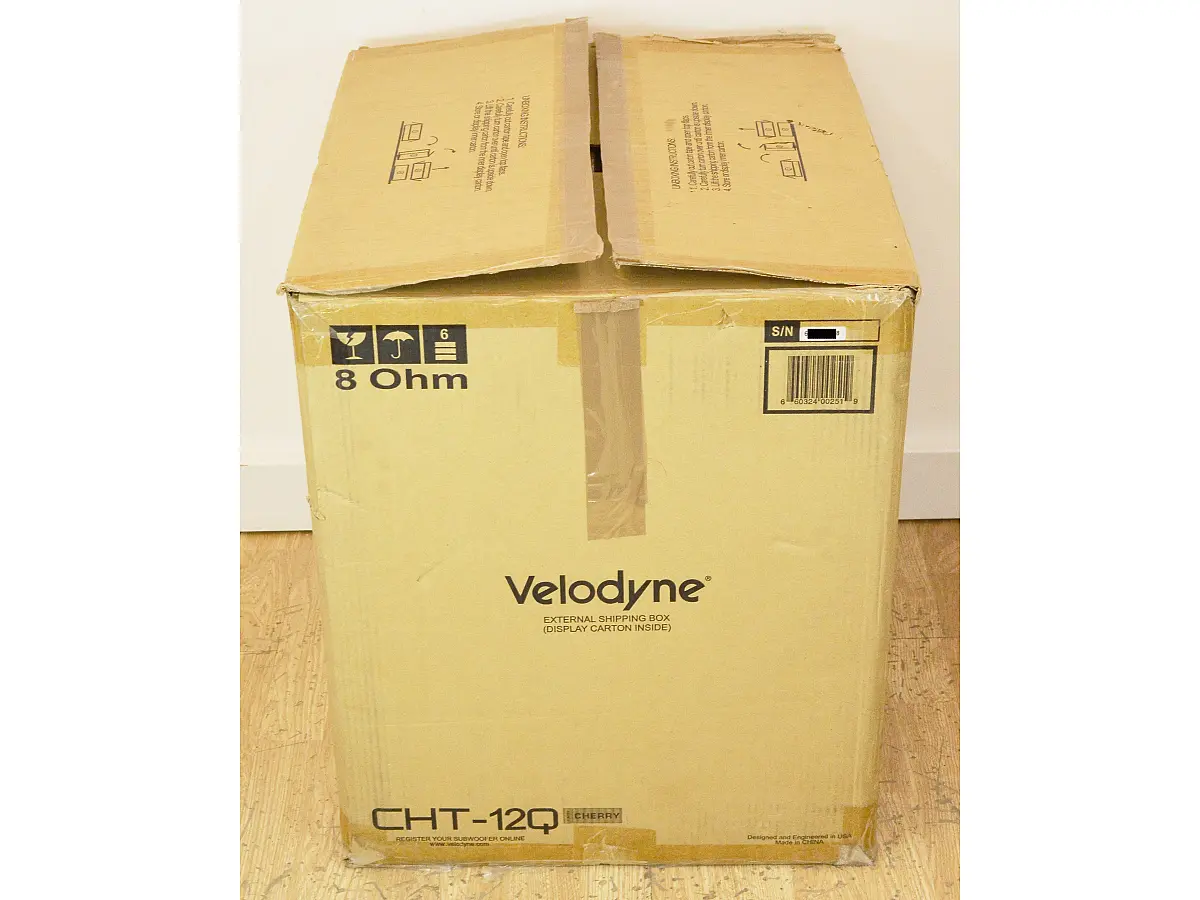

Pre owned. In excellent condition. Free from any obvious signs of wear. The grilles show some signs of wear. Supplied with remote control, manual and original packaging.

Subwoofer designed for low-frequency reproduction, with a configuration intended to adapt to the characteristics of the room and system in which it is installed. The choice of a subwoofer must take several factors into account, including the size and shape of the room, listening level and the electronics being used. In general, a larger cabinet allows lower frequencies to be reproduced with less distortion than a more compact enclosure.

Velodyne has been developing subwoofers since 1983, with particular attention to reducing distortion and controlling performance. The CHT-Q series introduces a microphone-based room equalization system to the range, allowing the subwoofer to be calibrated according to the characteristics of the room. The supplied microphone detects the room conditions and allows calibration to be carried out easily.

Digital signal processing also provides several DSP modes, allowing the subwoofer's behaviour to be adjusted according to the type of content being reproduced, from music to movies. The combination of microphone-based equalization and DSP modes makes the CHT-12Q a configurable solution for different rooms and listening situations.

Technical specifications:

• Type: active subwoofer
• Amplification: Class D

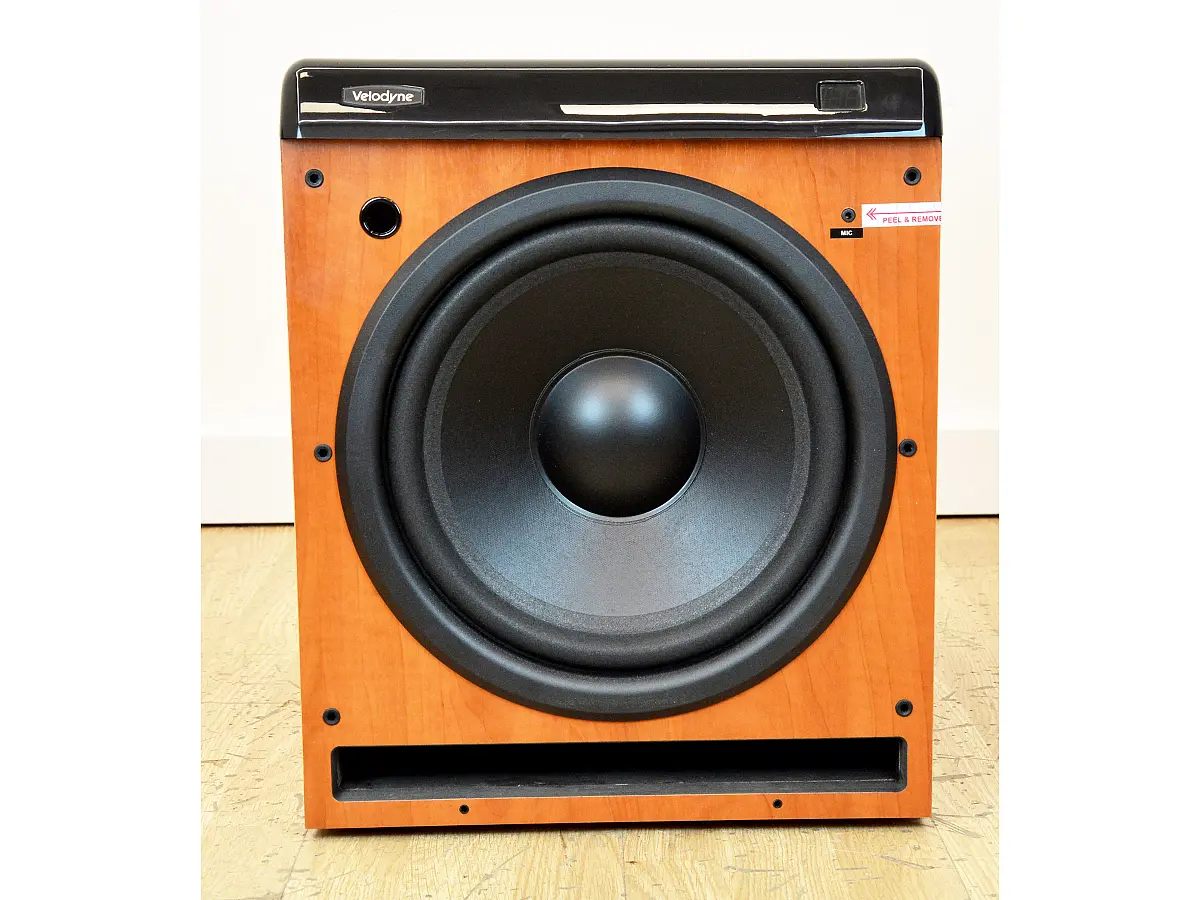

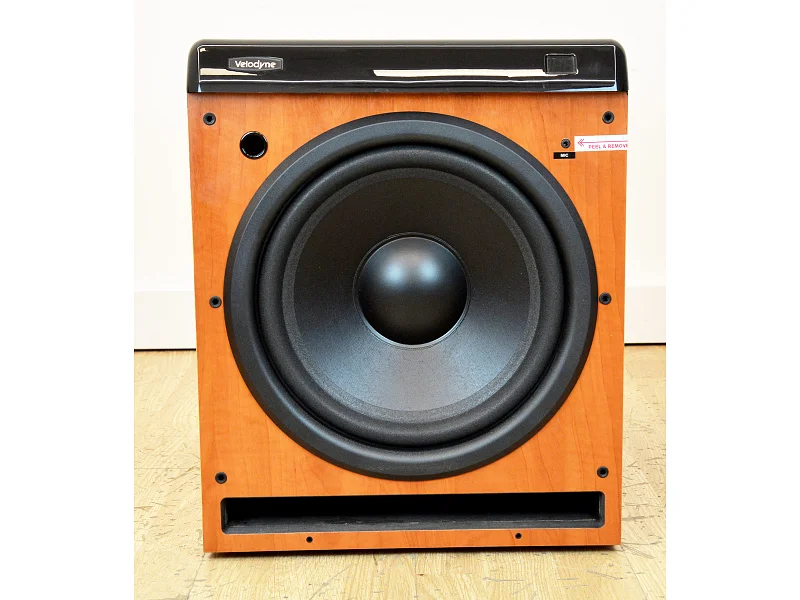

• Woofer: 305 mm; front-firing; 246 mm piston diameter
• Power: 225 W RMS; 450 W dynamic
• Acoustic loading: bass reflex with rear-firing port
• Voice coil: 2-layer copper
• Cone: reinforced fiber
• Magnet structure: 1.59 kg
• Frequency response: 14.6 - 240 Hz
• Frequency response ±3 dB: 25 - 120 Hz
• Low-pass crossover: adjustable from 40 to 120 Hz; 12 dB/octave, 24 dB/octave ultimate

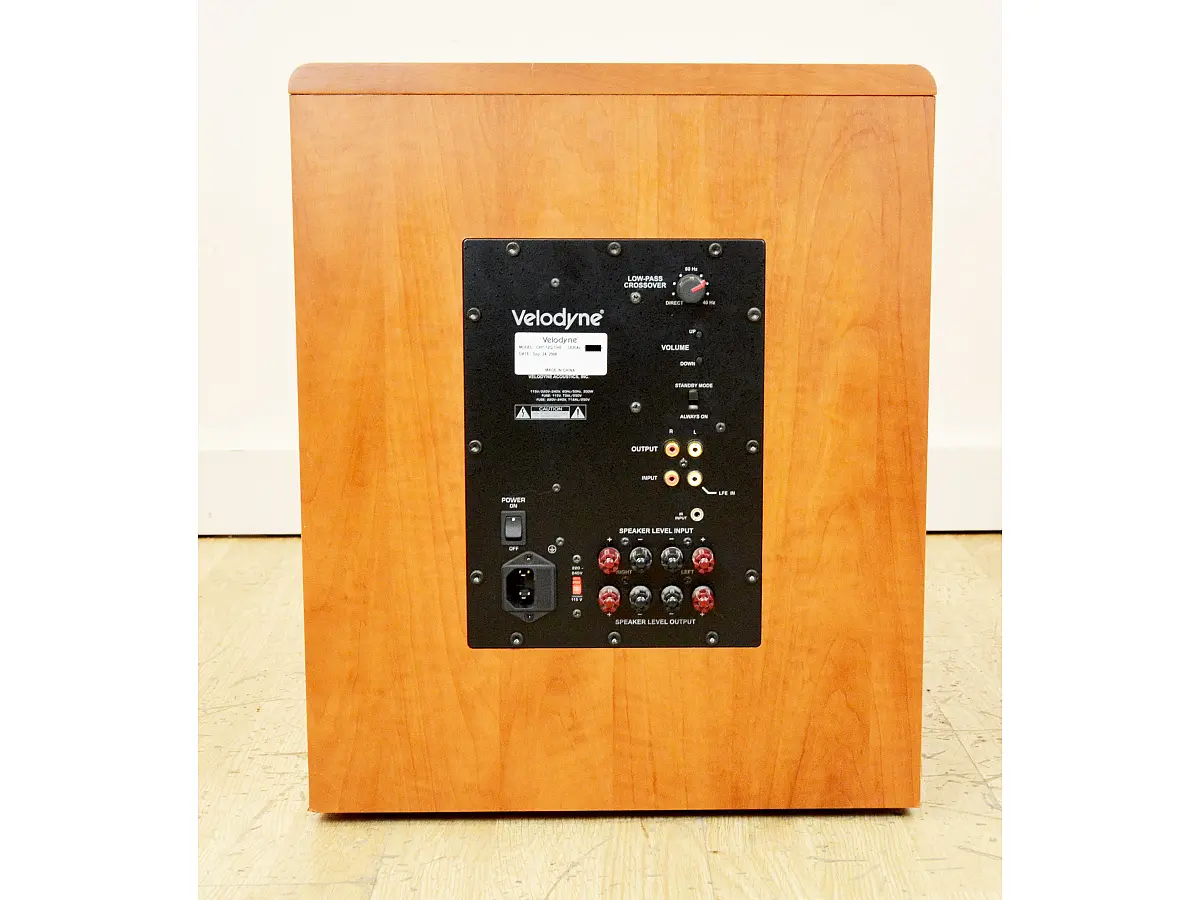

• Outputs: speaker-level pass-through; line-level
• Inputs: gold-plated line-level RCA
• Digital phase: 0°, 90°, 180°, 270°
• Functions: automatic power on/off; removable grille; LED display
• Equalization: automatic "one touch"; automatic 5-band digital
• Accessories: microphone, microphone stand, remote control
• Video shielding: none
• Dimensions: 467 x 381 x 452 mm
• Weight: 28 kg
