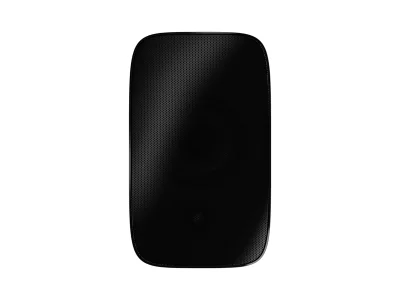

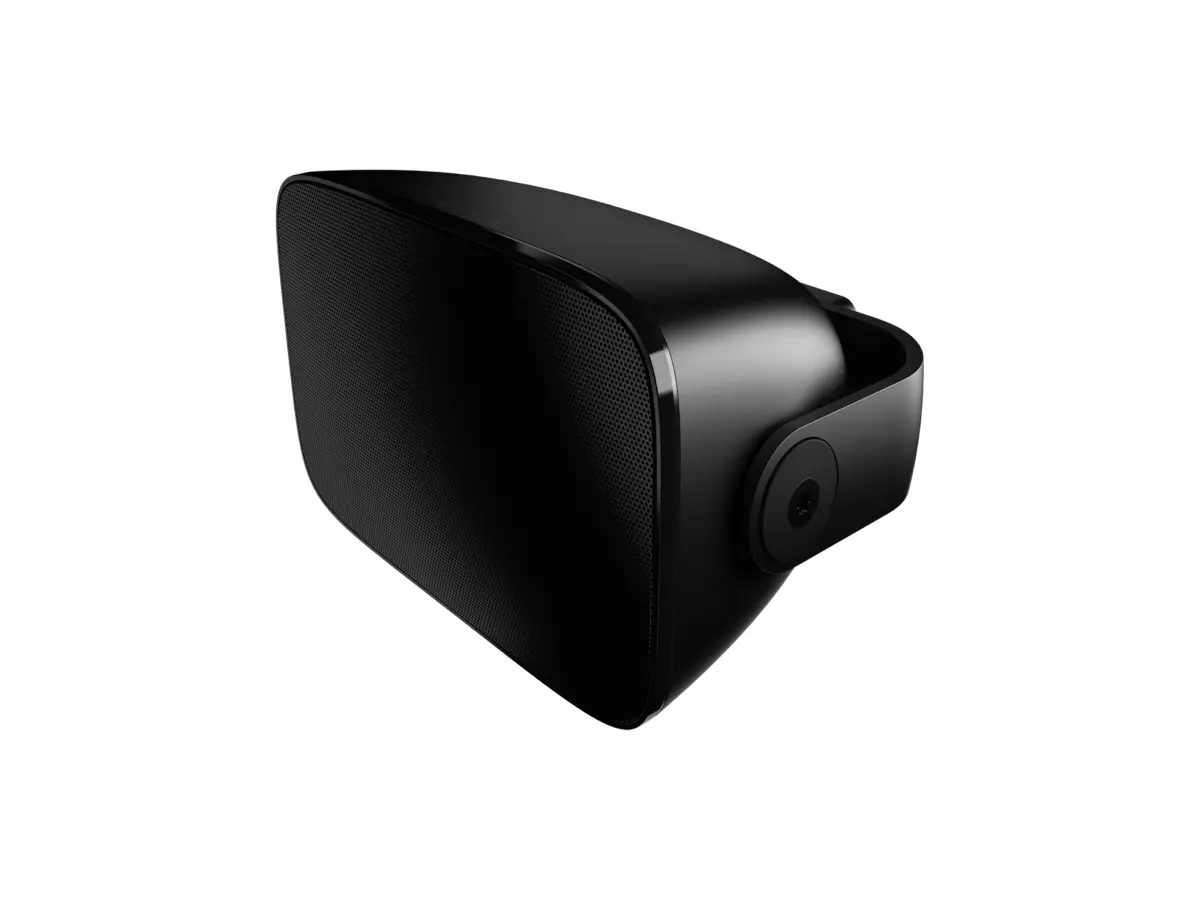

BOWERS & WILKINS AM-1

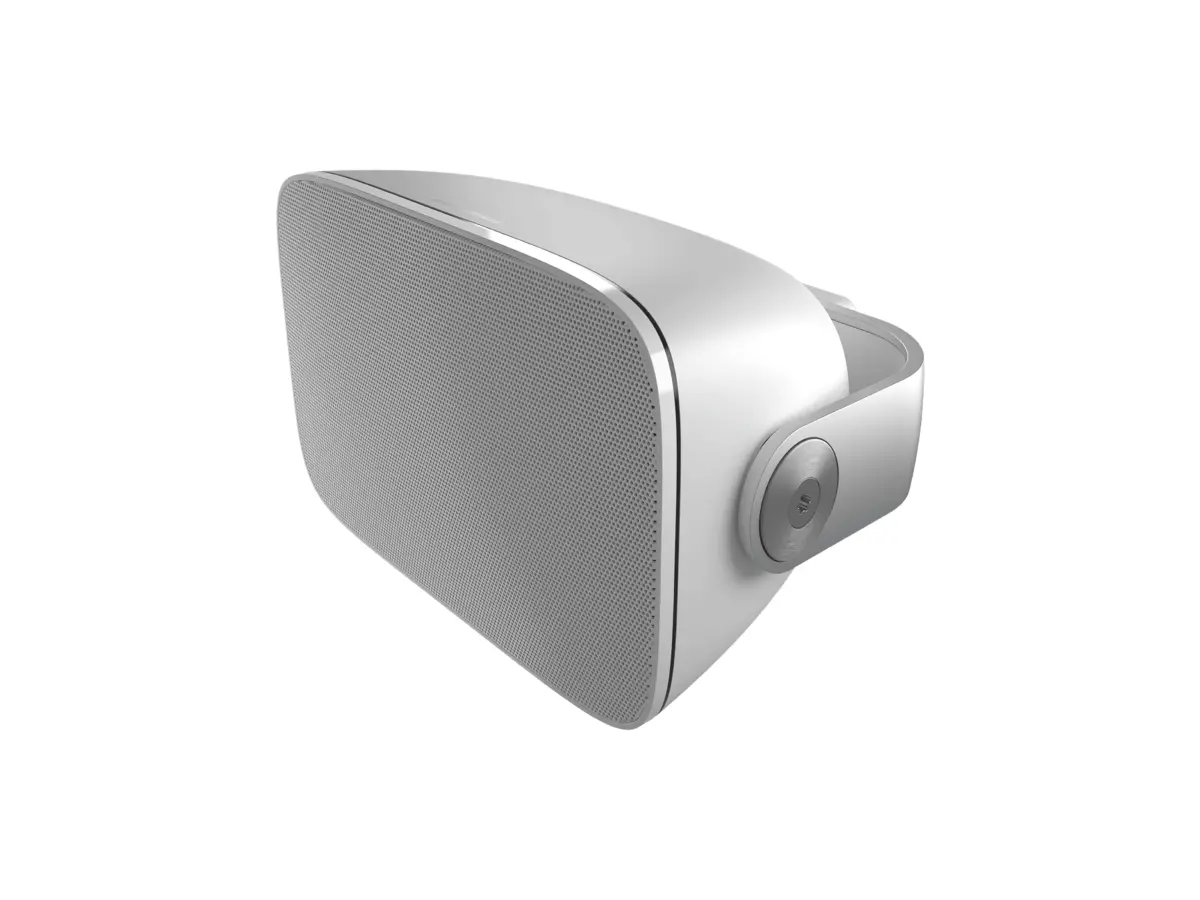

A two-way loudspeaker designed for both indoor and outdoor installations. Its fully sealed construction protects the components against dust and moisture, while the corrosion- and UV-resistant finish allows it to operate in a variety of environmental conditions. Its compact dimensions and integrated mounting system make it suitable for different installation environments while maintaining a discreet footprint.

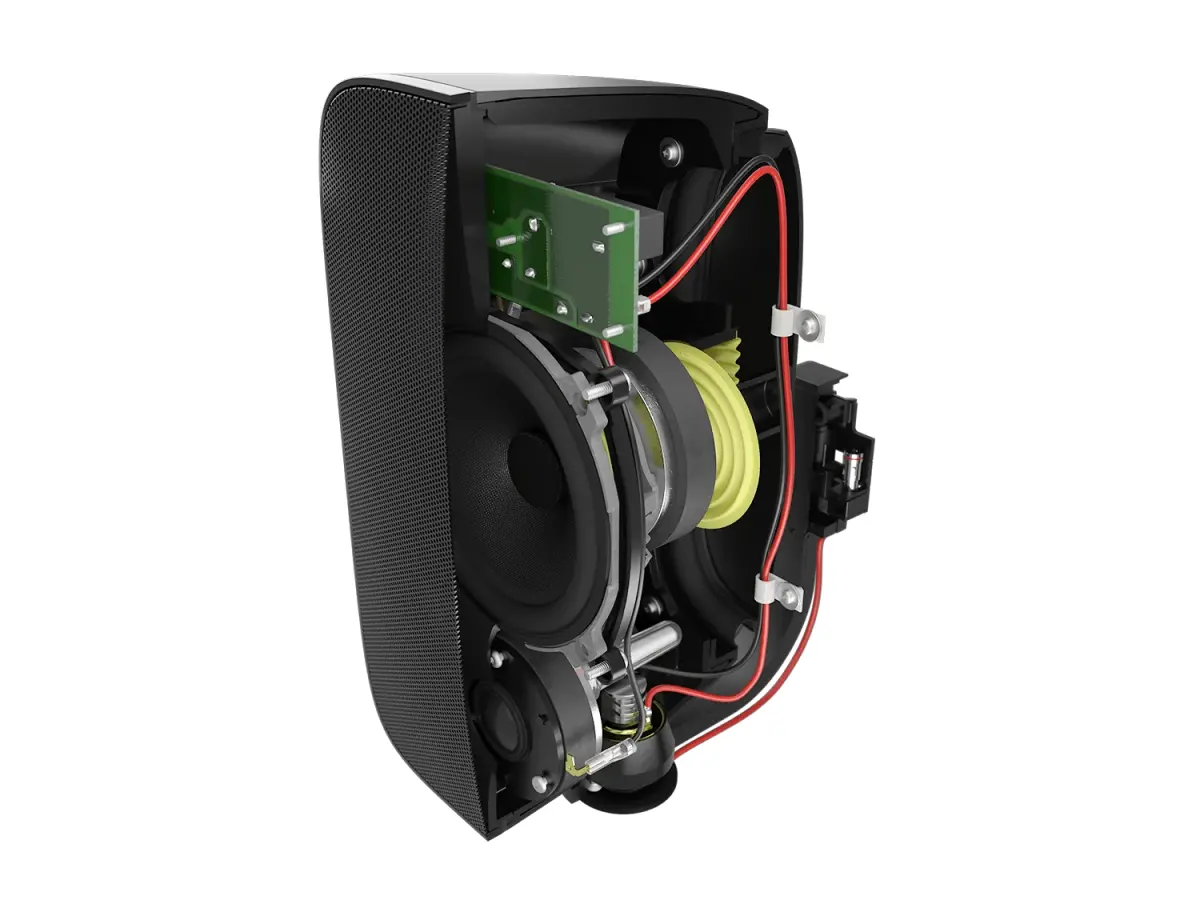

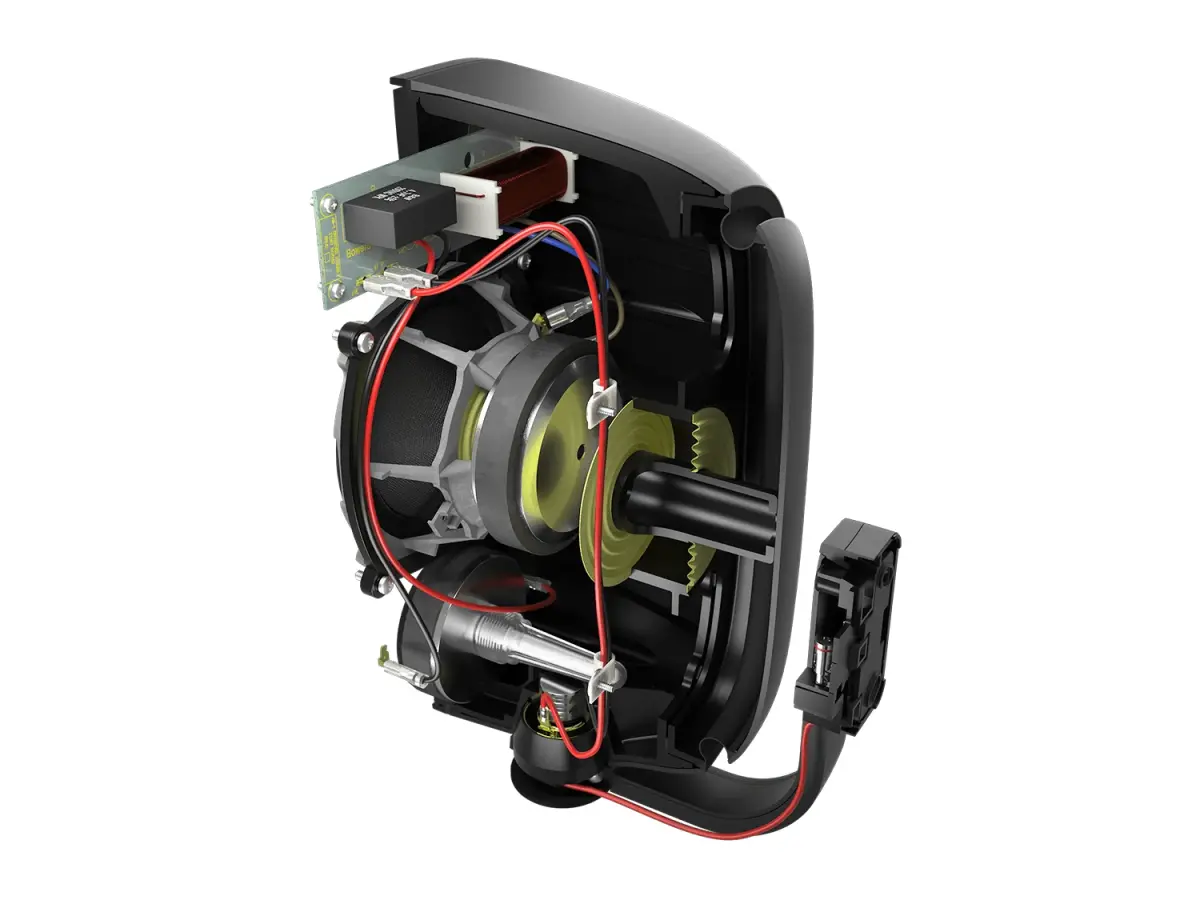

The driver configuration consists of a 25 mm aluminium dome tweeter featuring Nautilus technology, paired with a 130 mm glass-fibre cone mid/bass driver. The Nautilus tube-loaded tweeter helps control rear sound waves, while the Auxiliary Bass Radiator (ABR), positioned at the rear of the cabinet, supports low-frequency reproduction, providing an extended response and sound performance suited to the loudspeaker's compact dimensions.

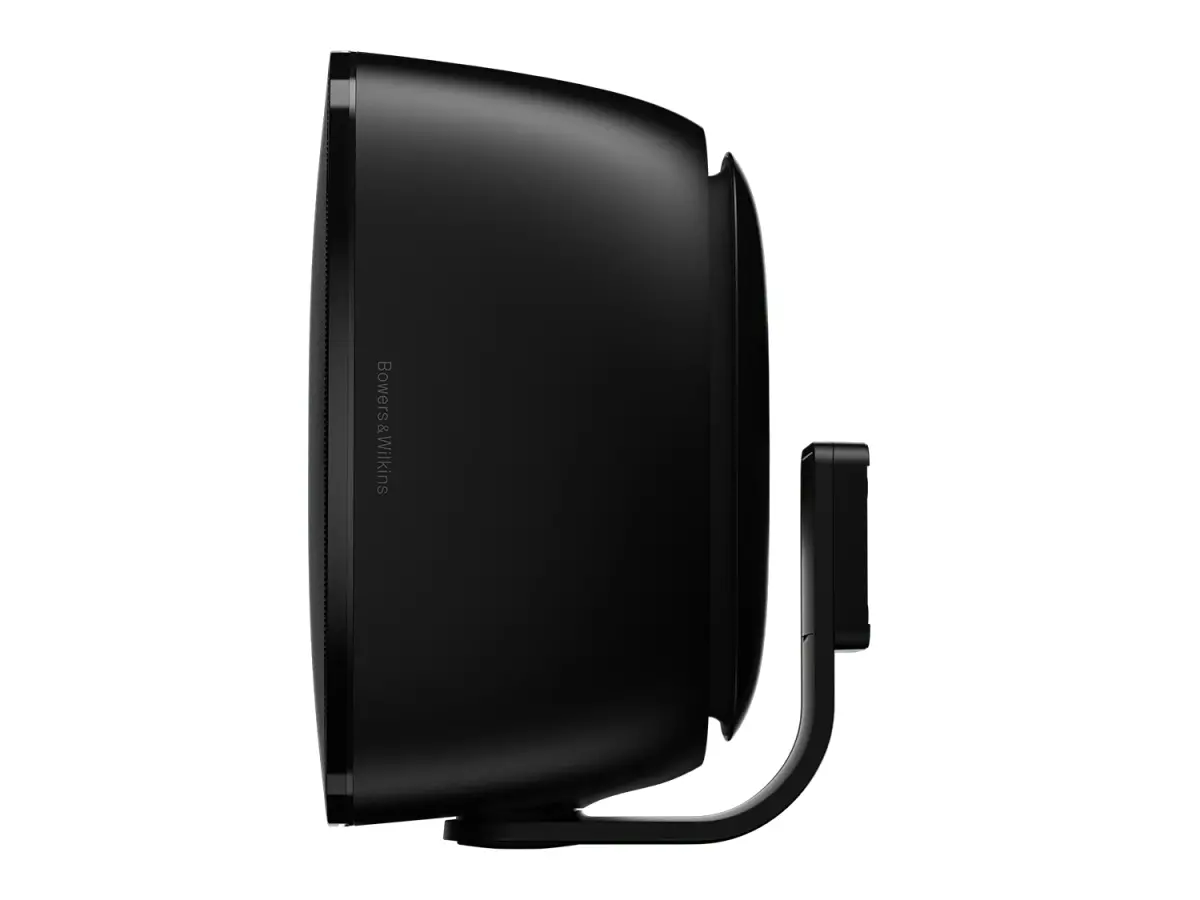

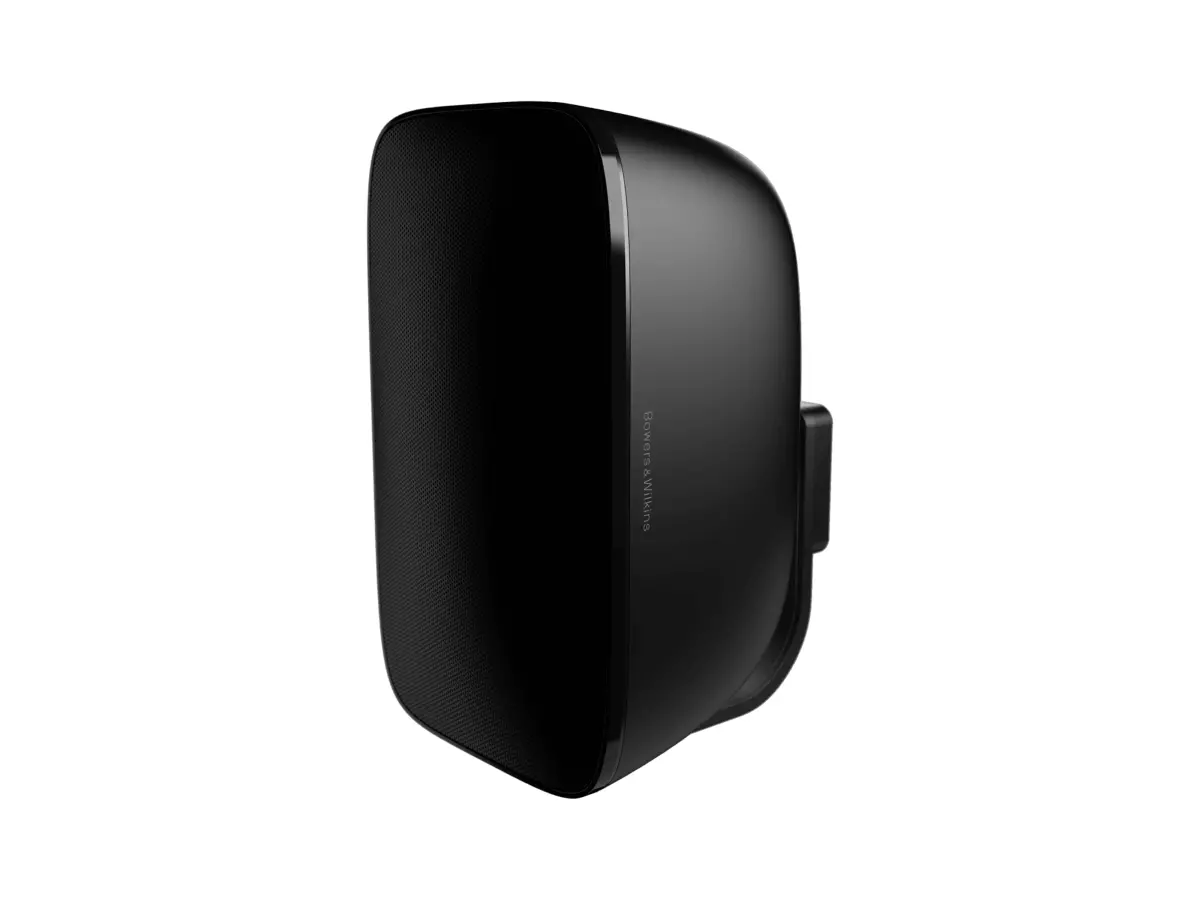

The aluminium mounting bracket is integrated into the cabinet and allows installation on either a wall or ceiling, in both vertical and horizontal orientations. The single-piece mounting system provides up to 220° of rotation, making it easier to position the loudspeaker and direct sound towards the listening area. The mounting design simplifies installation and ensures consistent sound reproduction regardless of the chosen orientation.

With a recommended amplifier power ranging from 20 to 100 W, the AM-1 is suitable for a variety of audio configurations, from residential installations to outdoor environments. Its availability in matte black and matte white finishes also allows it to blend discreetly into different architectural settings.

Technical Specifications:

• Type: 2-way loudspeaker with Auxiliary Bass Radiator (ABR)
• Tweeter: 1 × 25 mm aluminium dome; Nautilus tube-loaded technology
• Mid/bass Driver: 1 × 130 mm glass-fibre cone
• Passive Radiator: ABR (Auxiliary Bass Radiator)
• Frequency Response: 51 Hz – 22 kHz (on reference axis, wall-mounted)
• Frequency Range: -6 dB at 46 Hz and 50 kHz (wall-mounted)
• Sensitivity: 86 dB (2.83 V, 1 m)
• Harmonic Distortion: Less than 1% between 200 Hz and 20 kHz (86 dB, 1 m)
• Nominal Impedance: 8 Ω; minimum 5.2 Ω
• Recommended Amplifier Power: 20 – 100 W into 8 Ω on unclipped programme material
• Environmental Protection: Fully sealed construction; resistant to dust, moisture, corrosion and UV radiation
• Installation: Wall or ceiling mounting; vertical or horizontal orientation
• Mounting Bracket: Integrated aluminium bracket; up to 220° rotation

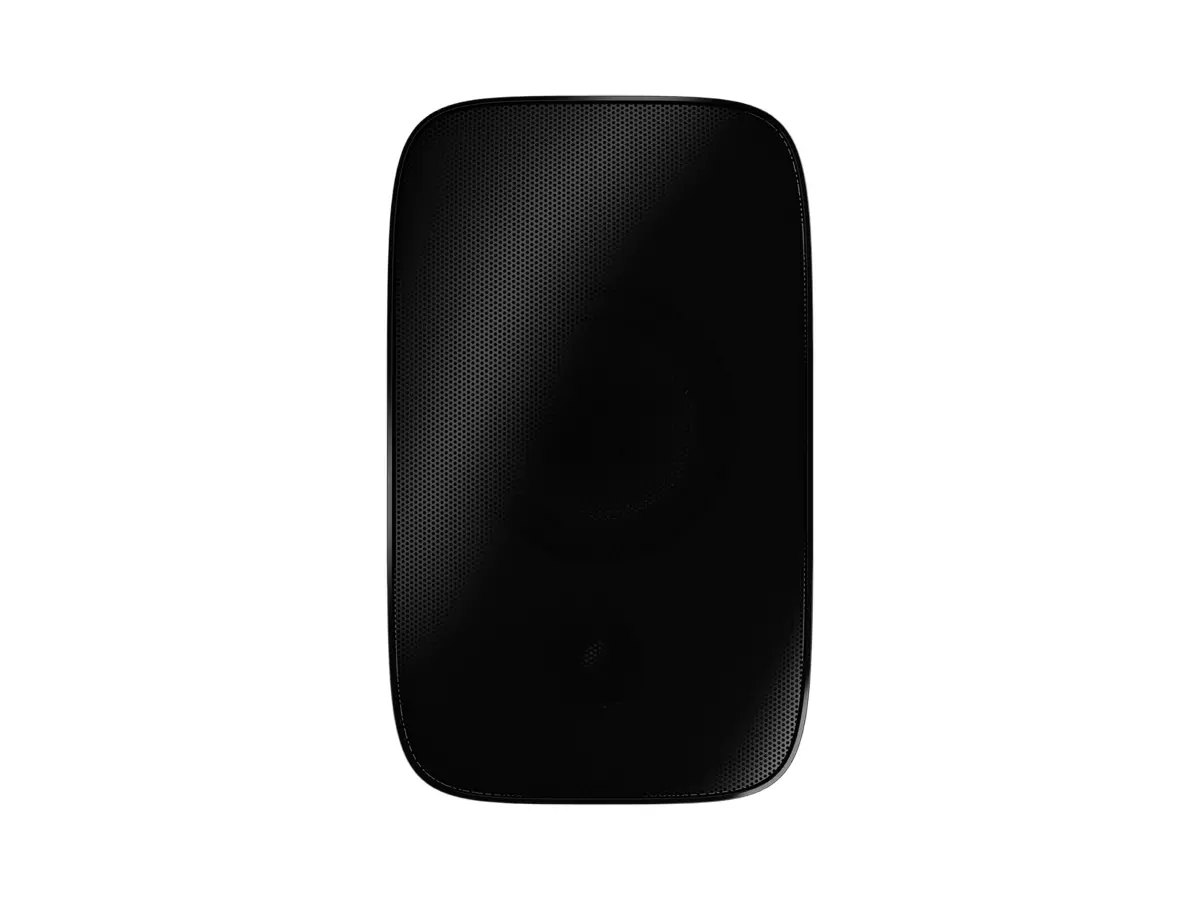

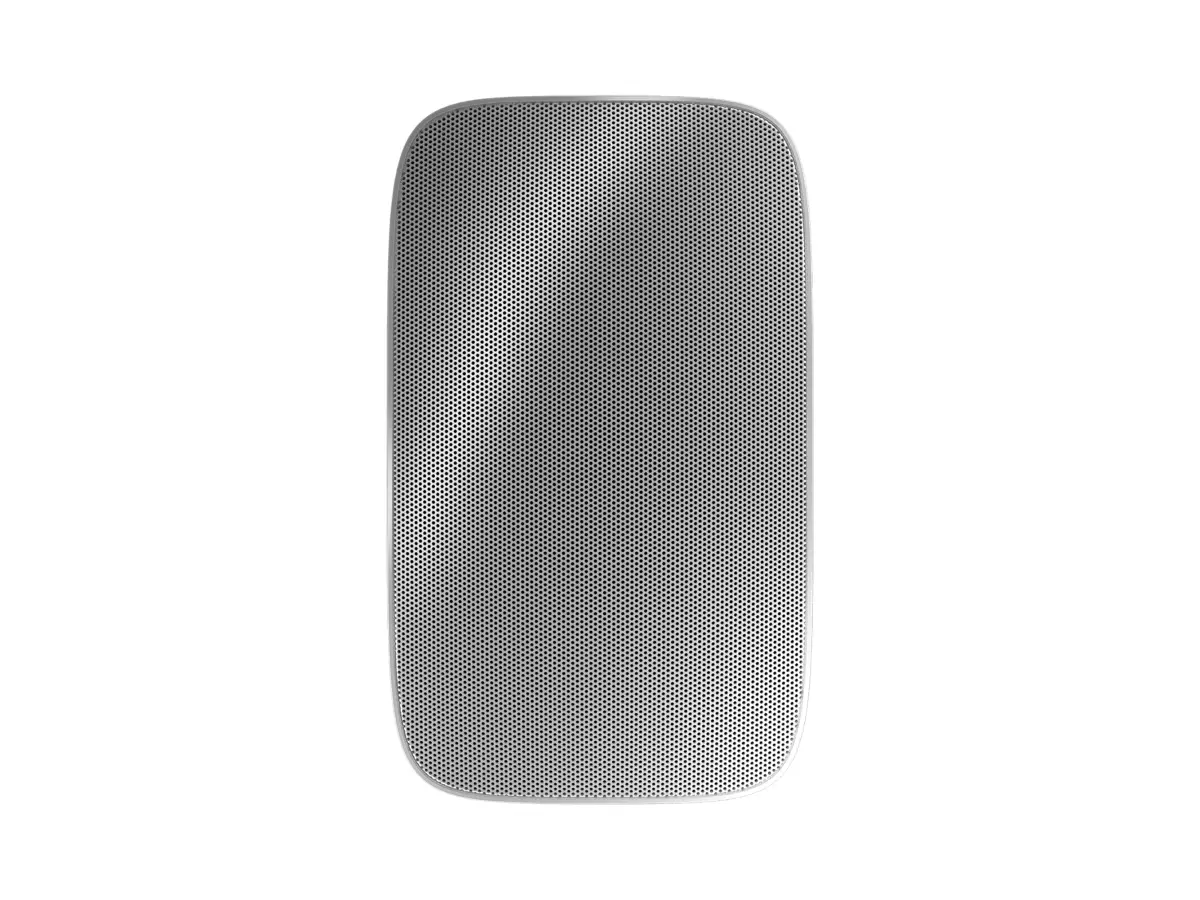

• Finishes: Matte white; matte black
• Dimensions: 180 × 310 × 210 mm (W × H × D)
• Weight: 4 kg
