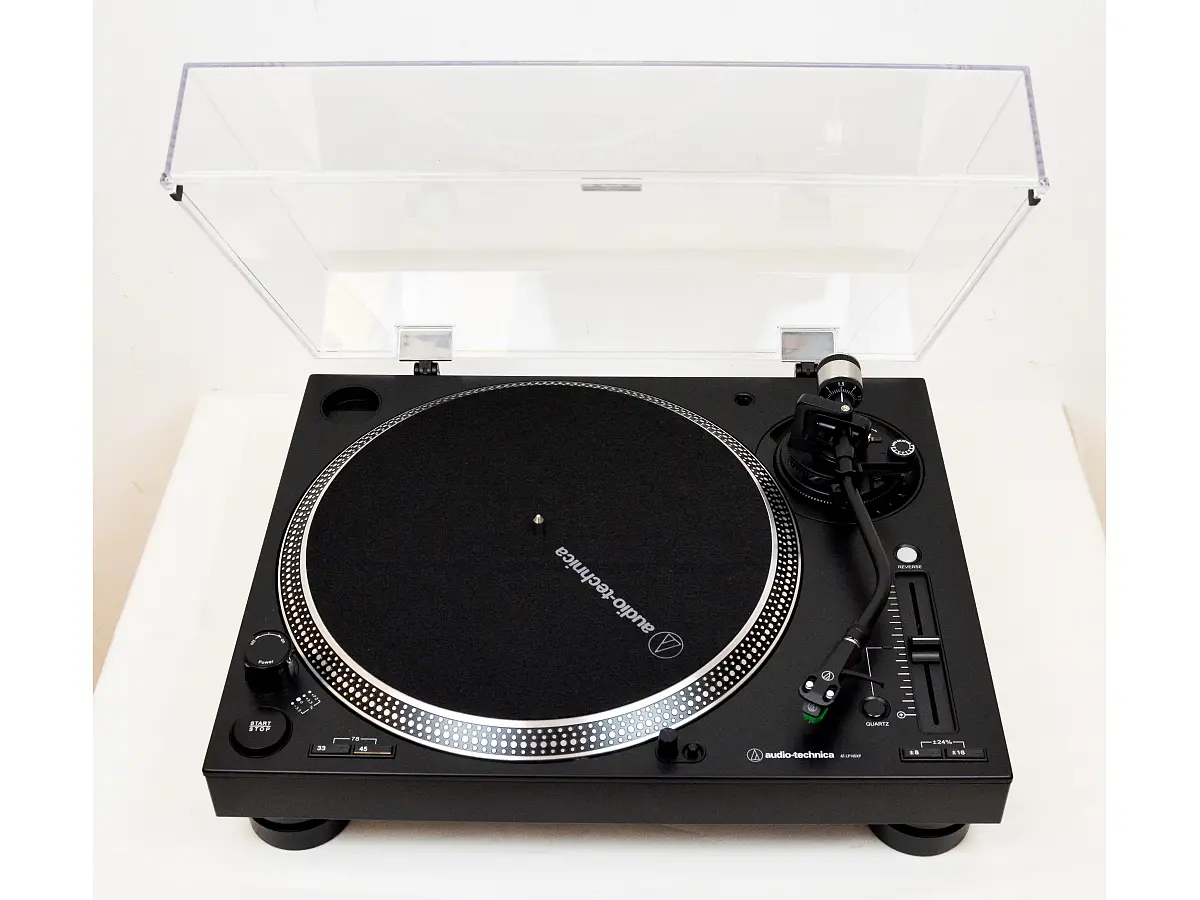

AUDIO TECHNICA AT-LP140XP

Pre onwed. In excellent condition. Free from any visible signs of wear. Supplied with Audio-Technica AT-VM95E cartridge, manual and original packaging.

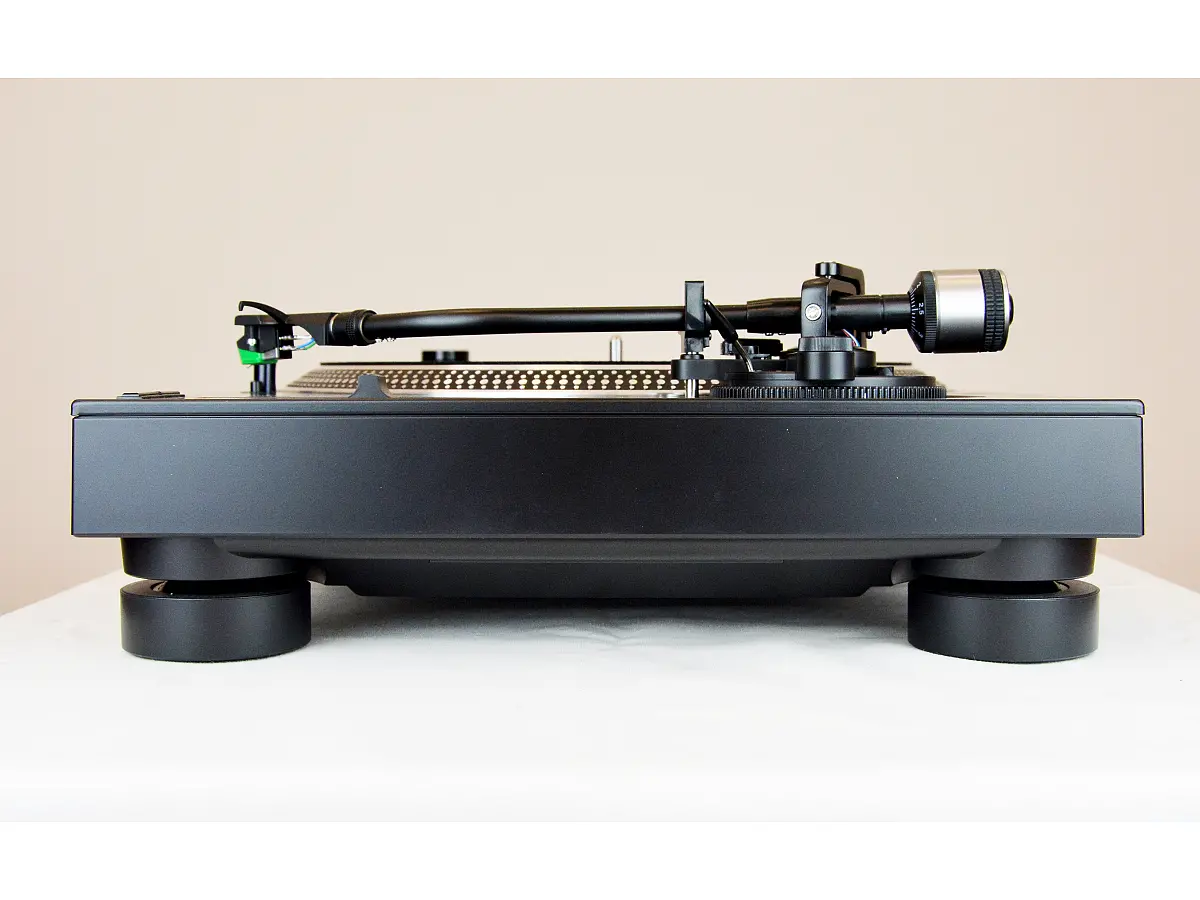

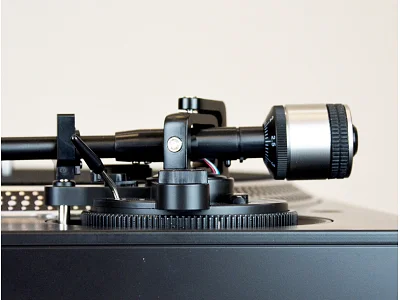

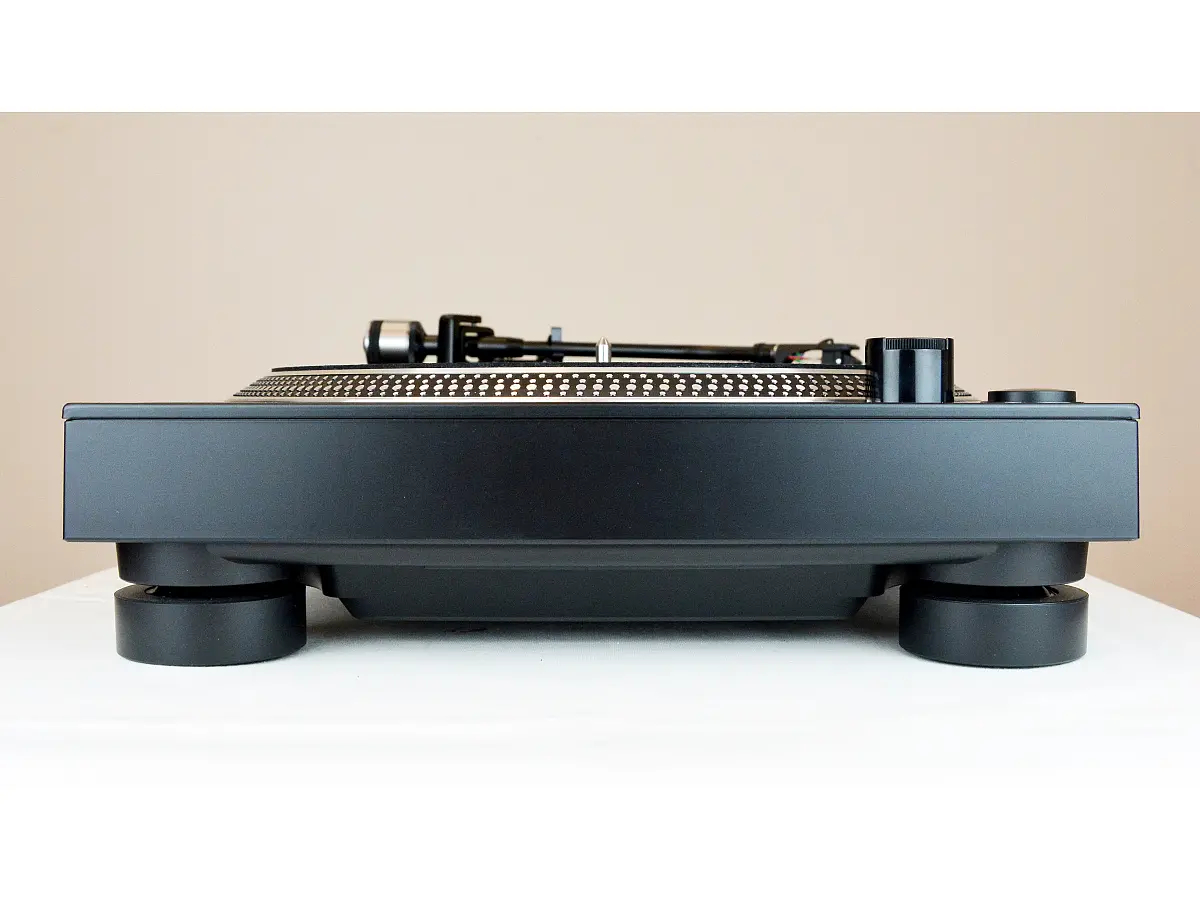

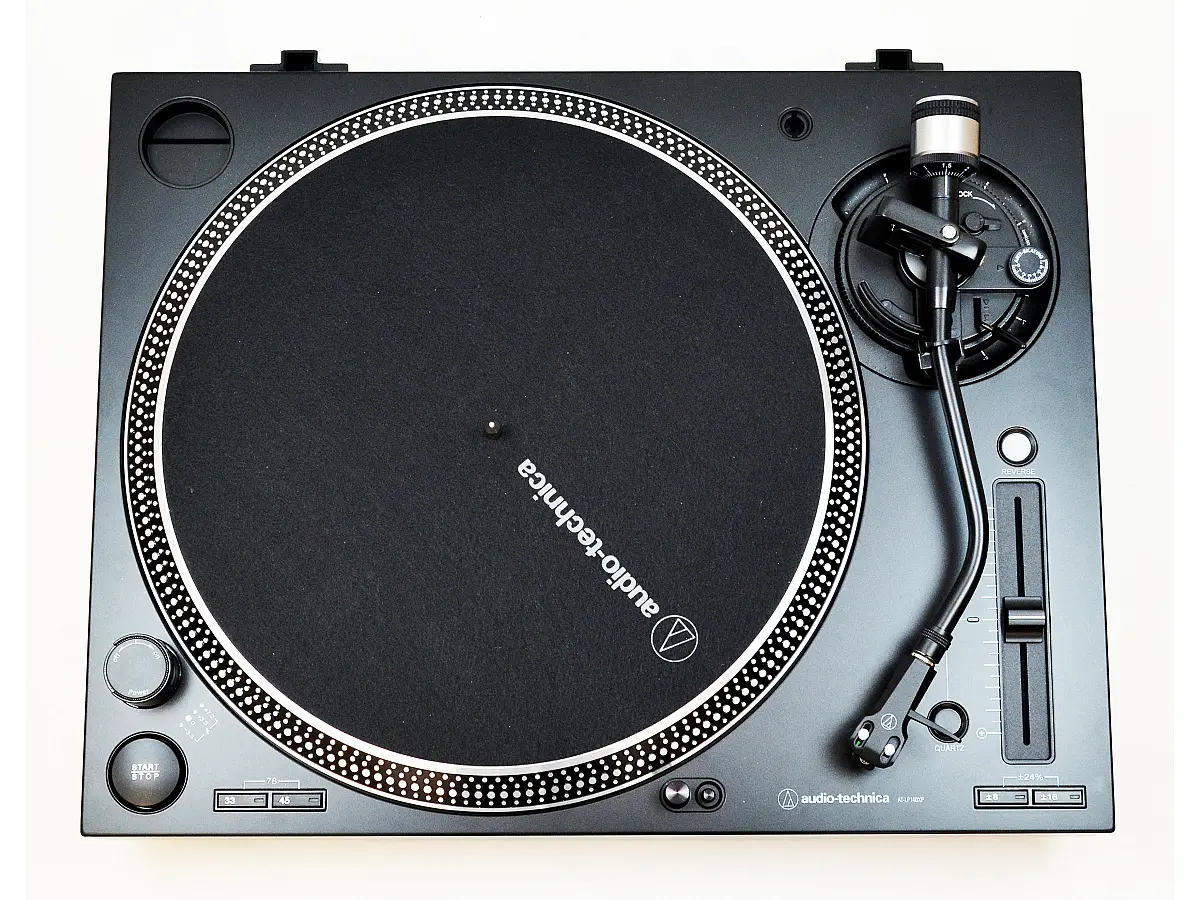

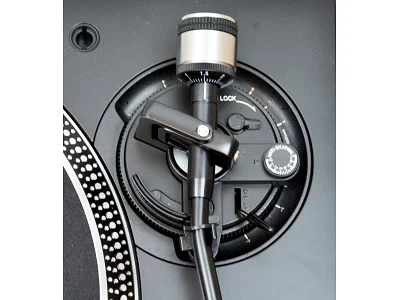

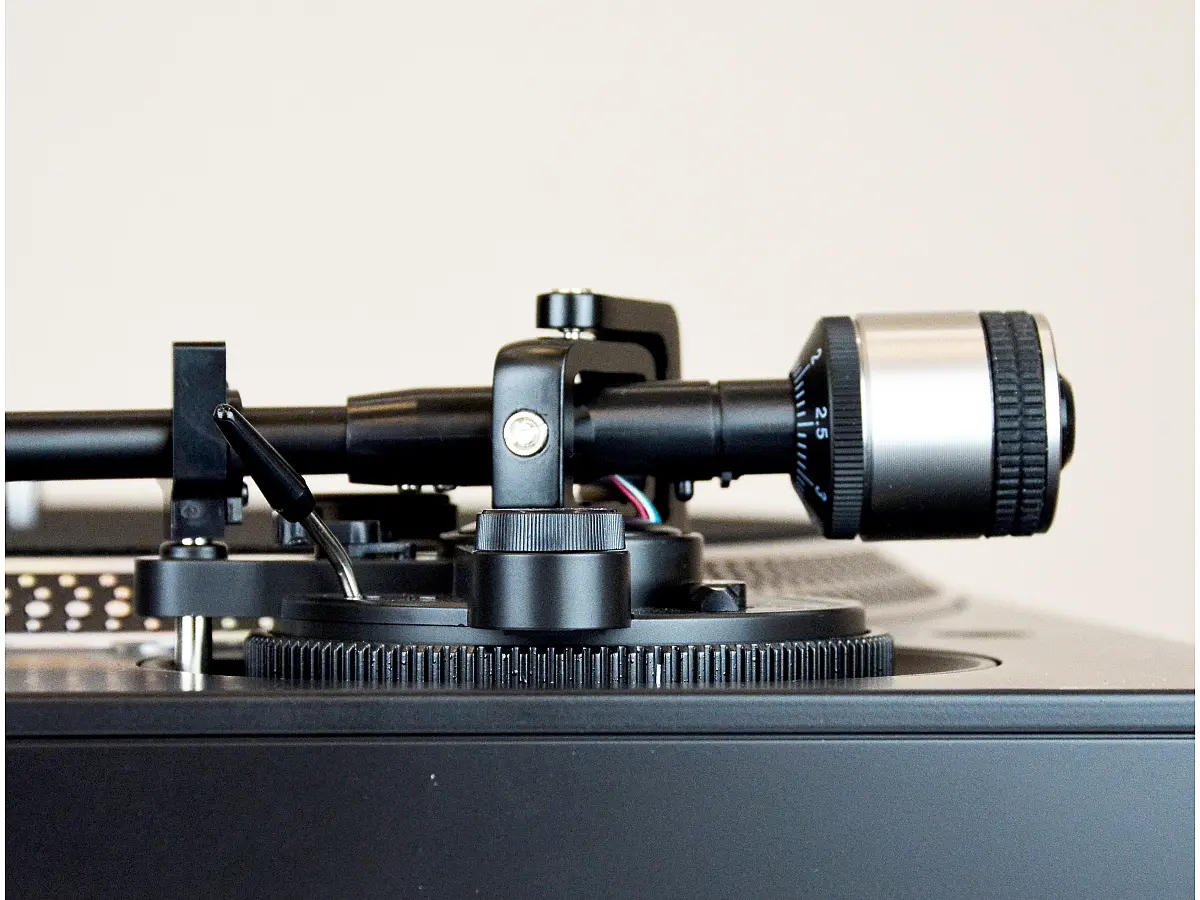

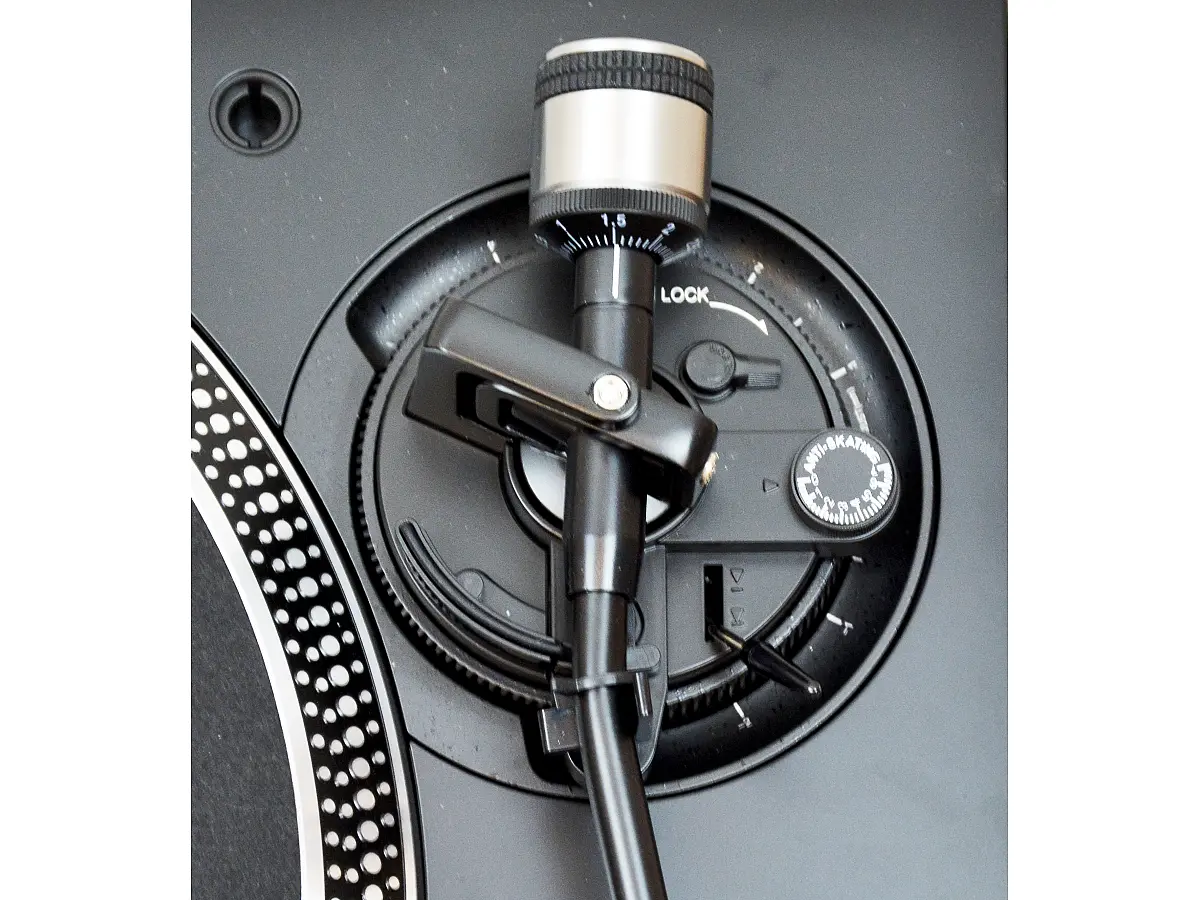

The Audio-Technica AT-LP140XP professional turntable is a fully manual model designed to deliver DJ-level performance and an exceptional vinyl listening experience. Equipped with a high-torque direct-drive motor, it ensures stable and accurate rotation at 33⅓, 45 and 78 rpm, while the die-cast aluminium platter, featuring anti-resonance construction and mass damping, helps minimise unwanted vibrations and guarantees faithful sound reproduction. The S-shaped tonearm, statically balanced and height adjustable, features dynamic anti-skating control and adjustable tracking force, allowing precise cartridge calibration according to the listener’s or DJ’s requirements.

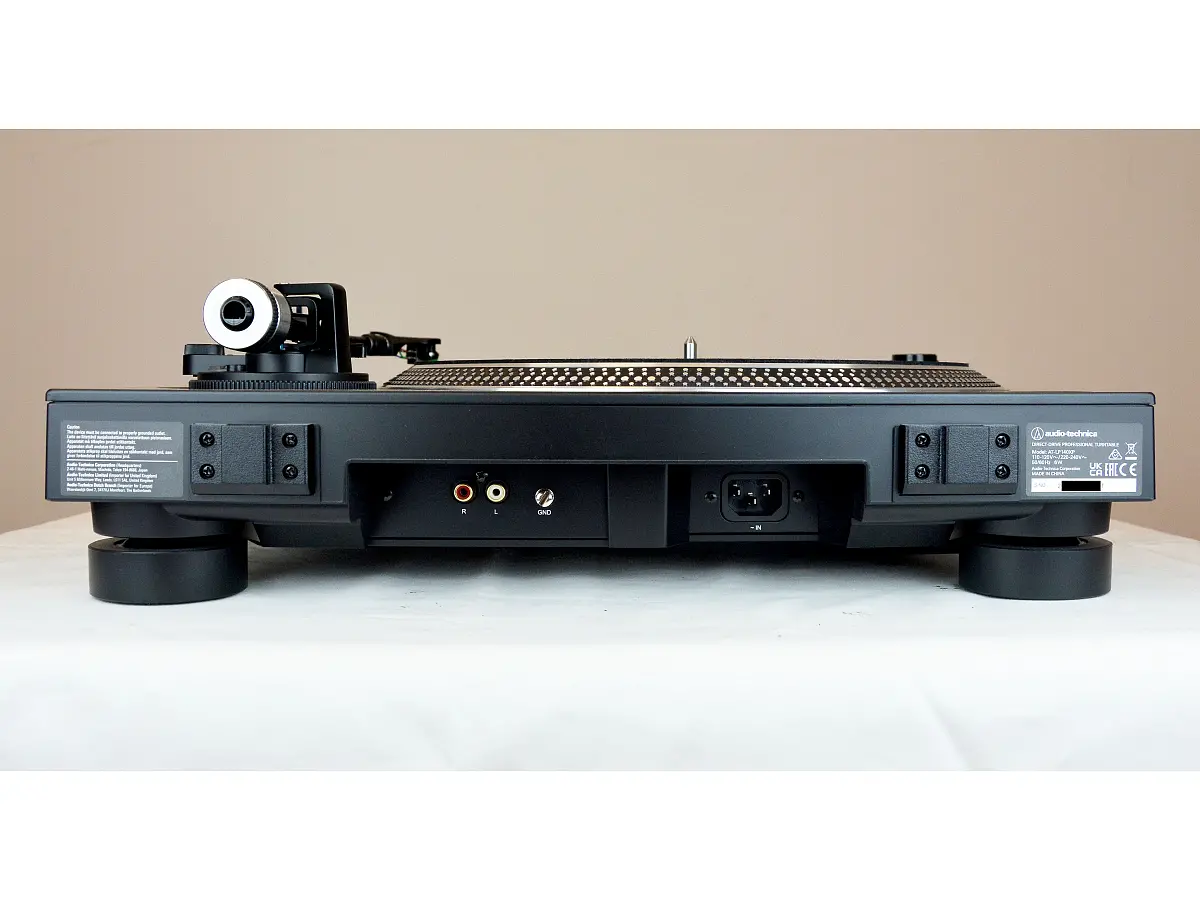

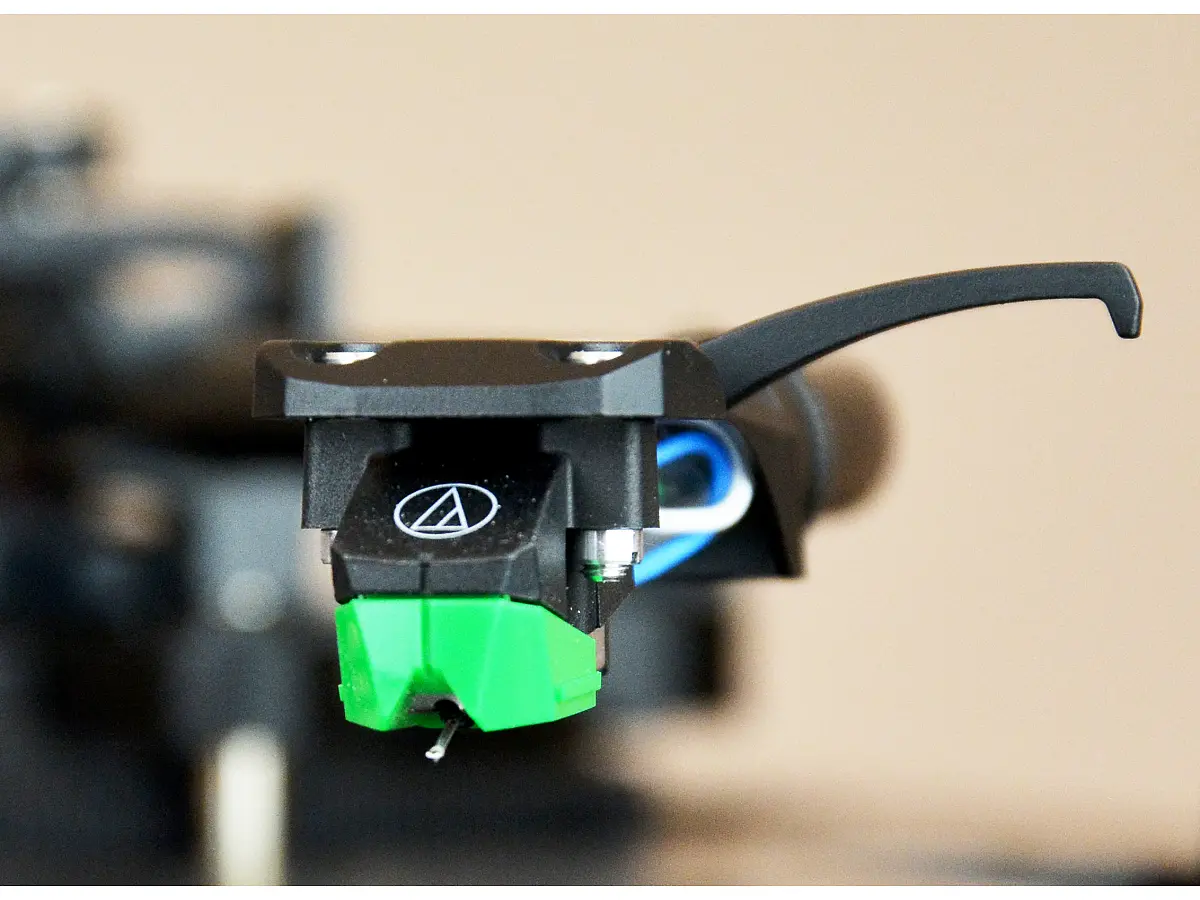

The turntable is equipped with the Audio-Technica AT-VM95E cartridge, a VM dual moving magnet stereo cartridge with an elliptical 0.3 x 0.7 mil bonded stylus, designed to provide a detailed and long-lasting sound performance. It is pre-mounted on the universal AT-HS6 headshell with a standard half-inch mount. The signal is delivered through a dedicated phono output, while the detachable RCA cable allows easy and secure connection to external equipment.

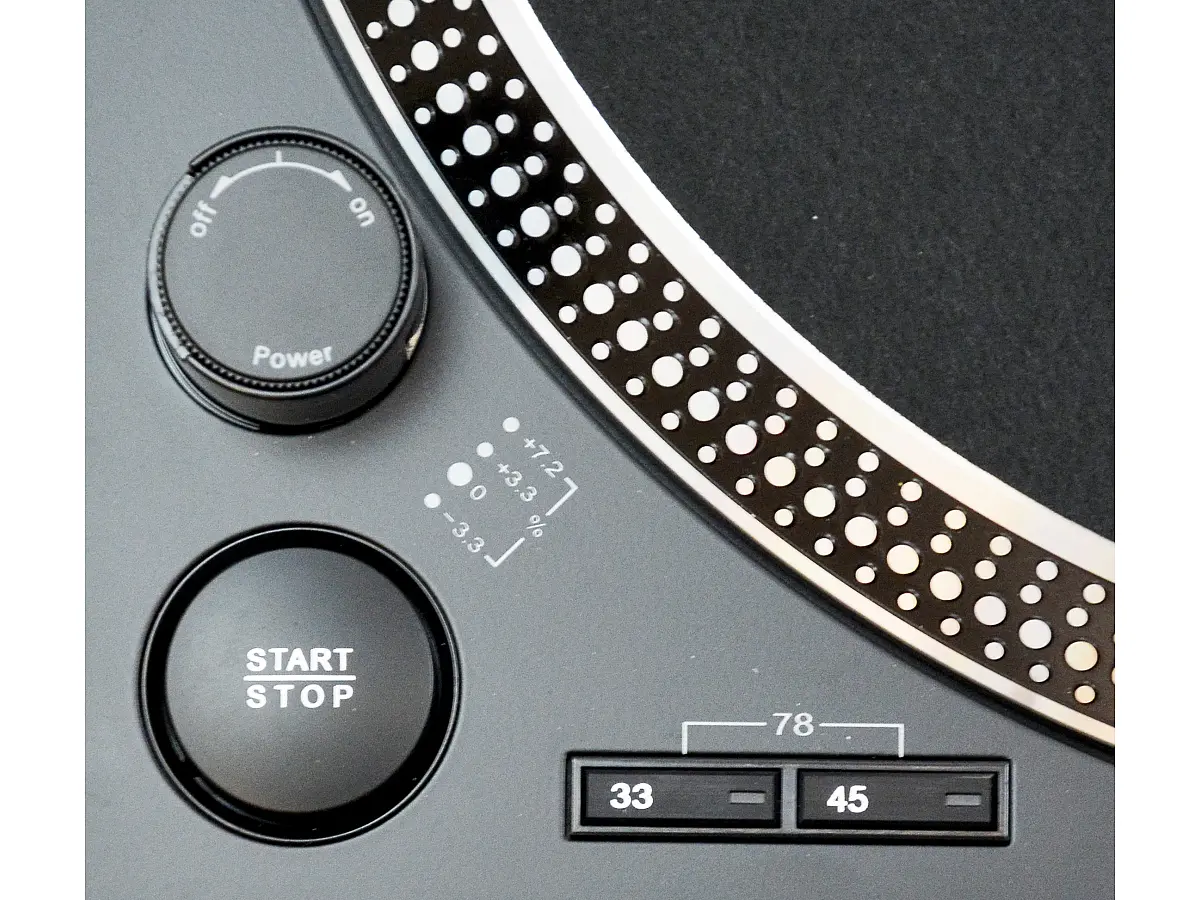

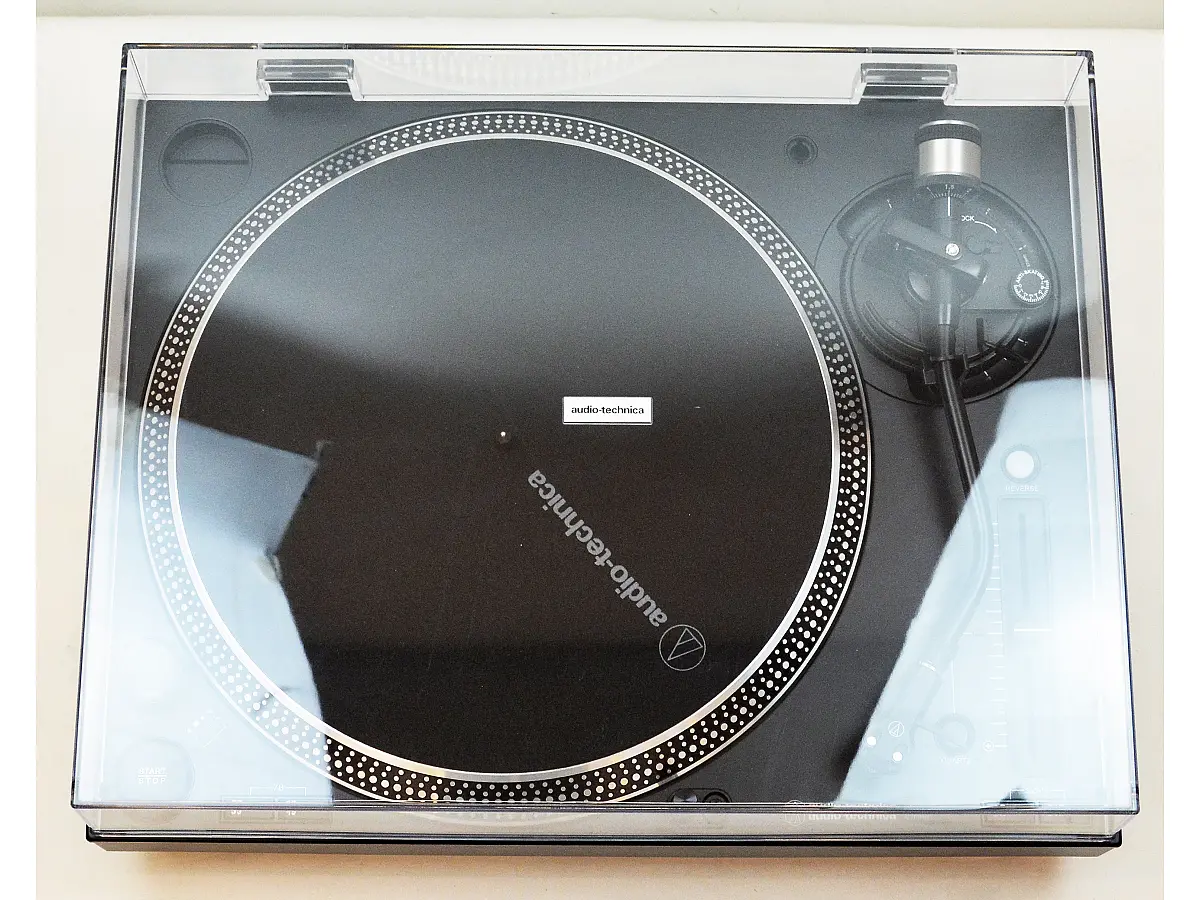

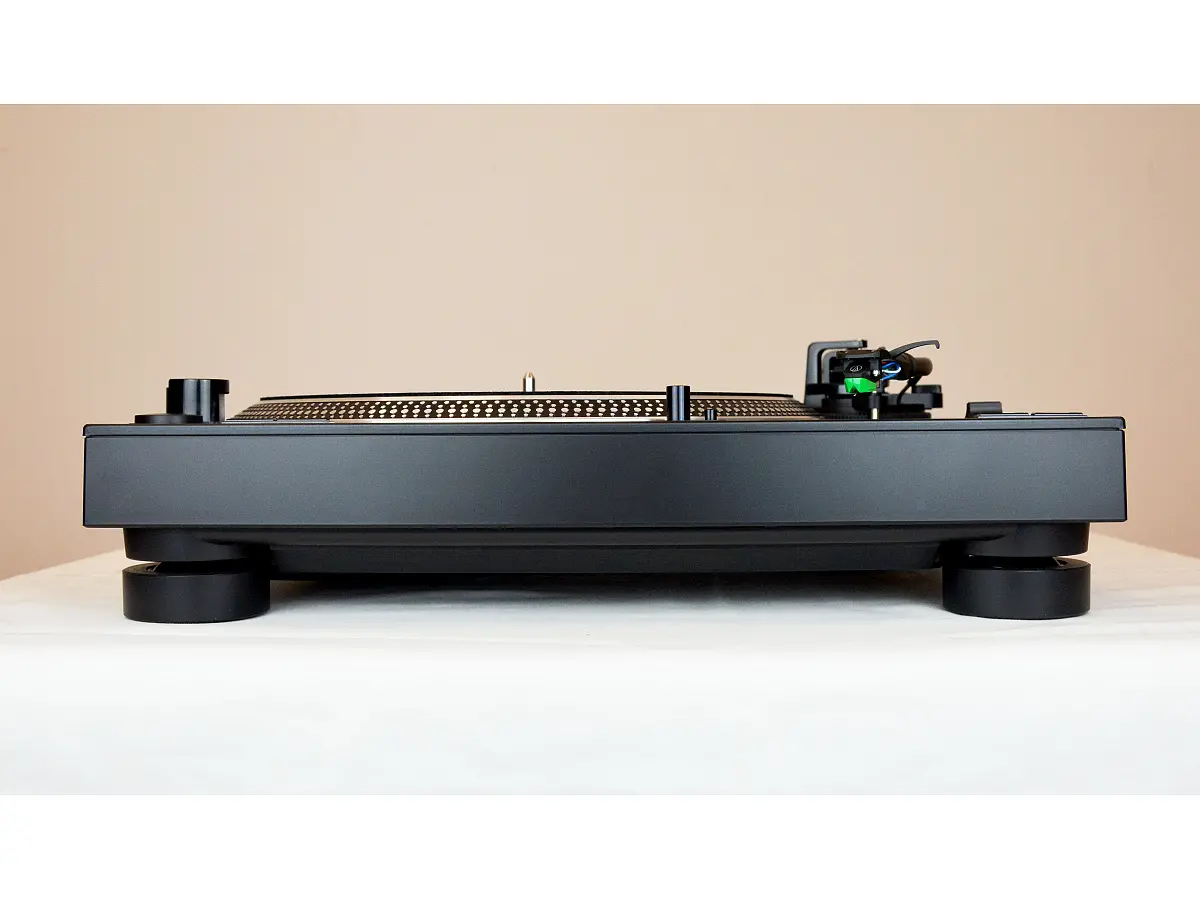

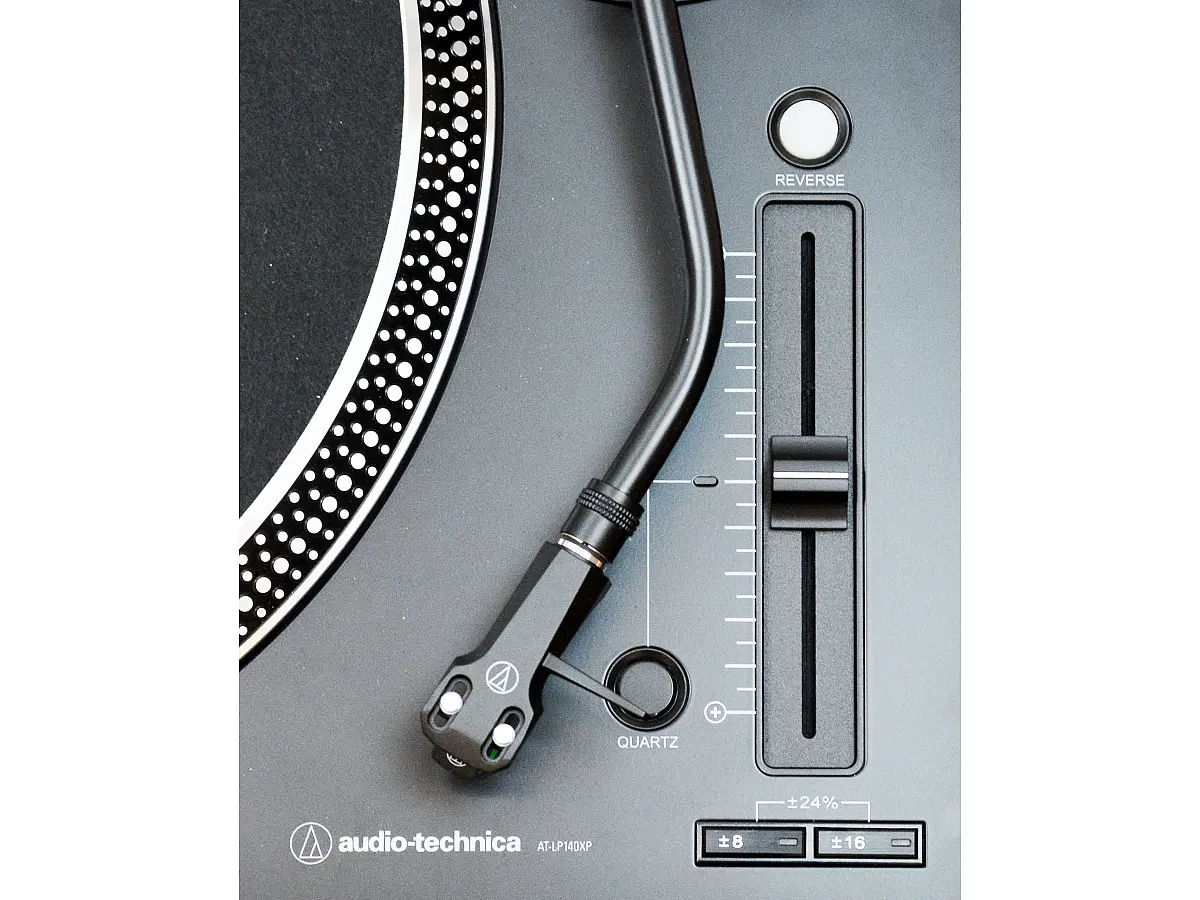

The AT-LP140XP integrates professional features such as start/stop control, forward and reverse playback, quartz-controlled pitch adjustment with three selectable ranges (+/-8%, +/-16%, +/-24%), as well as a stroboscopic platter with speed indicator and a pop-up stylus target light for easier cueing in low-light environments. The damped base effectively reduces low-frequency feedback, while the hinged and removable dust cover protects the turntable when not in use.

Developed from Audio-Technica’s more than fifty years of experience in phono cartridge engineering, this model represents the perfect balance between mechanical precision, robust construction and sonic accuracy. It is ideal both for professional DJ applications and for vinyl enthusiasts seeking superior audio quality from their record collection.

Technical specifications AT-LP140XP:

• Type: Fully manual 3-speed turntable
• Motor: High-torque DC motor
• Drive method: Direct drive
• Rotation speeds: 33⅓ rpm; 45 rpm; 78 rpm
• Platter: Die-cast aluminium
• Starting torque: 2.2 kgf·cm
• Wow & Flutter: <0.2% WRMS (33 rpm)
• Signal-to-noise ratio: >50 dB
• Output level: 5.5 mV nominal at 1 kHz, 5 cm/sec
• Pitch adjustment: ±8%; ±16%; ±24%
• Power supply: 115/230V AC, 60/50 Hz
• Weight: 10.0 kg

Technical specifications AT-VM95E:

• Type: VM stereo dual moving magnet cartridge
• Mounting: Standard 1/2-inch mount
• Frequency response: 20 - 22,000 Hz
• Channel separation: 20 dB (1 kHz)
• Output channel balance: 2.0 dB (1 kHz)
• Output voltage: 4.0 mV (at 1 kHz, 5 cm/sec)
• Vertical tracking angle (VTA): 23°
• Vertical tracking force: 1.8 - 2.2 g (standard 2.0 g)
• Stylus shape: Elliptical
• Stylus size: 0.3 x 0.7 mil
• Stylus construction: Bonded round shank
• Cantilever: Aluminium pipe
• Coil impedance: 3.3 kΩ (1 kHz)
• Coil inductance: 550 mH (1 kHz)
• DC resistance: 485 Ω
• Static compliance: 17 x 10⁻⁶ cm/dyne
• Dynamic compliance: 7 x 10⁻⁶ cm/dyne (100 Hz)
• Coil wire material: T.P. copper
• Recommended load impedance: 47,000 Ω
• Recommended load capacitance: 100 - 200 pF
• Compatible replacement stylus: AT-VMN95E
• Included accessories: Two 11 mm mounting screws; two 8 mm mounting screws; two washers
• Dimensions (H x W x D): 17.2 x 18.9 x 28.3 mm
• Weight: 6.1 g
