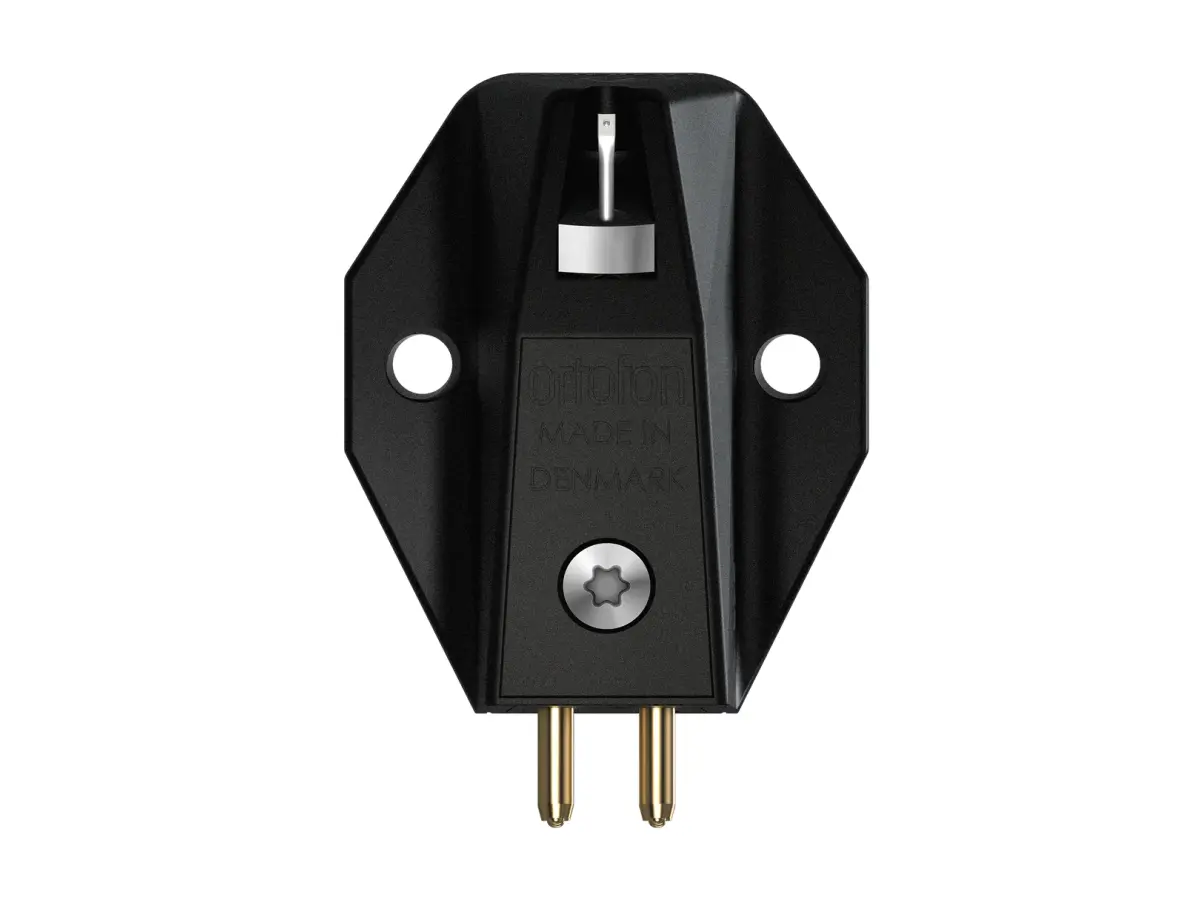

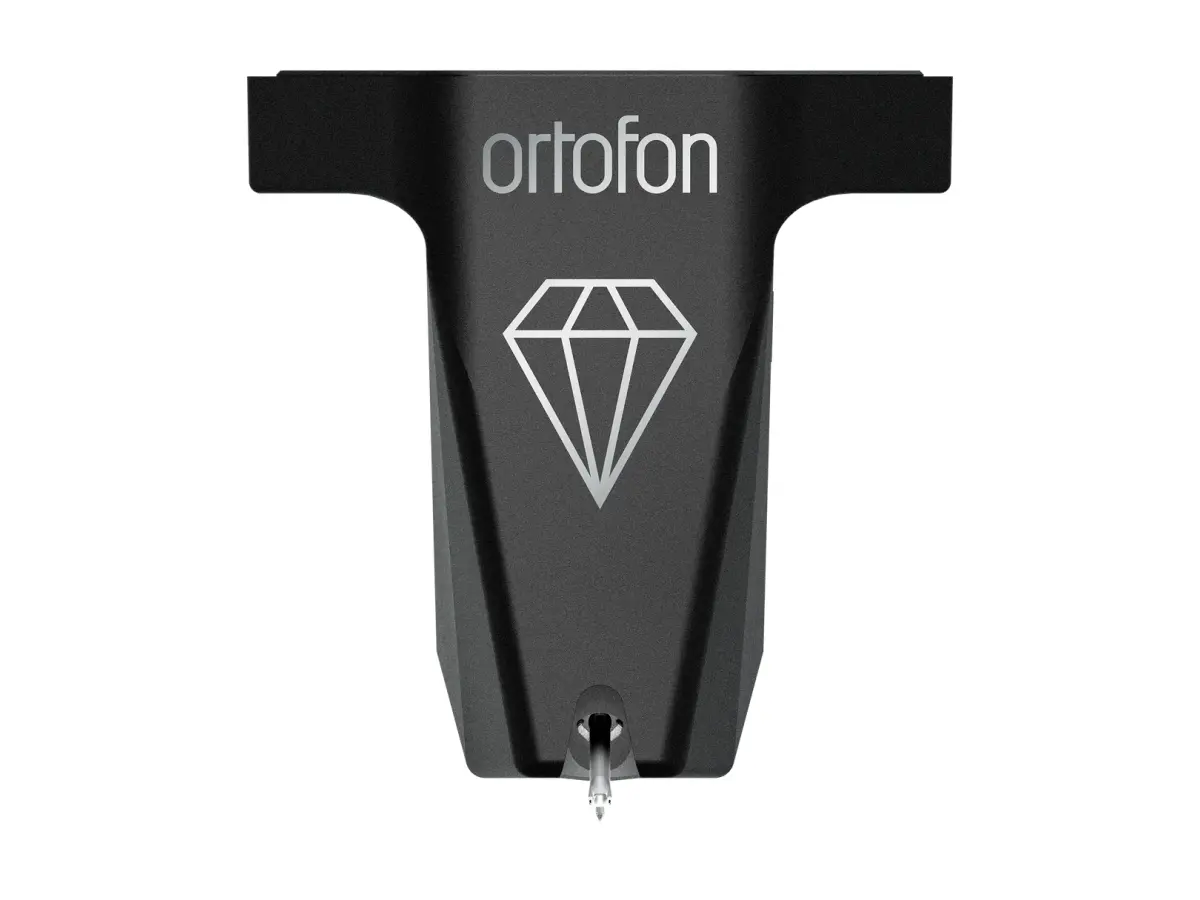

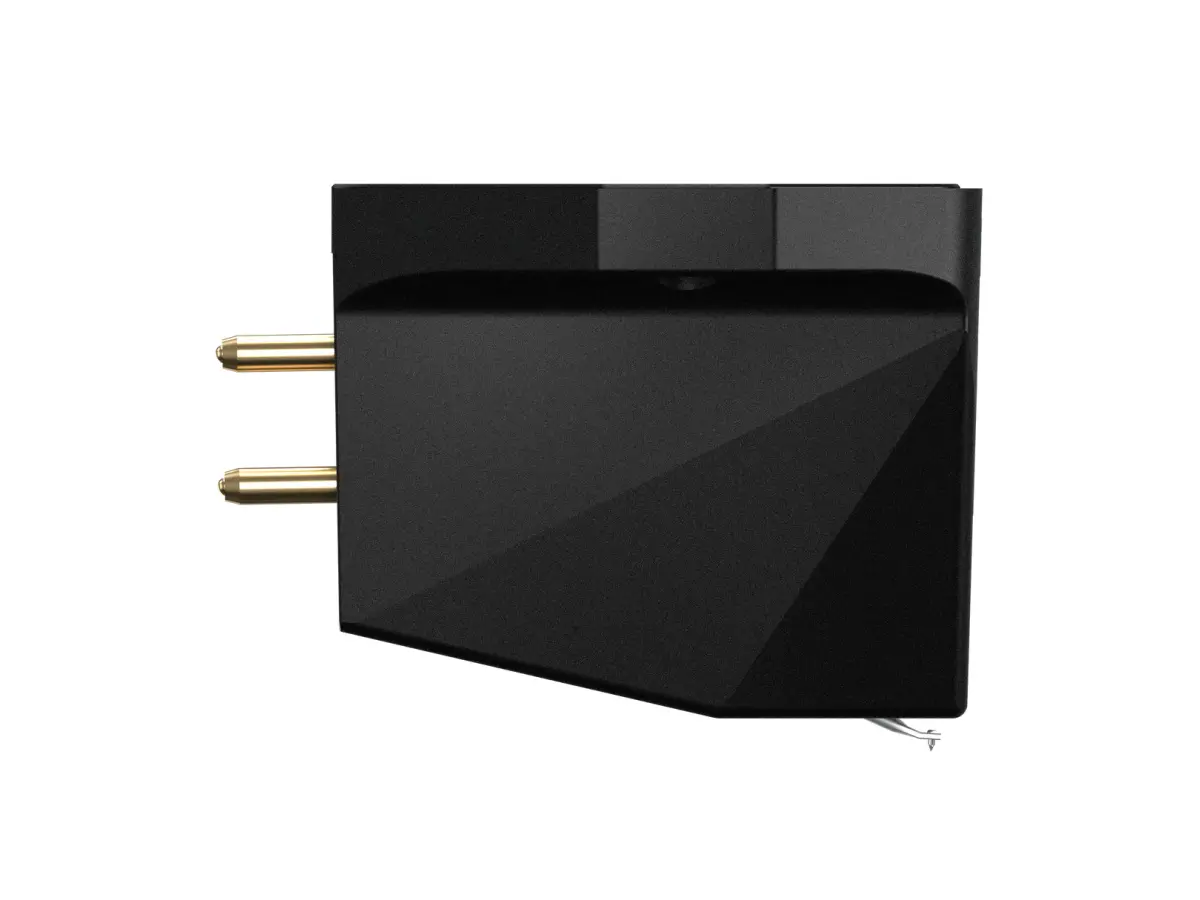

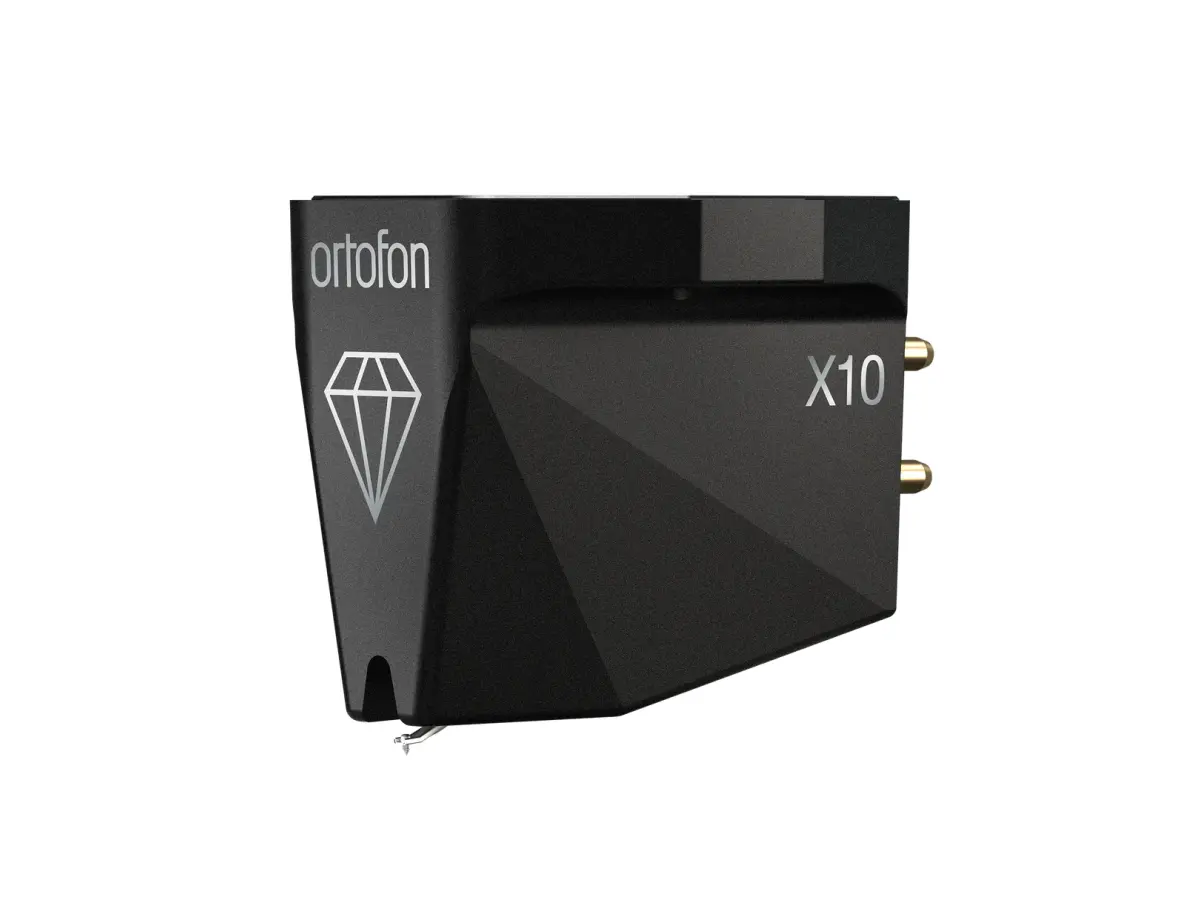

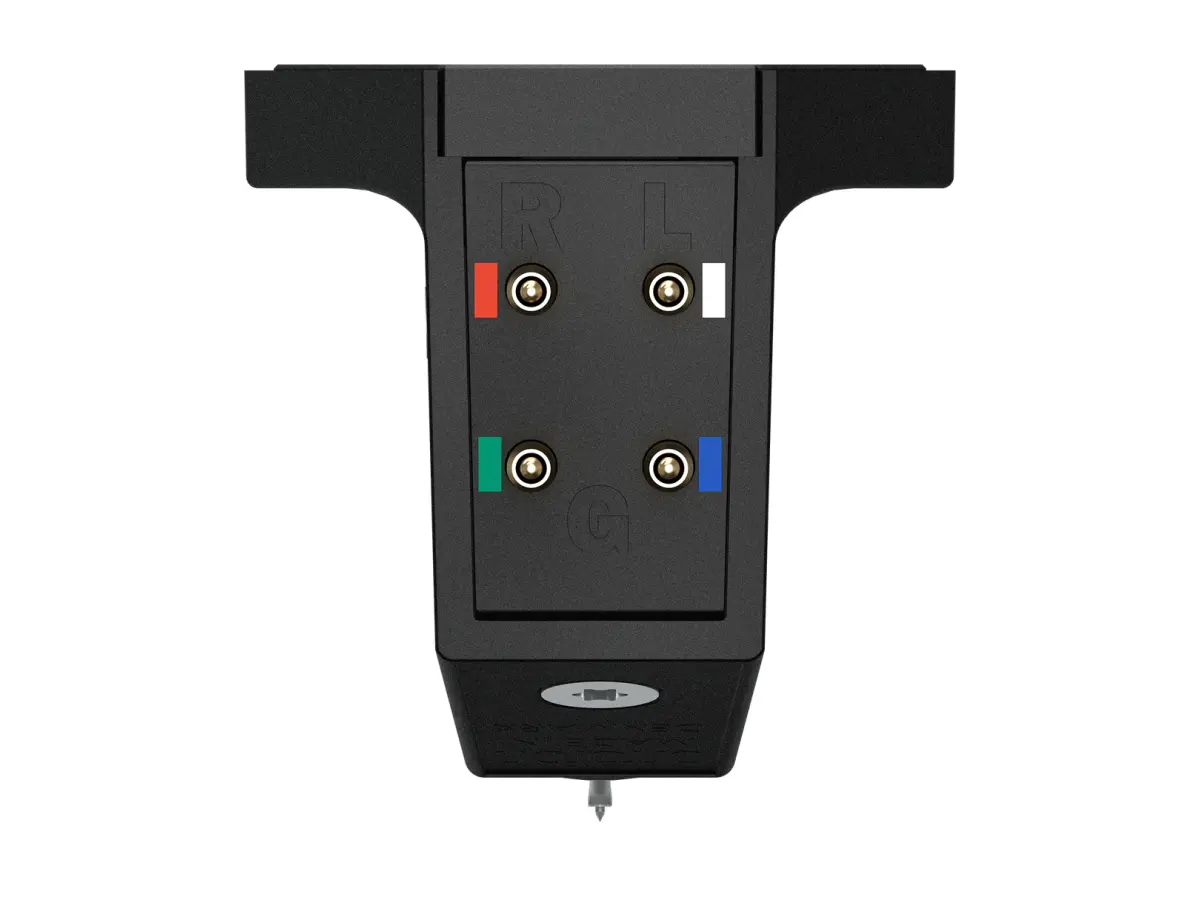

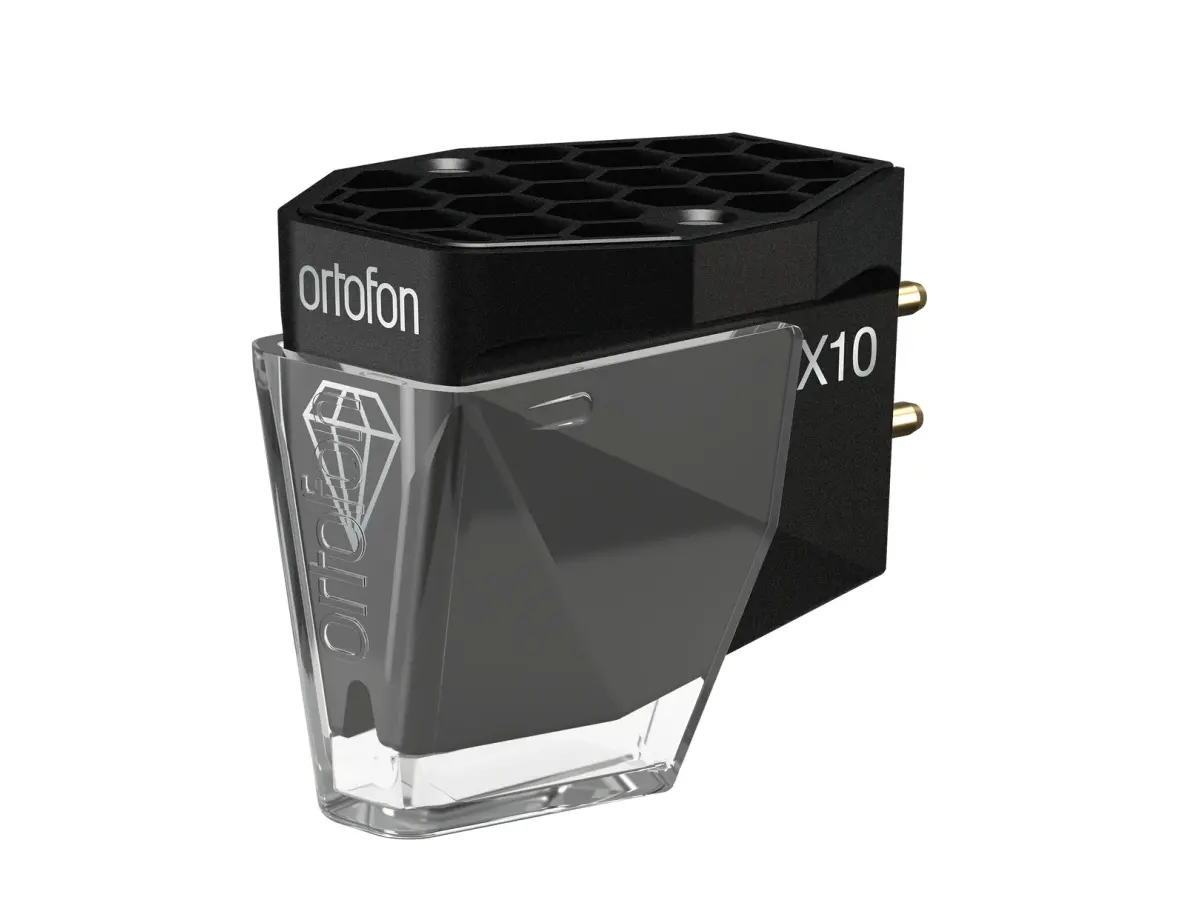

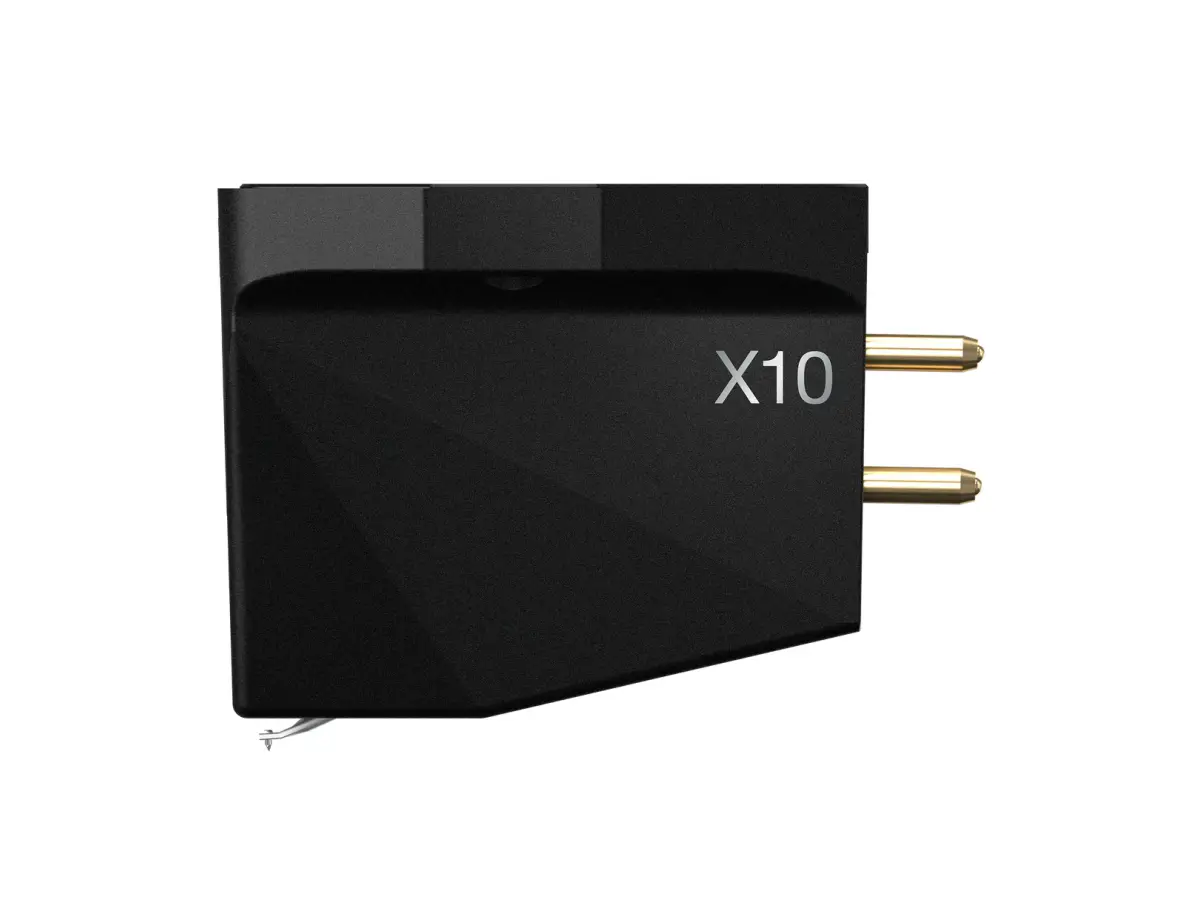

ORTOFON MC X10

The MC X10 represents the ideal starting point for a high-fidelity listening experience, transforming the signal engraved in the vinyl groove into a rich, engaging, and precise sound. Thanks to its finely polished elliptical diamond stylus, the cartridge delivers clear and detailed reproduction, capable of enhancing every musical nuance.

Within the MC X Series, Ortofon redefines the standards of premium Moving Coil cartridges, pushing this technology to even higher levels of performance. The coils, wound with high-purity silver wire, ensure an exceptionally clean signal path, preserving sonic integrity and delivering outstanding precision. The newly developed magnet system, featuring a one-piece pole cylinder integrated into the rear yoke, is designed to maximize magnetic efficiency and, in combination with the silver coils, provides a powerful, interference-free output. Internally developed rubber dampers also play a key role, precisely controlling coil movement, reducing unwanted vibrations, and improving stability, resulting in accurate tracking and minimal distortion.

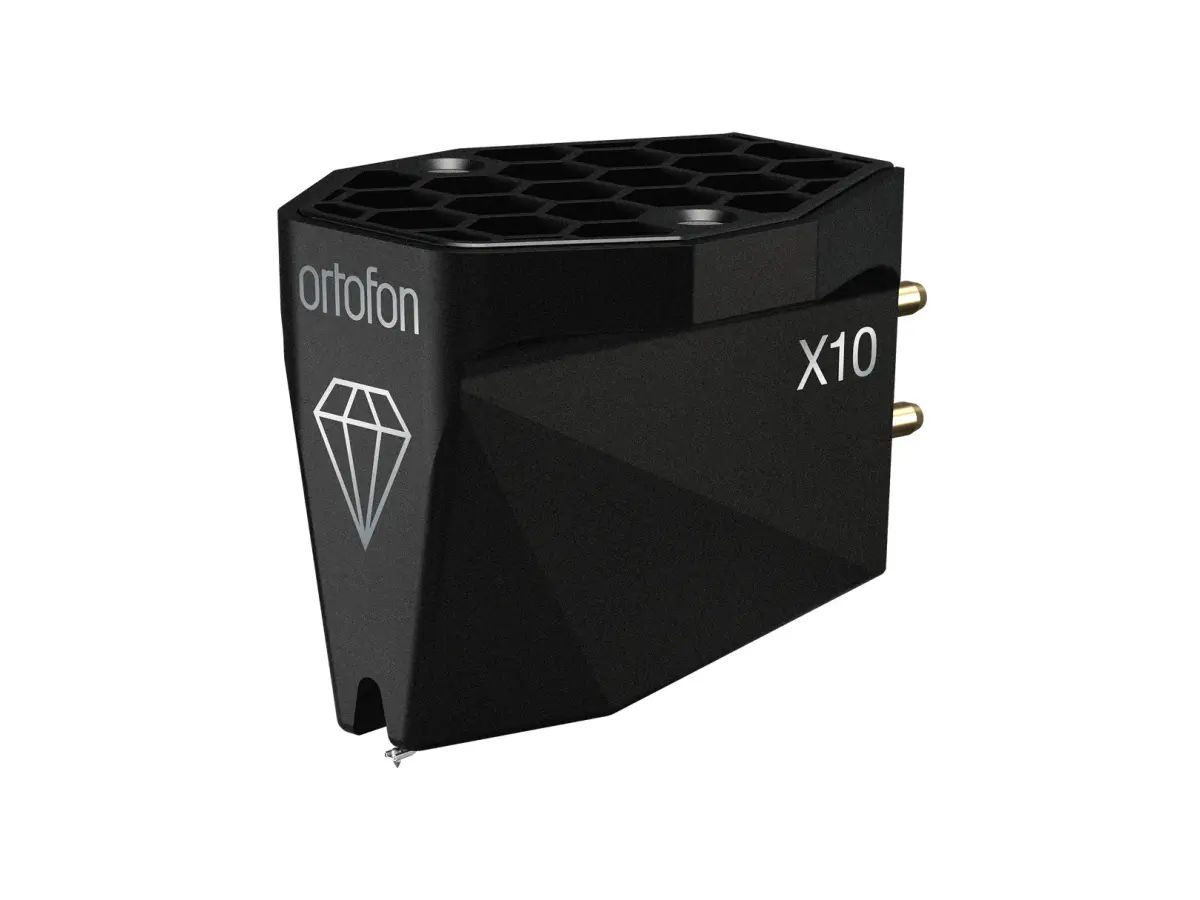

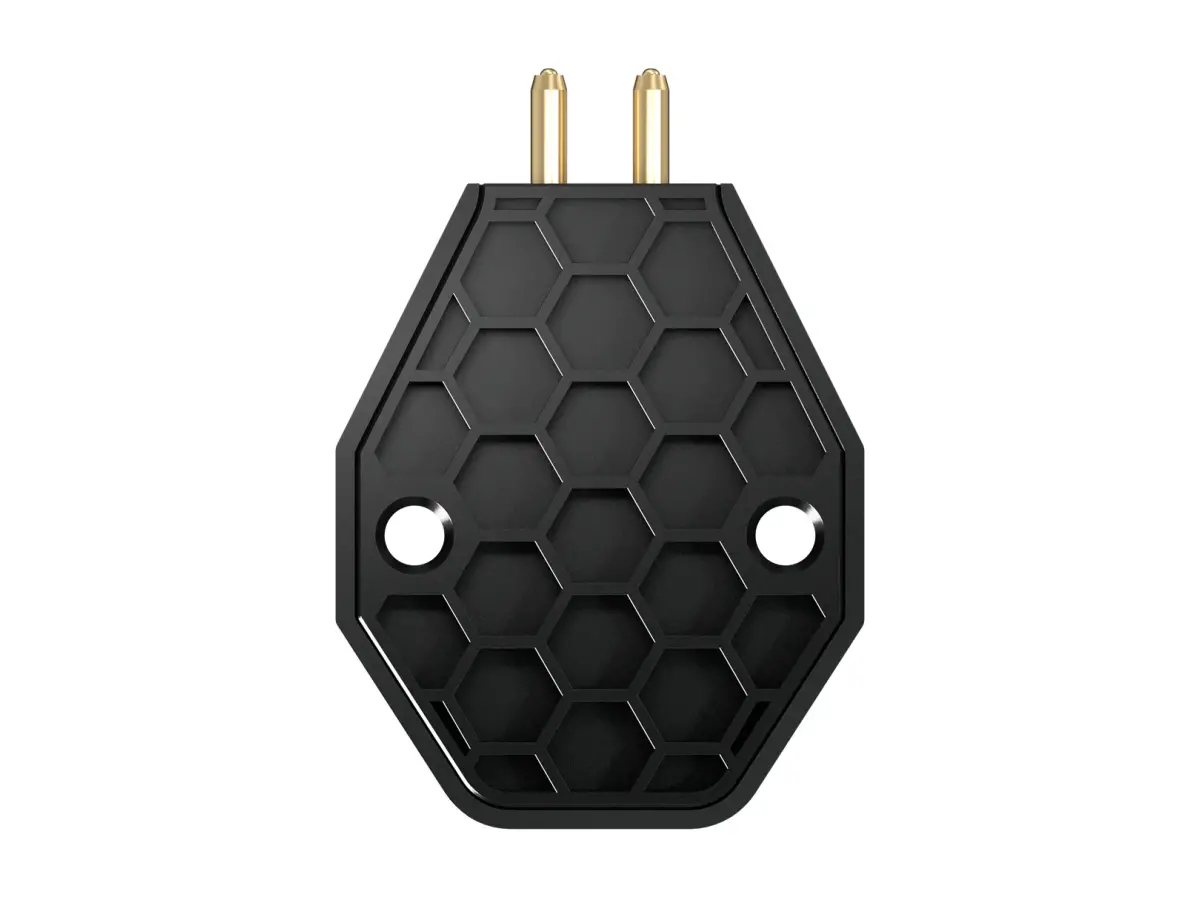

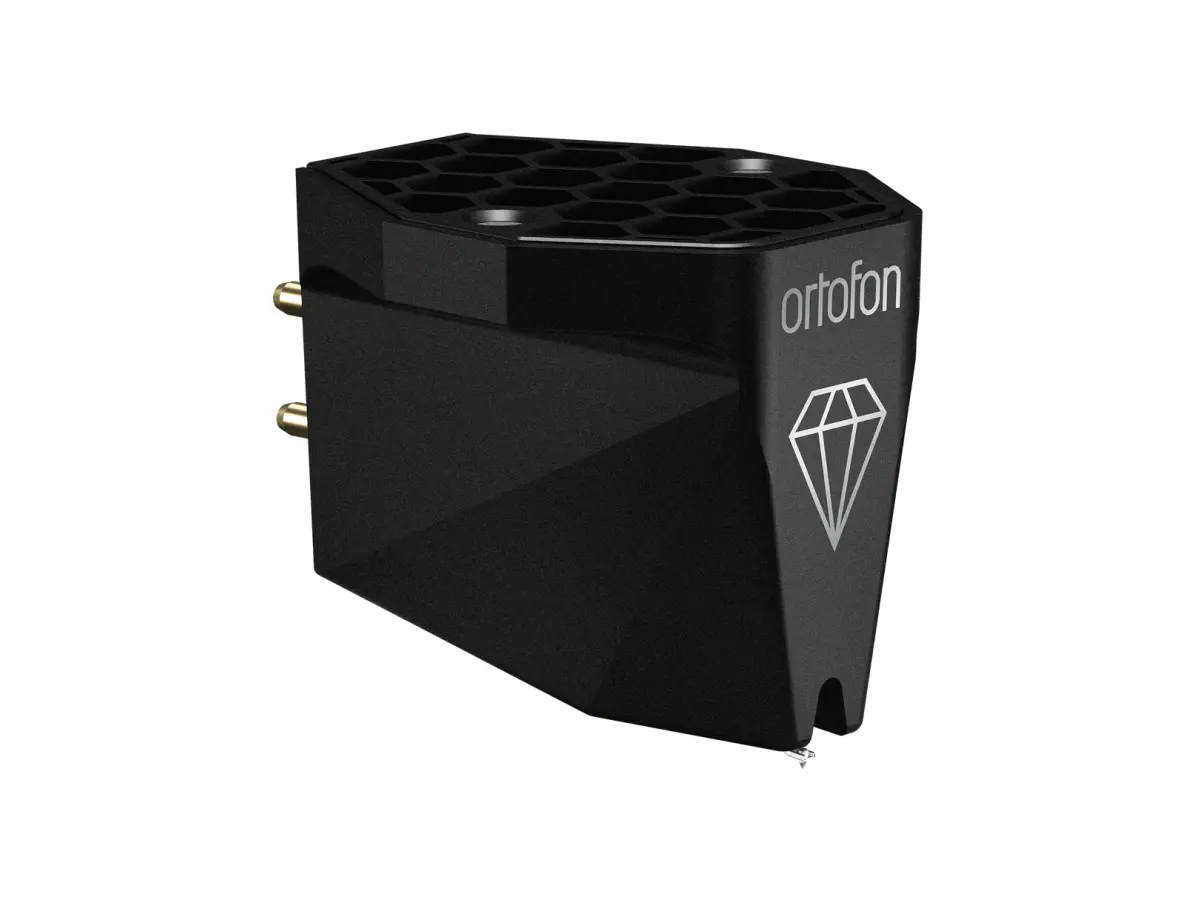

The supporting structure in stainless steel with a honeycomb geometry, manufactured using MIM technology, offers high mechanical rigidity and forms an ideal foundation for faithful and natural sound reproduction; the PVD surface treatment applied after sintering helps preserve the material’s appearance and properties over time. The essential and elegant design integrates seamlessly with the tonearm and reflects Ortofon’s unmistakable style, combining formal balance and functionality in a product designed for those who want to hear every detail of the music.

Technical specifications:

• Channel balance at 1 kHz: 0.5 dB
• Output voltage at 1 kHz, 5 cm/sec: 0.4 mV
• Channel separation at 1 kHz: 24 dB
• Frequency response: 20 Hz – 20 kHz; tolerance +/- 2 dB
• Compliance, dynamic, lateral: 13 μm/mN
• Cantilever material: aluminium
• Stylus type: elliptical; stylus tip radius r/R 8/18 μm
• Stylus suspensions: Ortofon exclusive
• Coil system: quad coils
• Recommended tracking force: 2.0 g
• Internal impedance, DC resistance: 6 Ω
• Coil wire material: high-purity silver
• Recommended load resistance: > 50 Ω
• Cartridge weight: 8.6 g
