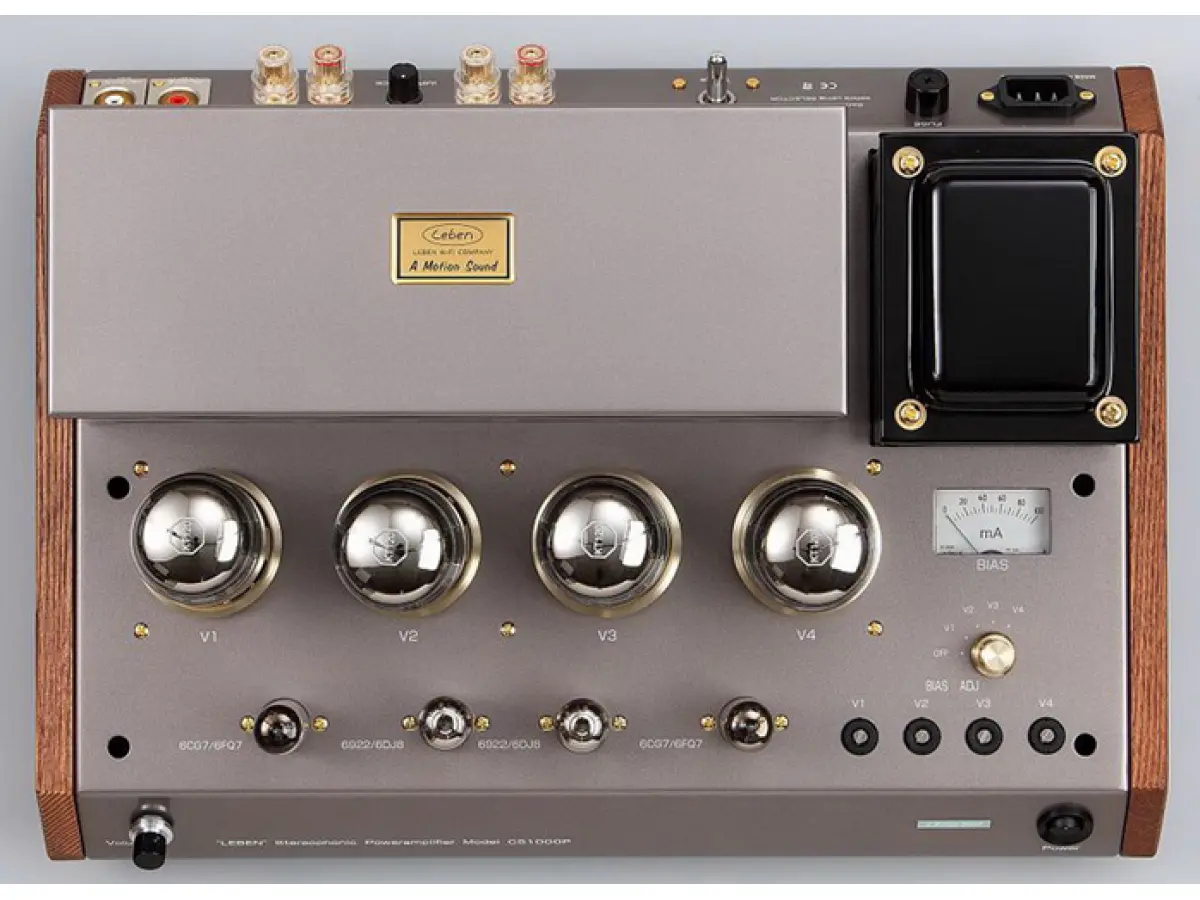

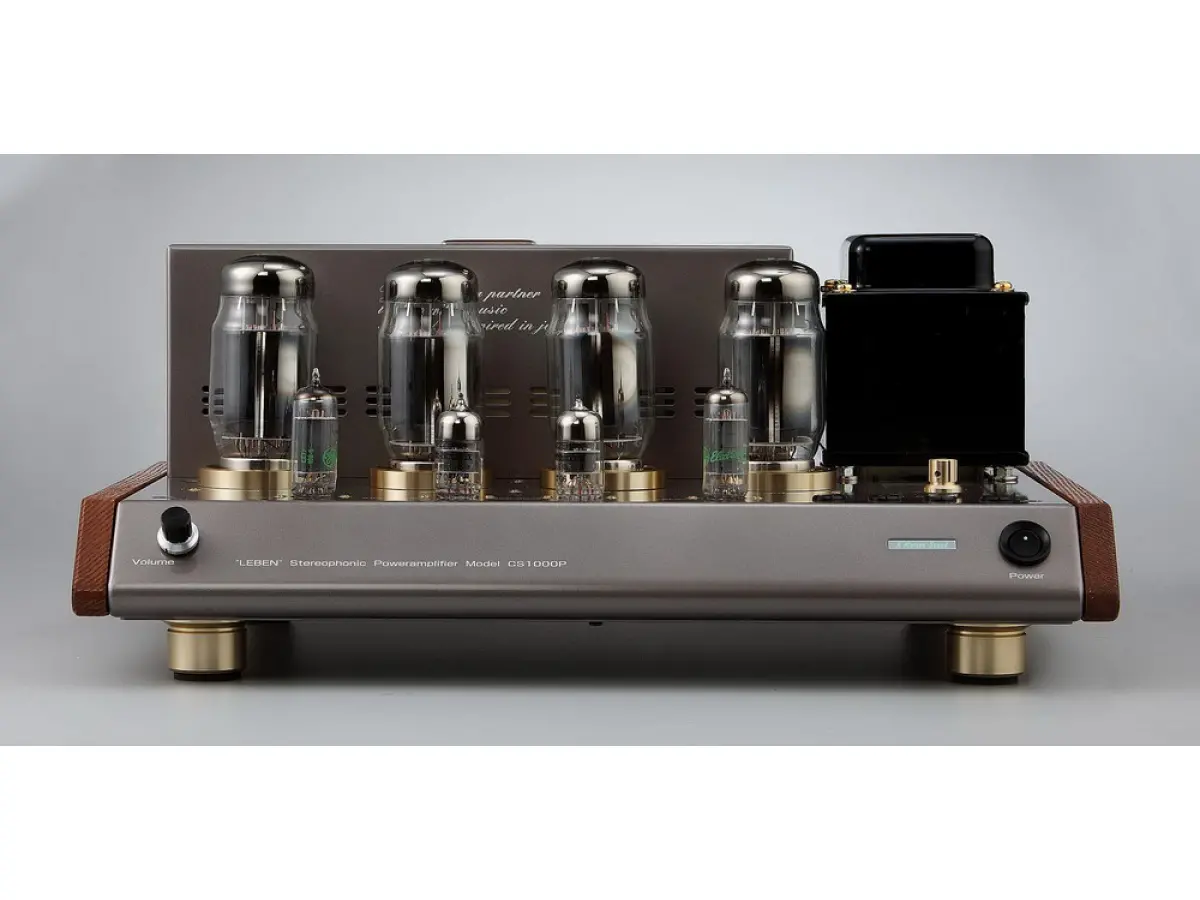

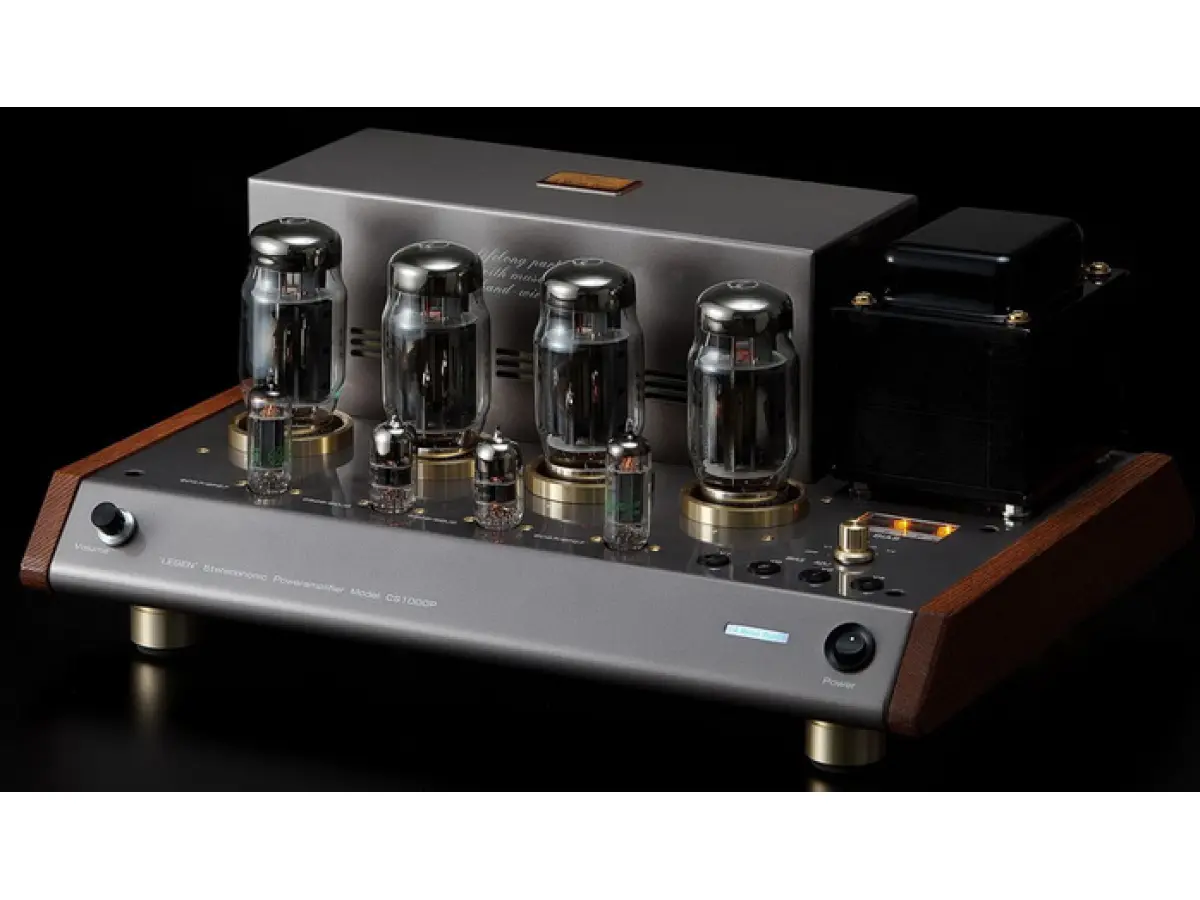

LEBEN CS-1000P

Power amplifier

High power output tube KT120(Super KT88)
100W/ch(1KHz) at Pentode circuit (70W/ch at Triode).

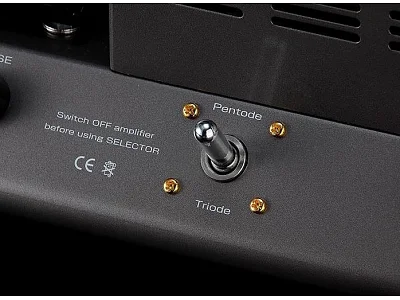

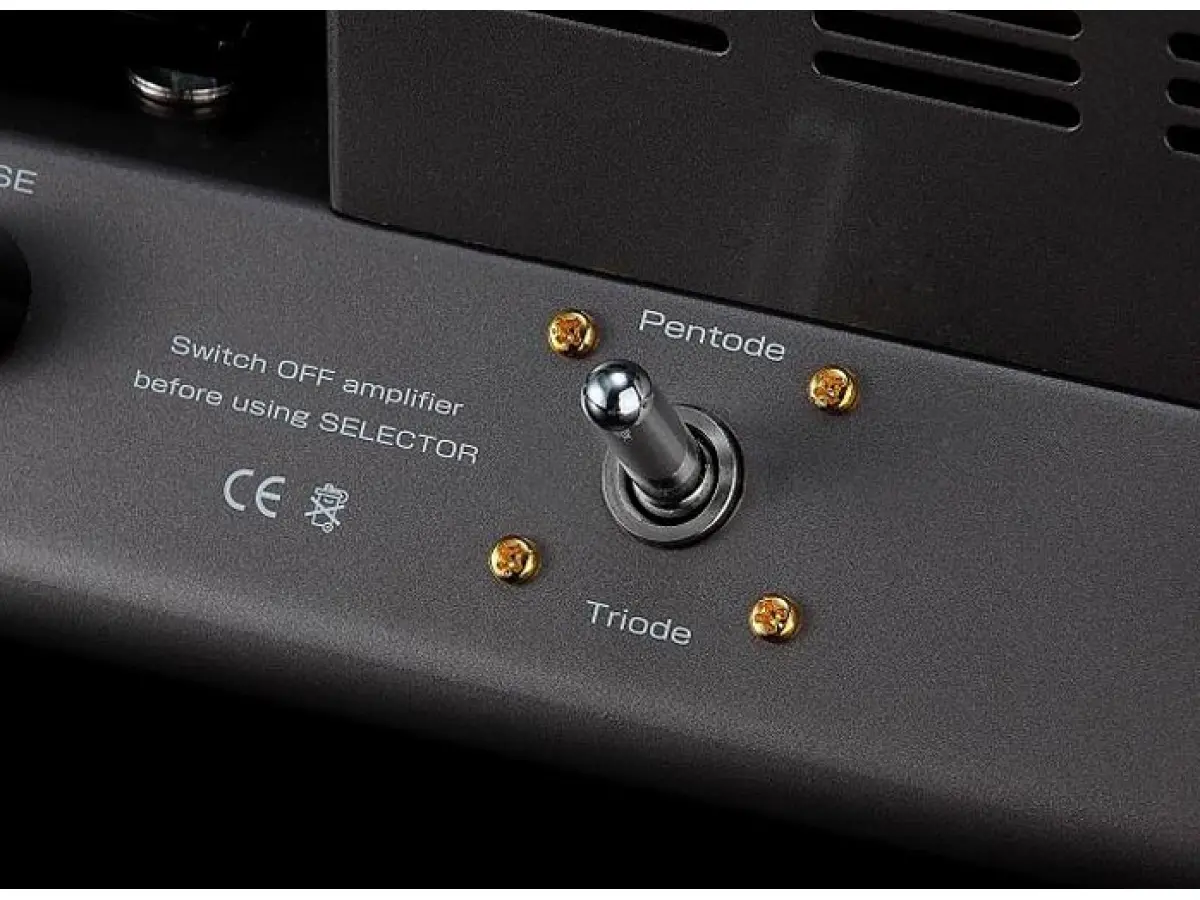

Pentode/Triode selector switch
Bias adjustment with a Cathode-direct meter
Several type of output tubes are applicable by adjusting the cathodal electric current.

Newly developed Orient-core output transformer
A minimum loss and a Superior high-frequency response.

Flat and wide Frequency Response
A wide frequency response from 10Hz to 150KHz(-0dB) caters for digital audio formats such as SACD/HDCD.

High rigidity solid aluminum insulators


OTHER FEATURES
Super-high sensitivity bias meter made by a long-established manufacturer.
High-grade Metal glaze resistorals of below 1% error margin.
High-grade 41-steps Detent Volume of ALPS.


CS-1000P SPECIFICATIONS
Tubes KT120 x 4 6922/6DJ8(ECC88) x 2 6CG7/6FQ7 x 2
Output power 100W x 2 at 1KHz.
Frequency response 10Hz - 150KHz. (-3dB)
Input sensitivity 0.4V at 50W
Input impedance 100K Ohms.
Output impedance 4/6/8/16 ? (Selectable)
Power consumption
Weight 23.5 Kgs.
Dimensions 455 (W) X 200 (H) X 335 (D) mm
Attachment Detachable AC Power Cable x 1
