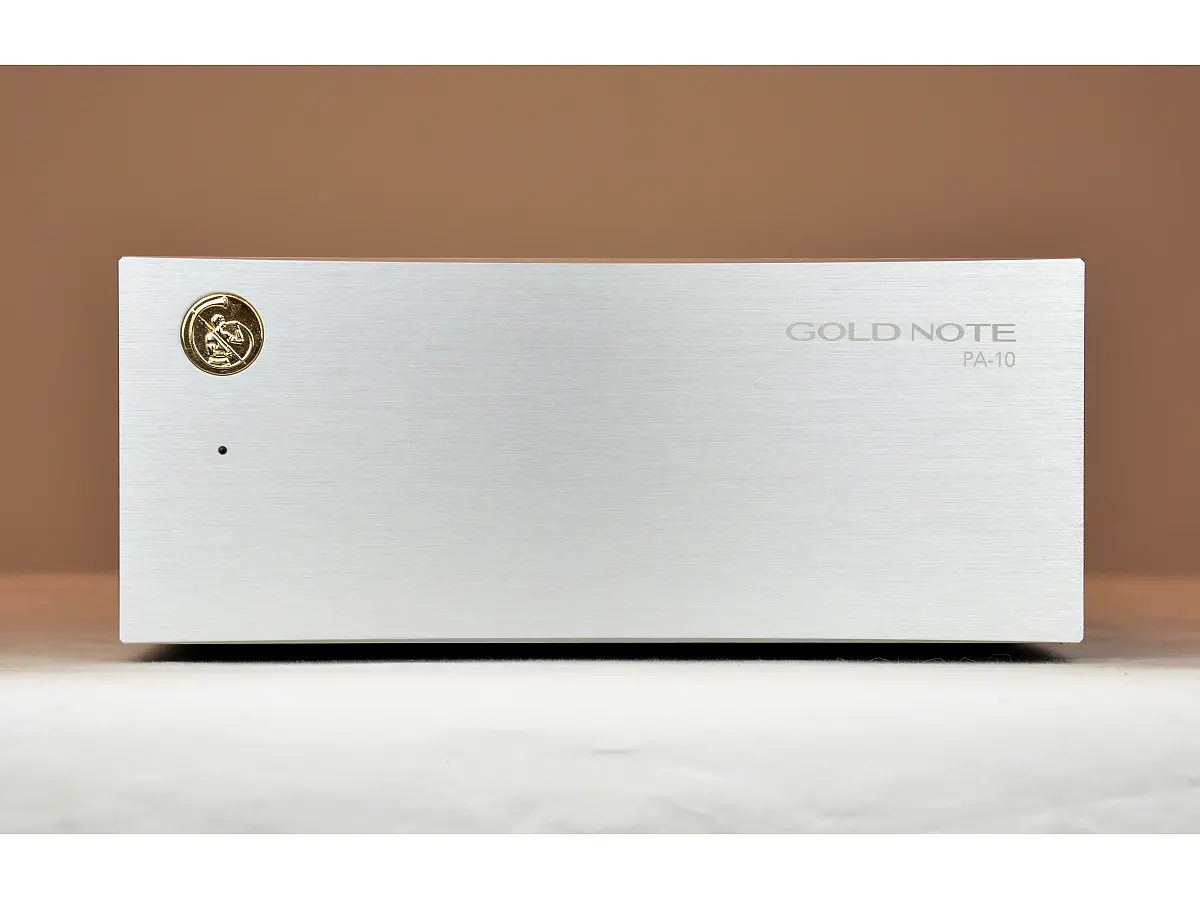

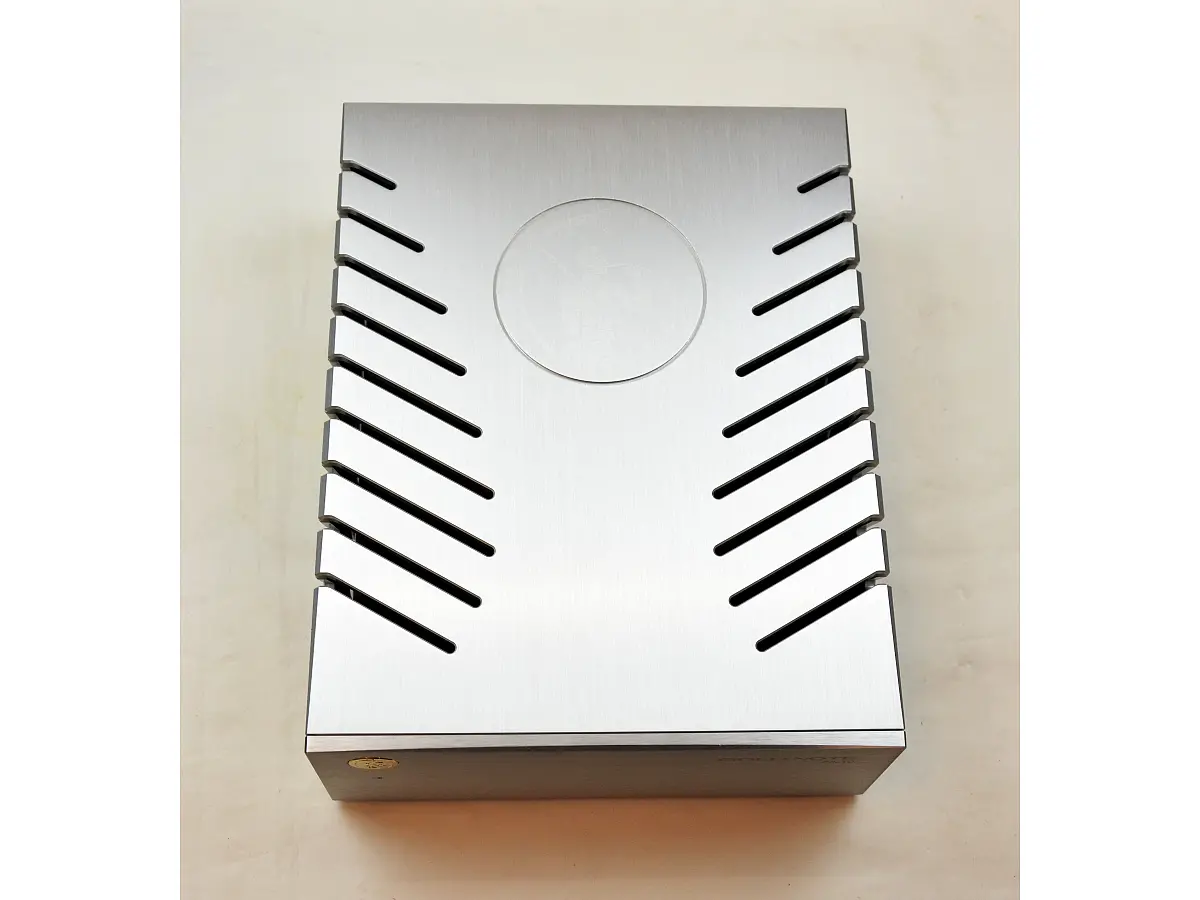

GOLD NOTE PA-10

Seocnd-hand. In excellent conditions. No visible signs of wear. Comes with original packaging and user manual.

The Gold Note PA-10 is a compact, powerful, and incredibly versatile power amplifier, designed to seamlessly integrate into any modern High-End audio system. With the ability to operate in both stereo and mono modes, it offers exceptional flexibility and high performance, even in complex or multi-room setups.

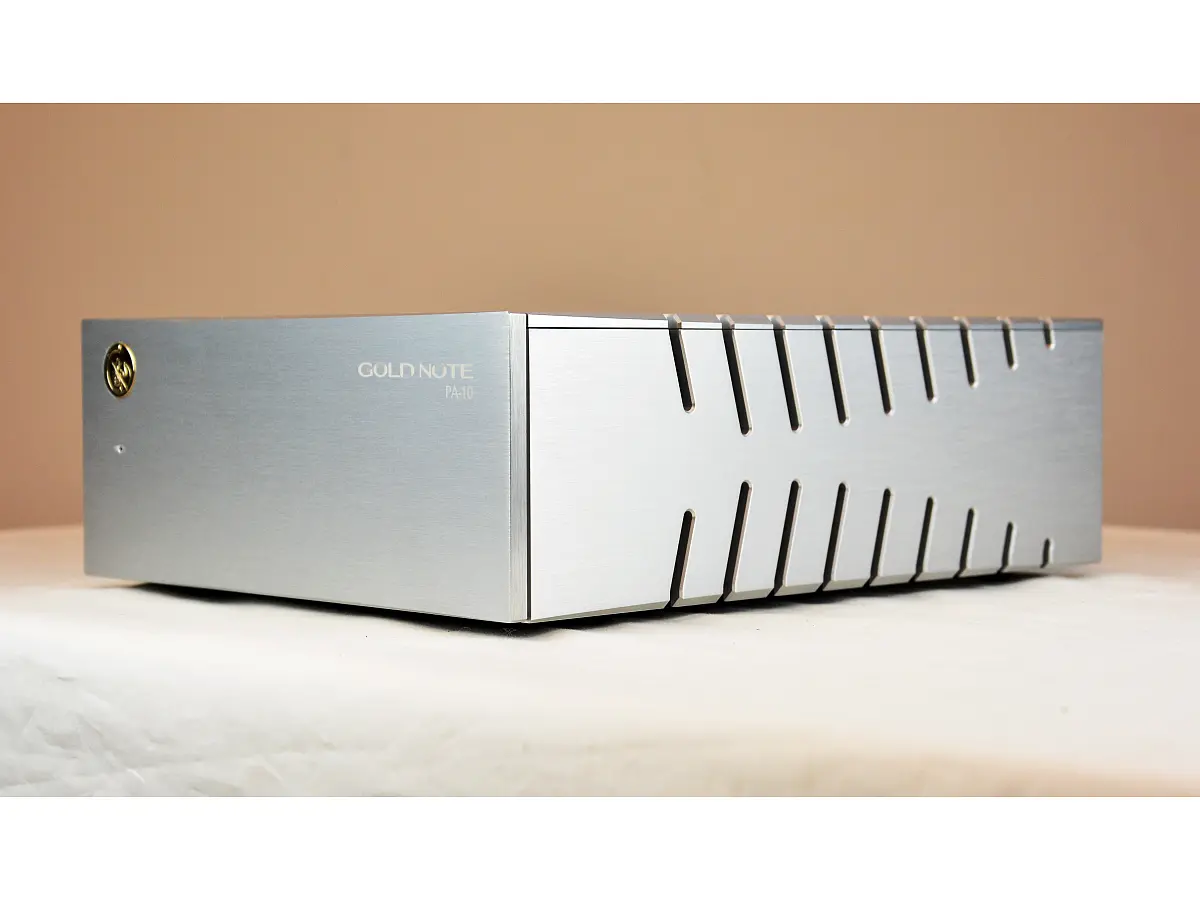

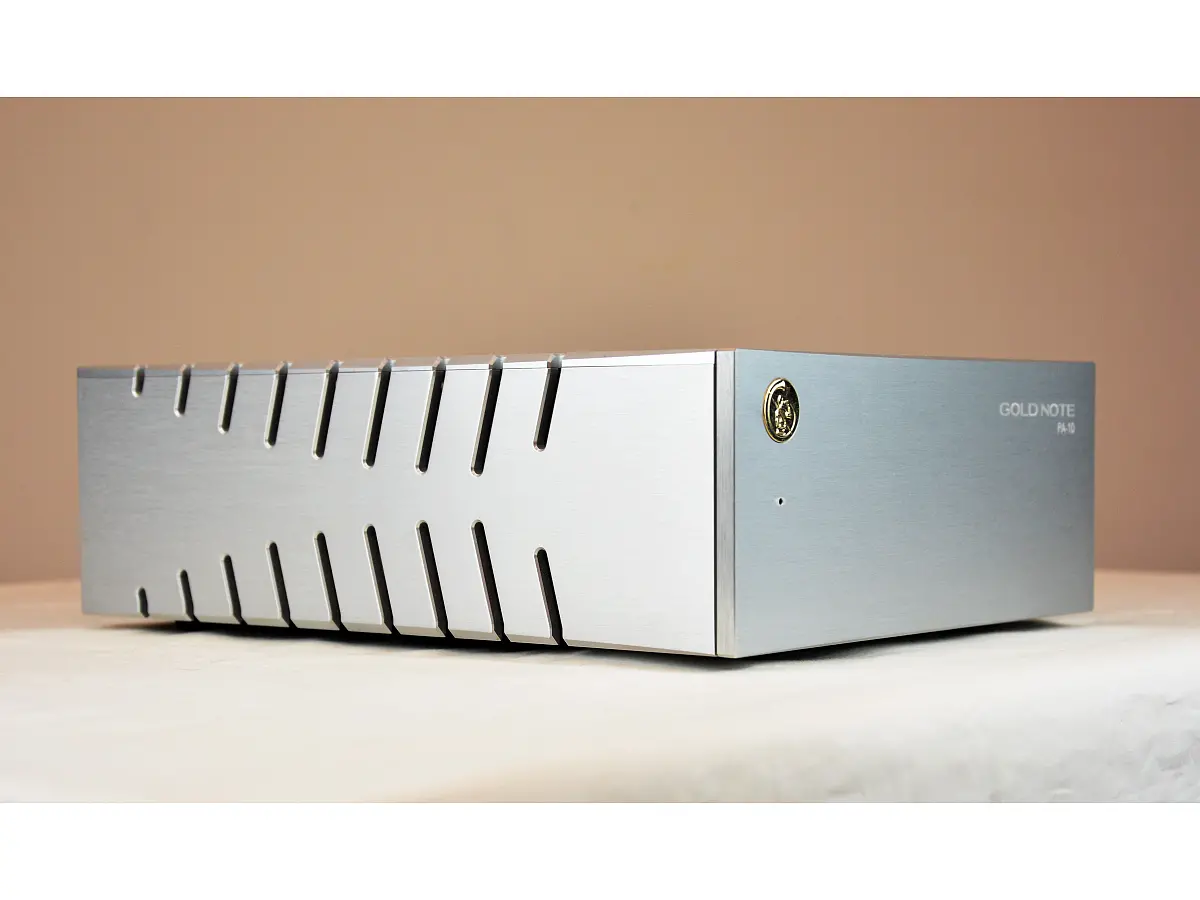

Its design reflects the refined and modular aesthetics of Gold Note’s Series 10, featuring elegant Italian styling and a solid construction made of thick aluminum panels and carefully selected audio components, ensuring long-lasting reliability and durability.

Equipped with advanced proprietary technology, the PA-10 delivers performance comparable to that of a Class A amplifier, doubling its output power and intelligently adapting to speaker impedance. It provides 75W into 8Ω, 150W into 4Ω, and up to 300W into 2Ω in stereo mode, and an impressive 300W into 8Ω and 600W into 4Ω in mono mode, making it suitable even for large or demanding loudspeakers.

One of the PA-10’s key strengths is its outstanding adaptability: thanks to a selectable damping factor and BTL (Bridge-Tied-Load) functionality, it matches perfectly with both high-sensitivity speakers and difficult-to-drive monitors. Its stereo XLR output allows for daisy-chaining multiple units for high-quality multi-room applications, while the automatic On/Standby function, triggered by audio signal detection, makes everyday operation easier.

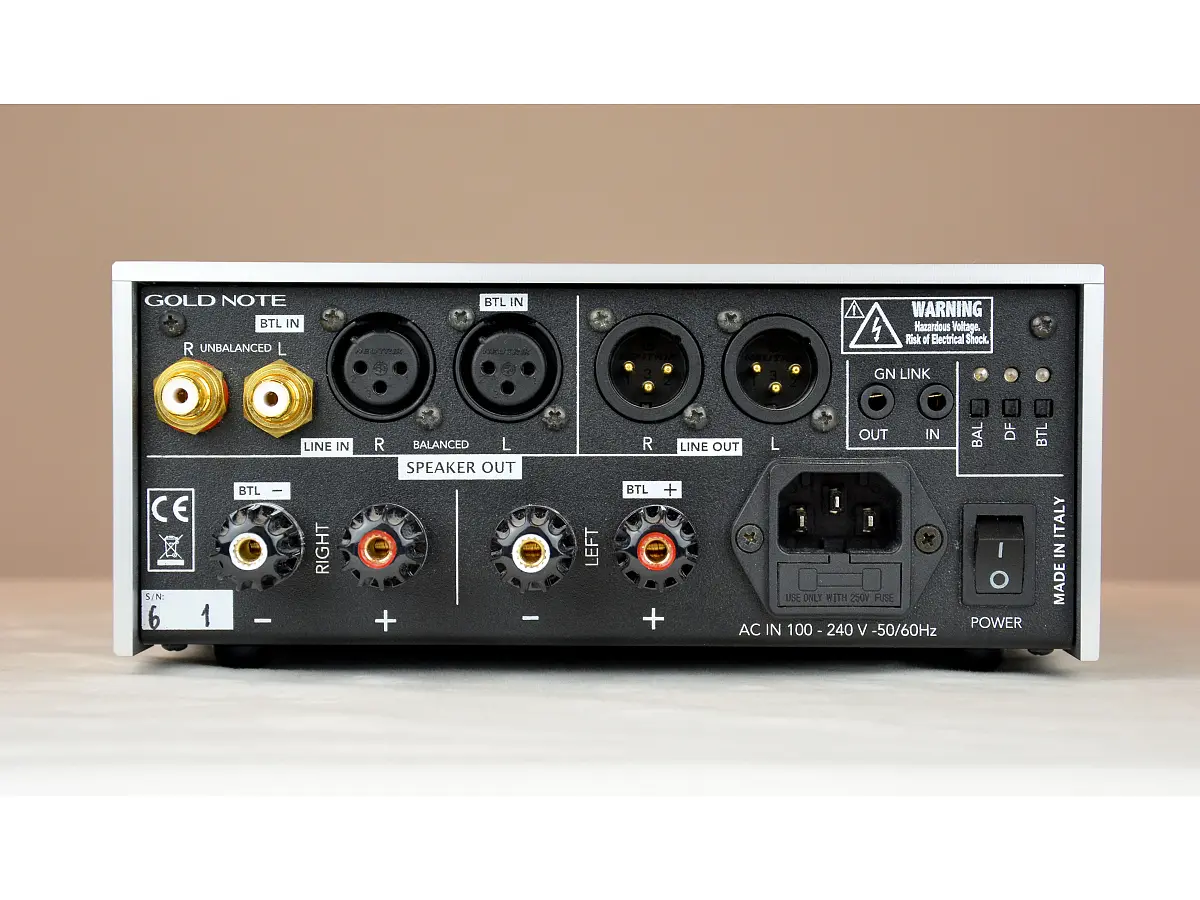

The PA-10 offers both balanced XLR and unbalanced RCA inputs, with an optional feature to connect two different sources simultaneously, further enhancing its flexibility. User-friendliness is also ensured by GN Link technology, allowing synchronized control of multiple compatible amplifiers in a master-slave configuration—powering all linked units on or off with a single command.

Power, precision, and elegance come together in the Gold Note PA-10, a power amplifier that blends high-end engineering with Italian design in a compact yet high-performance format.

Technical Specifications:

• Power: 75W @ 8Ω and 150W @ 4Ω per channel, 600W @ 4Ω per channel in mono (BTL)
• Frequency response: 10Hz–30kHz at ±1dB
• Total harmonic distortion (THD): 0.05%
• Damping factor: high (250) or low (25)
• Audio inputs: 1x unbalanced RCA, 1x balanced XLR
• Input sensitivity: RCA 1.4Vrms, XLR 1.4Vrms
• Input impedance: 13KΩ RCA/XLR
• Audio outputs: Gold Note gold-plated speaker connectors
• Dimensions: 200mm W x 80mm H x 260mm D
• Dimensions with packaging: 290mm W x 180mm H x 390mm D
• Weight: 4 kg
