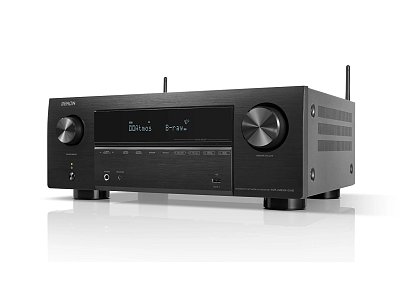

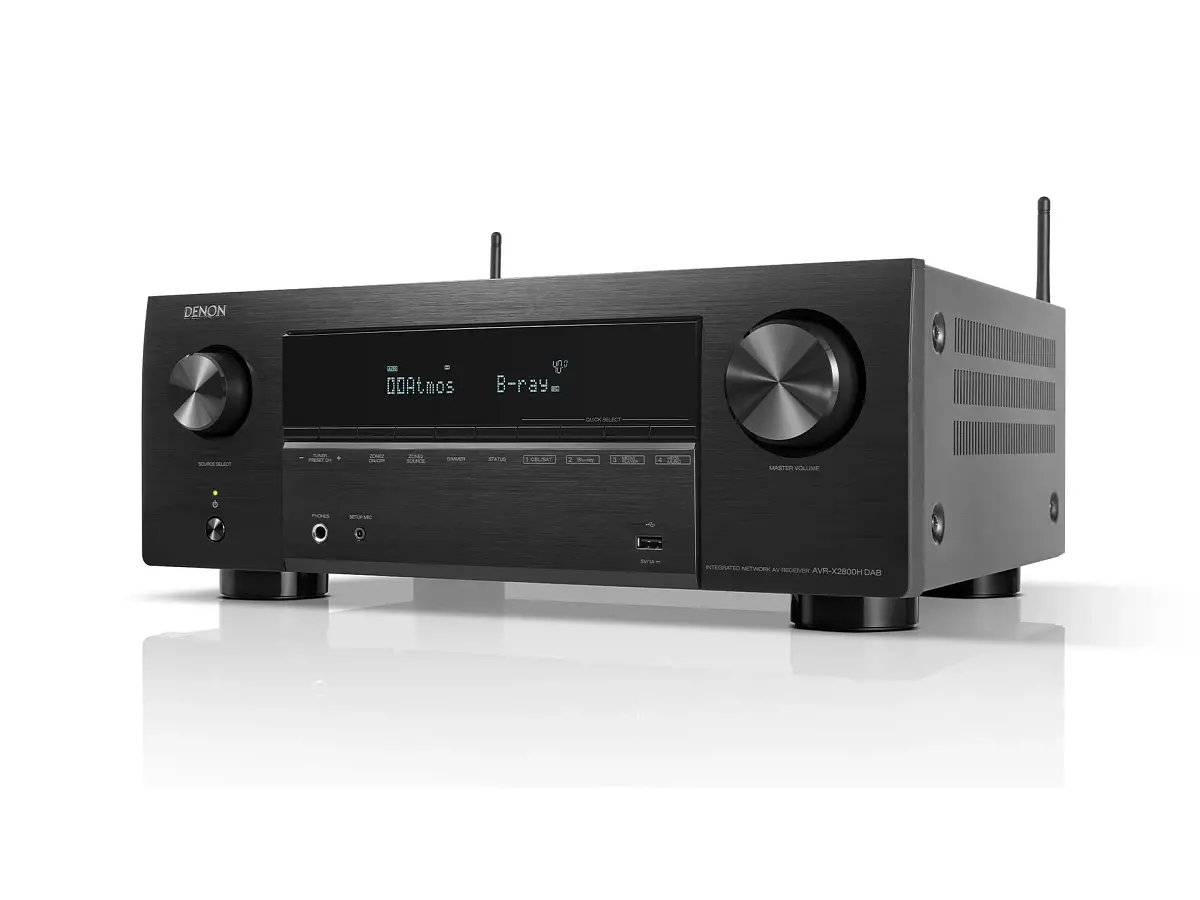

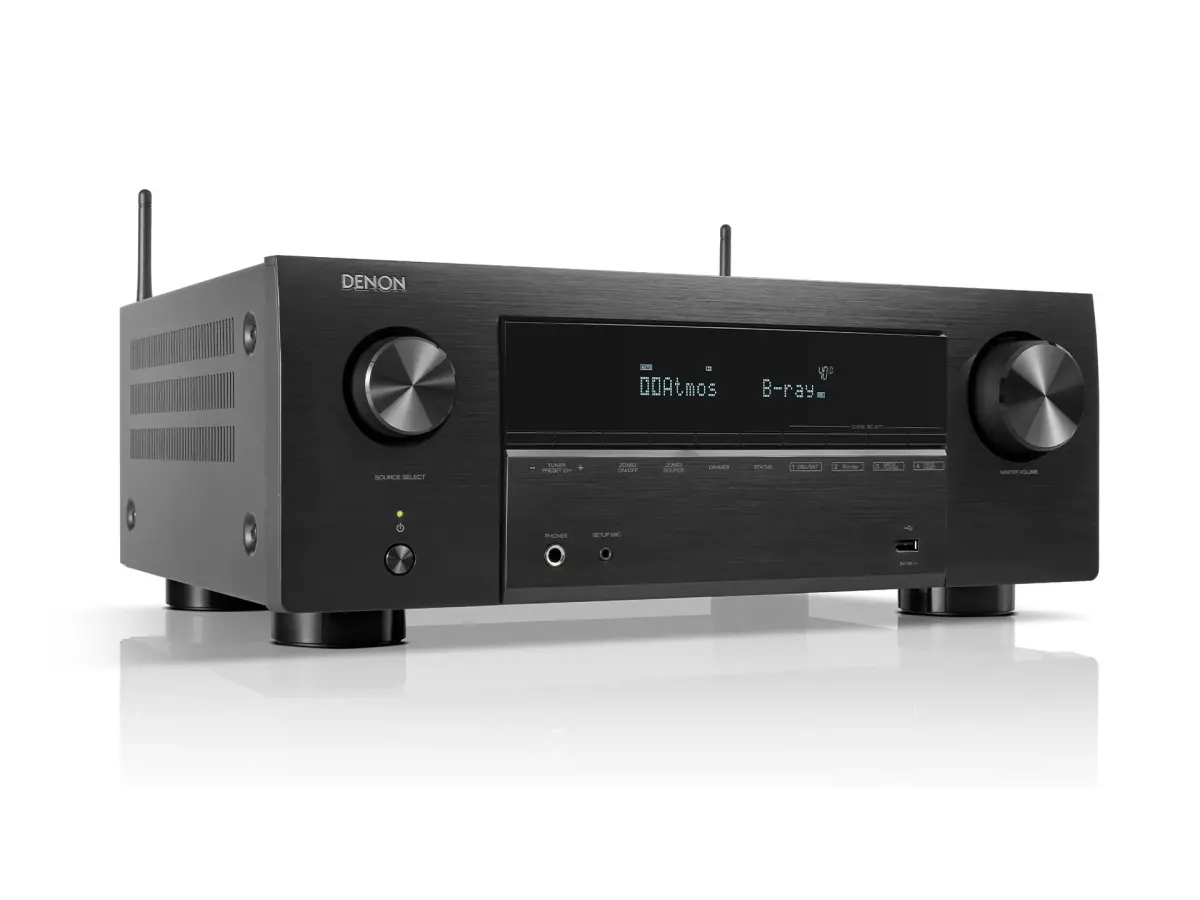

DENON AVR-X2800H DAB

Enjoy incredible 8K video and immersive 3D audio with the AVR-X2800H AV Receiver. Fill medium-sized rooms with refined sound from a 7.2 or 5.2.2 configuration featuring Dolby Atmos and DTS:X. With HEOS® Built-in, you can stream online music wirelessly and share it in other rooms with HEOS-enabled speakers.

7.2-Channel 8K AV Receiver
Enjoy stunning 8K video and immersive 3D audio from the AVR-X2800H DAB. Fill medium-sized rooms with refined sound from a 7.2 or 5.2.2 setup with Dolby Atmos and DTS:X. With HEOS® Built-in, stream music wirelessly and share it across other rooms with HEOS-enabled speakers.

• Powerful sound: Fill medium-sized rooms with rich and detailed sound.
• Immersive 3D audio: Experience music or movie sound fully enveloping your space.
• 8K-ready: Enjoy stunning video quality with the latest 8K technology.
• Whole-home music streaming: With HEOS Built-in, easily stream music wirelessly to multiple rooms using HEOS-enabled speakers.

High-performance, discreet 7-channel AV amplifier
High-current amplifiers on all channels deliver up to 150 W per channel, providing enough power to drive any speaker; discreet design.

Dolby Atmos
Experience every dimension of sound with Dolby Atmos. Upgrade your home theater with a 5.1.2 speaker configuration for a fully immersive 3D audio experience with Dolby Atmos content. Dolby Surround upmixes all speakers to create 3D audio from standard content. Dolby Atmos Height Virtualization creates the perception of overhead sound even without a 5.1.2 setup. Enjoy Dolby Atmos music tracks from Apple Music, Amazon HD, TIDAL, or other compatible streaming sources.

DTS:X
DTS:X positions sound naturally in space for realistic, multidimensional audio. DTS Neural:X upmixing enhances immersion and realism for traditional content. DTS Virtual:X delivers immersive audio without height channels, creating virtual height effects in 7.1, 5.1, or 2.1 speaker configurations.

HDMI connectivity with ARC/eARC
Supports the latest HDMI technology on all inputs and outputs. ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel) simplify TV audio playback through the AV receiver via a single HDMI connection. eARC supports HD and 3D audio formats like Dolby TrueHD, DTS HD Master Audio, and Dolby Atmos, while ARC is limited to conventional 5.1-channel audio or PCM.

8K/HDCP 2.3
Enjoy pristine 8K video on your 8K TV or projector. Supports both 8K pass-through and 4K-to-8K upscaling. Compatible with HDCP 2.3, the latest copy-protection standard, for secure playback of protected content.

Vivid colors with HDR10+
Supports HDR, HLG, Dynamic HDR, and HDR10+ pass-through. HLG delivers HDR for broadcast content, while Dynamic HDR and HDR10+ use dynamic metadata to optimize shadows and highlights scene by scene.

Dolby Vision
AVR-X2800H DAB is Dolby Vision compatible, enabling playback of Dolby Vision content from compatible source devices and TVs. Dolby Vision delivers exceptional HDR image quality with vibrant colors, contrast, and brightness.

Next-generation gaming
Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for smooth, lag-free gaming with compatible devices.

HEOS Built-in
With HEOS® Built-in, your AV receiver can stream music wirelessly to HEOS-compatible components from a variety of free and premium streaming services. Play the same track in every room or different tracks in each connected room. Add Denon Home speakers to multiple rooms and control everything with the HEOS app.

AirPlay 2 and Apple Siri voice control
Use AirPlay 2 to stream Apple Music wirelessly to the AV receiver or group it with other AirPlay-compatible speakers for whole-home audio.

Amazon Alexa compatibility
Control your AV receiver with Amazon Alexa using voice commands. Adjust volume, skip tracks, change inputs, and more. Download the free HEOS Home Entertainment Skill to enable Alexa voice control. Requires the Alexa app and an Amazon Echo, Dot, or equivalent. Feature availability varies by region.

High-resolution audio via USB
Enjoy the incredible fidelity of high-resolution audio tracks. Front USB port supports playback up to 24-bit/192 kHz from USB drives. Supported formats: MP3, WMA, WAV, MPEG-4/AAC, FLAC, ALAC.

Bluetooth audio streaming
Pair your Bluetooth headphones with the AV receiver to enjoy music, movies, or TV programs privately. Audio can also play simultaneously through speakers and Bluetooth headphones. Supports one pair of headphones at a time.

Multi-source, multi-room
Supports 2-source, 2-zone audio. Connect a pair of speakers in a second room to play separate audio or streaming content, or the same audio in both rooms.

Denon Setup Assistant
The award-winning guided Denon Setup Assistant provides clear instructions for getting started. Connect to your TV, follow the on-screen instructions to connect and measure speakers, and connect source devices. HDMI inputs can be automatically renamed or customized manually.

Audyssey room correction technology

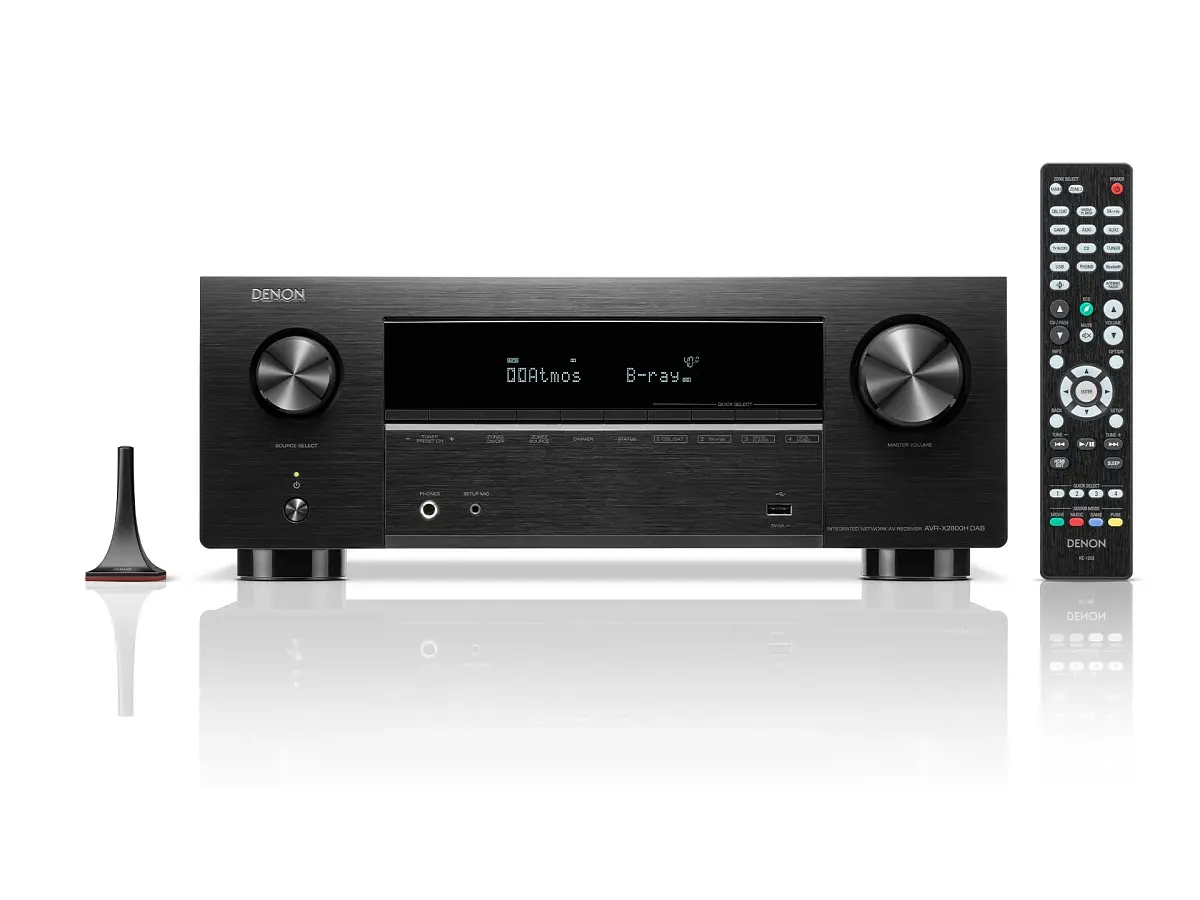

Denon AV receivers use Audyssey EQ software for easy, accurate setup and calibration. Included Audyssey microphone measures all home theater speakers and optimizes the AV receiver for smooth, balanced sound. Supports Audyssey MultEQ, Dynamic EQ, and Dynamic Volume.

Audyssey MultEQ Editor app
Allows advanced customization of room correction, letting you fine-tune sound for specific acoustic issues and personal preferences. Available on iOS and Google Play stores.

Denon AVR Remote app
Control your AV receiver via iOS or Android: power on/off, select input, adjust volume, browse music from phone or USB drive.

Google Assistant compatibility
Start music in the HEOS app, then use Google Assistant to control volume, play/pause, skip tracks, mute/unmute.
Availability of Google Assistant services may vary by region and language.

Technical Specifications:

• Channels: 7.2
• Output power: 95 W at 8 ohms (20 Hz – 20 kHz, 0.08% 2 channels); 125 W at 6 ohms (1 kHz, 0.7% 2 channels)
• Maximum preamp channels: 7.1
• Speaker impedance: 4 – 16 ohms
• Audio formats: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X, Dolby TrueHD, Dolby Atmos, Dolby Atmos Music, Dolby Surround, Stereo Multichannel
• Video formats: HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
• HDMI inputs: 6 (3 supporting 8K/60Hz, 4K/120Hz)
• HDMI outputs: 2
• Passthrough: 8K/60Hz and 4K/120Hz
• Analog inputs: 4 RCA + Phono (MM)
• Digital inputs: 2 Optical, 1 Coaxial, 1 USB Audio
• Audyssey: MultEQ XT, Audyssey Dynamic EQ, Dynamic Volume
• HEOS Built-in: Wireless Multi-Room technology
• Network connectivity: Wi-Fi, Ethernet, Bluetooth 4.2, AirPlay 2, Roon Tested
• Online music services: Tidal, Spotify Connect, Deezer, TuneIn
• Supported lossy formats: MP3, WMA, AAC
• Supported lossless formats: FLAC, ALAC, WAV
• Supported high-resolution lossless formats: FLAC HD, WAV (up to 192 kHz/24-bit), DSD Audio 2.8/5.6 MHz
• Tuner: DAB+
• Voice control: Alexa, Google Voice Assistant, Apple Siri
• Control options: IP, RS232, Web, HEOS App Control
• Power consumption: 500 W
• No-sound consumption (ECO On/Off): 35 W / 75 W
• Standby consumption: 0.1 W
• Dimensions (without antennas): 434 x 167 x 330 mm (W x H x D)
• Dimensions (with vertical antenna): 434 x 237 x 341 mm (W x H x D)
• Net weight: 9.5 kg
