Luxman LUXMAN PD-151 MARK II

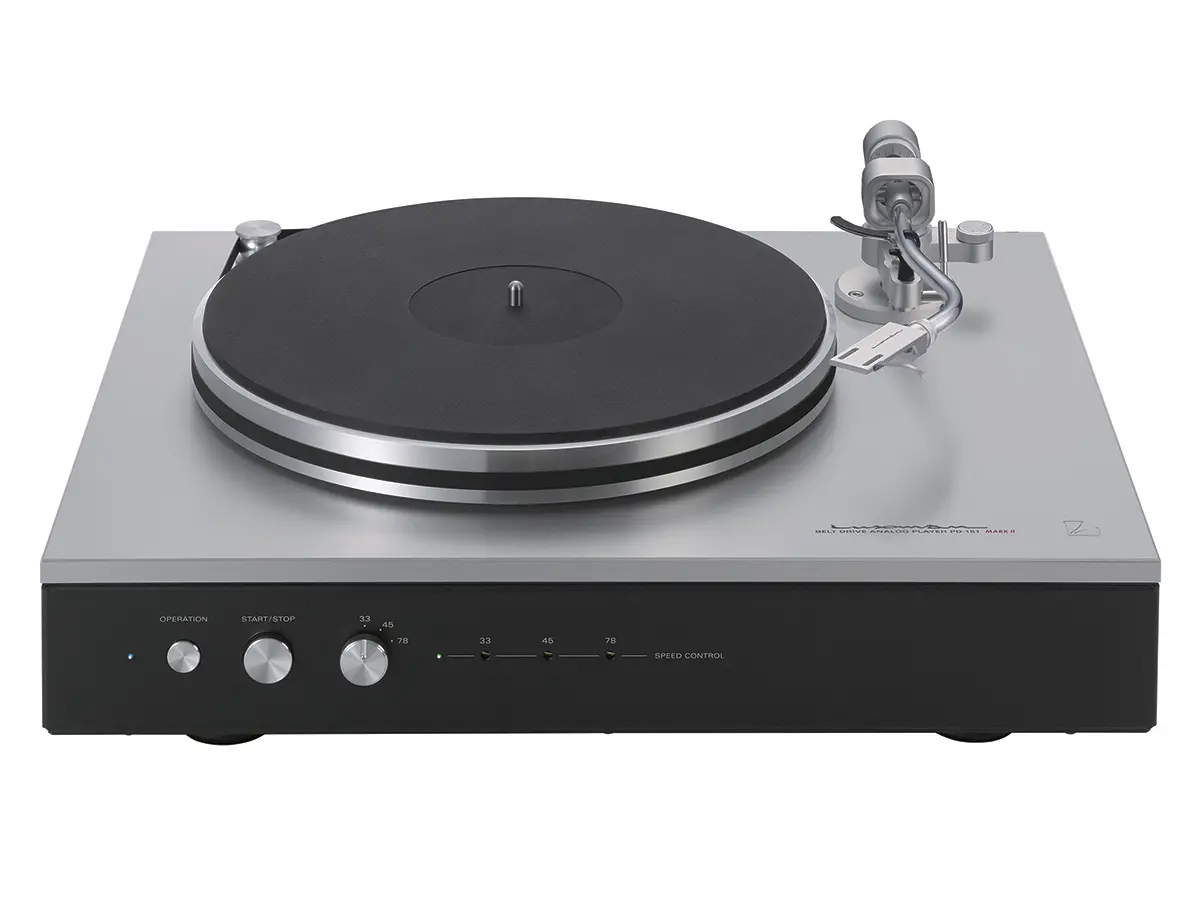

LUXMAN PD-151 MARK II

Giradischi

€ 4.690,00
Disponibilità immediata

Codice: 82701004

Tutti i nostri prodotti nuovi sono coperti da garanzia italiana. L'usato invece è coperto da 6 mesi di garanzia vedi le condizioni.

Nuovo
Ultimo inserimento
Lista dei desideri

Rateizza il tuo acquisto

a rate con Findomestic * Messaggio pubblicitario con finalità promozionale. informazioni e IEBCC nel percorso online. Salvo approvazione Findomestic Banca S.p.A. per cui HiFi Di Prinzio opera quale intermediario del credito non in esclusiva

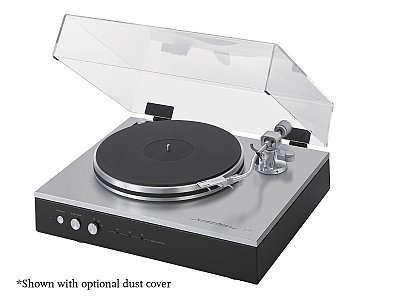

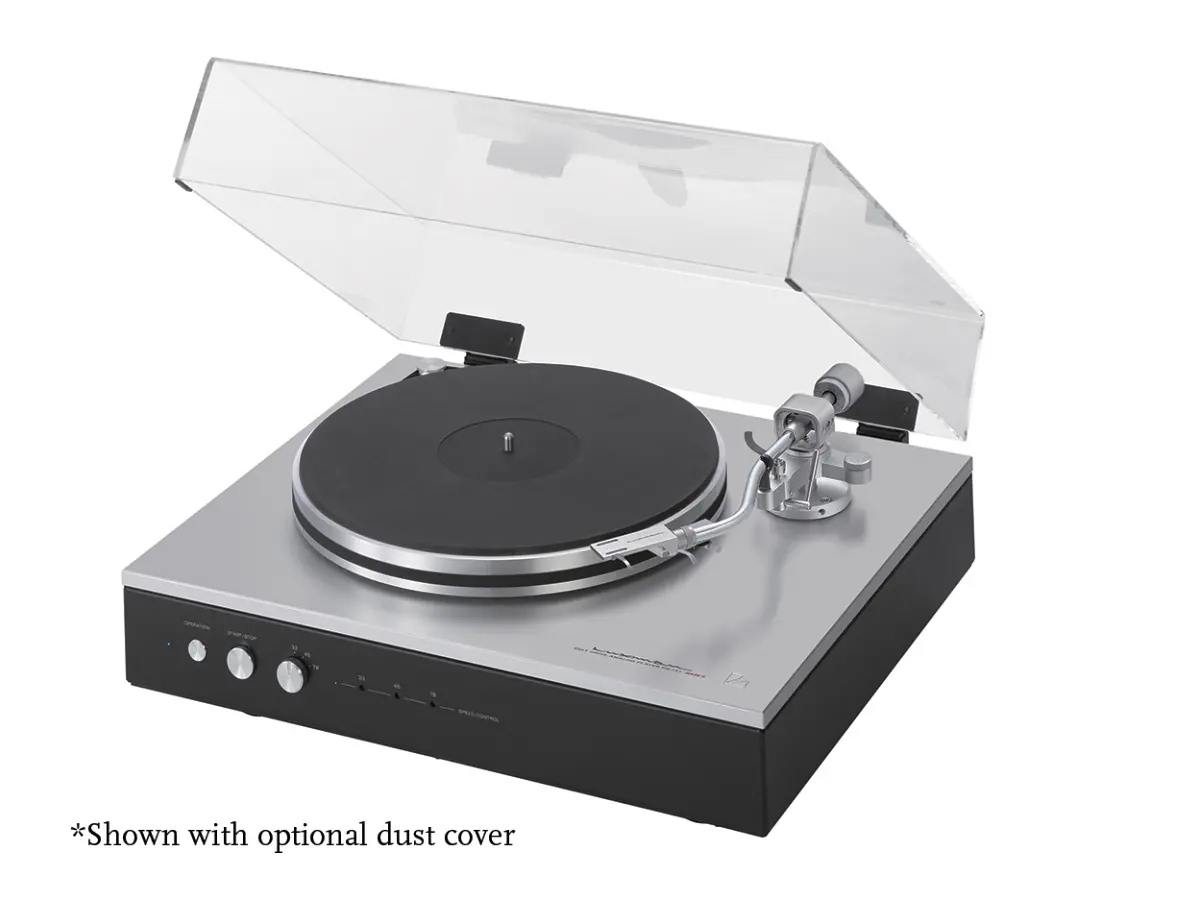

*Dust cover opzionale

The PD-151mkII was developed for the music listener to fully enjoy the luxurious audio experience unique to analog, with vinyl phonograph records continuing popularity as an attractive music playback medium. Inheriting that model’s excellent.
Inheriting the PD-151A’s excellent performance and functional beauty while featuring a new, highly sensitive original specification tonearm, is our highly anticipated new model, The PD-151 MARK-II. The PD-151 MARK-II has arrived as a new benchmark for belt-drive integrated analog players. We deliver genuine analog vinyl playback excellence, inviting the listener into a world different from digital audio.

The PD-151mkII was developed for the music listener to fully enjoy the luxurious audio experience unique to analog, with vinyl phonograph records continuing popularity as an attractive music playback medium. Inheriting that model’s excellent.

Inheriting the PD-151A’s excellent performance and functional beauty while featuring a new, highly sensitive original specification tonearm, is our highly anticipated new model, The PD-151 MARK-II. The PD-151 MARK-II has arrived as a new benchmark for belt-drive integrated analog players. We deliver genuine analog vinyl playback excellence, inviting the listener into a world different from digital audio.

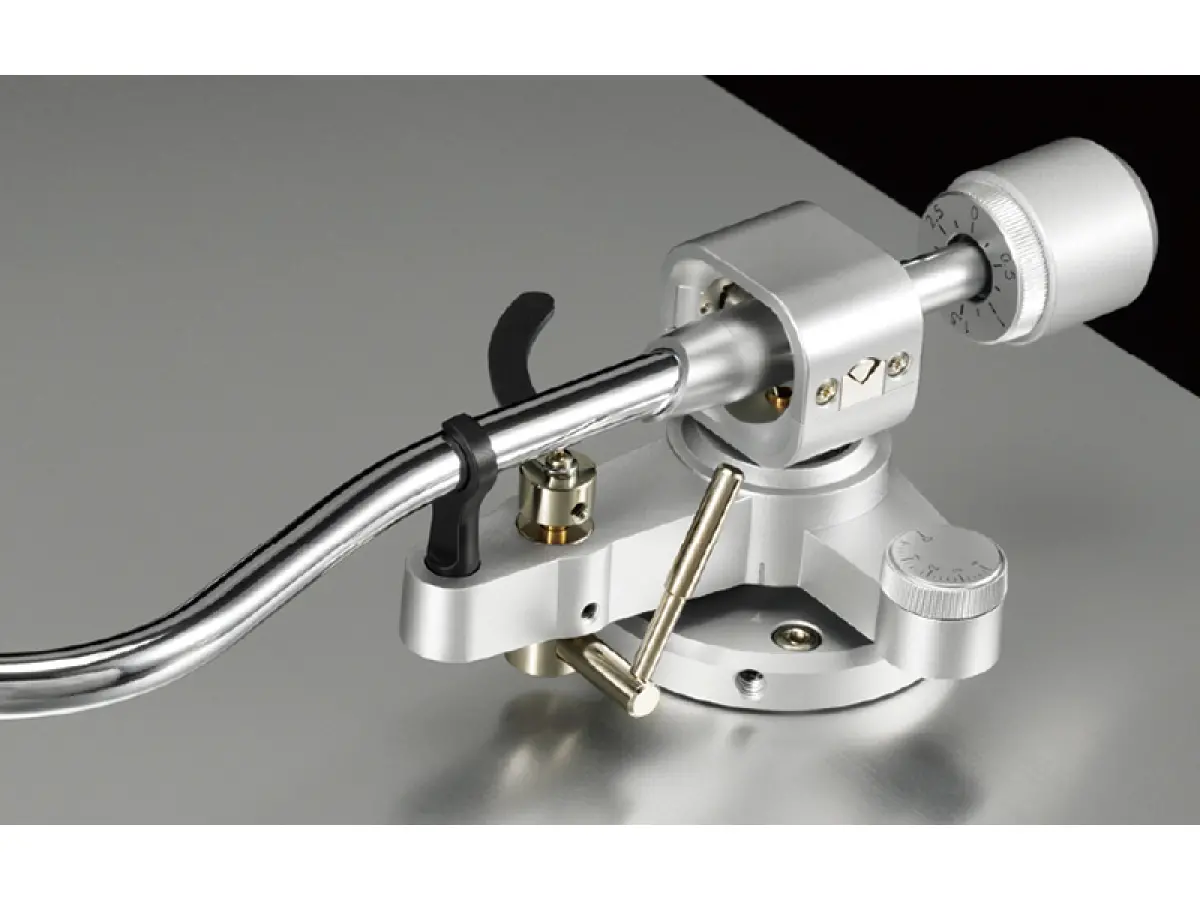

New tonearm with knife edge bearing
The PD-151 MARK-II has been newly equipped with LUXMAN’s original static balance type tonearm, the LTA-309, featuring knife edge bearing technology developed by the Japanese brand SAEC, with over 40 years of experience. The arm base is machined aluminum, which minimizes the contact area, mounted to suppress unwanted vibration while ensuring rigidity. In addition to basic adjustment mechanisms, such as stylus pressure and anti-skating, LTA-309 also supports fine settings to optimize playback quality, such as arm height adjustment, according to the mounted cartridge. This S-shaped tonearm employs an H4 bayonet mount headshell, allowing easy install of phono cartridges, such as the LUXMAN LMC-5.

New High precision/ High torque proprietary DC motor

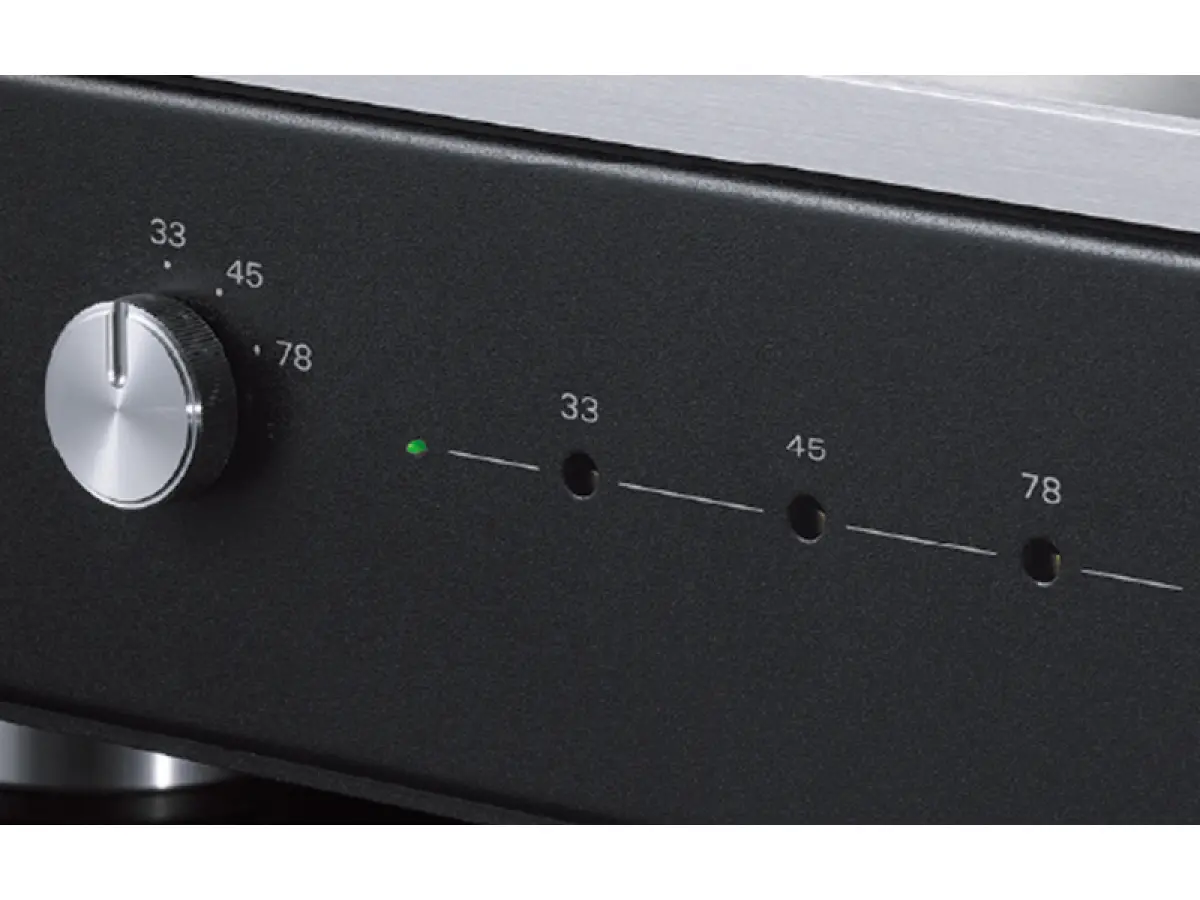

The purity of musical pitch depends entirely on the stability of platter rotation. That’s why LUXMAN engineers went to extraordinary lengths. We start with our unique sine wave/Pulse Width Modulation power supply, which provides ultra-stable direct current to our proprietary DC brushless motor. Years in development, this low-speed high-torque motor incorporates low-acoustic noise bearings and internal construction. The drive system monitors and maintains speed with our Proportional-Integral-Differential (PID) feedback control loop. Proportional means quick achievement of target speed. Integral means fast correction of minor errors. And Differential means control over rapid fluctuations. For added precision, the motor drives the outside flange of the platter through an uncommonly wide belt for stable 33 1/3 , 45 and 78RPM playback speeds with +/-6% manual pitch control adjustment available.

High-Mass platter and highly rigid stainless-steel spindle
LUXMAN exterior design pursuing functional beauty
The PD-151 MARK-II has been newly equipped with LUXMAN’s original static balance type tonearm, the LTA-309, featuring knife edge bearing technology developed by the Japanese brand SAEC, with over 40 years of experience. The arm base is machined aluminum, which minimizes the contact area, mounted to suppress unwanted vibration while ensuring rigidity. In addition to basic adjustment mechanisms, such as stylus pressure and anti-skating, LTA-309 also supports fine settings to optimize playback quality, such as arm height adjustment, according to the mounted cartridge. This S-shaped tonearm employs an H4 bayonet mount headshell, allowing easy install of phono cartridges, such as the LUXMAN LMC-5.
The purity of musical pitch depends entirely on the stability of platter rotation. That’s why LUXMAN engineers went to extraordinary lengths. We start with our unique sine wave/Pulse Width Modulation power supply, which provides ultra-stable direct current to our proprietary DC brushless motor. Years in development, this low-speed high-torque motor incorporates low-acoustic noise bearings and internal construction. The drive system monitors and maintains speed with our Proportional-Integral-Differential (PID) feedback control loop. Proportional means quick achievement of target speed. Integral means fast correction of minor errors. And Differential means
control over rapid fluctuations. For added precision, the motor drives the outside flange of the platter through an uncommonly wide belt for stable 33 , 45 and 78RPM playback speeds with +/-6% manual pitch control adjustment available.
LUXMAN engineers were determined to optimize the final guarantor of stable speed; the platter assembly itself. PD-151 MARK II has a 4.0kg platter precision machined from a thick aluminum billet then diamond-cut finished to exact surfaces. The platter acts as a flywheel, with a large moment of inertia (0.219t·cm ) to insure smooth and stable rotation. The spindle supporting the platter is a highly rigid, 16mm diameter, hard stainless-steel shaft with bearings at the lower end. It comfortably supports the platter weight with a bearing structure that combines a thrust bearing lubricated with PEEK* material, with excellent heat and wear resistance, and a brass radial bearing filled with
organic molybdenum oil that maintains excellent lubricity under high load. A turntable mat of special vibration-absorbing rubber material is included to support vinyl records during playback.

LUXMAN exterior design pursuing functional beauty

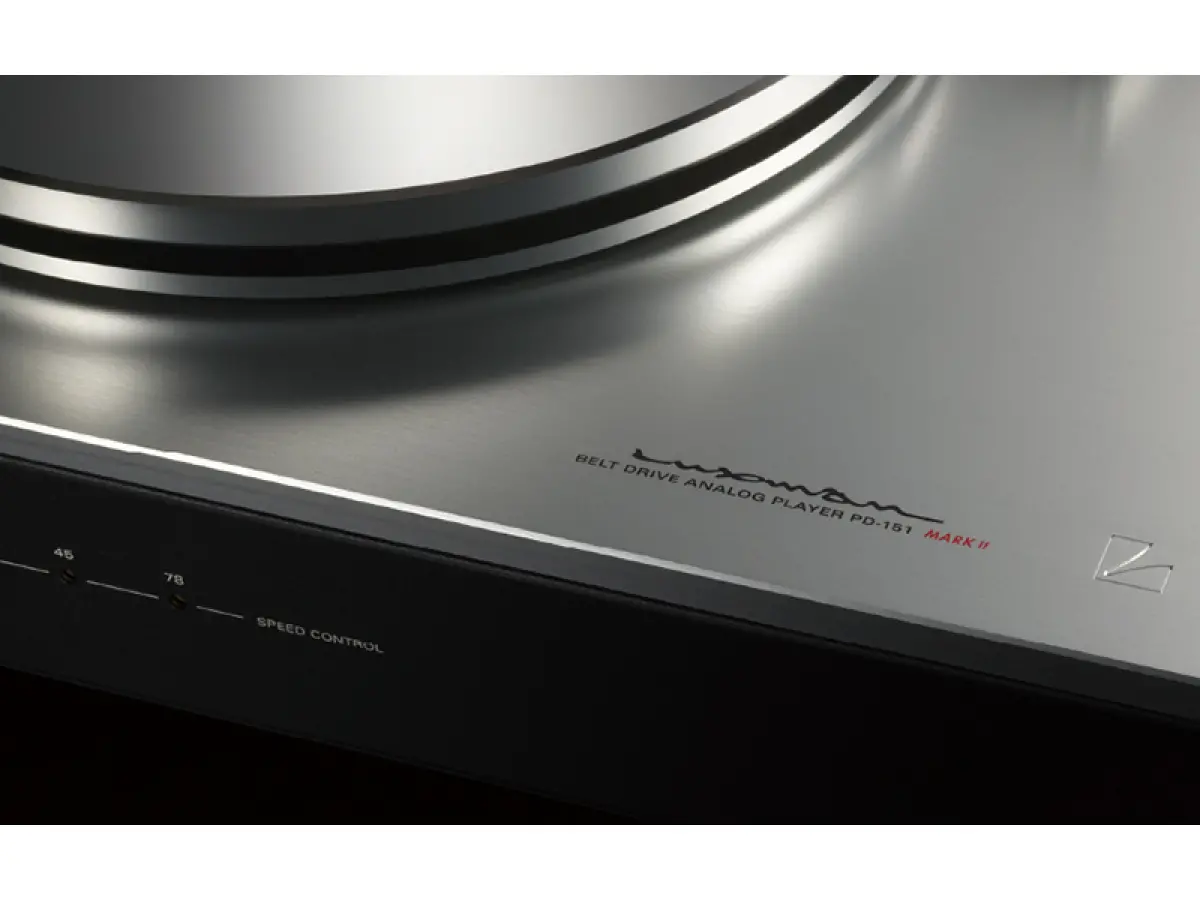

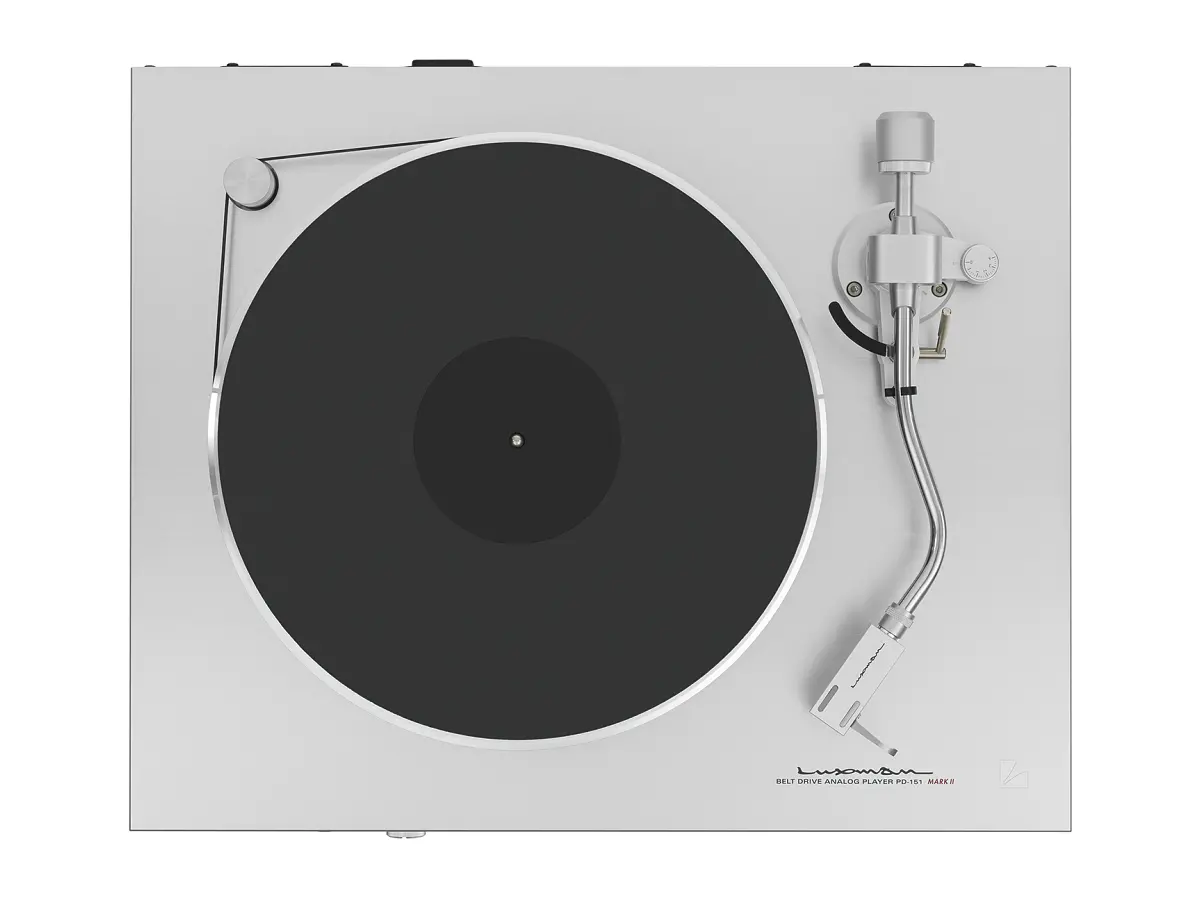

PD-151 MARK II inherits the highly praised LUXMAN exterior design and operational layout of our previous model PD-151A. The top panel, made from 10mm thick aluminum with its delicate hairline finish, pursues simplicity and functional beauty with a component layout narrowed down to only the three major analog player elements; the tone arm, drive motor and platter. The operational controls,

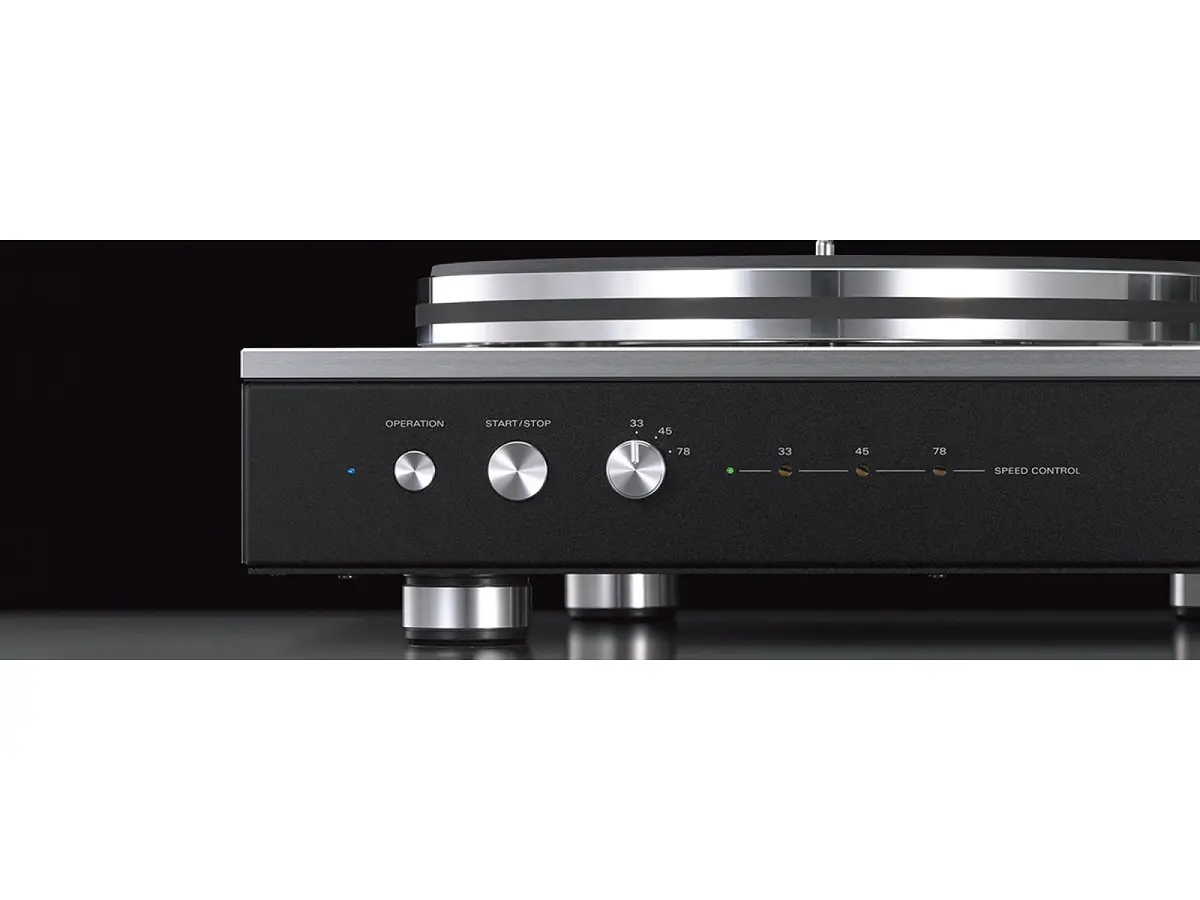

such as power switch, motor (rotation) ON/OFF switch, rotation speed changeover switch, indicators, etc. are all integrated into PD-151 MARK II front panel. While achieving both highly intuitive operability and visibility, the exquisite aluminum top panel combines with the matte black lower housing to create profound visual contrast. Sold separately is an available and highly recommended, purpose built 4mm thick acrylic dust cover, equipped with cam/spring supporting hinges for easy opening and smooth closure.

Height adjustable damping insulators
The insulator feet that support the entire structure are vital to an analog player while tracking the minute grooves pressed into a phonograph record. The PD-151 MARK II incorporates vibration damping rubber with excellent temperature characteristics into our originally designed insulator feet, with up to 5mm independent height adjustment, which prevent feedback and external vibration transmission.

Headshell and phono signal cables
A lightweight original machined aluminum headshell with the LUXMAN logo and an aluminum EP adapter are included as standard. To accept the phono cartridge output, we have adopted audio grade OFC wiring into the high quality, highly versatile DIN-RCA phono cables. Future upgrades are also possible.

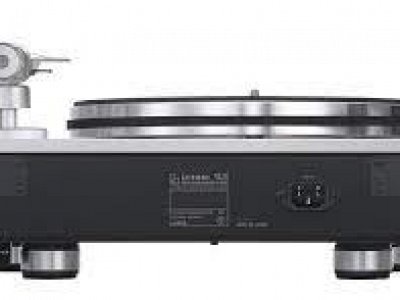

AC inlet and power cable

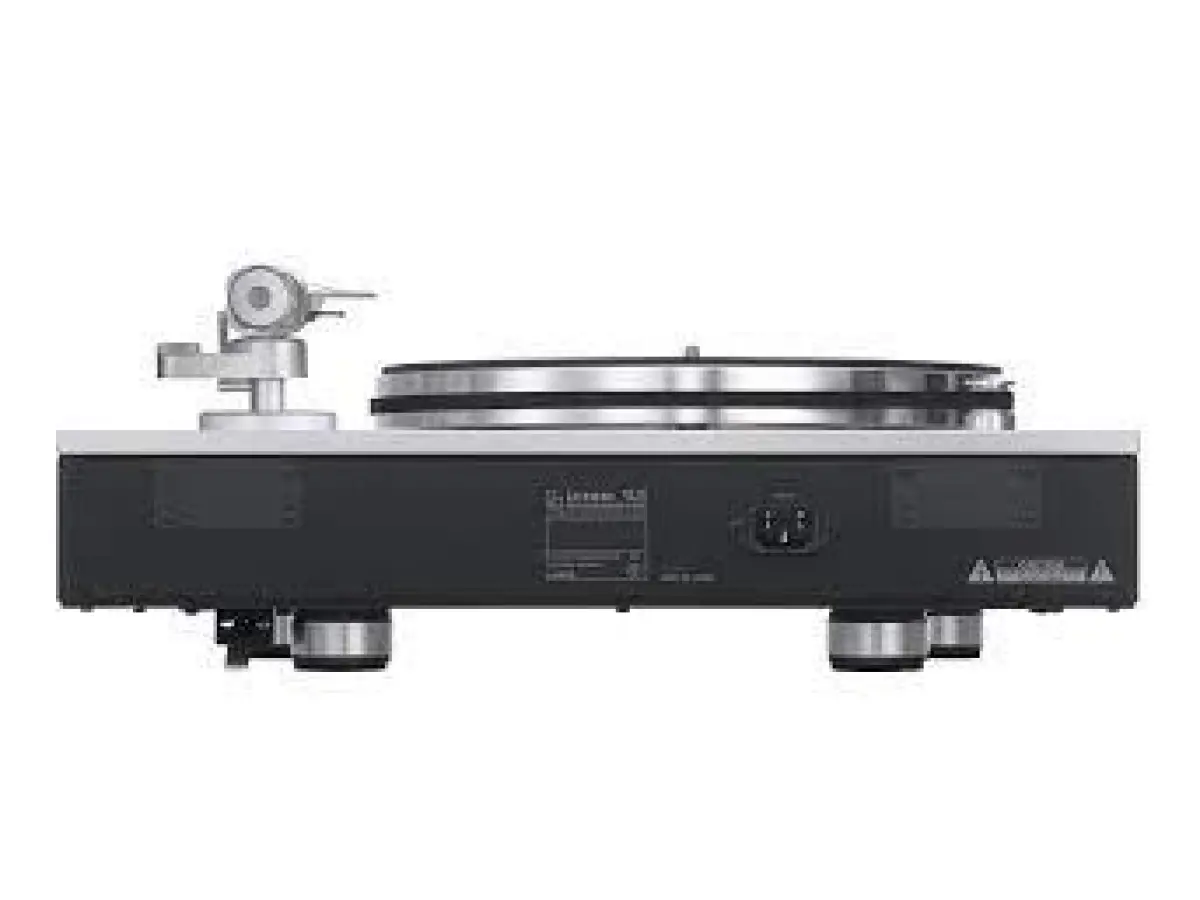

The AC inlet's structure has been improved to support the weight of heavy power cables by reversing the mounting, suppressing any movement of the power cable while maintaining a stable grip.





Potrebbe interessarti anche

Dual DUAL CS 506

Dual DUAL CS 506

Lista dei desideri

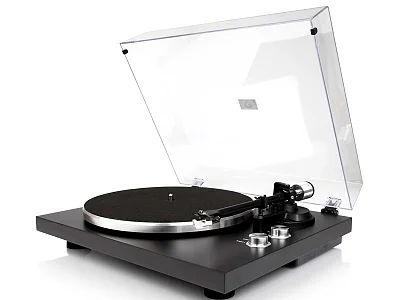

Argon Audio ARGON AUDIO TT
