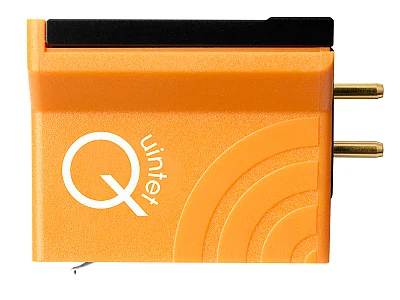

ORTOFON QUINTET BRONZE

Fonorivelatore Bobina Mobile Bassa Uscita Serie Quintet

Stilo nude fine line, bobina in argento puro 4-nines.

Tensione di uscita 0,3mV.
Peso di lettura consigliato 2,3gr.
Impedenza di carico consigliata >20 ohm.
Corpo in lega ABS/Alluminio di colore bronzo.
Peso 9gr.



Caratteristiche tecniche complete

Output voltage at 1000 Hz, 5cm/sec. 0.3 mV
Channel balance at 1 kHz < 1.2 dB
Channel separation at 1 kHz > 23 dB
Channel separation at 15 kHz > 15 dB
Frequency range at - 3dB 20-25.000 Hz
Frequency response 20-20.000 Hz +/-1.5 dB
Tracking ability at 315Hz at recommended tracking force *) 80 µm
Compliance, dynamic, lateral 15 µm/mN
Stylus type Nude Fine Line
Stylus tip radius r/R 8/40 µm Quintet SideBronze02
Tracking force range 2.1-2.5 g (21-25 mN)
Tracking force, recommended 2.3 g (23 mN)
Tracking angle 20°
Internal impedance, DC resistance 5 Ohm
Recommended load impedance > 20 Ohm
Cartridge body material ABS/Aluminium
Coil wire material Pure 4-nines copper
Cartridge colour Bronze
Cartridge weight 9 gram
