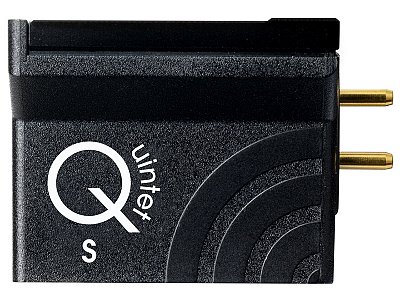

ORTOFON MC QUINTET BLACK S

Fonorivelatore a Bobina Mobile con Bassa Uscita Serie Quintet

Stilo nude Shibata, bobina in aucurum e cantilever in zaffiro.
Tensione di uscita 0,3mV
Peso di lettura consigliato 2,3gr
Impedenza di carico consigliata >20 ohm
Corpo in lega ABS/Alluminio di colore nero
Peso 9gr.

Caratteristiche complete:
Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
Channel balance at 1 kHz - < 1.0 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20 - 25.000 Hz
Frequency response 20-20.000 Hz - +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 15 µm/mN
Stylus type - Nude Shibata on Sapphire cantilever
Stylus tip radius - r/R 6/50 µm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force, recommended - 2.3 g (23 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - > 20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Aucurum
Cartridge colour - Black
Cartridge weight - 9 g
