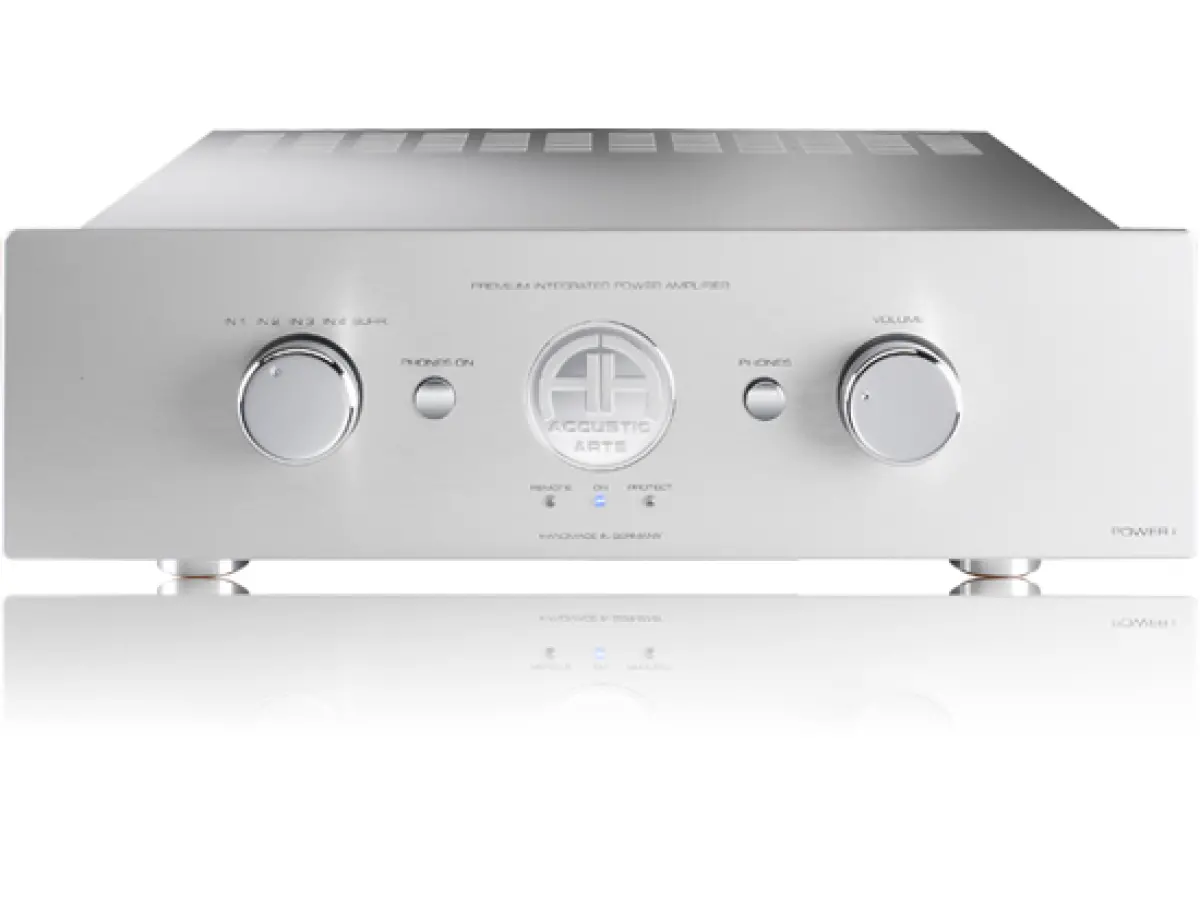

ACCUSTIC ARTS POWER 1 MK3

Amplificatore integrato

The Accustic Arts I Mk2 offers adequate power for most speakers (2 x 130W into 8 ohms, 2 x 190W into 4 ohms) and perfectly matched for an Accustic Arts pre amplifier and any other fine hi-fi. One of the finest power amps we've ever heard at this price.

Features

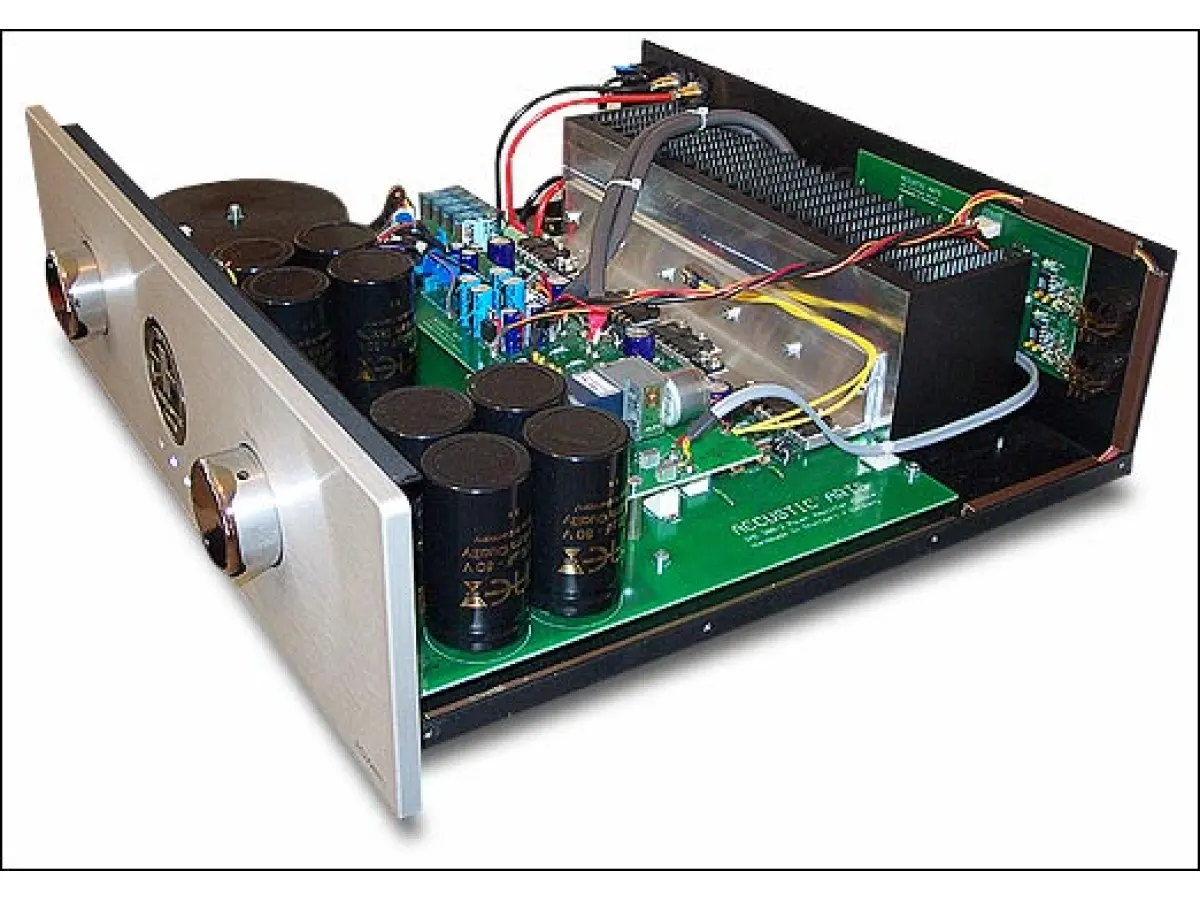

- Audiophile integrated stereo power amplifier with high output performance
- 8 selected MOS-FET output transistors of highest quality
- Premium magnetically shielded 550 VA toroidal transformer for high output reserves
- Separate transformer windings for preamp/ power amp section and left and right channels
- Very good smoothing thanks to more than 80.000 µF power supply capacity
- Very high damping factor
- Integrated protective circuit switches ascents off when clipping
- Constant low operating temperature - generously dimensioned heat sink integrated in housing
- Premium quality relays and rotary switch with gold-plated silver contacts for the input selection
- Encapsulated high grade volume potentiometer
- Fully aluminium-made remote control
- Full metal housing for optimum shielding
- ACCUSTIC ARTS® POWER I-MK2 is "Handmade in Germany"

Specifications

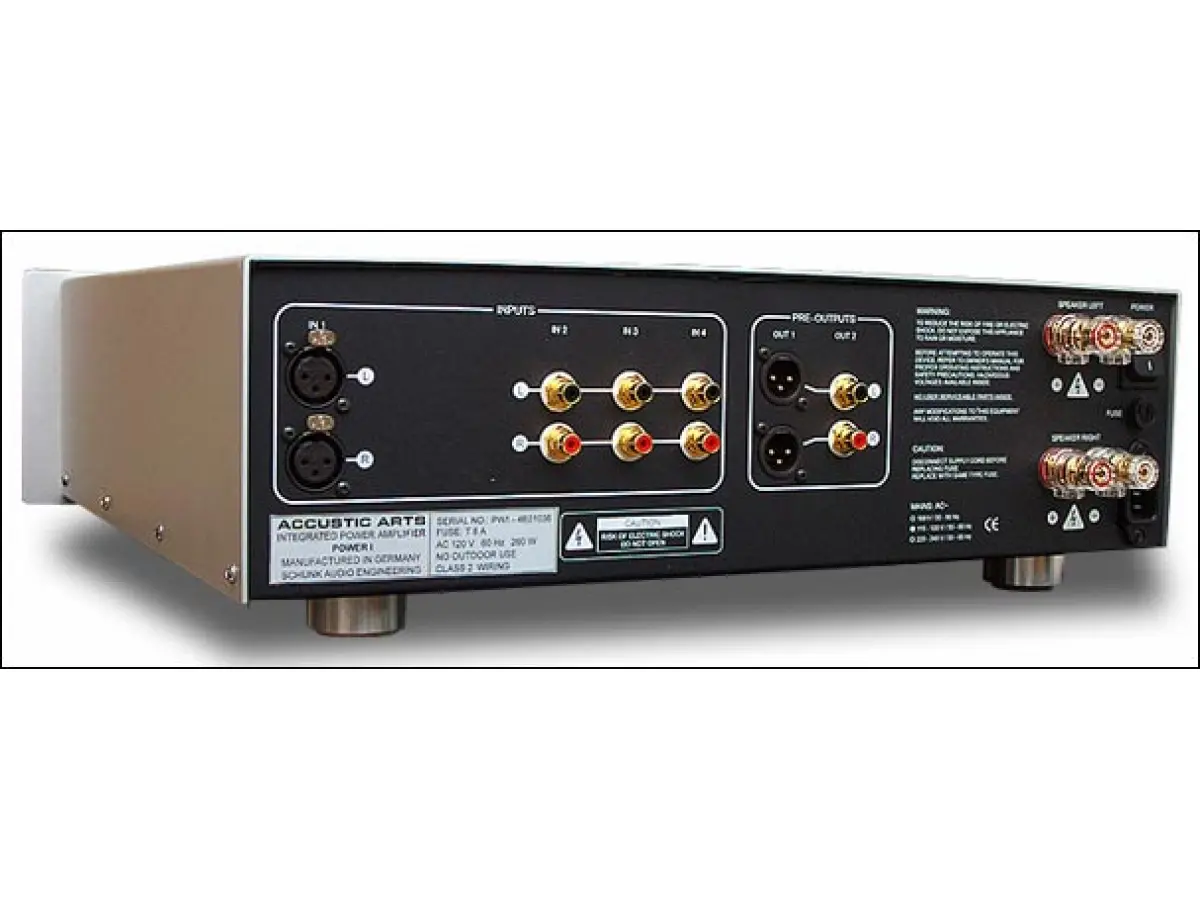

- Input: 1 x balanced high level input (XLR)
- Input: 3 x unbalanced high level inputs (RCA)
- Input: 1 x unbalanced „SURROUND BYPASS" (RCA)
- Output: 1 x balanced pre-out (XLR)
- Output: 1 x unbalanced pre-out (RCA)
- Signal difference left/right: < 1.5 dB (from 0 dB to -40 dB)
- Input impedance: unbalanced: 50 kΩ; balanced: 2 x 20 kΩ
- Output impedance: unbalanced: 34 Ω; balanced: 2 x 34 Ω
- Total transformer power: max. 550 VA (watts)
- Power supply capacity: > 80,000 µF
- Rated Power: (at THD+N = 0.1 %) 2 x 190W (4 Ω), 2 x 130W (8 Ω)
- Rise time / fall time: 4.5 µs with 4 Ω load
- Signal to noise ratio: -94 dBA (ref. 6.325 V)
- Distortion factor: 0.007 % on 8 Ω load with 1 kHz and 10 watts
- Damping factor (THD+N): > 1,000
- Dimensions (H x W x D): 145 x 482 x 450 mm / 5.7 x 19 x 17.7 inches
- Weight: approx. 22 kg/48 lbs.
