HARBET NELSON

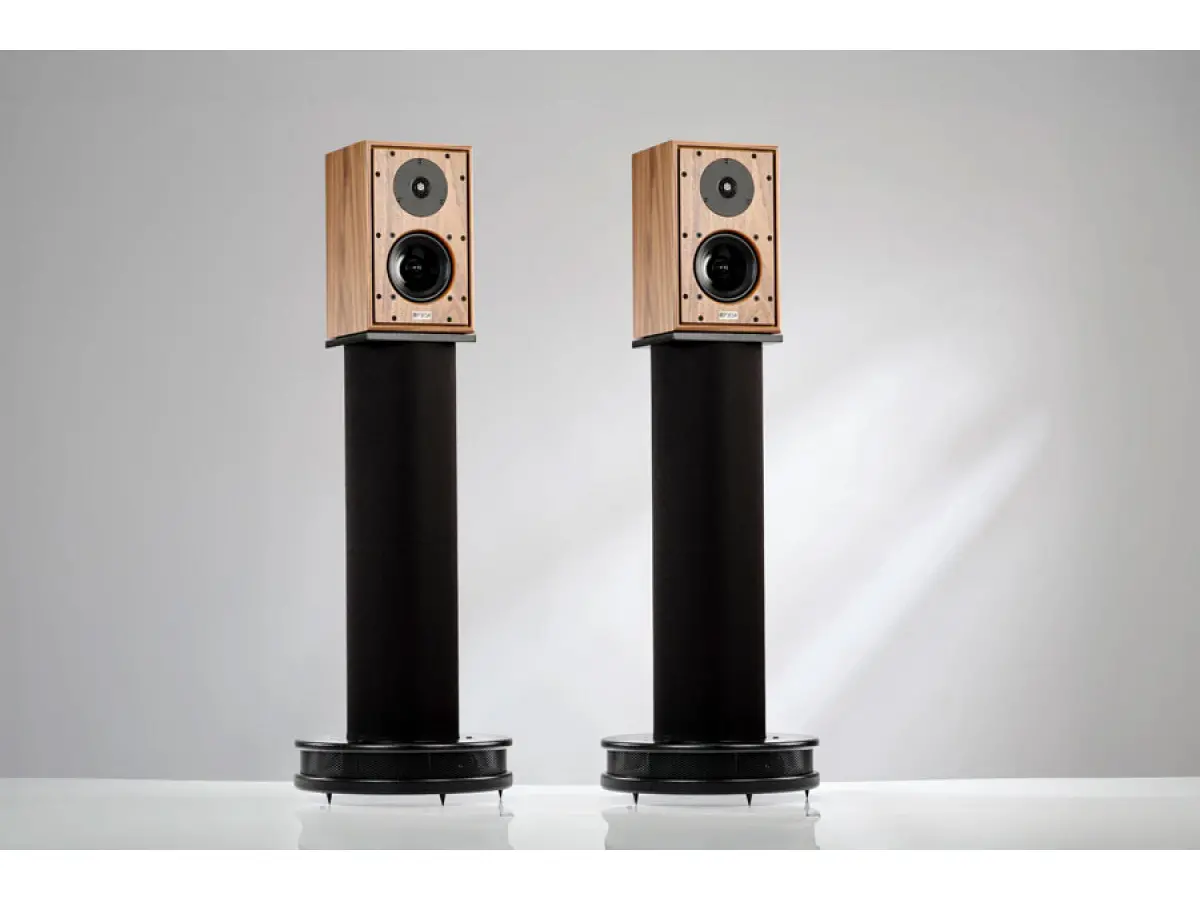

The Harbeth Nelson is a unique solution that combines a loudspeaker stand with an integrated bass extension system, designed to enhance the performance of compact monitors without increasing their overall footprint. Developed specifically for models such as the Harbeth P3ESR and loudspeakers based on the BBC LS3/5A design, it incorporates a dedicated low-frequency reinforcement system directly into the stand, extending bass response while preserving the speaker's original sonic character.

The system features a dedicated 5-inch Harbeth driver exclusively assigned to low-frequency reproduction, powered by a 50-watt digital amplifier. This configuration increases bass depth and authority while maintaining precise control, ensuring seamless integration with the main loudspeaker and delivering a balanced, coherent response across the entire frequency spectrum.

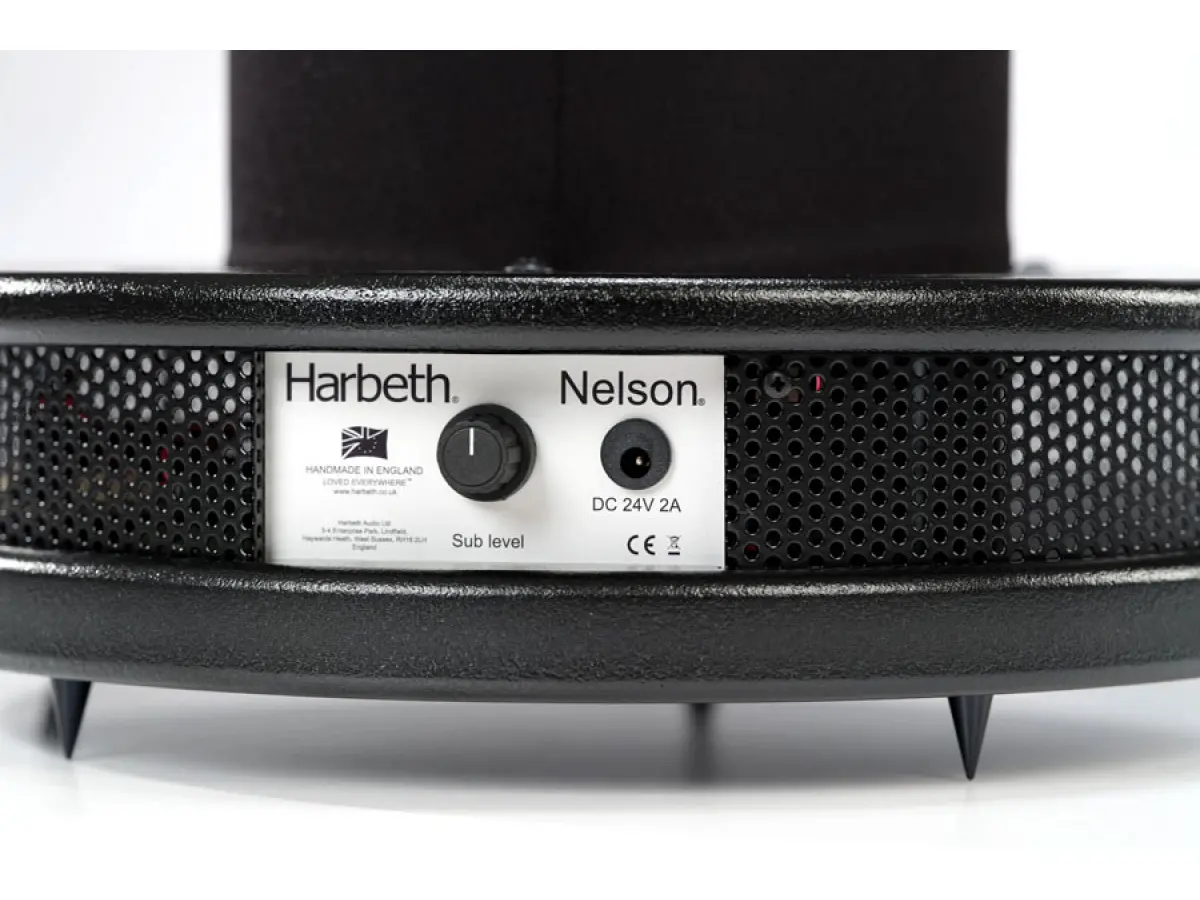

Bass output can be adjusted through a dedicated level control, allowing the user to tailor the low-frequency response to the listening room, speaker placement, personal preferences, and the type of music being played. This flexibility makes it possible to achieve an optimal tonal balance in a wide range of installation environments.

The Nelson has been engineered to integrate acoustically with Harbeth loudspeakers without altering their natural sound signature. Its purpose is to extend low-frequency performance while preserving the transparency, tonal coherence, and effortless musicality for which the brand's loudspeakers are renowned.

The structure is manufactured from advanced composite materials inspired by technologies used in the aerospace industry, selected for their combination of high rigidity and low mass. This construction helps minimize stand resonance, improves the mechanical stability of the loudspeaker, and provides a solid foundation for the entire system, contributing to even greater precision and control during playback.

Technical Specifications

• Description: Loudspeaker stand with integrated bass extension system (sub-stand)
• Driver: 1 × 110 mm Harbeth woofer in a band-pass enclosure
• Frequency response: 30 Hz – 75 Hz ±3 dB (free field)
• Maximum power output: 50 W RWS
• Input impedance: Active, greater than 5 kΩ with transformer-balanced input; presents virtually no load to the main amplifier
• Connection: Integrated cable for connection to the loudspeaker binding posts
• Power supply: External 24 V DC / 2 A power supply; 5.5 × 2.1 mm connector, centre positive; reverse polarity protected
• Dimensions: Height 750 mm (to the speaker mounting plate); 1,250 mm (with Harbeth P3ESR installed); 1,075 mm (to the tweeter height with Harbeth P3ESR); diameter 350 mm
• Weight: 7.6 kg each
