DALI E-9F

The SUB E-9 F is designed to deliver power and intensity to both music and movie soundtracks, providing a listening experience rich in energy and precision thanks to its high-level technical features. At its core is a 225 mm long-throw aluminum woofer, capable of moving large volumes of air without losing control, driven by a 170/220-watt Class D amplifier module that ensures both power and efficiency. The reflex loading, tuned to 39 Hz, uses a four-layer magnet to offer speed, depth, and definition in the bass, maintaining stable and controlled reproduction at all times.

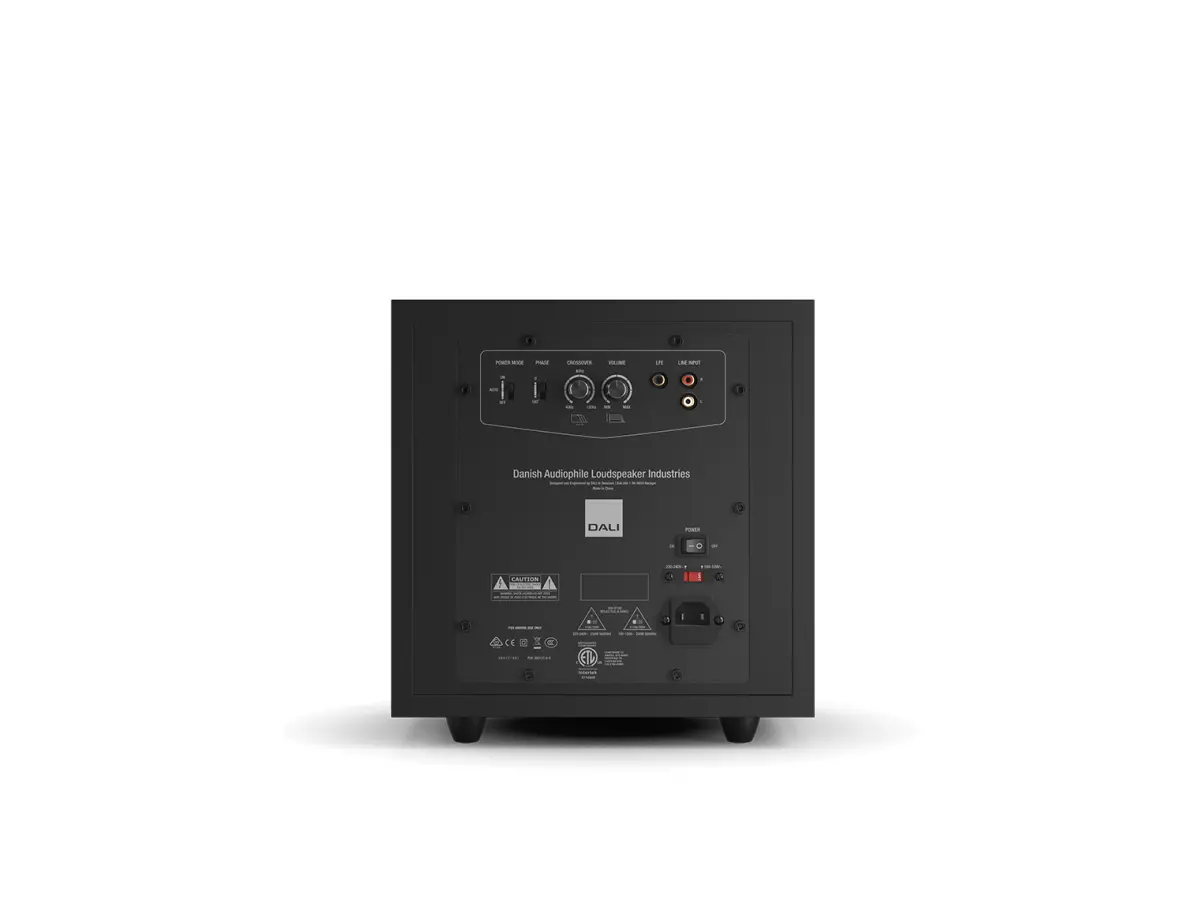

With LFE and RCA inputs, it is extremely versatile and suitable for any system, whether a home theater setup connected directly to an AV receiver or a two-channel stereo configuration. Available controls include an active crossover adjustable between 40 and 120 Hz, level adjustment, and phase control from 0 to 180 degrees, along with the option for automatic or manual power-on, allowing it to adapt to any environment and listening preference.

An integrated protection system prevents overloads and damage, ensuring long-term reliability. The reflex port is positioned on the bottom panel of the enclosure, designed to direct airflow toward the floor, while four feet maintain the optimal distance for consistent and efficient air movement. Thanks to this design, the SUB E-9 F can also be placed in a corner or near a wall without compromising acoustic performance. It is particularly suited for pairing with the KUBIK FREE and the Zensor and Fazon series, but its characteristics make it an excellent choice in any system, adding depth, realism, and impact to every listening experience.

Technical specifications:

• Type: active bass-reflex subwoofer
• Frequency response: 37–200 Hz
• Maximum level: 111 dB
• Crossover frequencies: 40–130 Hz
• Phase adjustment: 0–180 degrees
• Built-in amplifier: 170–220 watts, Class D
• Driver: 225 mm long-throw aluminum woofer
• Connections: LFE; RCA
• Dimensions (H x W x D): 307 x 288 x 311 mm
• Weight: 11 kg
