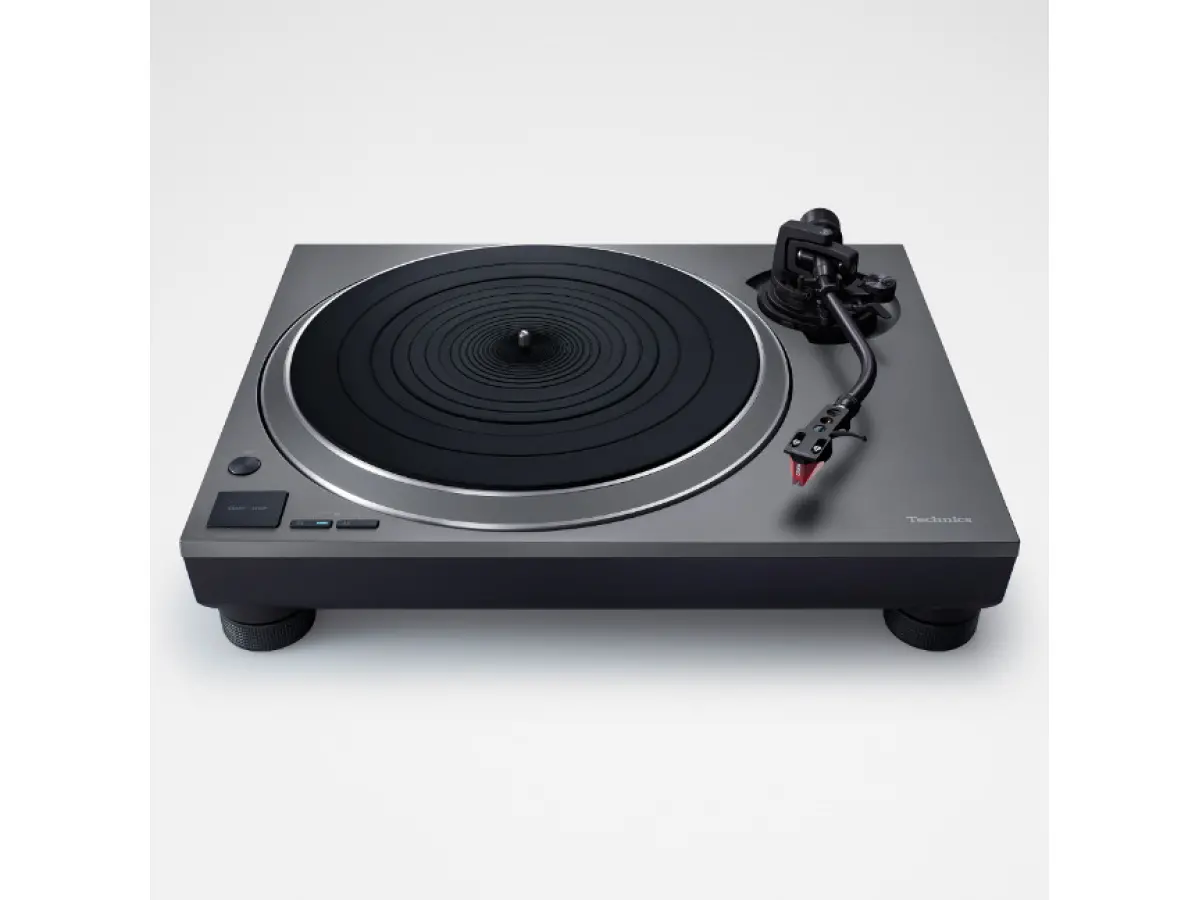

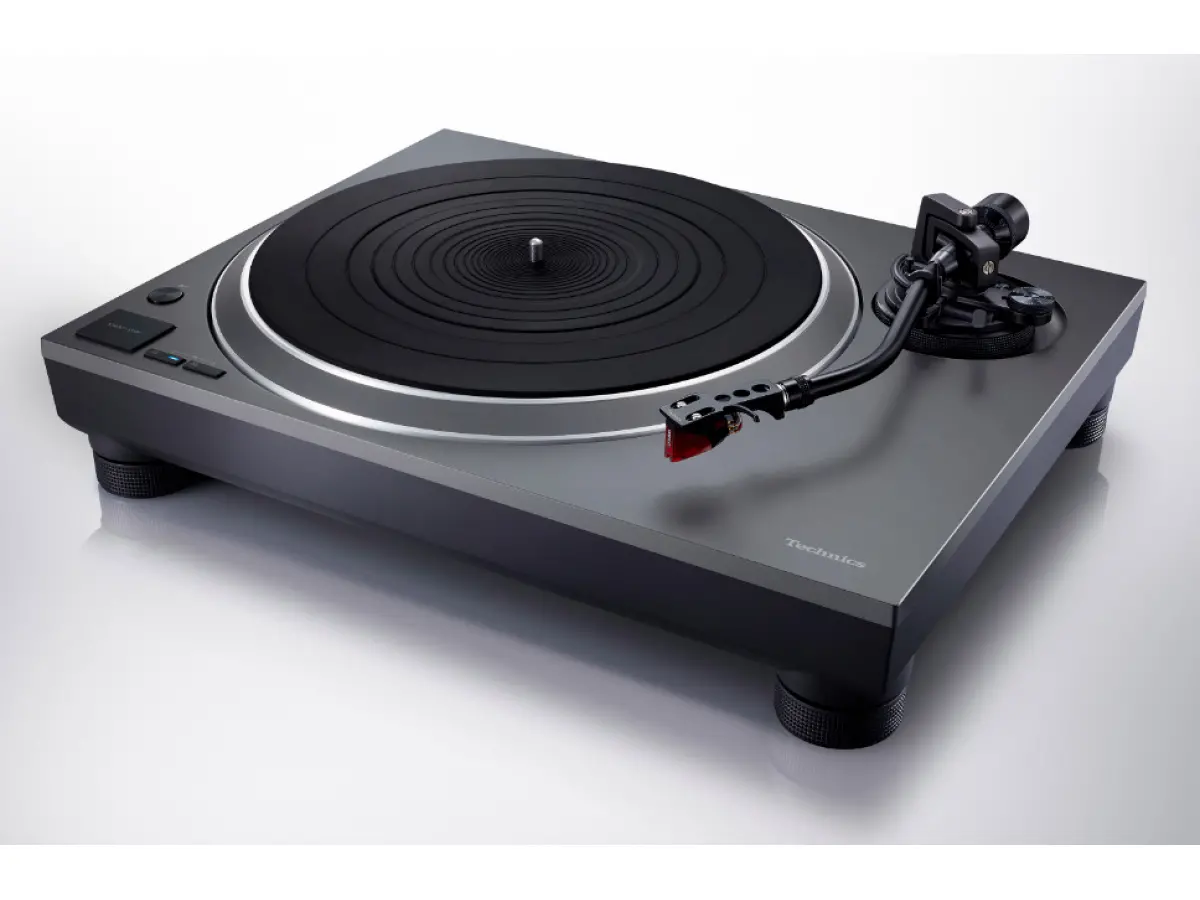

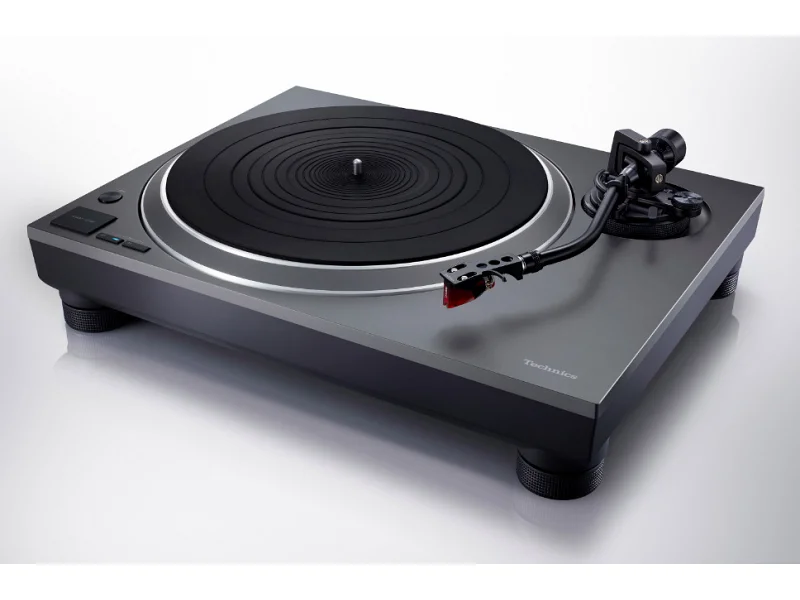

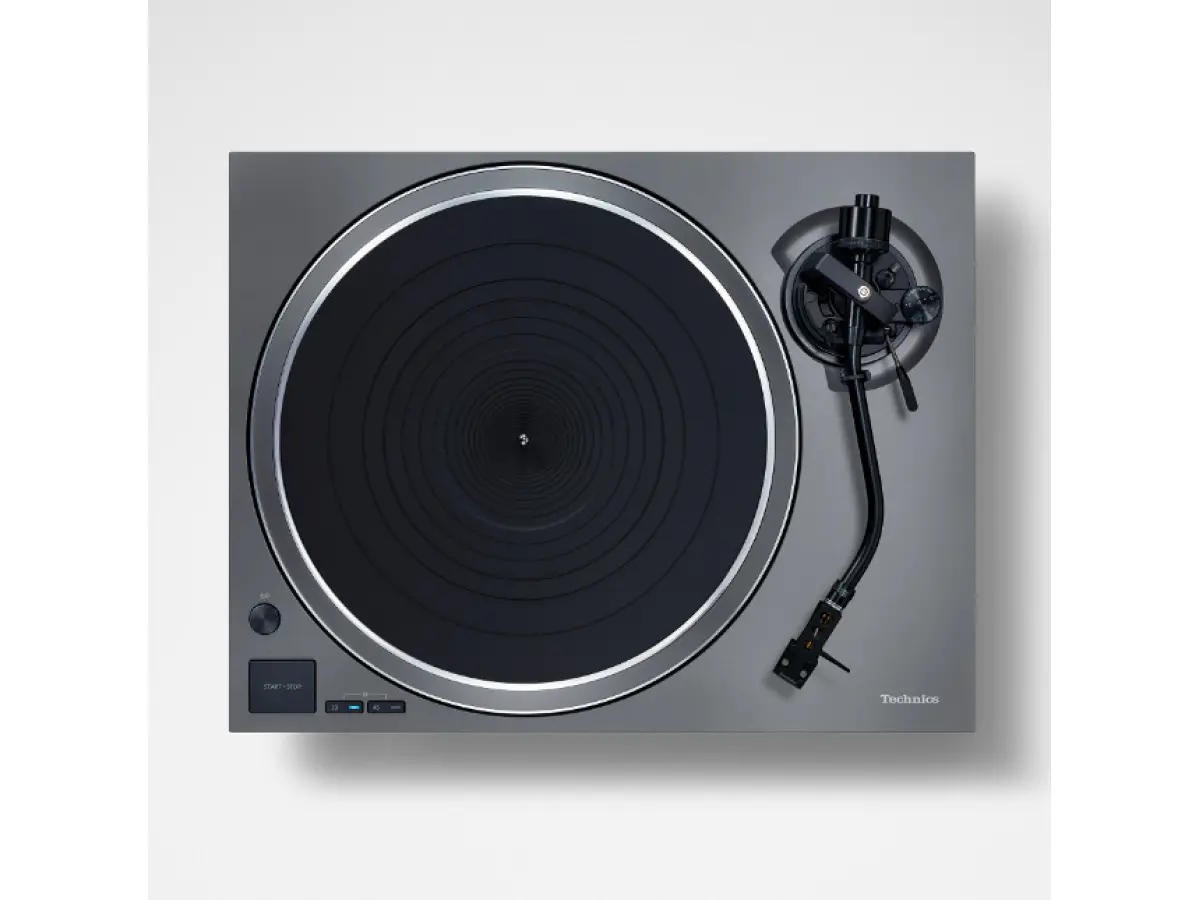

TECHNICS SL-1500CS

The Technics SL-1500CS is a Premium Class direct-drive turntable that represents the evolution of the acclaimed SL-1500C, further enhancing rotational accuracy, stability, and overall sound quality. Its modern metallic grey finish reflects a contemporary aesthetic inspired by the innovative ΔΣ-Drive technology, developed to deliver even more refined performance and exceptionally accurate analog sound reproduction.

Developed from Technics’ experience with the Grand Class series, the ΔΣ-Drive system uses advanced digital motor control to minimize unwanted vibrations and noise. Thanks to PWM signal processing, the turntable achieves remarkably smooth and stable rotation, eliminating even the smallest motor irregularities and ensuring precise, natural, and immersive music playback. The iron-coreless direct-drive motor also eliminates cogging, maintaining long-term reliability and precision without the need for maintenance.

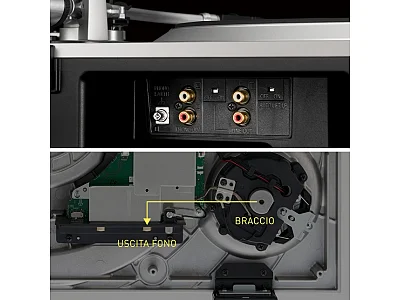

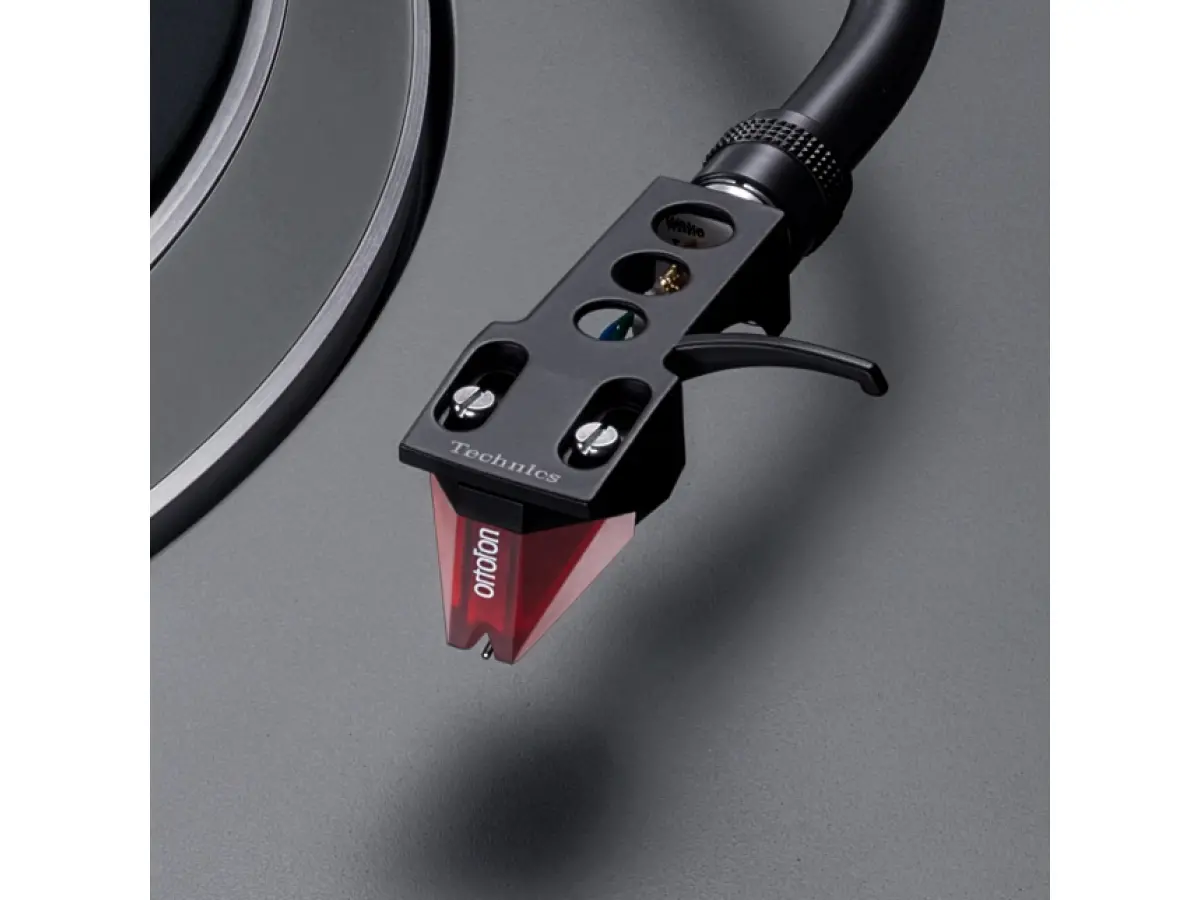

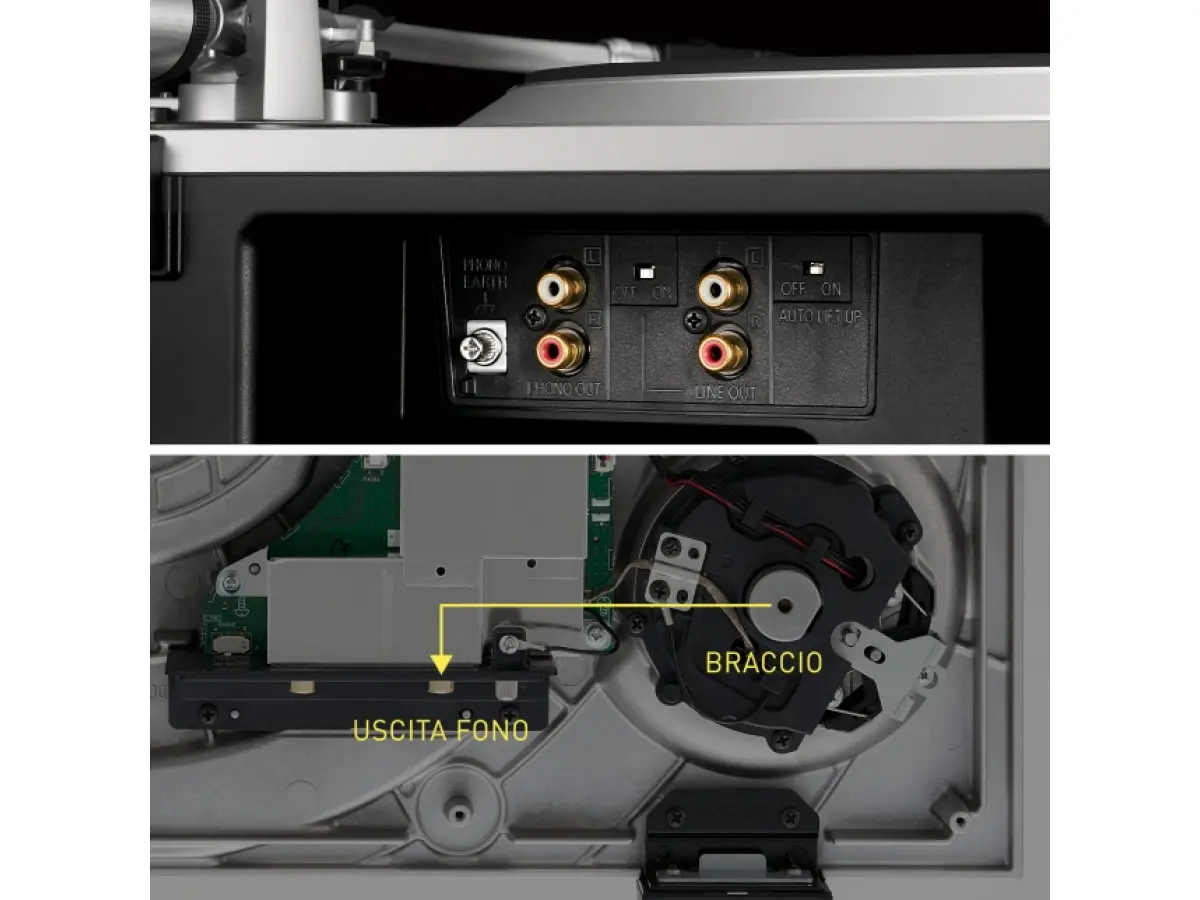

Designed to be ready for listening straight out of the box, the SL-1500CS features a high-quality built-in phono equalizer and comes supplied with the renowned Ortofon 2M Red cartridge. This combination delivers detailed, dynamic, and faithful sound reproduction, bringing out every nuance of vinyl records. The internal phono circuit has been refined through extensive listening tests and engineered with dedicated power supplies, shielding, and separate grounding to reduce noise and interference while preserving signal purity. When an external phono preamplifier is preferred, the built-in circuit can be completely bypassed.

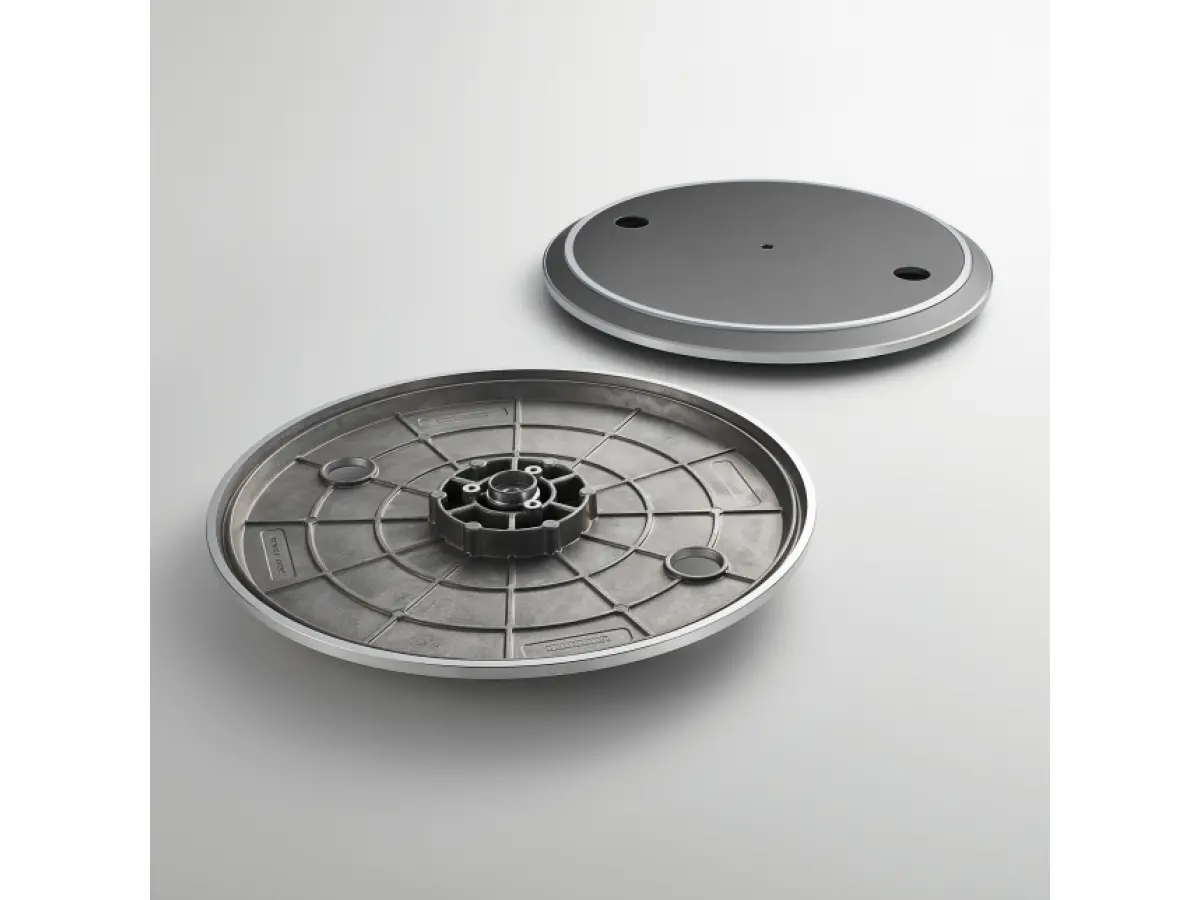

The turntable structure has been engineered for high rigidity and effective vibration control. The two-layer platter combines die-cast aluminum with a damping rubber layer, reducing unwanted resonance and improving playback stability. The cabinet also features a dual-layer construction, integrating a die-cast aluminum chassis with a fiberglass-reinforced ABS composite material to further enhance rigidity and vibration damping performance.

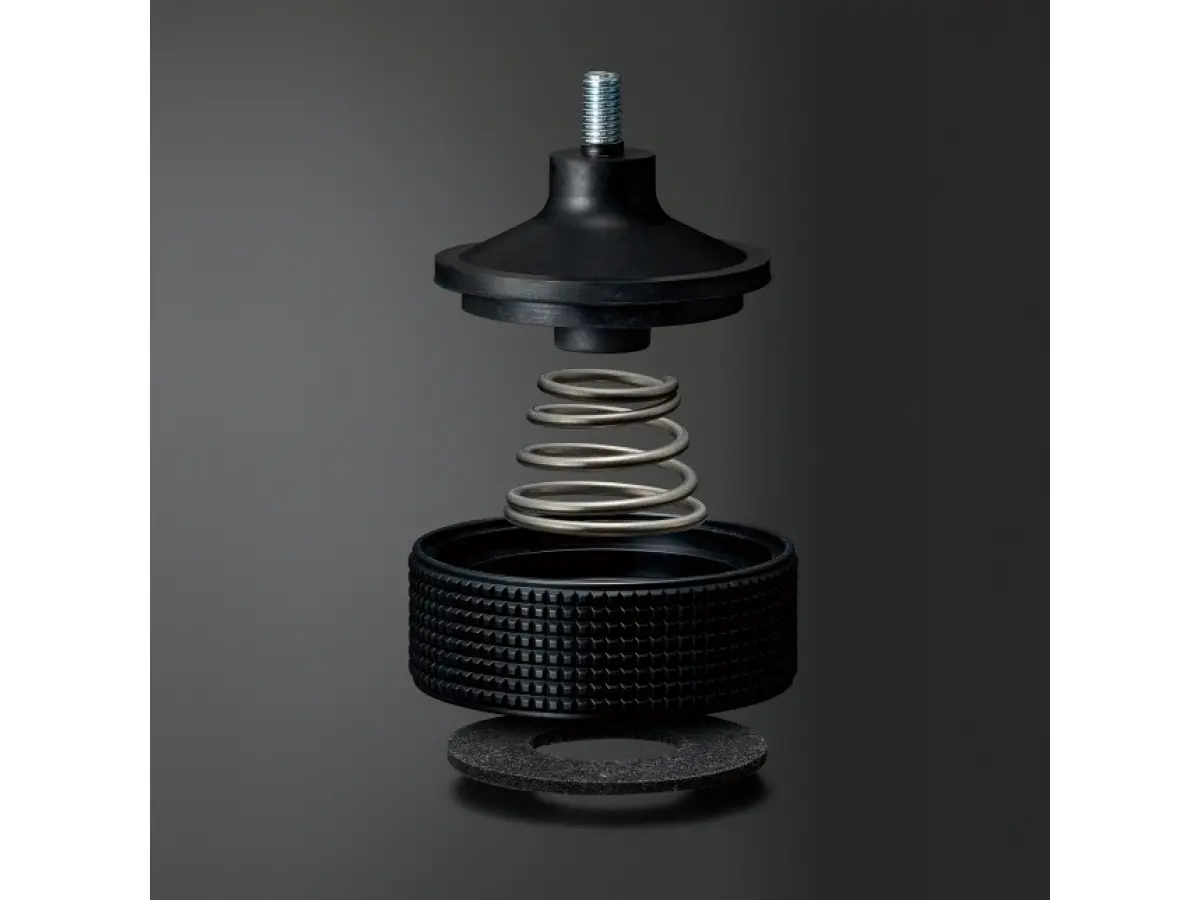

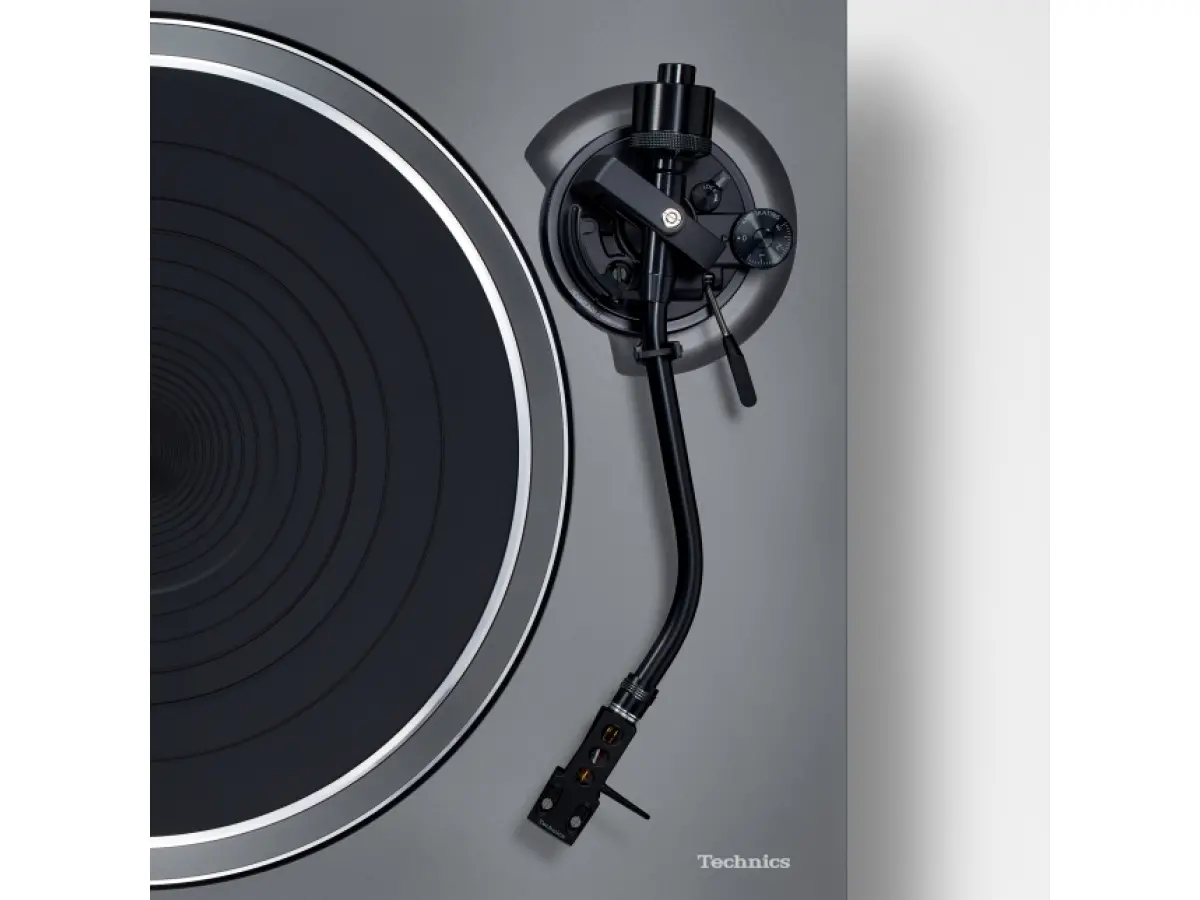

The lightweight, high-rigidity aluminum S-shaped tonearm uses a gimbal suspension system with precision bearings to ensure accurate tracking and excellent sensitivity. Completing the design is a spring-and-rubber isolation system developed to effectively suppress external vibrations and maintain high performance even at elevated listening volumes.

The Technics SL-1500CS also includes a convenient Auto Lifter function that automatically raises the tonearm at the end of a record, helping to protect both stylus and vinyl from unnecessary wear. The mechanism is designed to operate without affecting tonearm movement and without using motor power, ensuring simple and highly reliable operation.

Technical specifications:

• Drive method: direct drive
• Motor: brushless DC motor
• Turntable speeds: 33-1/3, 45 and 78 rpm; actual speed at 78 rpm: 78.26 rpm
• Starting torque: 0.18 Nm (1.8 kgf·cm)
• Start-up time: 0.7 seconds from standstill to 33-1/3 rpm
• Braking system: electronic brake
• Wow and flutter: 0.025% WRMS
• Platter: die-cast aluminum; diameter 332 mm; weight approx. 2.0 kg (including turntable mat)
• Tonearm type: static balance
• Effective tonearm length: 230 mm
• Overhang: 15 mm
• Tracking error angle: within 2° 32' at outer groove; within 0° 32' at inner groove
• Offset angle: 22°
• Tonearm height adjustment range: 0 – 6 mm
• Stylus pressure adjustment range: 0 – 4 g (direct reading)
• Headshell weight: approx. 7.6 g
• Applicable cartridge weight without auxiliary weight: 5.6 – 12.0 g; 14.3 – 20.7 g including headshell
• Applicable cartridge weight with auxiliary weight: 10.0 – 16.4 g; 18.7 – 25.1 g including headshell
• Cartridge mounting dimensions: standard 12.7 mm (1/2")
• Headshell terminal: 4-pin terminal φ1.2 mm
• Audio outputs: PHONO (Pin Jack) x1; LINE (Pin Jack) x1
• Ground terminal: x1
• Power supply: AC 110–240 V, 50/60 Hz
• Power consumption: 8.0 W operating; approx. 0.2 W standby/off
• Operating temperature range: 0 °C to +40 °C
• Operating humidity range: 35% to 80% RH (no condensation)
• Included accessories: turntable platter, turntable mat, dust cover, EP record adapter, counterweight, auxiliary weight, headshell with cartridge, PHONO cable, PHONO ground cable, AC power cord for UK, AC power cord for continental Europe, instruction manual
• Dimensions: 453 × 169 × 372 mm (W × H × D)
• Weight: approx. 9.9 kg
