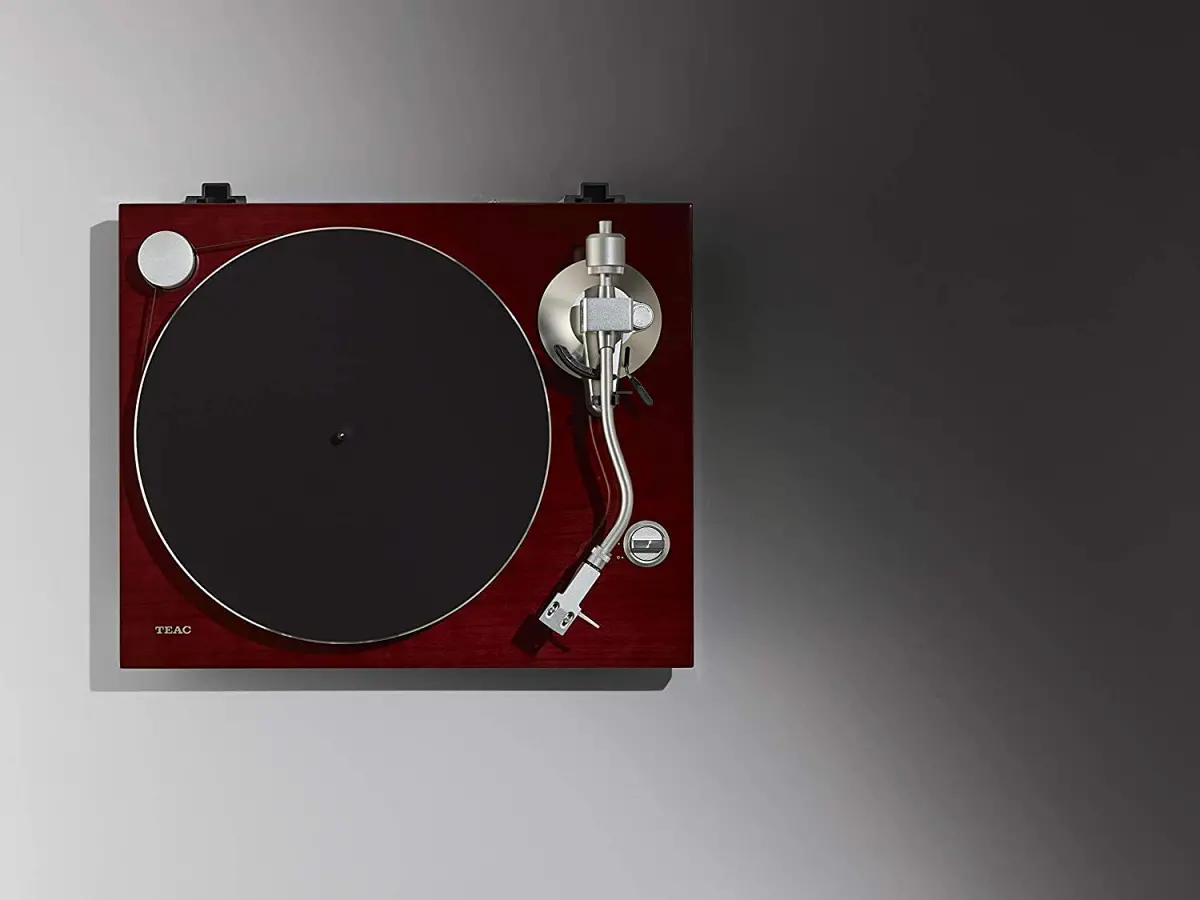

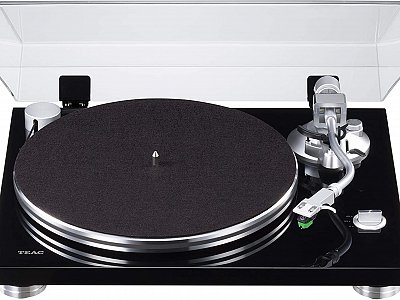

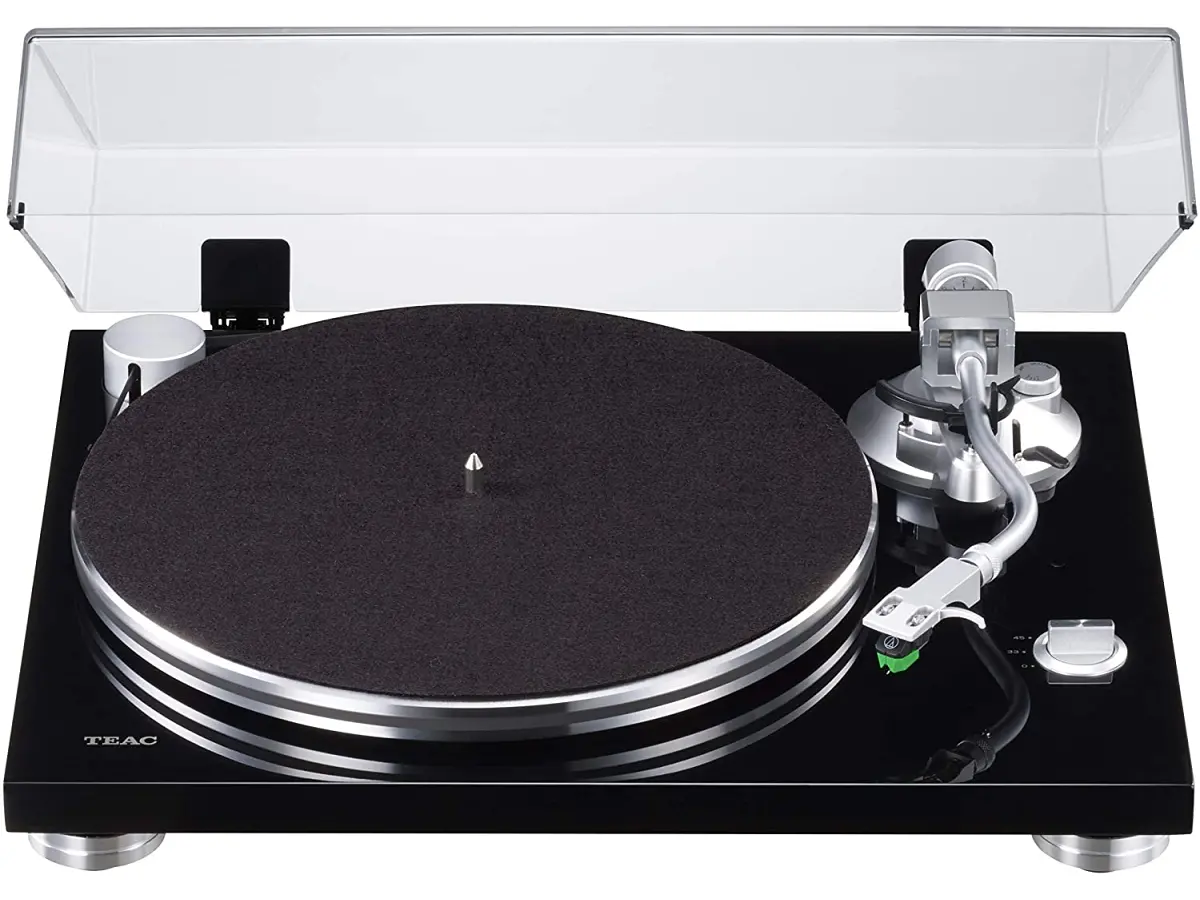

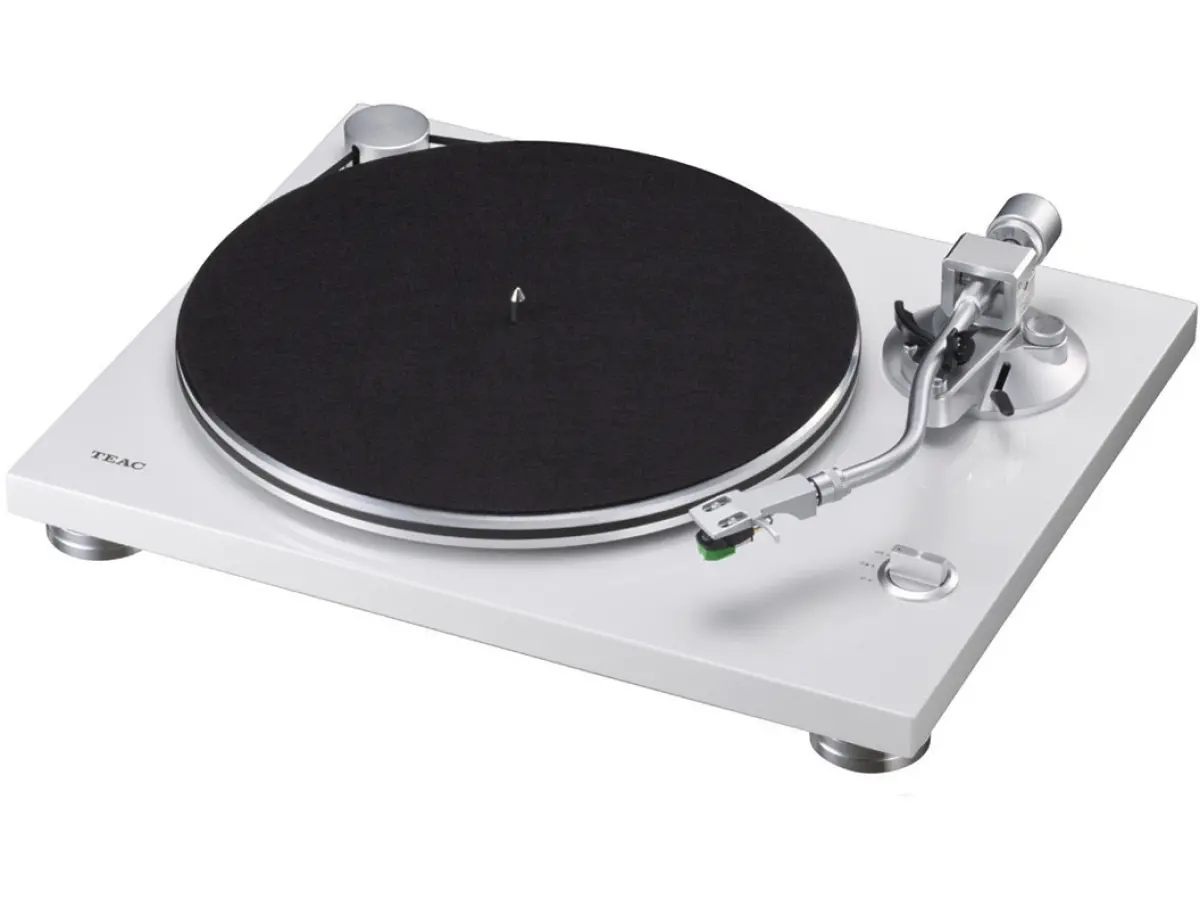

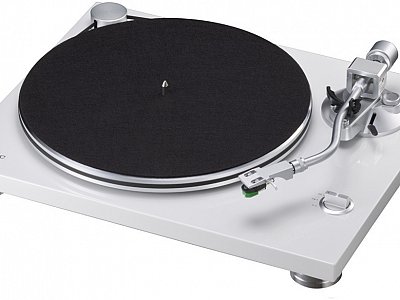

TEAC TN-3B-SE

The TN-3B is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier and USB digital output. It employs a new tonearm with knife-edge, pivot-point bearings, co-developed with high-end tonearm manufacturer SAEC, for superlative stability and resolution.

The belt-drive mechanism helps mitigate any unwanted cogging effects (i.e. fine pulsing) from the operation of the motor to ensure a precise and smooth platter rotation. The TN-3B also employs a high-precision NJM8080 op-amp in its in-built phono EQ amplifier, allowing the user to enjoy the sound of their vinyl records with low distortion and in high quality. In addition, a built-in analogue-to-digital converter and USB port allow users to digitise their vinyl libraries on their PC/Mac.

The TN-3B delivers a natural and well-balanced sound quality and is quick and easy to set up. We believe it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.

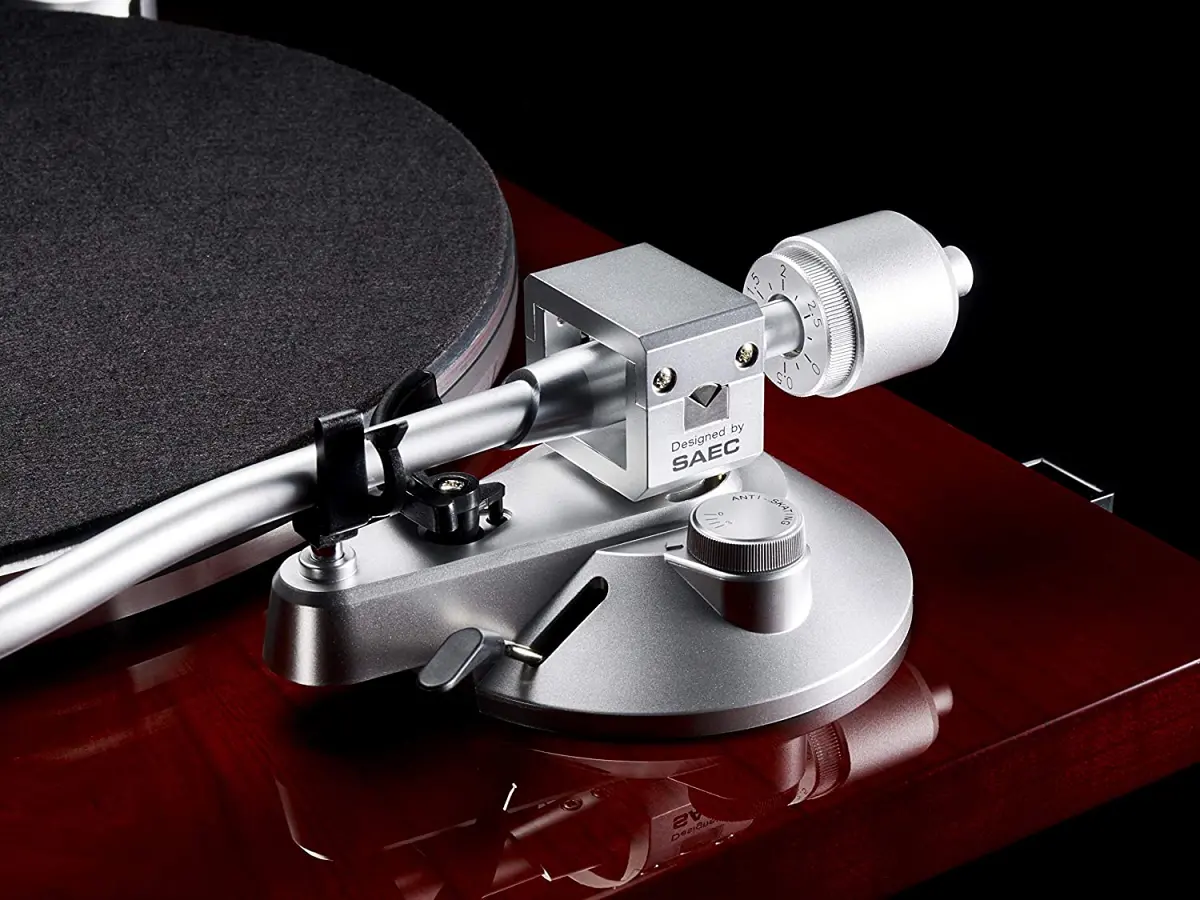

Knife-edge, pivot-point tone-arm bearings
In collaboration with the SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-3B's tonearm employs a knife-edge, pivot-point bearing. Unlike with conventional bearings, subtle movements with this tonearm will actually help deliver a more dynamic sound with excellent resolution. The S-shaped tonearm also employs a universal headshell fitting, allowing users to quickly and easily swap cartridges (from 14 - 23g / 0.5 - 0.8 oz.) / headshells.

Precision anti-skating and stylus-pressure adjustment
The static-balanced, S-shape tonearm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play vinyl discs.

Pre-installed VM-series cartridge
An audio-technica AT-VM95E cartridge with an elliptically shaped stylus tip comes pre-installed on the headshell for convenience. After you’ve opened the box, set up the platter, mount the headshell on the tonearm and start enjoying your records.

Built-in MM-type phono EQ amplifier
The TN-3B incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080 is employed to boost the low-level signals from the phono cartridge to LINE level.

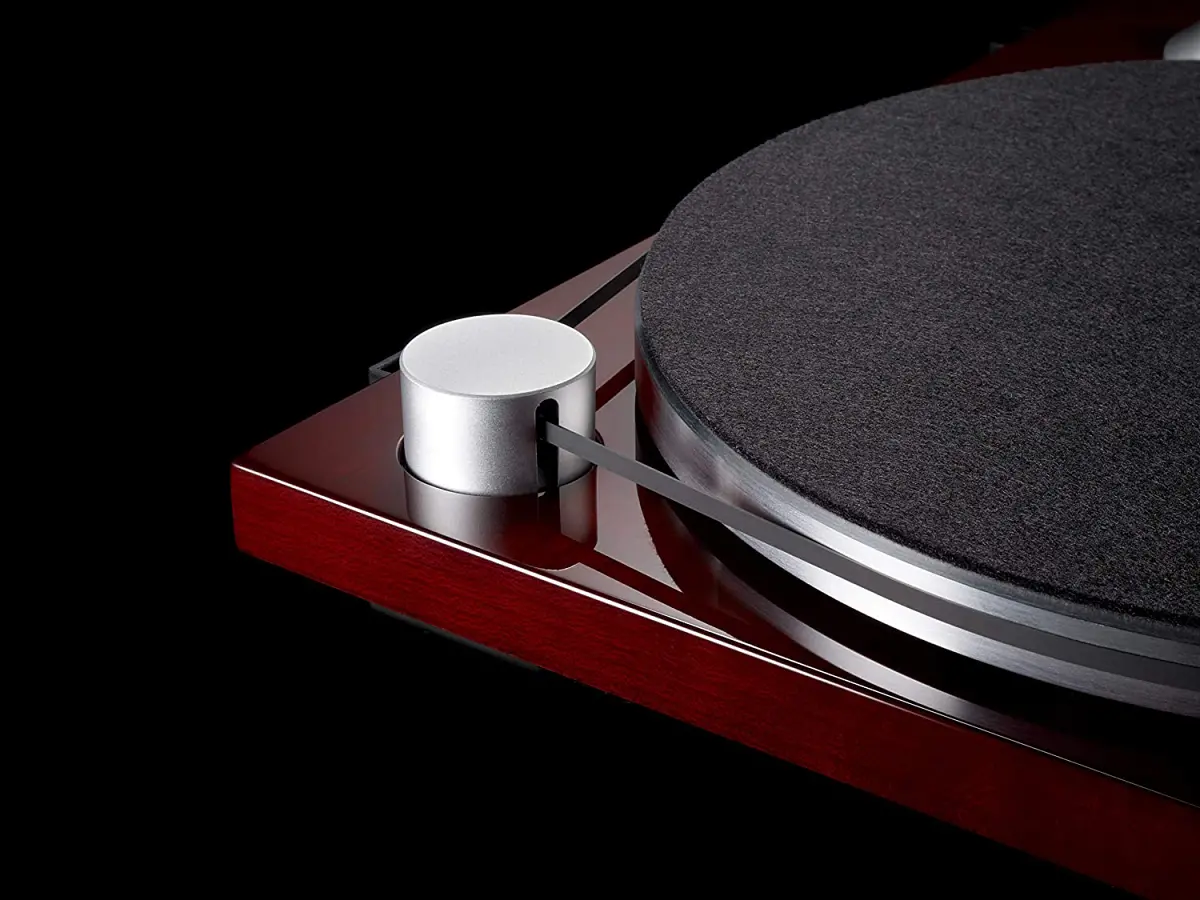

External belt-drive with aluminium die-cast platter
A belt-drive arrangement is employed to minimise motor cogging effects by driving the outer rim of the platter (which has a larger diameter, mass and surface area).

Luxurious, multi-layer lacquer paint finish
All internal components are mounted on a robust and high-density MDF plinth for rigidity and deadening of vibration. Thanks to the sleek and stylish design, the TN-3B looks at home in most domestic environments, creating the perfect setting for listening to vinyl records.

USB digital output for digital archiving

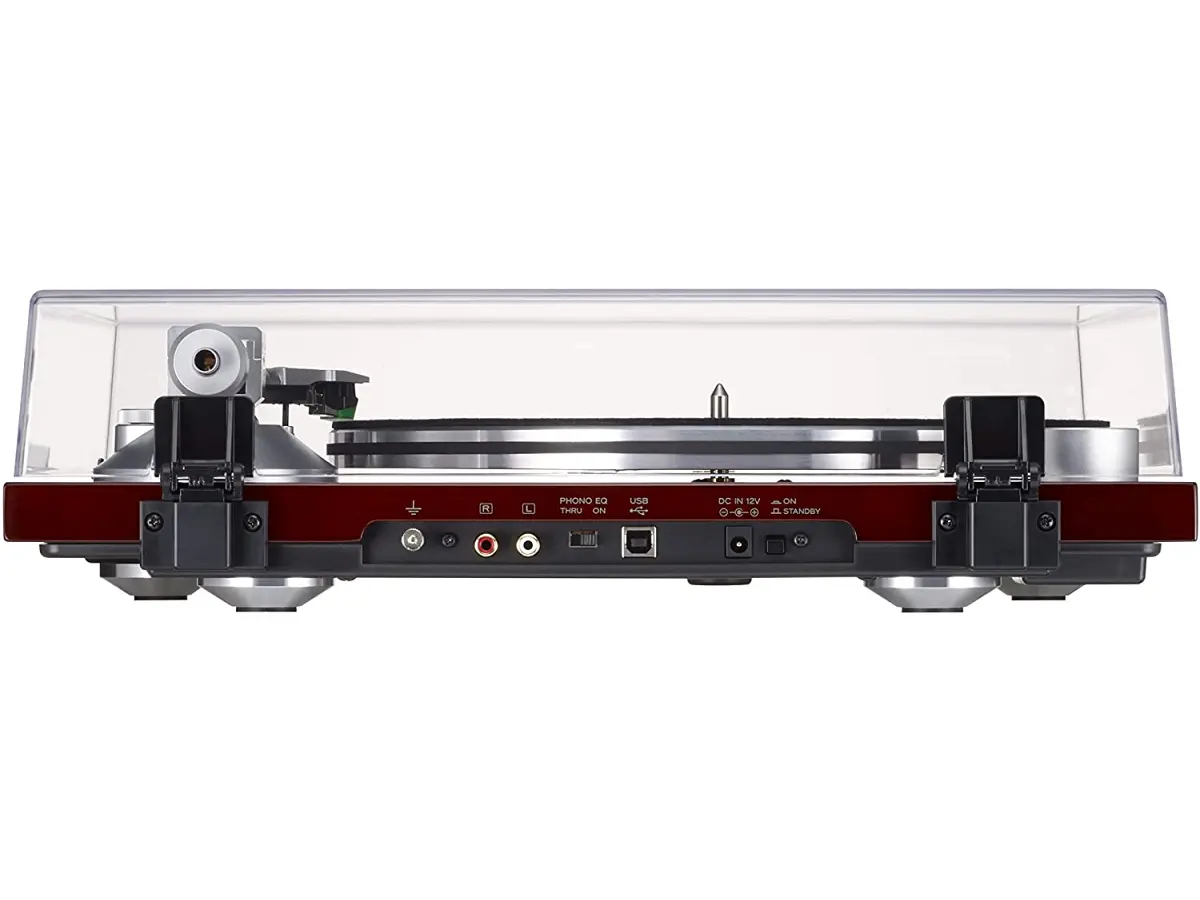

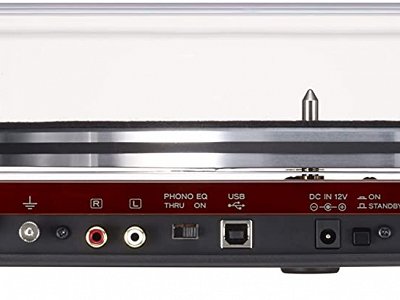

A USB port on the back panel delivers CD-quality digital audio to your PC/Mac, allowing you to record/archive your analogue library in a high quality, digital audio format. Once you have archived your vinyl to digital, it’s a simple matter to listen to them while out and about via a smartphone/portable audio player, or in your car (by burning them onto a CD-R or transferring them to a memory card/stick). And to ensure pristine signal transfer, gold-plated PHONO/LINE output terminals are employed to prevent analogue audio signals from losing quality as a result of oxidation.

33-1/3 and 45 rpm 2-speed turntable
The TN-3B supports both 33-1/3 and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium.

Insulating feet with excellent shock absorption
The insulating feet comprise a machined aluminium shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B is very resistant to acoustic feedback.

Honeycomb-patterned bottom panel
In order to achieve sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimises unwanted vibrations.

Features at a glance
Belt-drive mechanism
2-speed turntable supporting 33-??? and 45 rpm
Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC
Aluminum die-cast platter
Built-in PHONO EQ amplifier compatible with MM-type cartridges
Hi-fi grade op-amp, NJM8080, used in PHONO EQ stage
Anti-skating mechanism
USB digital audio output for digitising records on a PC/Mac
PHONO/LINE analog output (switchable)
Gold-plated oxidation-resistant output connectors
Pre-installed AT-VM95E cartridge supplied by audio-technica
Rigid, high-density MDF plinth with multi-layered lacquer finish
Shock-absorbing insulating feet
GND terminal
RoHS compliant

Included Accessories
Felt Mat
EP Adapter
Counter Weight, Head-shell (AT-VM95E installed)
Platter
Dust Cover
Hinges × 2
RCA Audio cable with GND terminal
AC Adapter (GPE053A-V120050)
