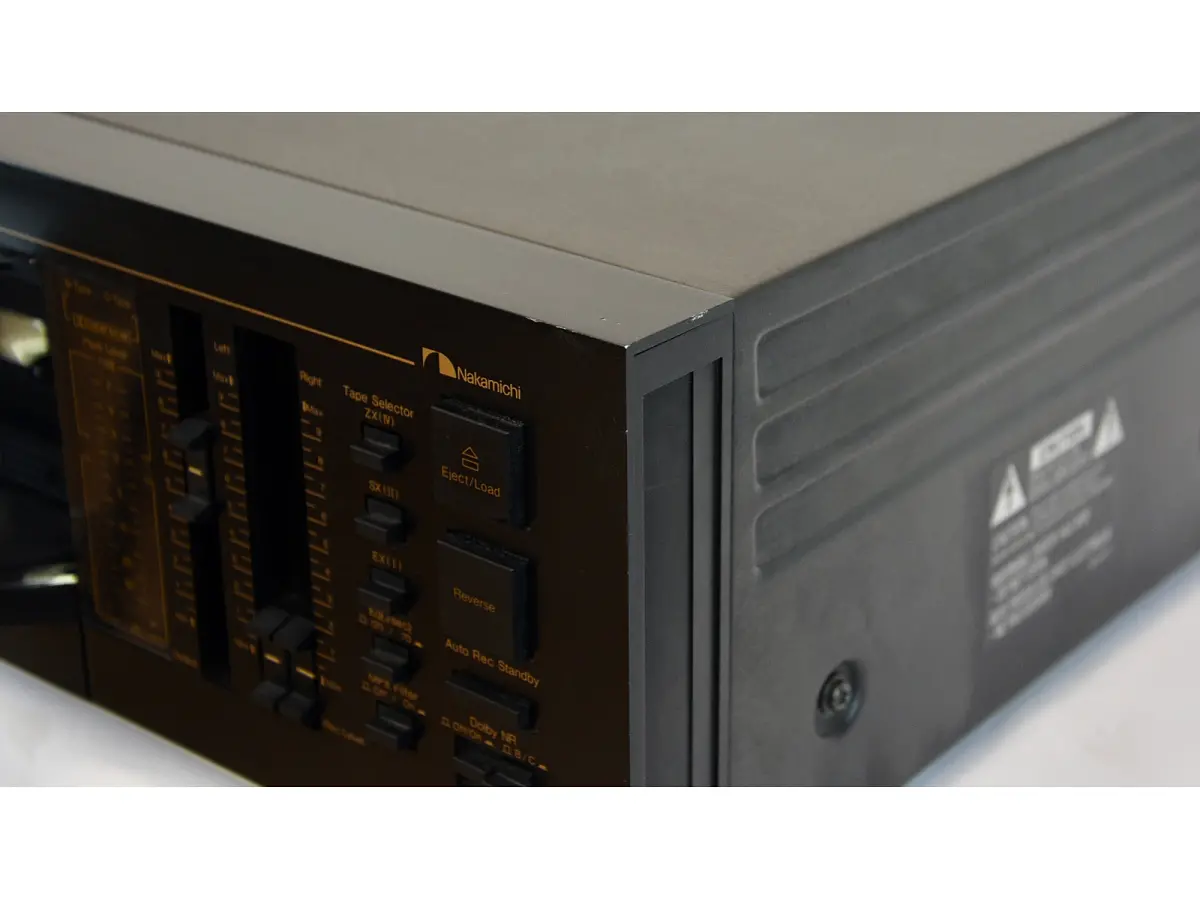

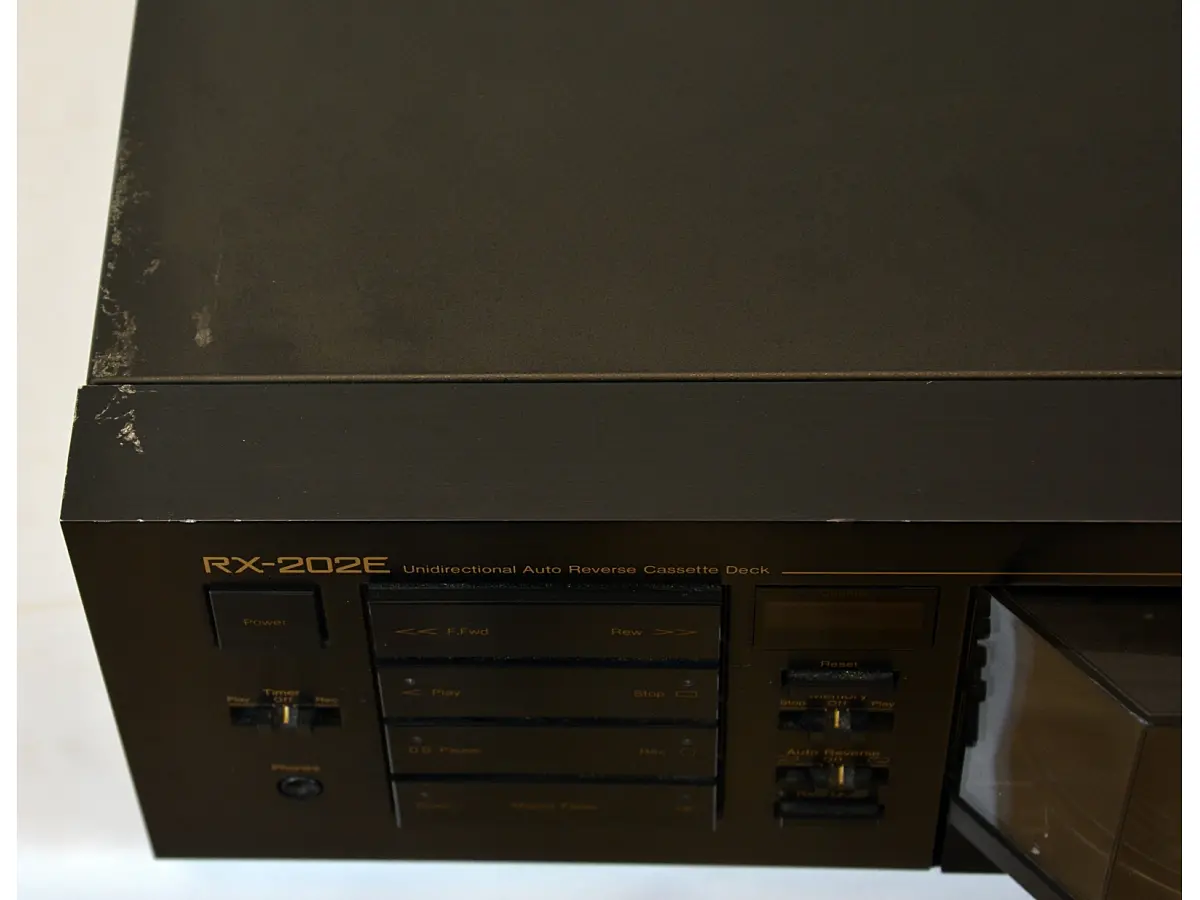

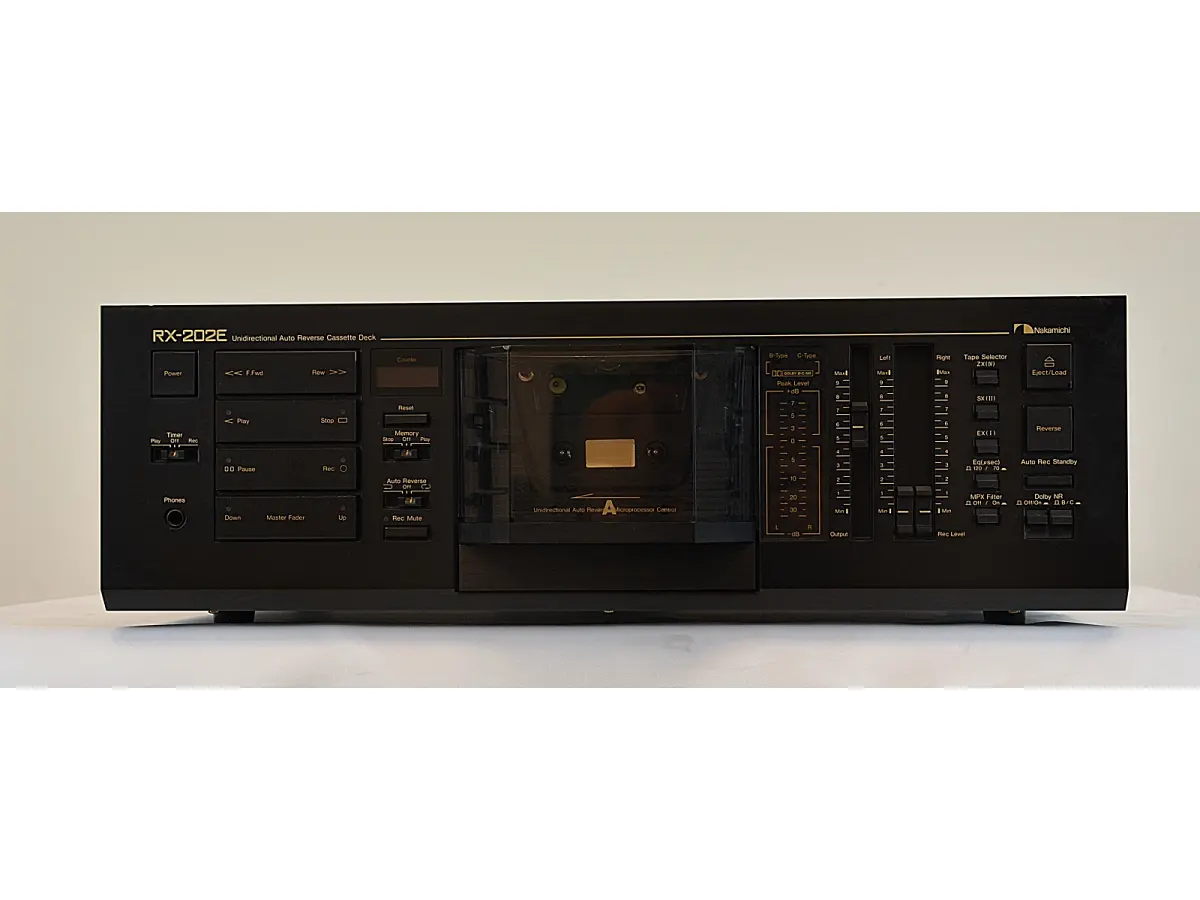

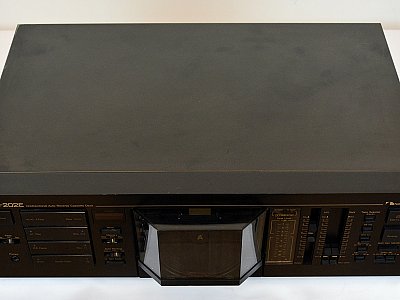

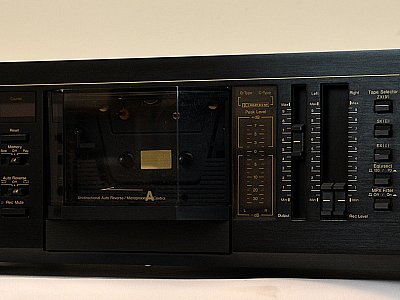

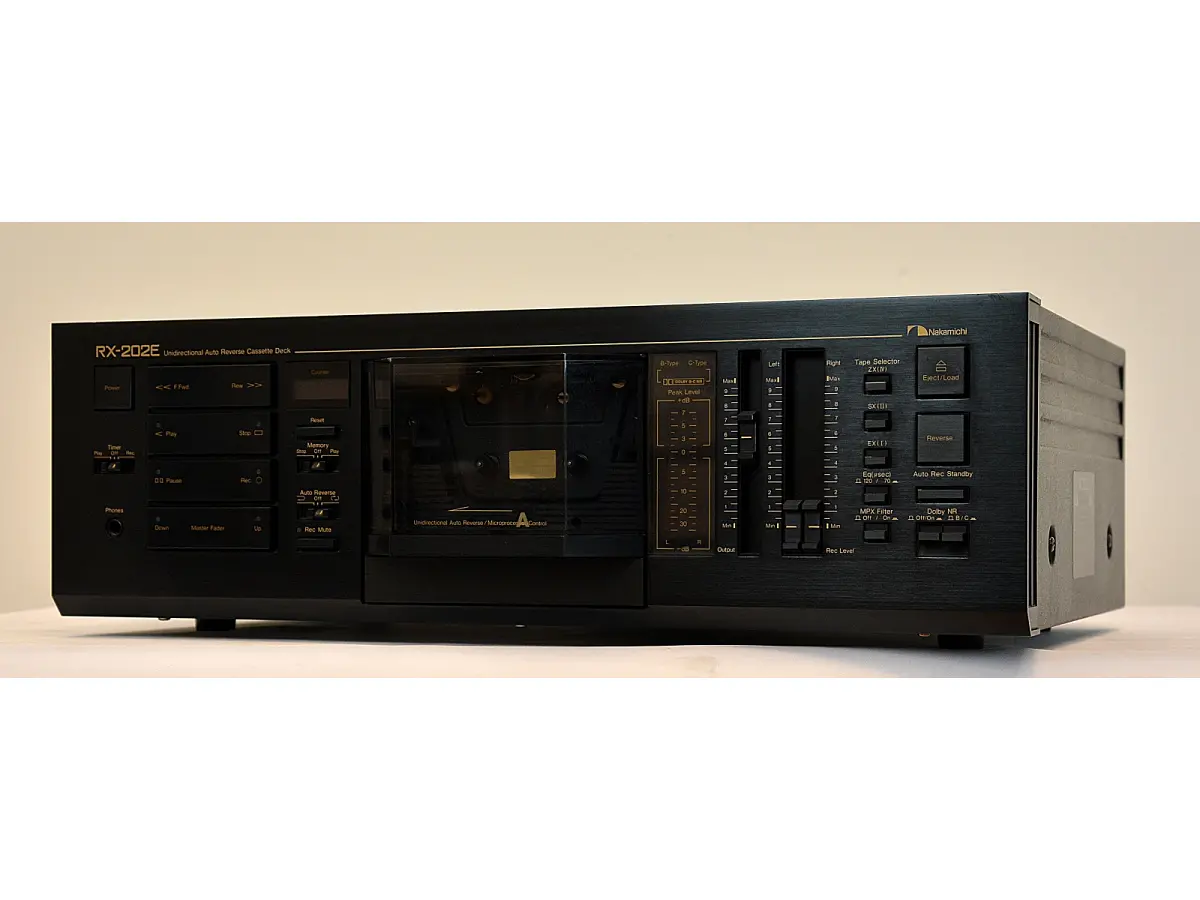

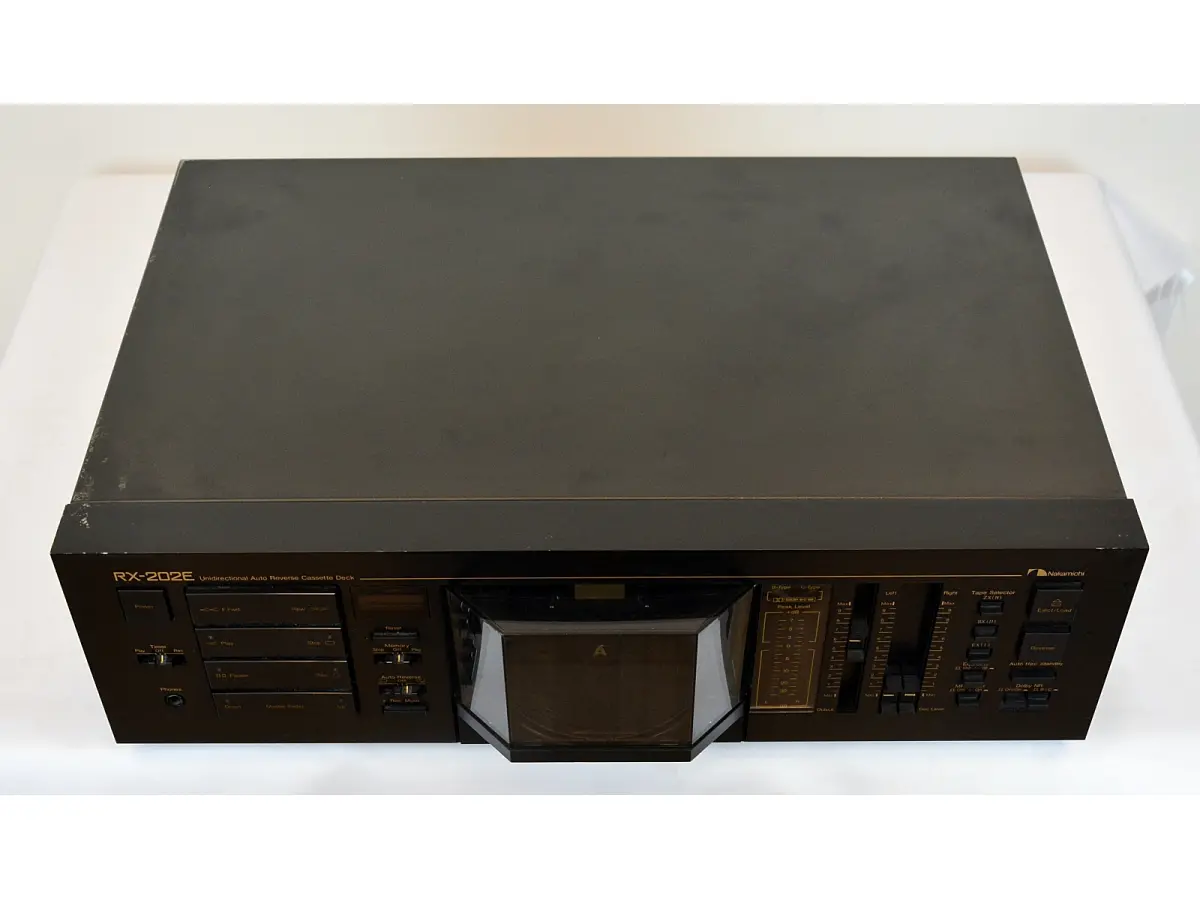

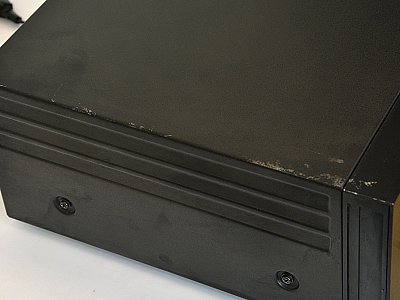

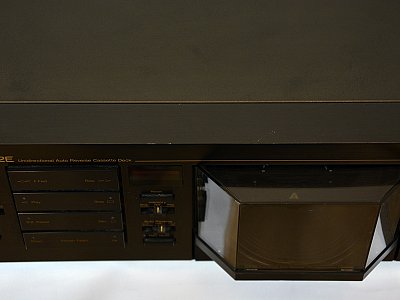

NAKAMICHI RX-202E

Two Head Auto Reverse Stereo Cassette Deck
The RX-202 transport features UDAR, Nakamichi's unique uni-directional auto-reverse mechanism, eliminating the azimuth error loss of conventional auto-reverse decks.
The music sensing circuit monitors playback and fast forwards through blank 'tail' to provide uninterrupted playback.
A dual master fader creates smooth 2 or 4 second fades at a touch.
The frequency response of the RX-202 rivals that of most 3-head decks thanks to a specially designed laminated Sendust record/play head.

Specifications
Type: auto reverse, 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan, 2 x mechanism
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Frequency Response: 20Hz to 20kHz  (Metal tape)
Signal to Noise Ratio: 68dB  (dolby C)
Wow and Flutter: 0.06%
Total Harmonic Distortion: 1.0%
Input: 50mV (line)
Output: 0.5V (line)
Dimensions: 451 x 136 x 255mm
Weight: 9kg
Year: 1982
