MYTEK BROOKLYN DAC

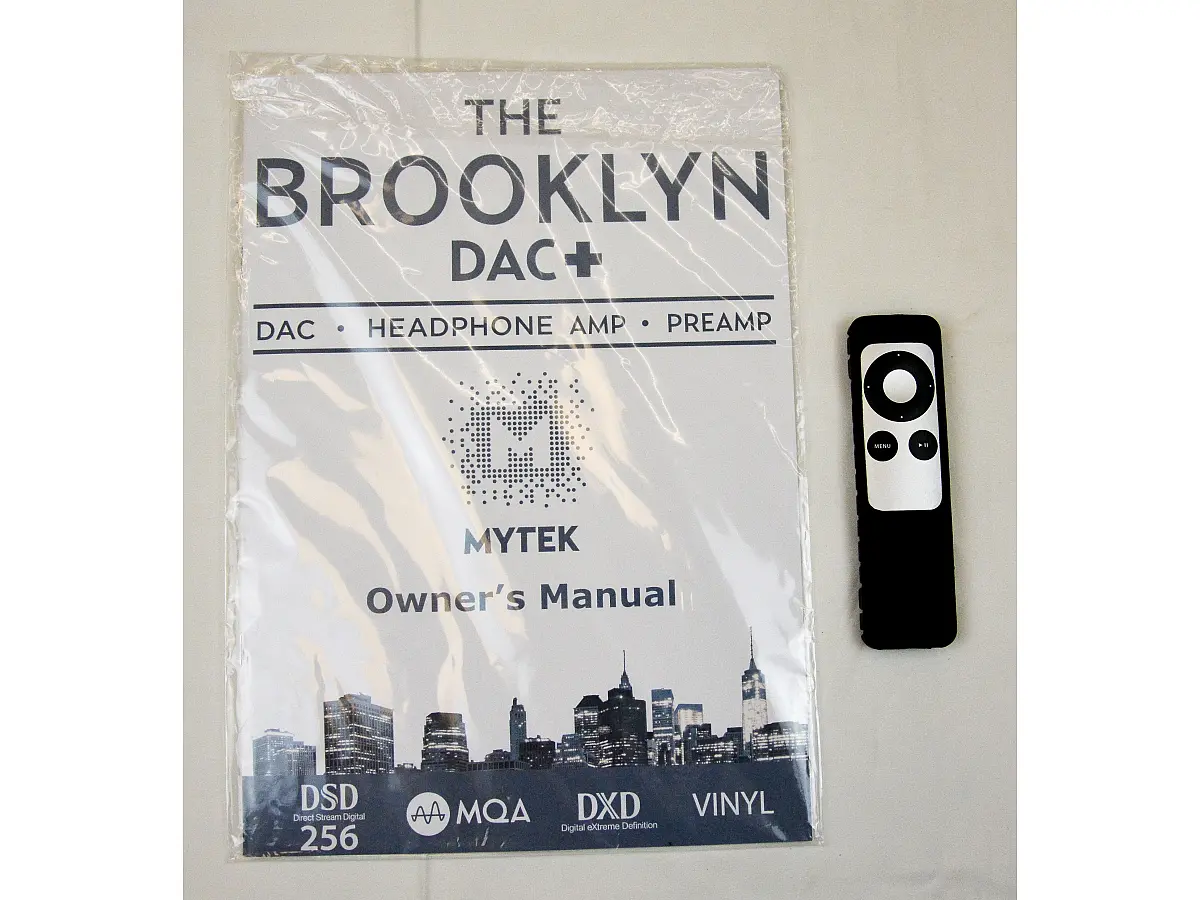

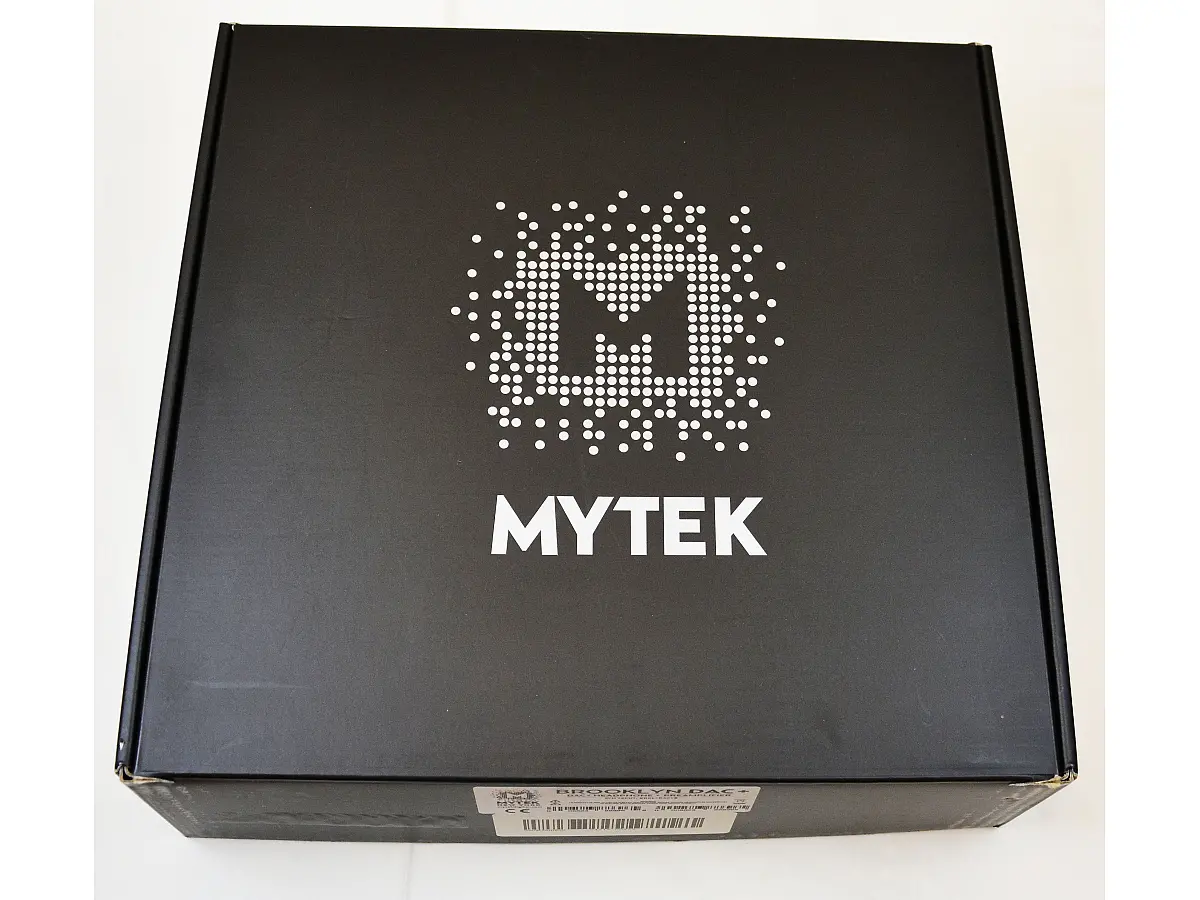

Pre owned. In excellent condition. Free from evident signs of wear. Supplied with remote control, manual, and original packaging.

The Mytek Brooklyn DAC stands out as a reference-grade audio solution capable of combining a high-end USB2 DAC, an analog and phono preamplifier, and a professional-grade headphone amplifier within a single compact chassis. Designed to deliver an extremely accurate listening experience with both digital sources and vinyl playback, it integrates premium features aimed at audiophiles seeking a complete and versatile system without compromising sound quality. Every internal section is engineered with particular attention to performance, from the MM/MC-compatible phono stage to the headphone amplification section, developed to compete with dedicated components costing significantly more.

At the core of the digital conversion stage is the renowned Sabre 9018 Pro chipset, supported by a selectable analog or 32-bit digital attenuation circuit. The DAC section natively supports PCM files up to 32-bit / 384 kHz, DSD up to quad-rate, and MQA content, ensuring highly detailed, transparent, and dynamic sound reproduction. Its sonic presentation is focused on maximum fidelity to the original recording, delivering deep and articulate bass, precise imaging, and a wide, layered soundstage capable of conveying remarkable realism.

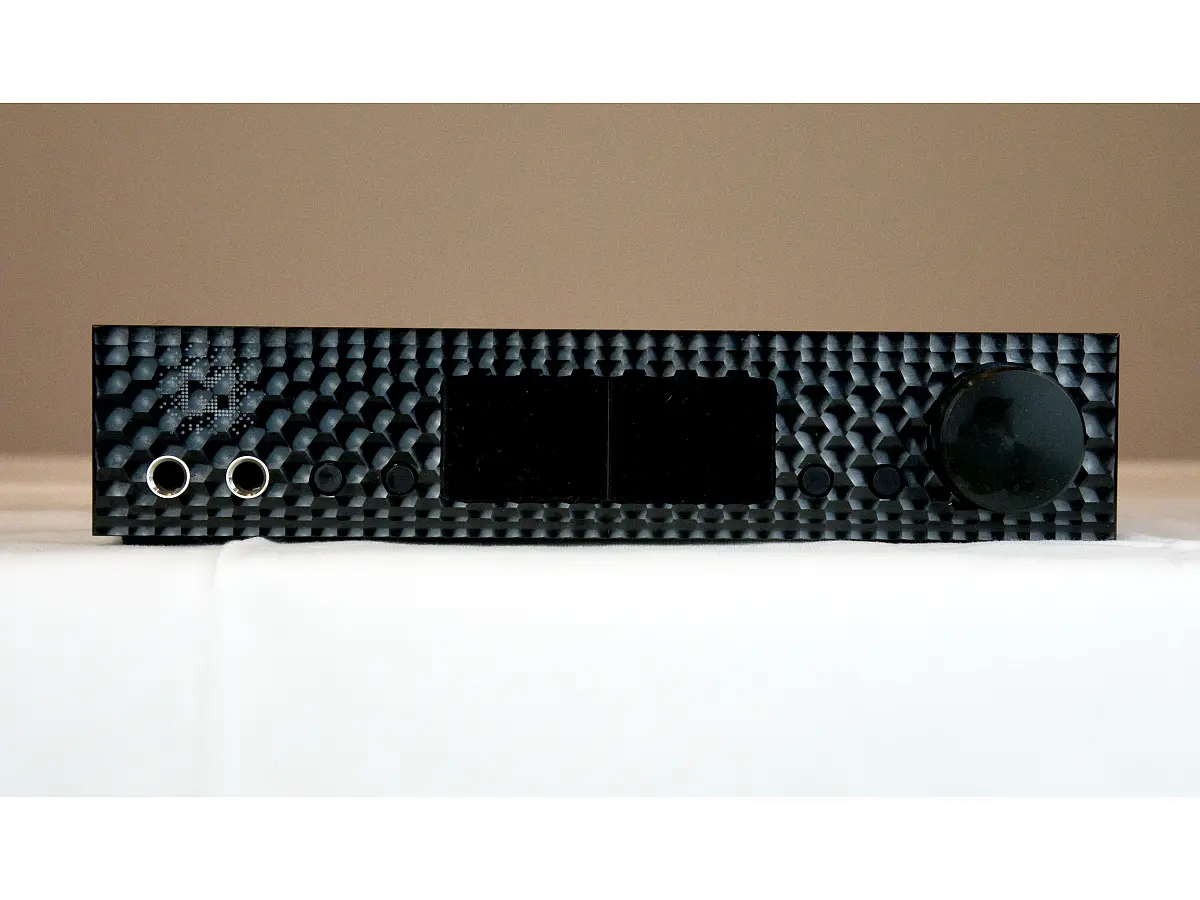

Connectivity includes asynchronous USB, TosLink, AES/EBU, and S/PDIF digital inputs, alongside professional outputs and studio-oriented features such as word clock input and output. The front panel features dual headphone outputs for convenient listening, while the integrated display and large volume control provide intuitive access to the unit’s extensive programmable functions. Through the menu system it is possible to adjust balance, phase inversion, mono mode, digital filters, MQA management, and analog or digital volume control modes. The device also supports remote operation via the included Apple remote control or dedicated software for Windows and macOS.

One of the most distinctive features is the fully analog integrated phono stage, a rare addition in a DAC with professional ambitions. This allows the Brooklyn DAC to serve as the central component of a compact yet highly capable HiFi system, able to manage both high-resolution digital sources and quality turntables without the need for additional electronics.

The power supply has also been designed with advanced engineering principles in mind. The unit employs a high-capacity switching power supply developed to minimize interference and noise, while also offering the option of using an external 12V power supply for further performance improvements.

Technical Specifications:

• Type: digital-to-analog converter with integrated analog preamplifier; headphone amplifier; MM/MC phono stage

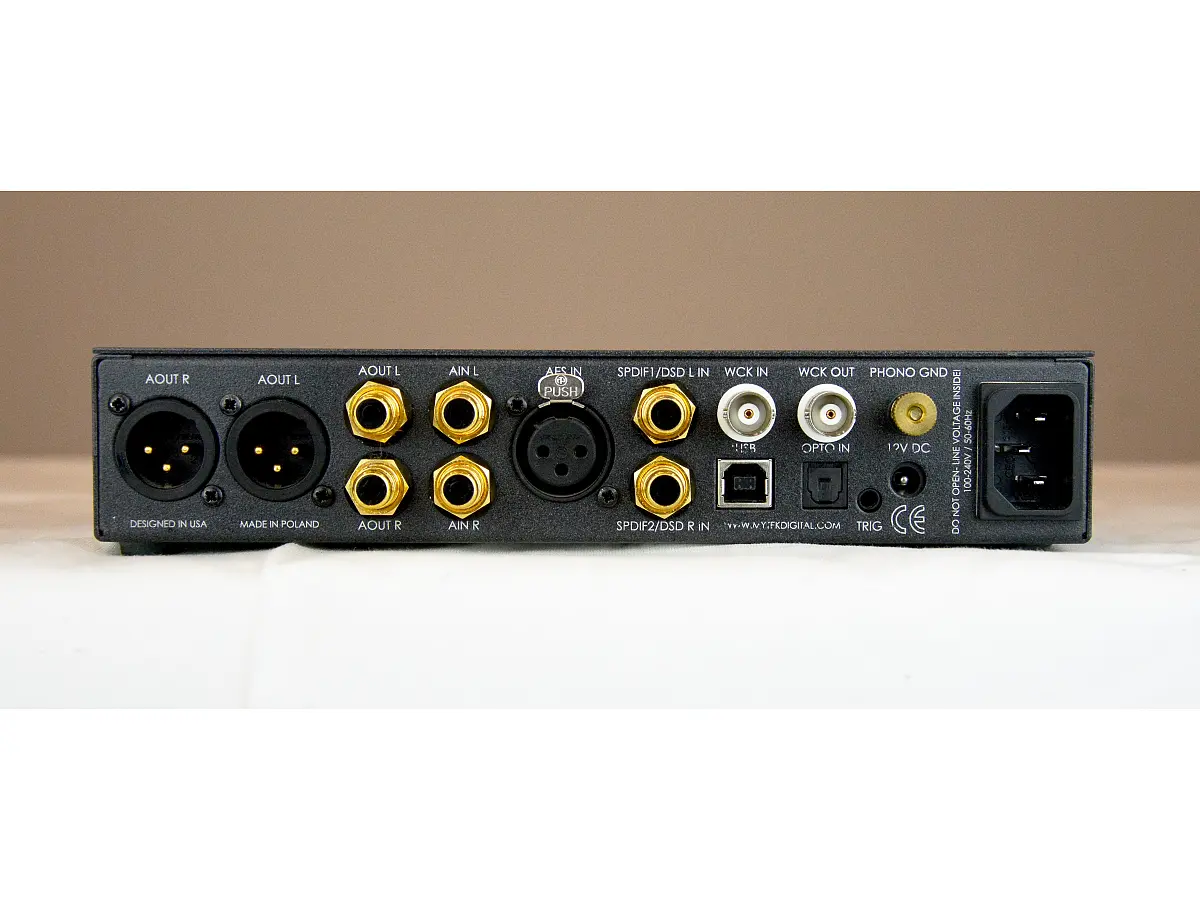

• Digital inputs: AES/EBU (XLR); 2 × S/PDIF (RCA); optical TosLink S/PDIF; 2-channel S/PDIF-DSD; USB2 Type-B for high-resolution audio
• Analog inputs: 1 pair of single-ended RCA inputs with phono stage
• Analog outputs: 1 pair balanced XLR; 1 pair single-ended RCA
• Headphone outputs: dual 6.3 mm stereo headphone outputs; configurable as one balanced pair
• Supported formats: PCM up to 32-bit / 384 kHz; DSD; USB DSD up to 2.8224 MHz, 5.6448 MHz, and 11.2896 MHz
• Dynamic range: 130 dB
• Analog output impedance: 50 ohms on RCA and XLR outputs
• Dimensions: 216 × 44 × 216 mm
• Weight: 1.8 kg
