MISSION LX CONNECT DAC

LX CONNECT DAC
Digital-to-analogue Converter

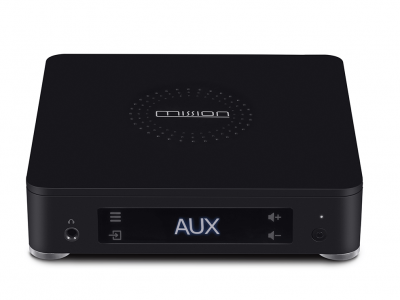

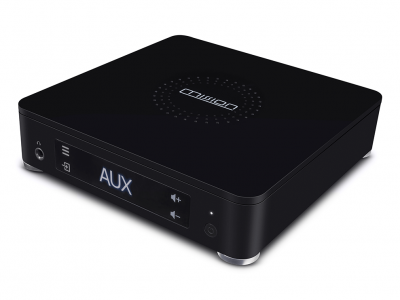

The Mission LX CONNECT DAC is a stand-alone digital-to-analogue converter, pre-amp and headphone ampli?er, derived from the award-winning Mission LX CONNECT wireless speaker system. It fuses the Mission mantra of innovative, attractive design and class-leading performance with the latest audio technology, to enhance your audio experience.

Designed to function as a central console for all your music sources, with analogue, optical and coax digital inputs, the Mission LX CONNECT DAC also features a dedicated HDMI ARC connection to bring high ?delity, true wireless performance for TV, movies and games. It is even equipped with a Bluetooth aptX receiver for wireless streaming of hi-resolution audio from tablets and smartphones. The LX CONNECT DAC is controlled gracefully via the touch-sensitive display, or for even more convenience you can use the included remote. The versatile connectivity options and compact form factor means it can be used as the all-encompassing DAC and pre-amp interface for any ampli?er, active speakers, computer audio or head-? system.

AUDIOLAB EXPERTISE
Mission has utilised the audio electronics expertise of sister-company Audiolab, maker of many award-winning DAC and ampli?er components, to create the LX CONNECT DAC interface.
It incorporates a high-performance DAC stage based around the ES9018K2M DAC chip, from the Sabre32 Reference family. For ultra-low noise performance and high dynamic range, that ES9018K2M chip is accompanied by proprietary circuitry to make the most of ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator.

ROON TESTED
The Roon platform has become the standard-bearer for high-quality digital music management and streaming. The LX CONNECT DAC is of?cially ‘Roon Tested’, meaning it has been put through its paces rigorously by Roon and certi?ed for use in a Roon audio environment – for example, when connected to a PC or Mac running Roon software.
As a standalone desktop DAC / headphone amp / pre-amp solution, there aren’t many single units that offer a performance and speci?cation to match LX CONNECT DAC, in this price segment.

Model     LX CONNECT DAC
General Description     Digital-to-Analogue Convertor, Headphone Ampli?er and Pre-amp

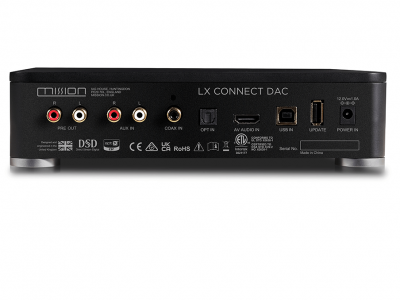

Analogue Input     RCA (AUX)
Digital Input     OPT, COAX, PC USB, Bluetooth, AV Audio
Analogue Output     RCA Pre Out
Pre Ampli?er
Input Sensitivity     300mV (AUX IN, volume = MAX)
Input Impedance     13K (AUX IN)
Variable Output Voltage     0 – 3.2V
Output Impedance     100 ohm
Frequency Response     20Hz-20kHz (+/-0.3dB)
Signal-to-noise Ratio (S/N)     >100dB (AUX IN, A-weighted)
    >110dB (digital Inputs, A-weighted)
Total Harmonic Distortion     < 0.001% (digital sources)
    < 0.005% (analogue sources)
Sampling Rate     24bit - 192kHz (OPT, COAX)
32bit - 384kHz (USB, PCM)
2.8M for DSD64, 5.6M for DSD128, 11.2M for DSD256 (USB, DSD)
Digital Filters     Fast Roll-off, Slow Roll-off, Minimum Phase
Dimensions
Height (on feet)     55mm
Width     225mm
Depth (with terminals)     231mm
System
Outer Packaging     418 x 280 x 85mm
Net Weight     1.75kg
Finish     Black
Power Requirements     Adapter - Input: 100-240Vac (50/60Hz) Output: 12V 1A
