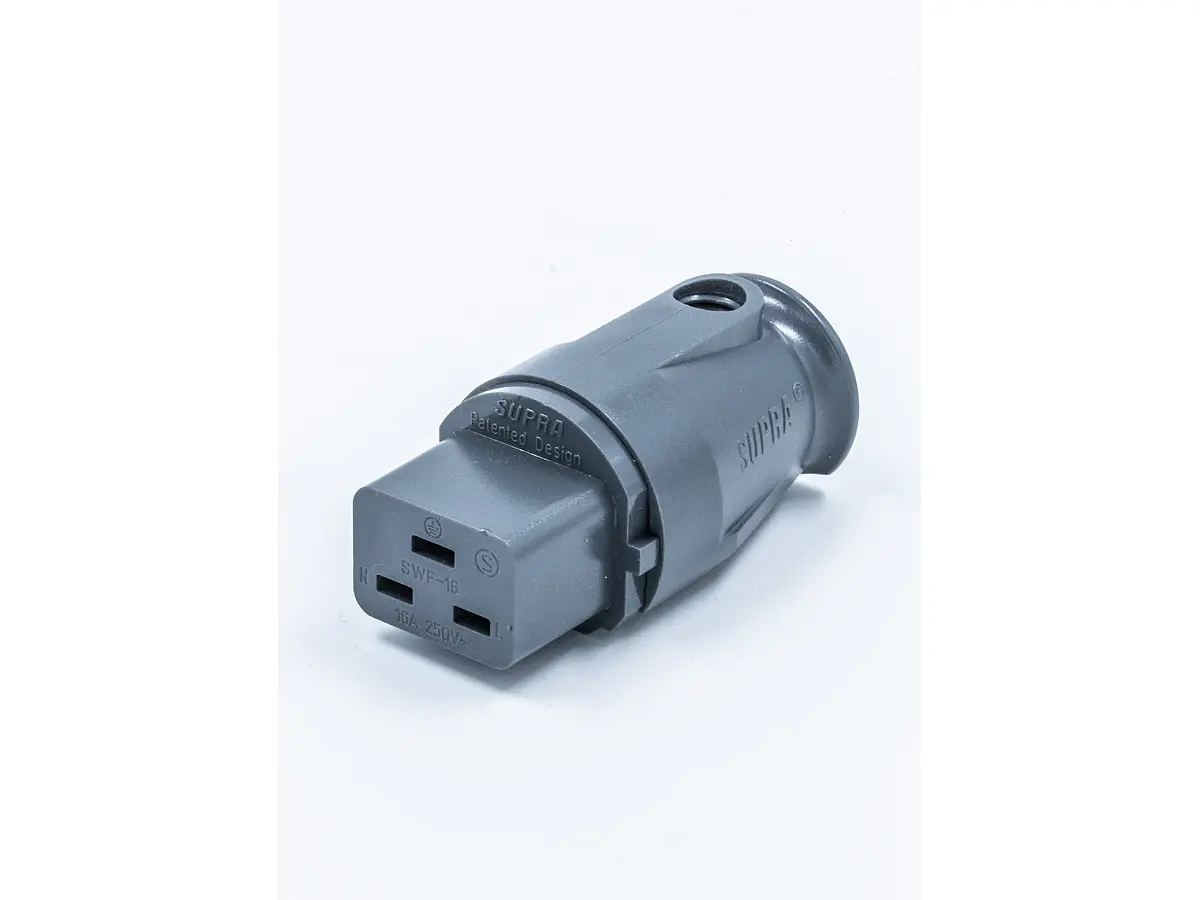

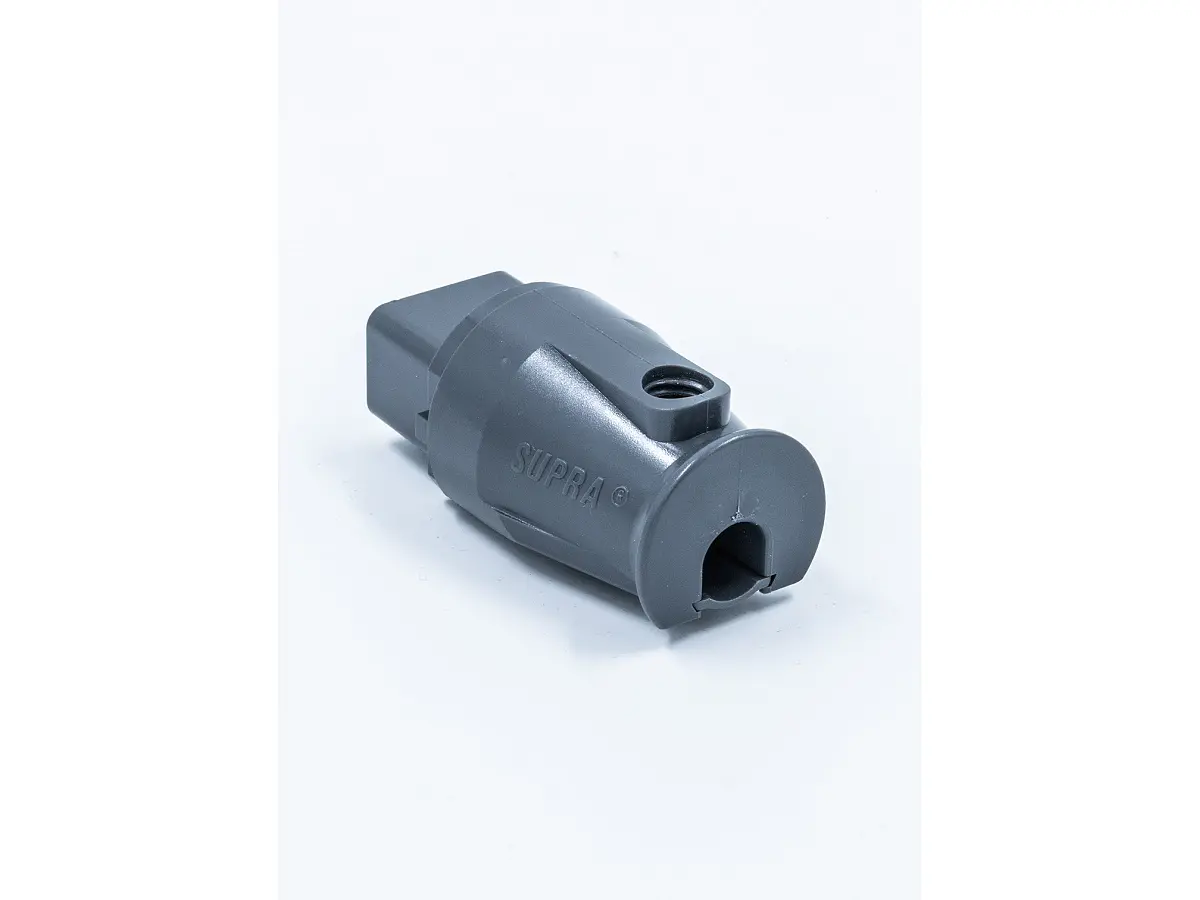

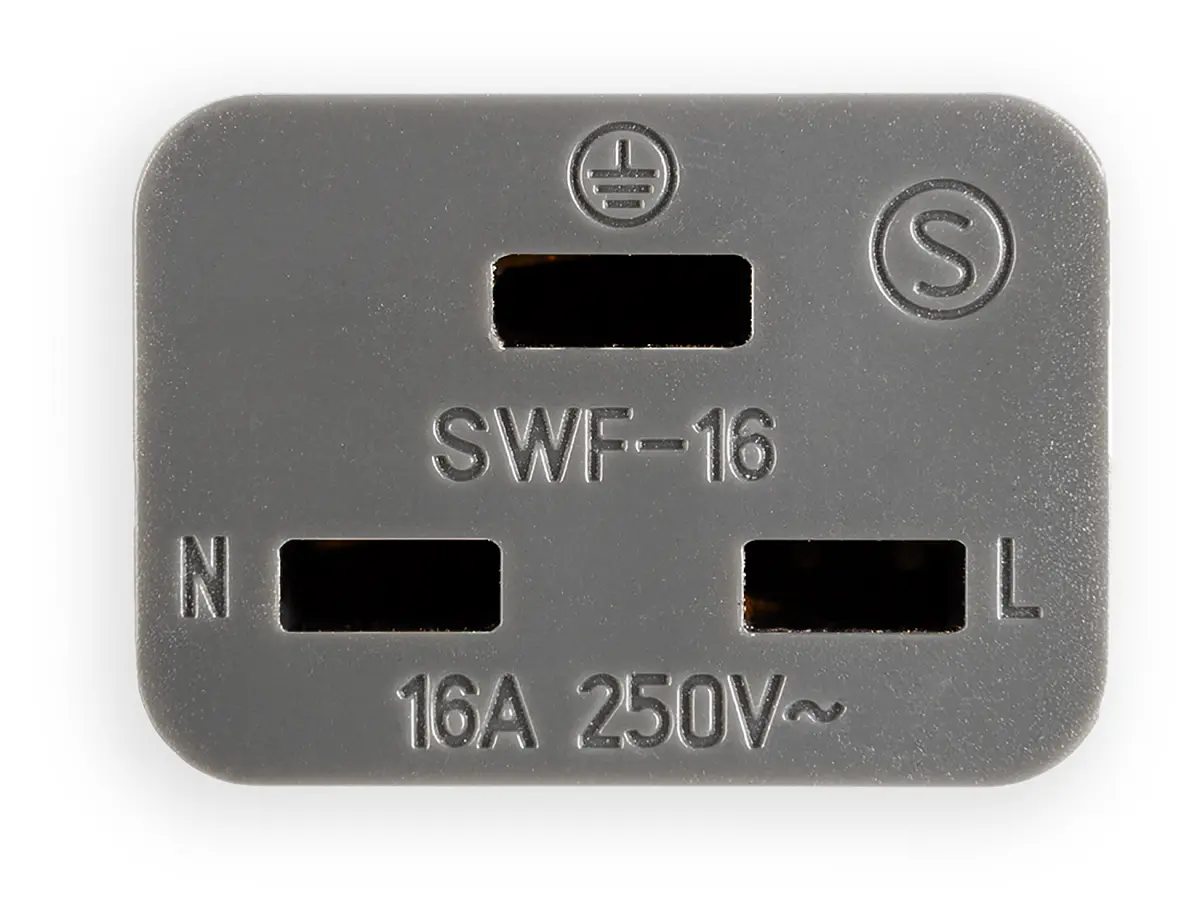

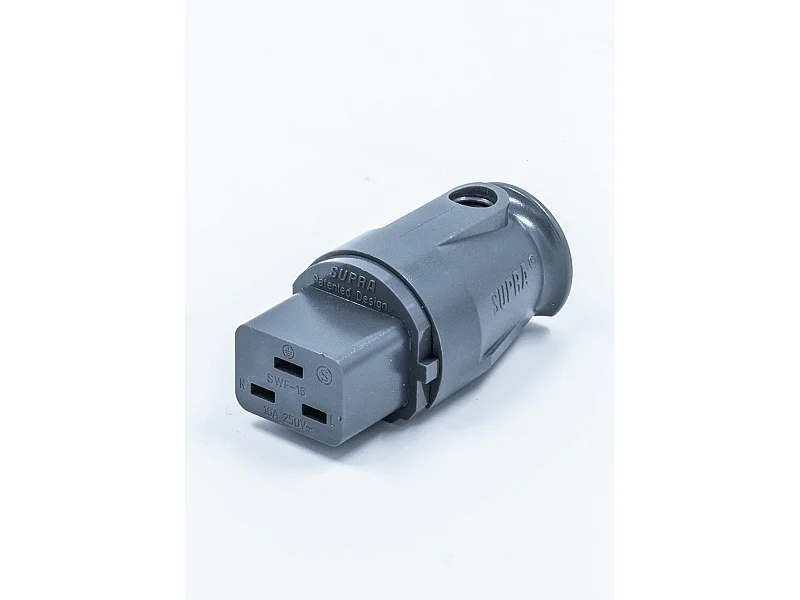

SUPRA SWF-16

Slim-profile female connector for power cables, designed for connections intended for audio, audiovisual and professional applications. The model complies with the IEC320 international standard and is designed for use with high-performance power cables, including the Supra LoRad series.

The configuration accommodates cables with a maximum diameter of 11.5 mm and conductors with a cross-sectional area of up to 4.0 mm², providing compatibility with various types of power cables. The construction is designed to ensure a stable connection even in installations where high levels of reliability and safety are required.

The Supra SWF-16/S is suitable for high-end audio systems, professional studio installations and audio-video systems, as well as sensitive environments such as hospitals and laboratories. Its compact profile also makes it suitable for installations where available space for connections is limited, while its construction is intended for applications where electrical and mechanical connection stability is particularly important.

Technical specifications:

• Type: female connector for power cables
• Rated current: 16 A
• Contacts: 24K gold-plated
• Cable connection: screw clamp with integrated cable retention and strain-relief system
• Construction: slim profile and robust design, suitable for installations with limited space
• Assembly: no pre-mounting required, with simplified assembly
• Standard: IEC320
