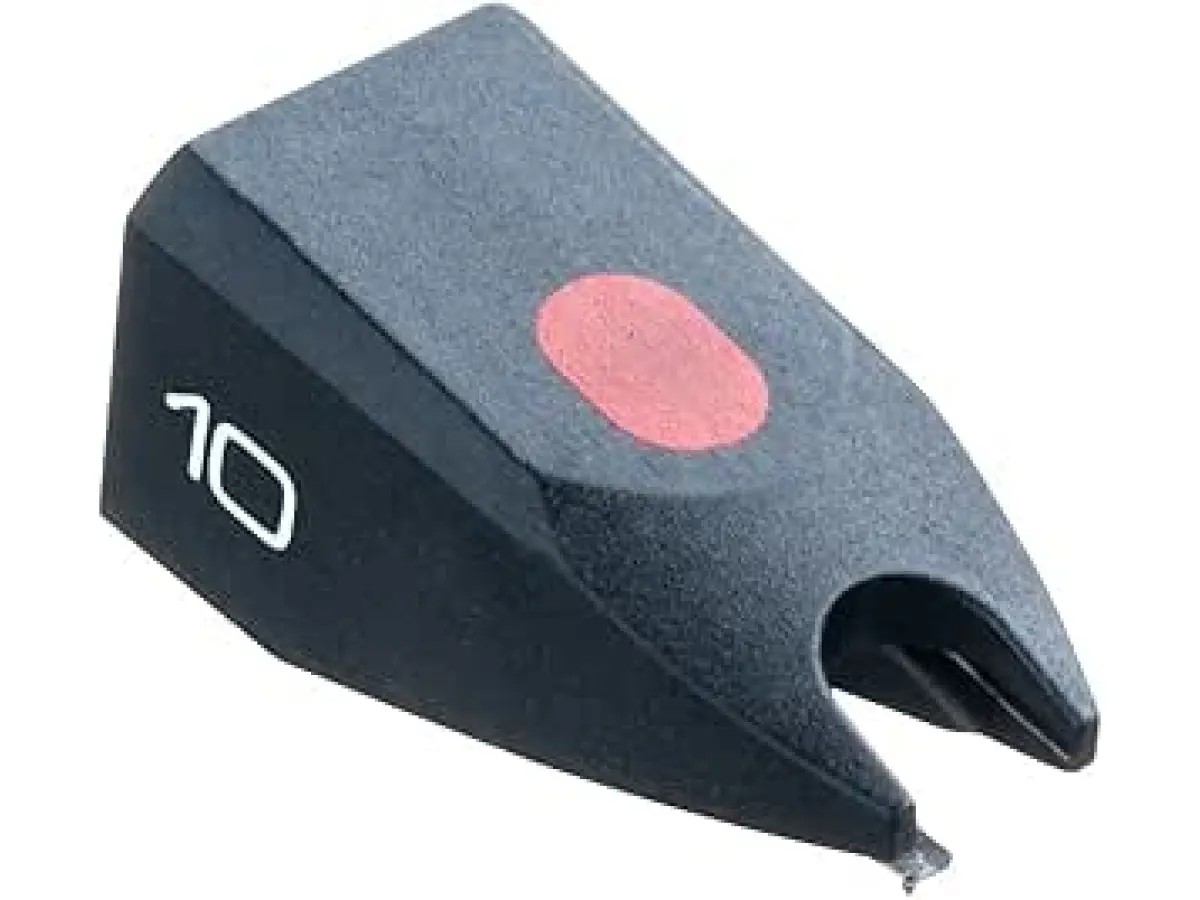

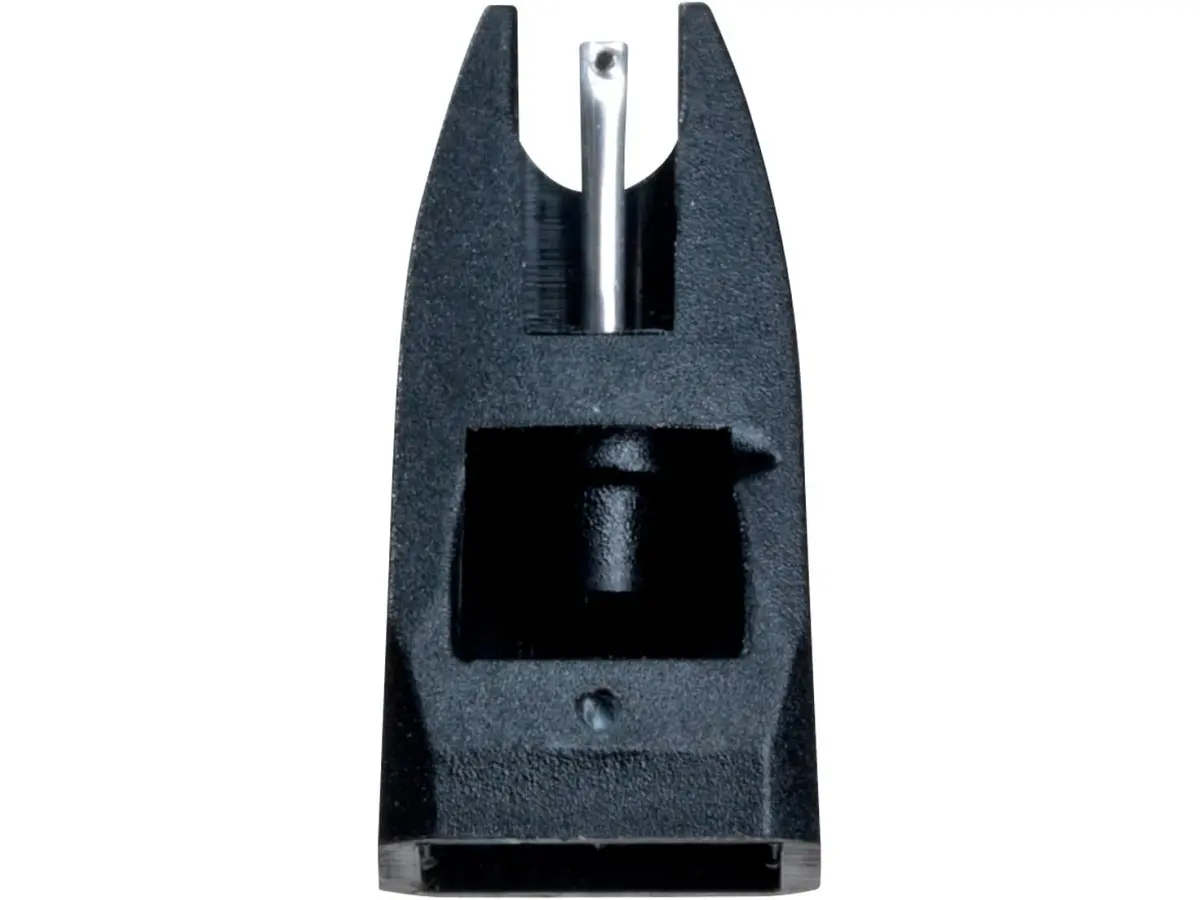

ORTOFON STYLUS 10

Replacement stylus designed for Ortofon OM Series cartridges, intended as an upgrade over the Stylus 5E. It features an improved bonded elliptical stylus with a smaller radius than the solution used on the 5E, providing more precise groove tracking and improved cartridge performance.

Replacement does not require any specific tools: the worn stylus can be removed from the cartridge body and replaced by inserting the new Stylus 10. This solution allows the performance of a compatible cartridge to be upgraded without replacing the cartridge body.

The Stylus 10 is recommended for the Ortofon Super OM 10, OM 10, OMP 10 with P-mount fitting, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12 and LMA 12 cartridges.

Technical specifications:

• Frequency response: 20 Hz – 20 kHz (±3 dB)
• Tracking ability at 315 Hz: 60 µm
• Dynamic lateral compliance: 20 µm/mN
• Stylus type: elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.25 – 1.75 g (12.5 – 17.5 mN)
• Recommended tracking force: 1.5 g (15 mN)
• Tracking angle: 20°
• Stylus colour: black
