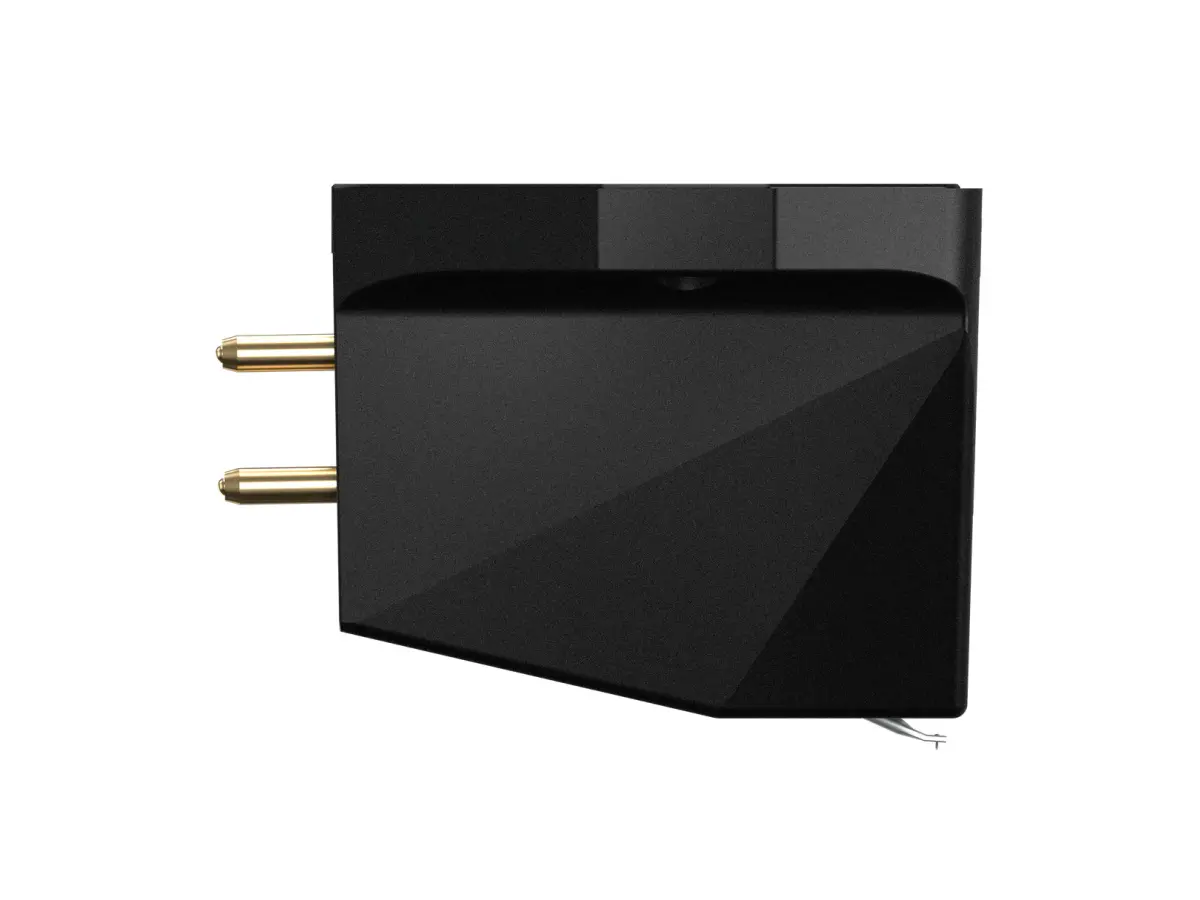

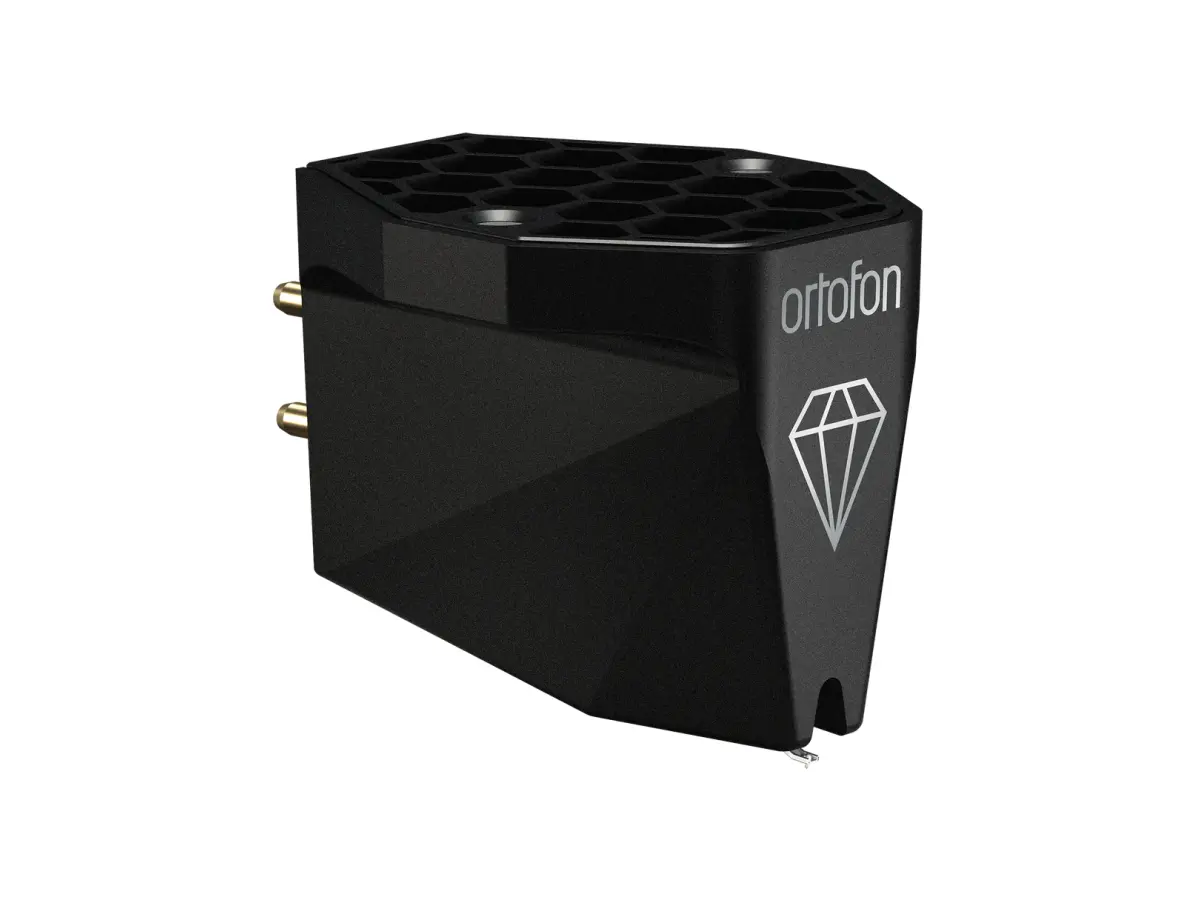

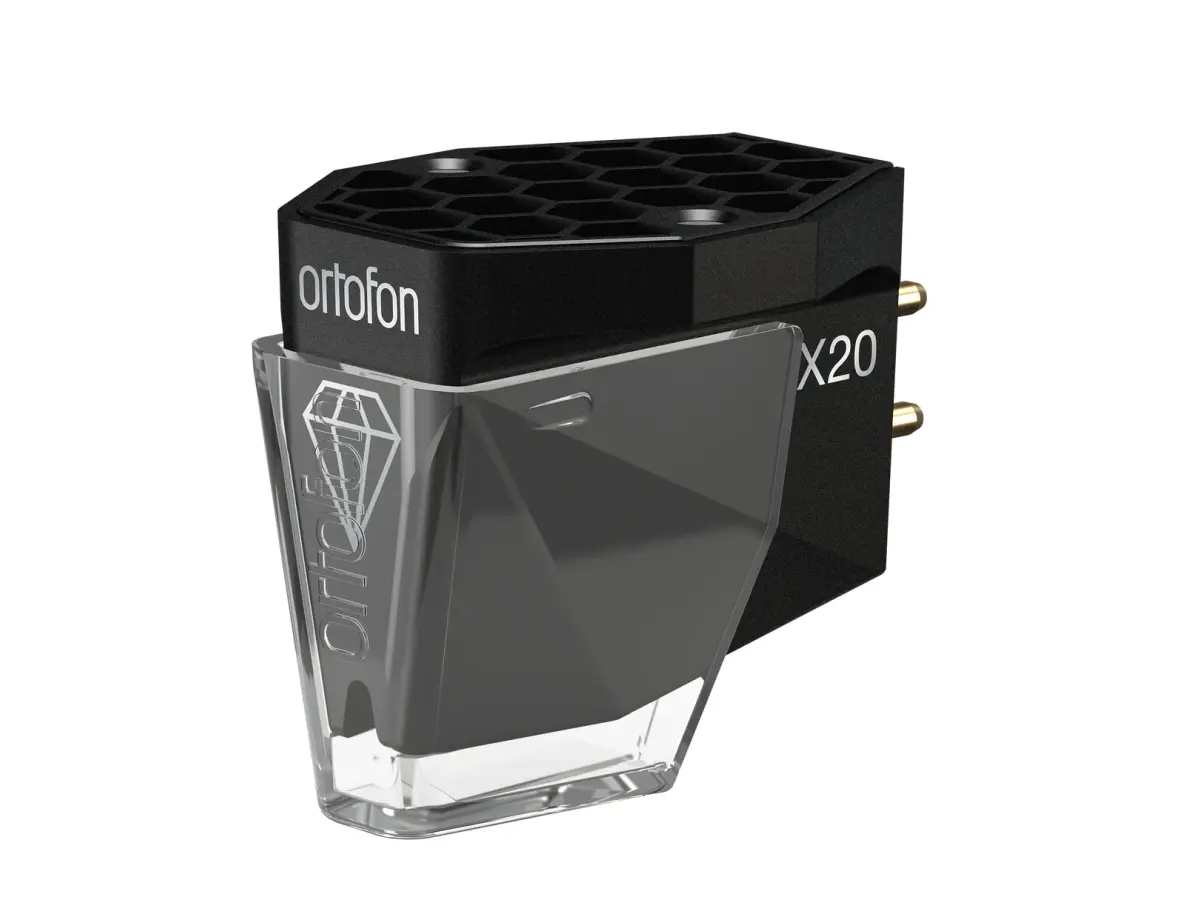

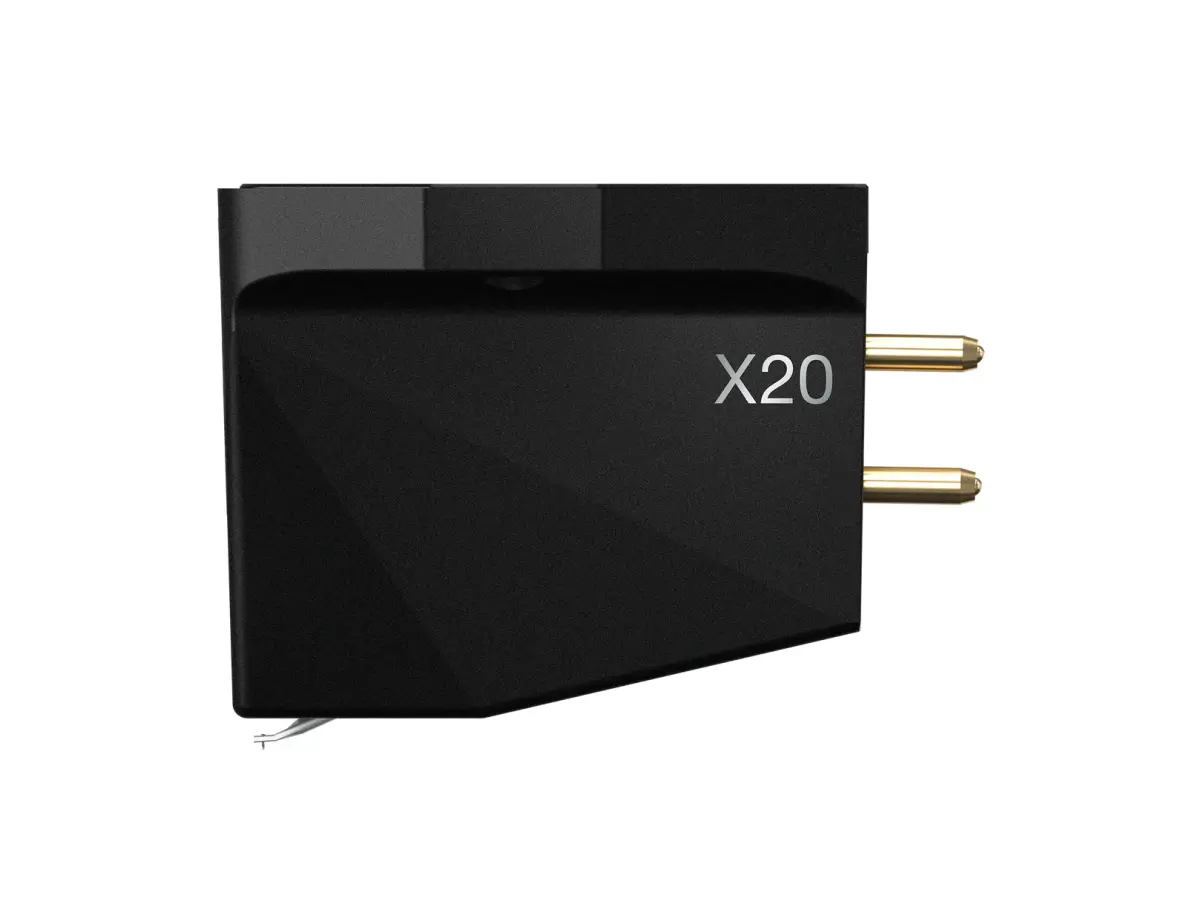

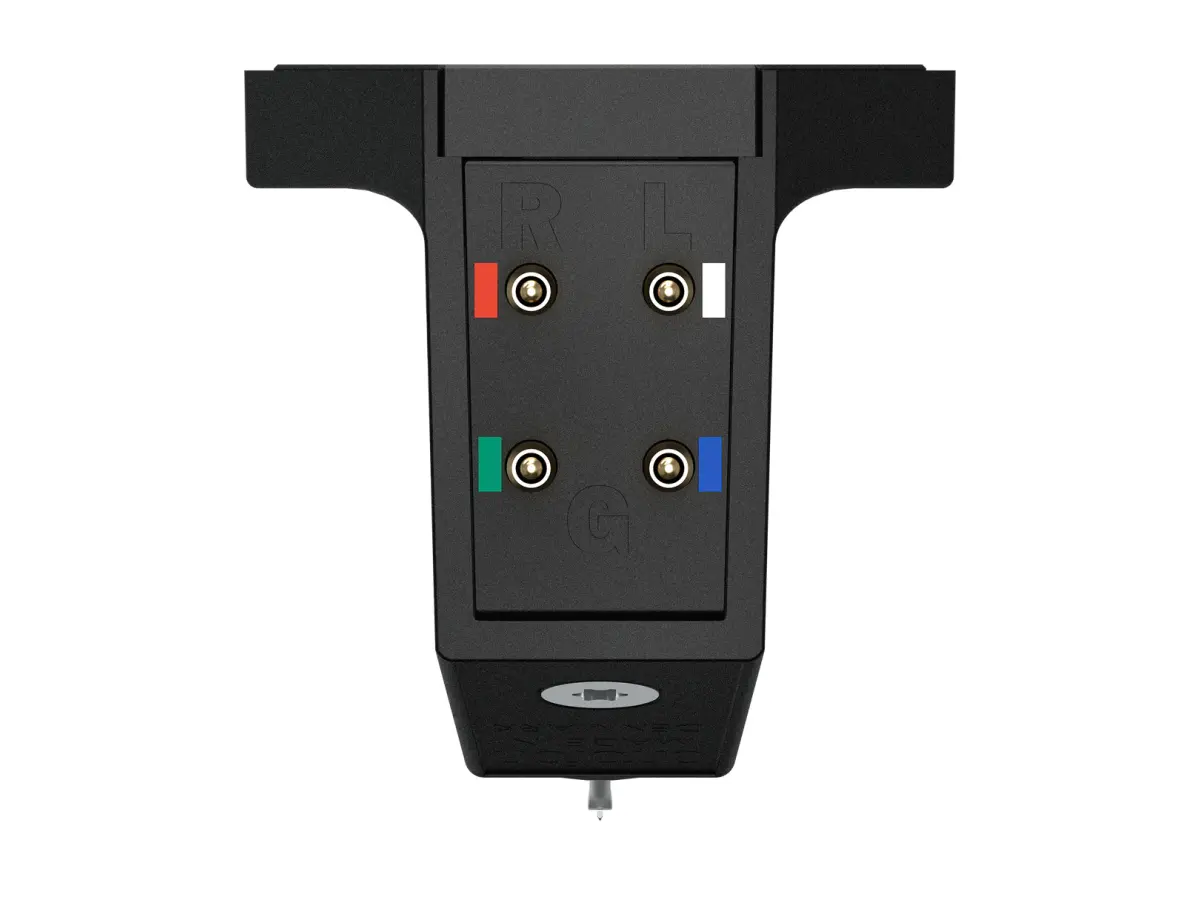

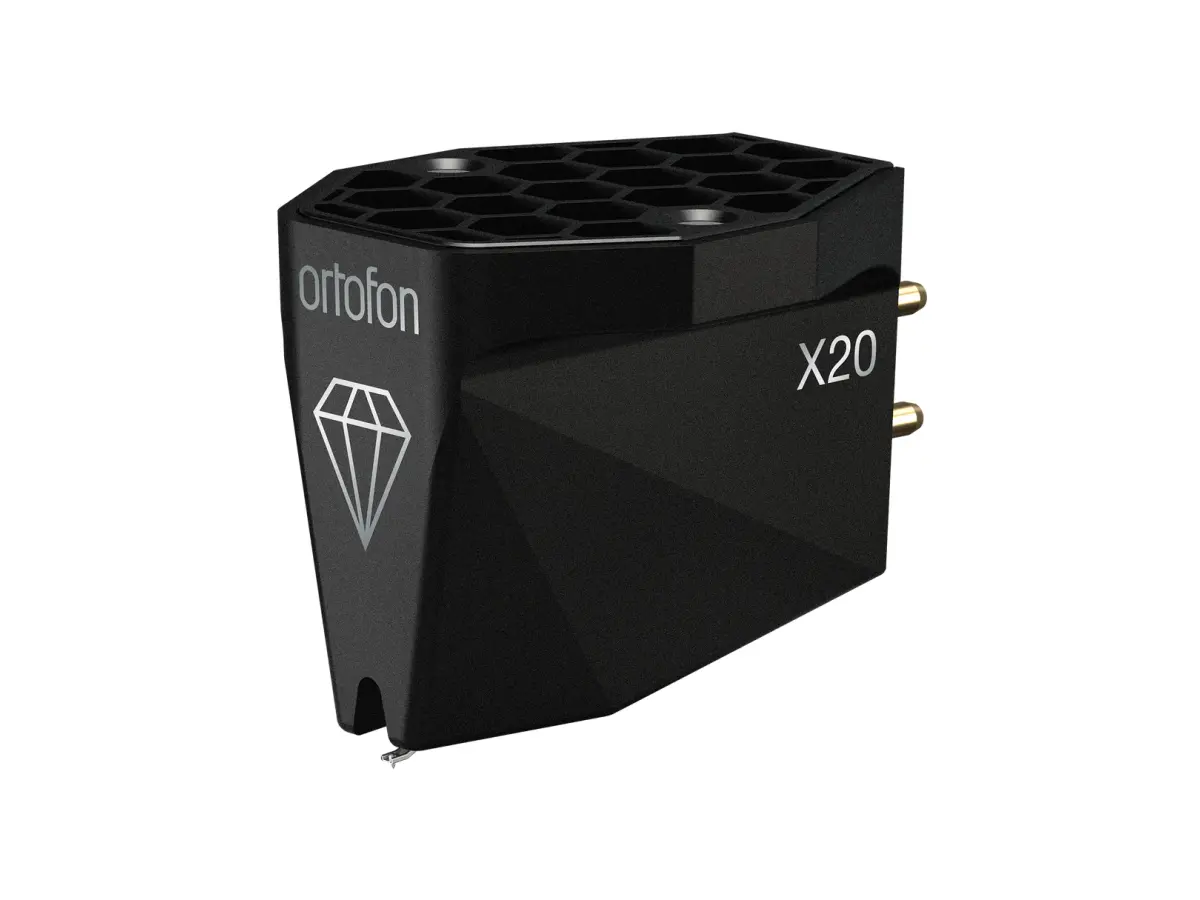

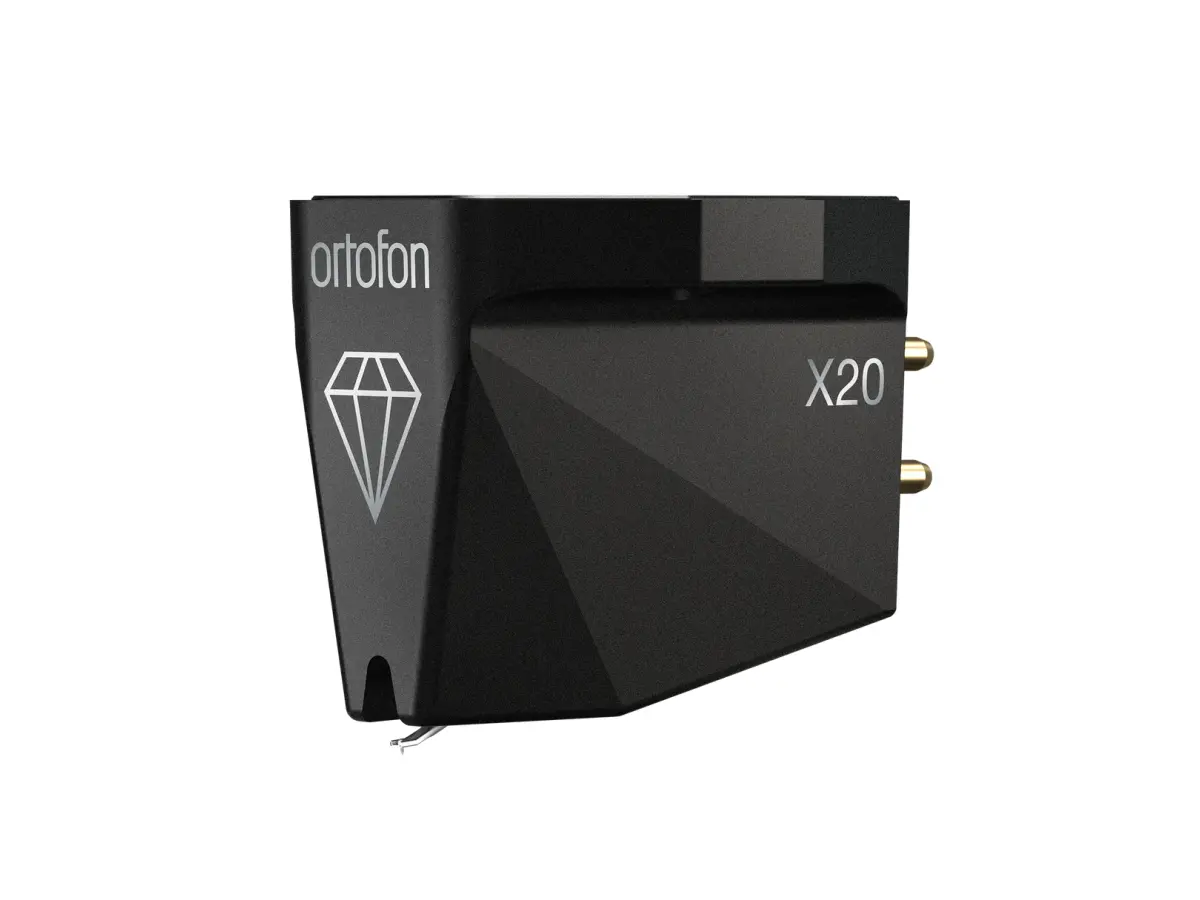

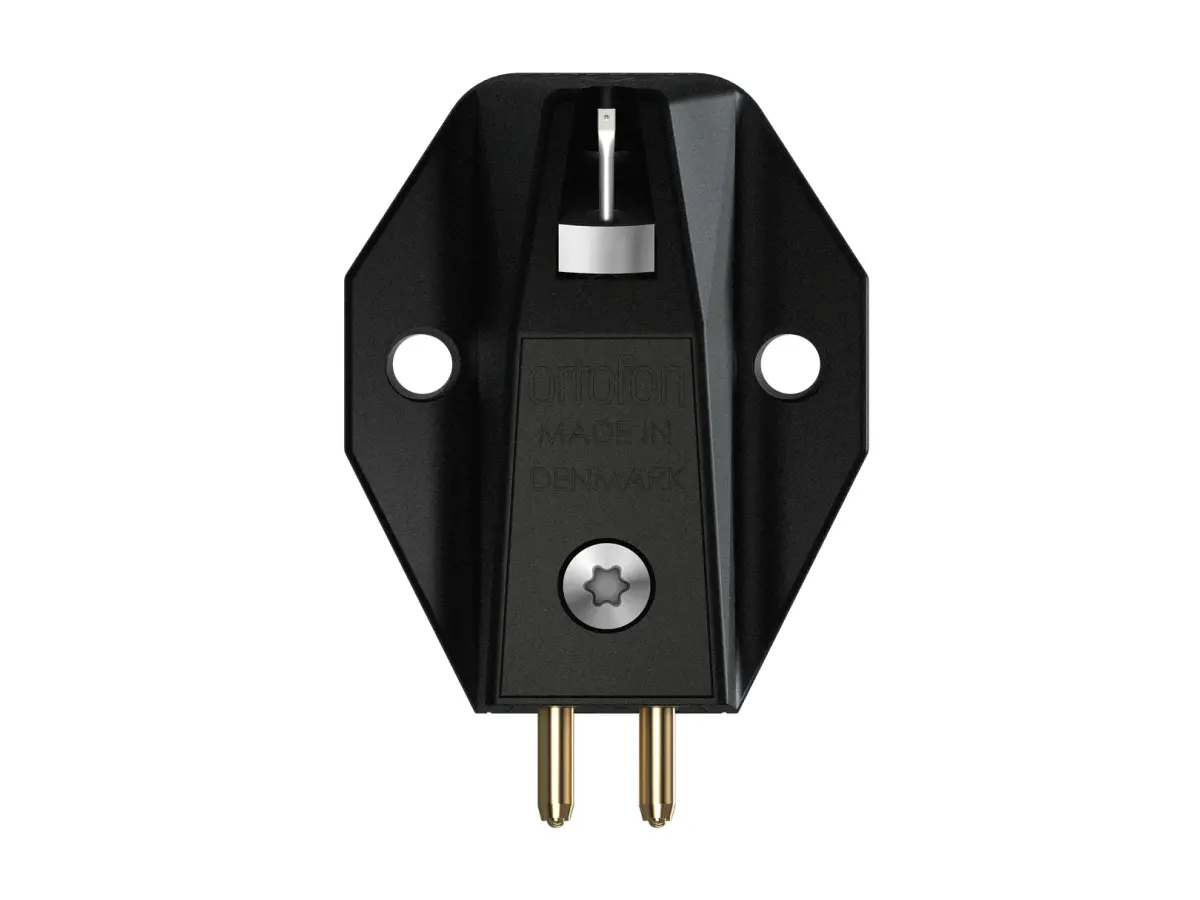

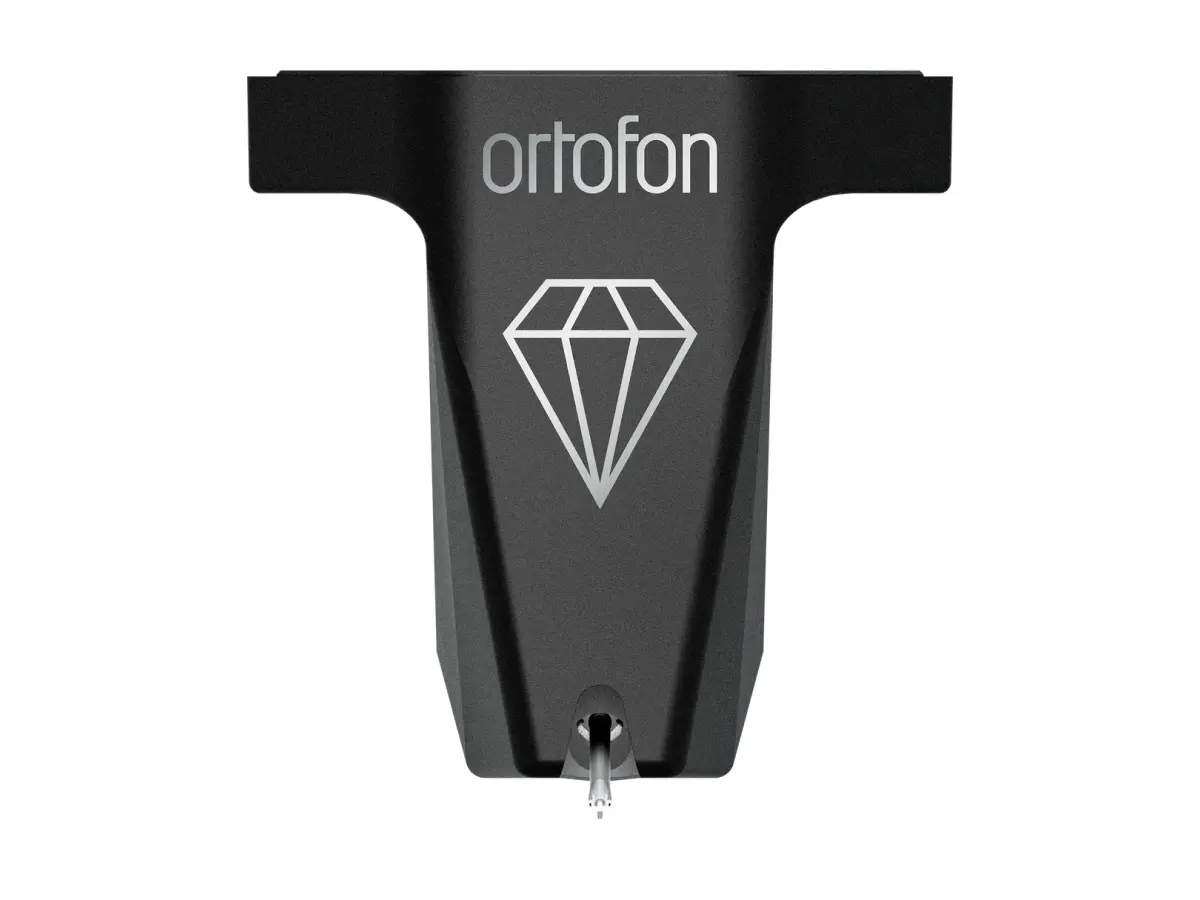

ORTOFON MC X20

The MC X20 allows listeners to dive deeper into their music, delivering a reproduction that reveals greater depth, definition, and character in every groove. Its nude elliptical diamond stylus traces the record with exceptional precision, producing vivid, detailed sound that brings renewed excitement to rediscovering favorite albums.

Within the MC X Series, Ortofon sets a new benchmark in Moving Coil cartridge design, elevating premium analog technology to even higher levels of performance. The coils, wound with high-purity silver wire, ensure an exceptionally clean signal path, preserving every sonic nuance and providing extremely precise and natural sound. The newly developed magnet system, featuring a one-piece pole cylinder integrated into the rear magnet yoke, is engineered to maximize magnetic efficiency and, combined with the silver coils, delivers a powerful, stable, and interference-free output. Internally developed rubber dampers play a key role in controlling coil movement, reducing unwanted vibrations, and improving overall stability, resulting in superior tracking, lower distortion, and musical accuracy.

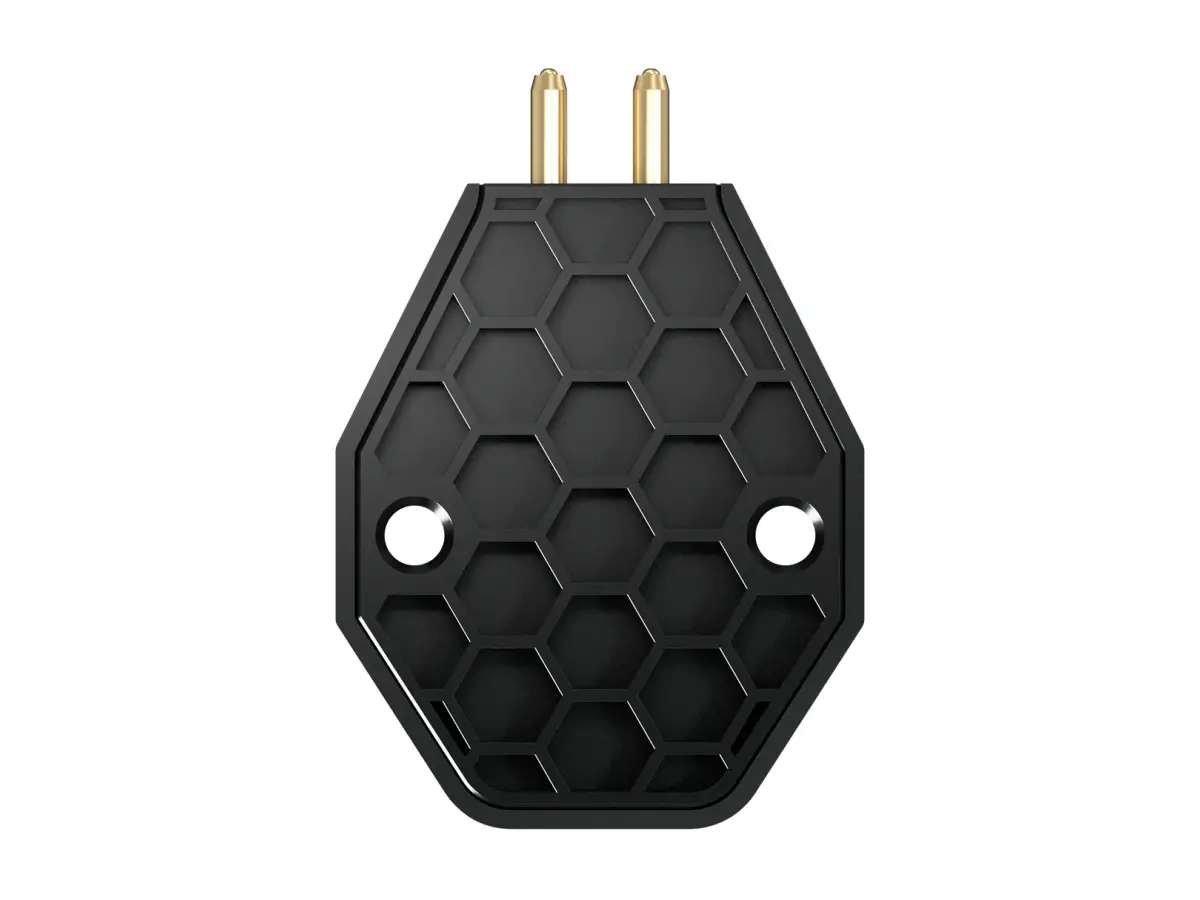

The supporting structure in stainless steel with honeycomb geometry, manufactured using MIM technology, provides high mechanical rigidity and forms an ideal foundation for precise and consistent sound reproduction, while the PVD surface treatment applied after sintering helps preserve the material’s appearance and integrity over time. The modern and elegant design integrates seamlessly with the tonearm and reflects Ortofon’s distinctive aesthetic, combining formal refinement and functionality in a product designed for those who want to hear every detail of their music with the highest fidelity.

Technical specifications:

• Channel balance at 1 kHz: 0.5 dB
• Output voltage at 1 kHz, 5 cm/sec: 0.4 mV
• Channel separation at 1 kHz: 25 dB
• Frequency response: 20 Hz – 20 kHz; tolerance +/- 1 dB
• Compliance, dynamic, lateral: 15 μm/mN
• Cantilever material: aluminium
• Stylus type: nude elliptical; stylus tip radius r/R 8/18 μm
• Stylus suspensions: Ortofon exclusive
• Coil system: quad coils
• Recommended tracking force: 2.0 g
• Internal impedance, DC resistance: 6 Ω
• Coil wire material: high-purity silver
• Recommended load resistance: > 50 Ω
• Cartridge weight: 8.6 g
