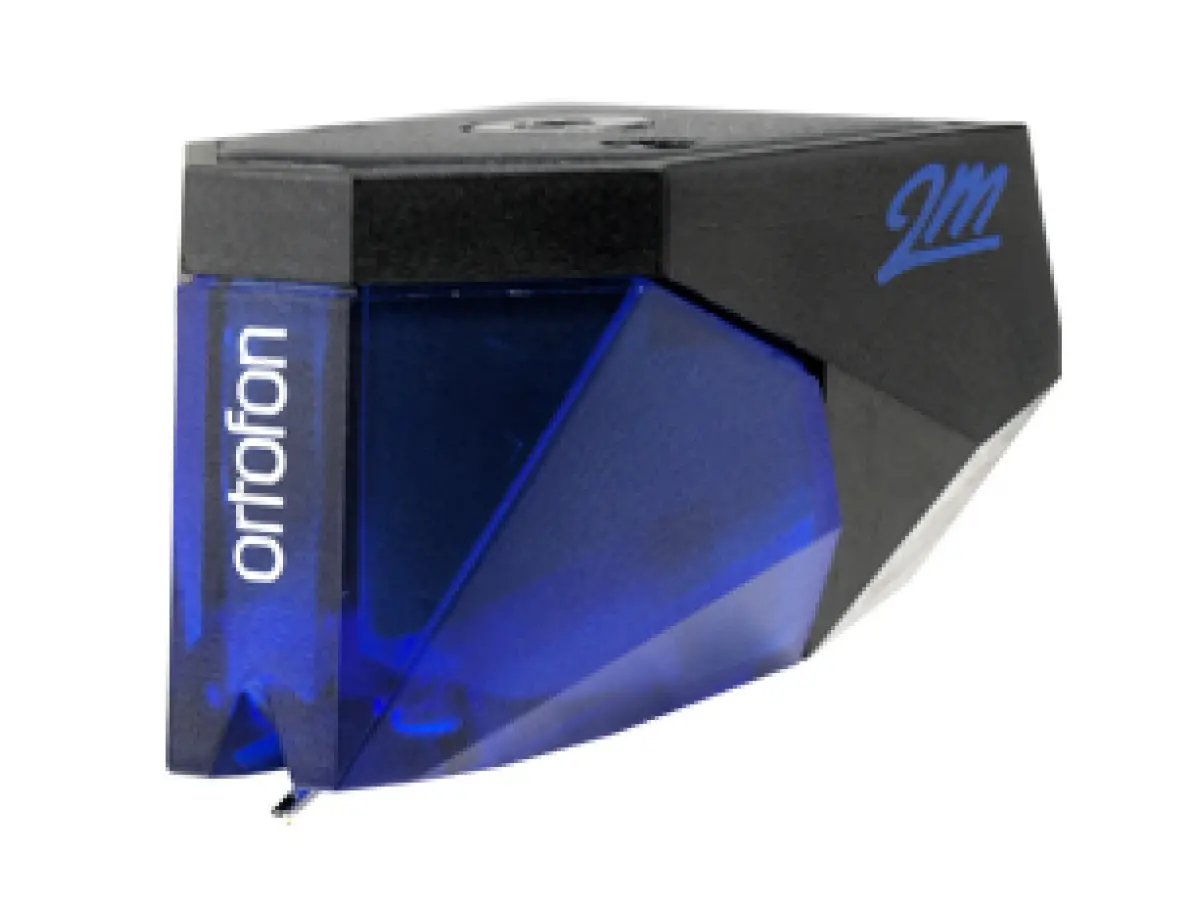

ORTOFON 2M BLUE

The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Features:
The 2M Blue features a Nude Elliptical diamond and split pole pins with a copper wire.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.

Technical data
Output voltage at 1000 Hz, 5cm/sec. 5,5 mV
Channel balance at 1 kHz 1,5 dB
Channel separation at 1 kHz 25 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-25.000 Hz
Frequency response 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force 80 �m
Compliance, dynamic, lateral 20 �m/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 �m
Tracking force range 1,6-2,0g (16-20 mN)
Tracking force, recommended 1,8 g (18 mN)
Tracking angle 20�
Internal impedance, DC resistance 1,3 kOhm
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Blue
Cartridge weight 7,2 g
Replacement stylus unit 2M Blue(interchangeable with 2M Red )
Stylus protection guard 2M Blue
