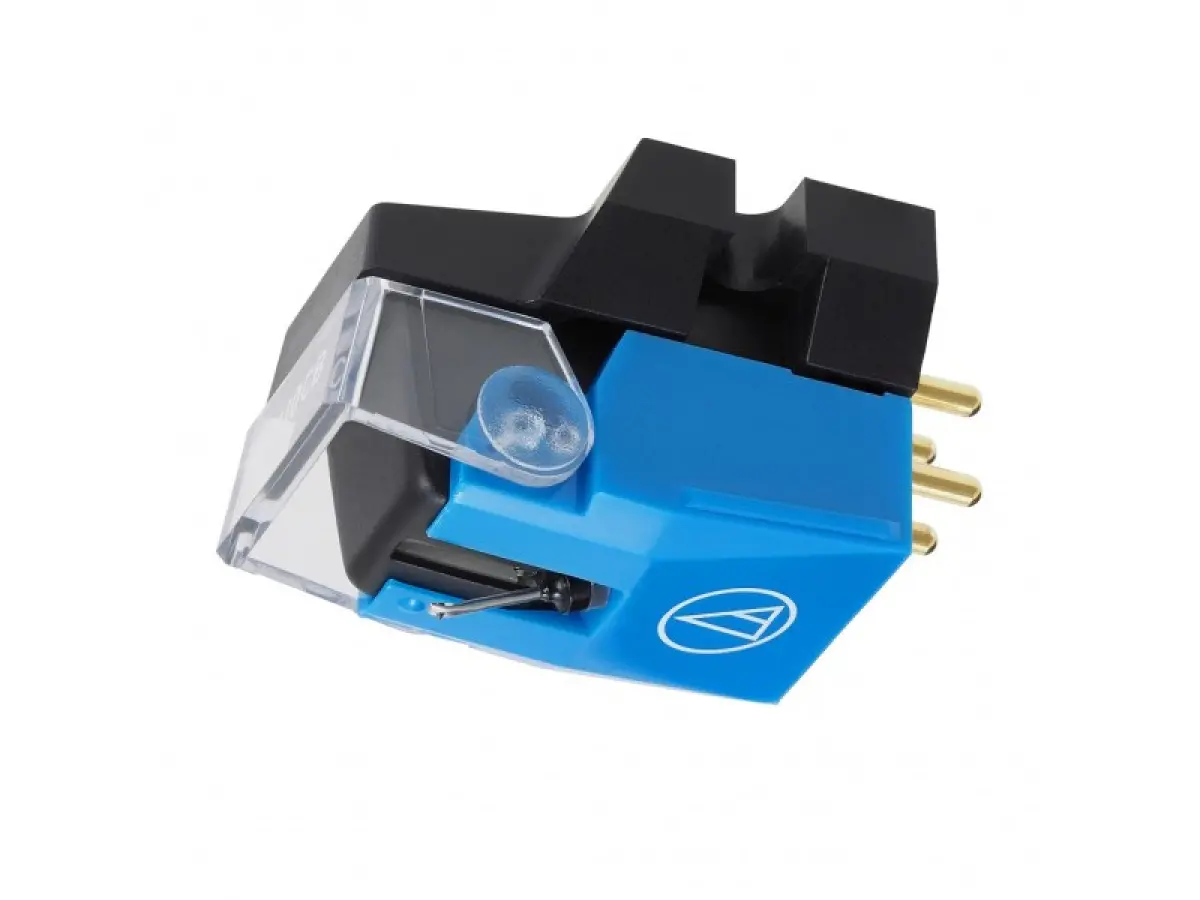

AUDIO TECHNICA VM510CB
Dual moving magnet stereo cartridge
Code: 39958851
All our products are covered by Italian warranty.
The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line - a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware.
VM dual magnet cartridge with 0.6 mil conical stylus
Aluminum cantilever
Paratoroidal coils improve generating efficiency
Center shield plate between the left and right channels reduces crosstalk
Durable low-resonance polymer housing
Specifications
Frequency Response: 20-20,000 Hz
Channel Separation: 25 dB (1 kHz)
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Output: 5.0 mV (at 1 kHz, 5 cm/sec)
Channel Balance: 1.5 dB (1 kHz)

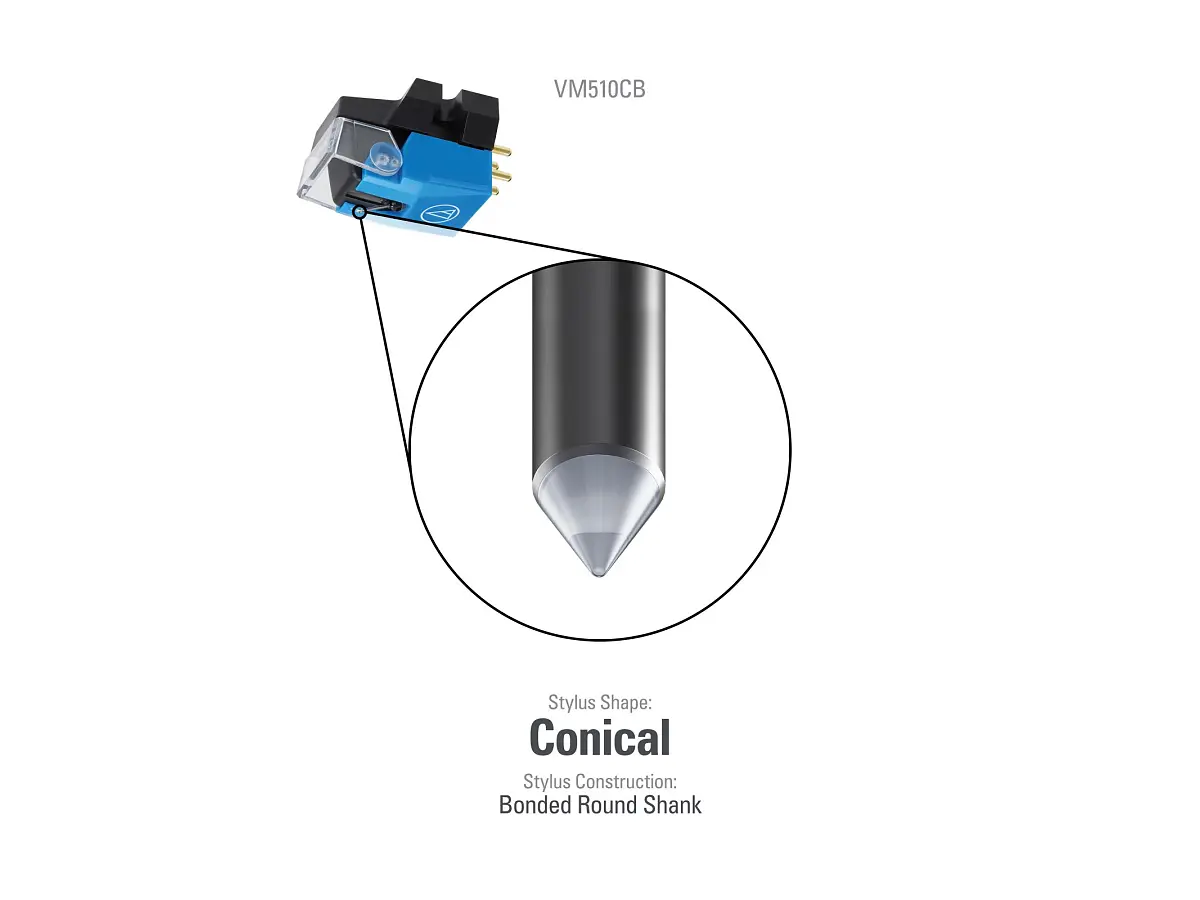

Stylus Shape: 0.6 mil conical
Cantilever: Aluminum pipe
Mount: Half-inch
Replacement Stylus: VMN10CB
Coil Impedance: 2,700 Ω (1 kHz)
DC Resistance: 800 ohms
Load Capacitance: 100-200 pF
Coil Inductance: 460 mH (1 kHz)
Static Compliance: 35 x 10-6 cm/dyne
Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)
Vertical Tracking Angle: 23°
Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D
Weight: 6.4 g (0.2 oz)
