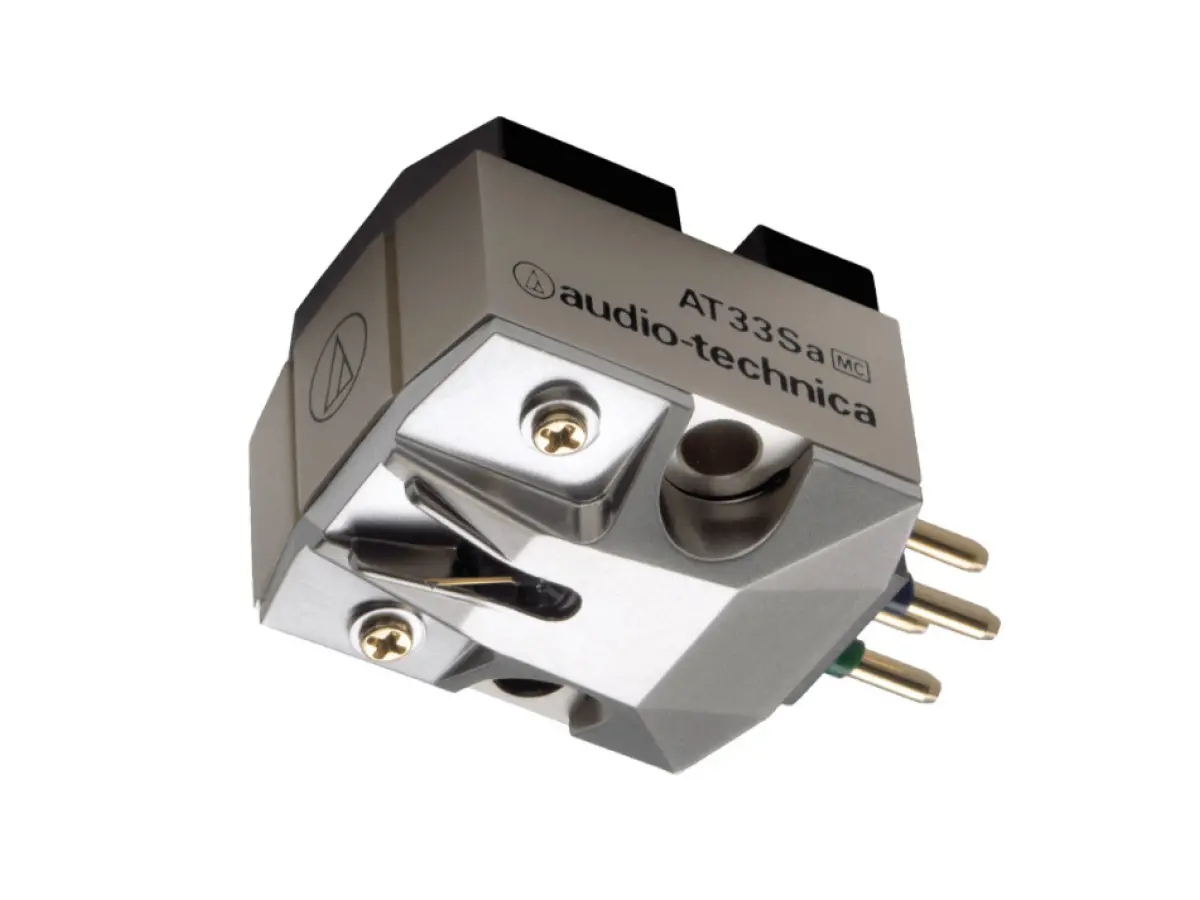

AUDIO TECHNICA AT33SA

The AT33Sa represents a breakthrough in Audio-Technica’s moving coil cartridge lineup, being the first to feature a Shibata line-contact stylus, renowned for its exceptional high-frequency performance and strong, solid midrange and bass. The stylus is mounted on a nude tapered boron cantilever with a double damper, reducing weight and enhancing overall audio quality.

The cartridge’s dual moving coils provide extremely precise channel separation and are housed within a lightweight yet sturdy VC mold that minimizes unwanted vibrations. The magnetic system uses a neodymium magnet and a permendur yoke, significantly increasing magnetic energy and dynamic response.

The PCOCC coils, made from pure copper using the Ohno Continuous Casting method, ensure impurity-free signal transmission, delivering detailed, transparent, and natural sound that faithfully reproduces every nuance of vinyl with outstanding musicality and tonal coherence.

Technical specifications:

• Frequency response: 15 – 50,000 Hz
• Channel separation: 30 dB (1 kHz)
• Vertical tracking angle: 23°
• Vertical tracking force: 1.8 – 2.2 g (standard 2.0 g)
• Stylus shape: Shibata; Stylus construction: nude square shank
• Cantilever: nude tapered boron
• Recommended load impedance: min 100 Ω; Coil impedance: 10 Ω (1 kHz); DC resistance: 10 Ω; Coil inductance: 22 µH (1 kHz)
• Output voltage: 0.4 mV (1 kHz and 5 cm/sec); Output channel balance: 0.5 dB (1 kHz)
• Static compliance: 40 × 10⁻⁶ cm/dyne; Dynamic compliance: 10 × 10⁻⁶ cm/dyne (100 Hz)
• Mounting: 1/2” centers
• Body material: Aluminium / Synthetic Resin
• Accessories included: 1 non-magnetic screwdriver; 1 brush; 2 washers; 2 nuts; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC lead wires (AT6101)
• Type: dual moving coil
• Dimensions: H16 × W16.6 × D26.5 mm
• Weight: 6.9 g
