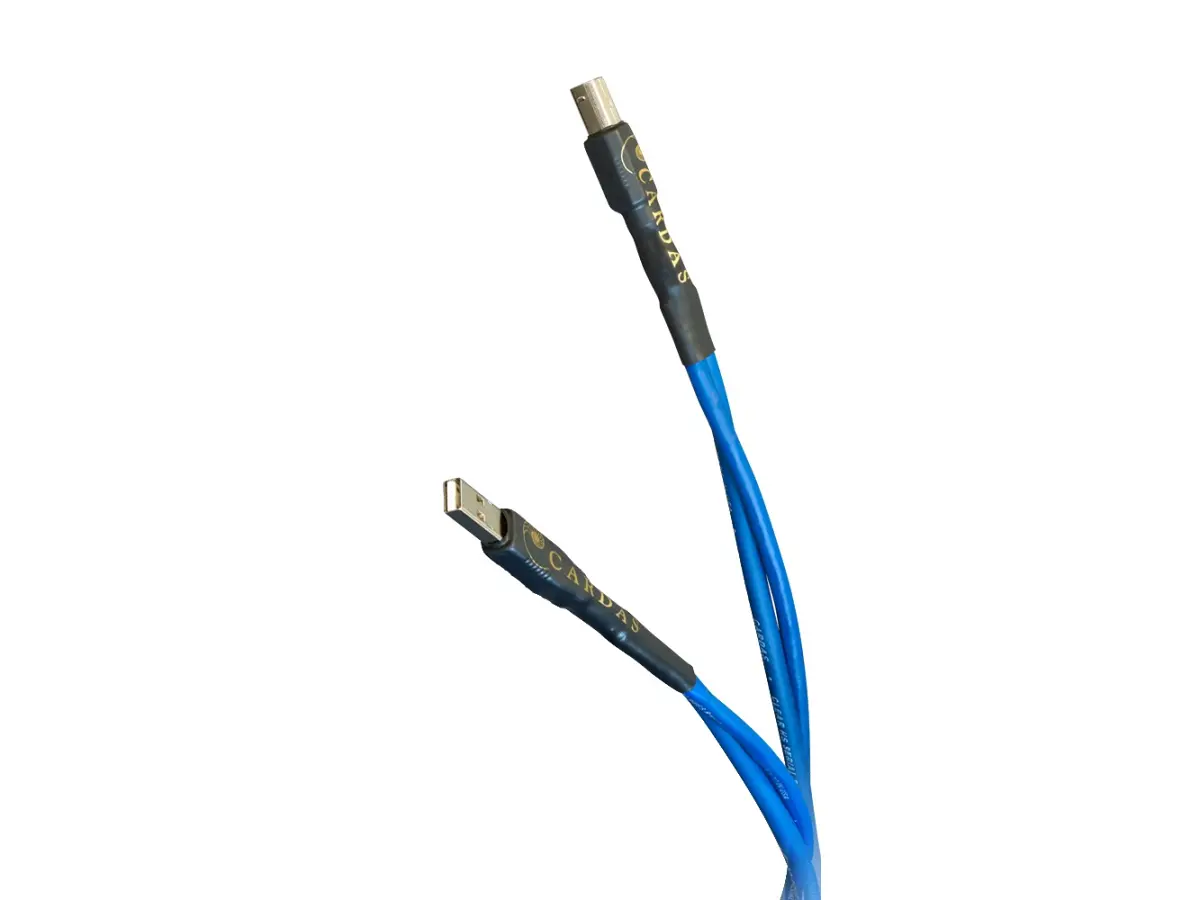

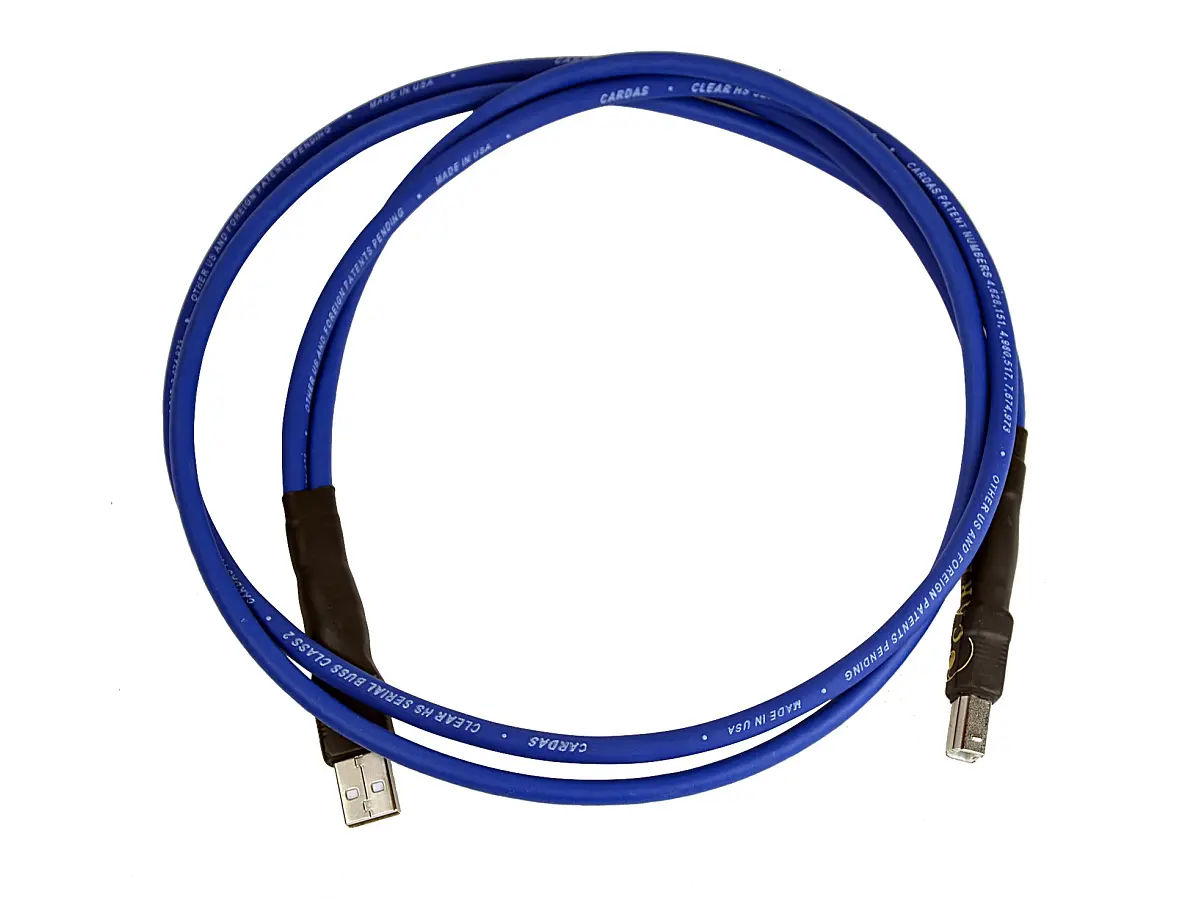

CARDAS CLEAR HIGH SPEED SERIAL BUSS CLASS 2 A-B

Cardas A-B Digital Cable

Clear High Speed Serial Buss takes the Clear Serial Buss USB cable and adds a high-performance data cable using silver-plated conductors. Each conductor pair in both cables is separately shielded, and each cable has its own double shielding. This ultra-premium USB cable enhances depth, realism, and imaging in your digital system. It is a significant improvement over the already excellent Clear Serial Buss. The Clear High Speed Serial Buss USB is ideal for use with high-resolution digital audio.

Regarding the design and construction, the conductors are made of a Matched Propagation Kevlar core, ultra-fine Grade 1, 99.9999% pure OFHC copper with a transparent SPN coating (Litz), with gauge sizes scaled to the Golden Ratio proportions. The cross-field layer geometry is insulated in an ultra-thin extruded PTFE jacket. The data conductors are solid core copper, silver-plated.

The geometry features a dual asymmetrical star-quad 8-conductor design. The signal-carrying conductors are shielded twisted pairs, while the power and signal conductors are bound with PFA tape. The final shield consists of aluminum/mylar tape, tinned copper, and magnet wire, with an outer TPR jacket.

Gauge: 2x25.5 AWG + 2x21.5 AWG + 23.5 AWG + 30 AWG
Outside Diameter: Approximately 0.453”/11.50 mm
