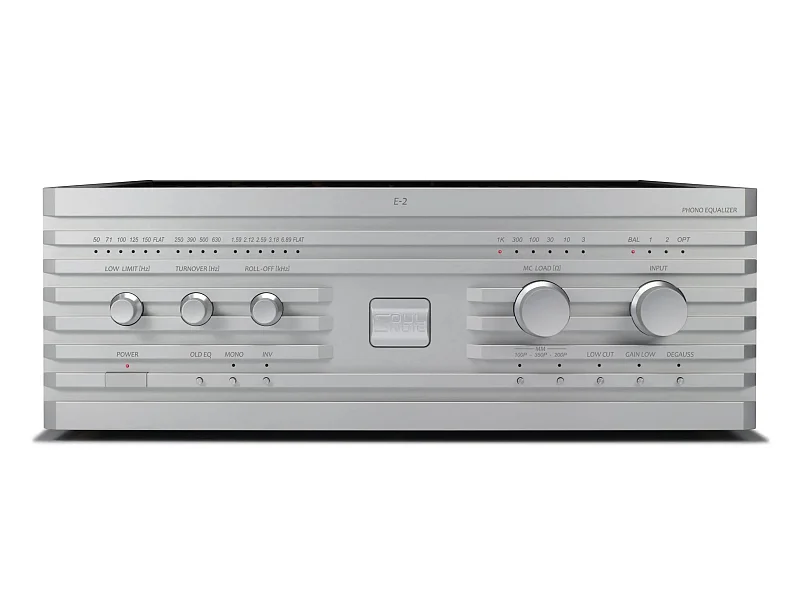

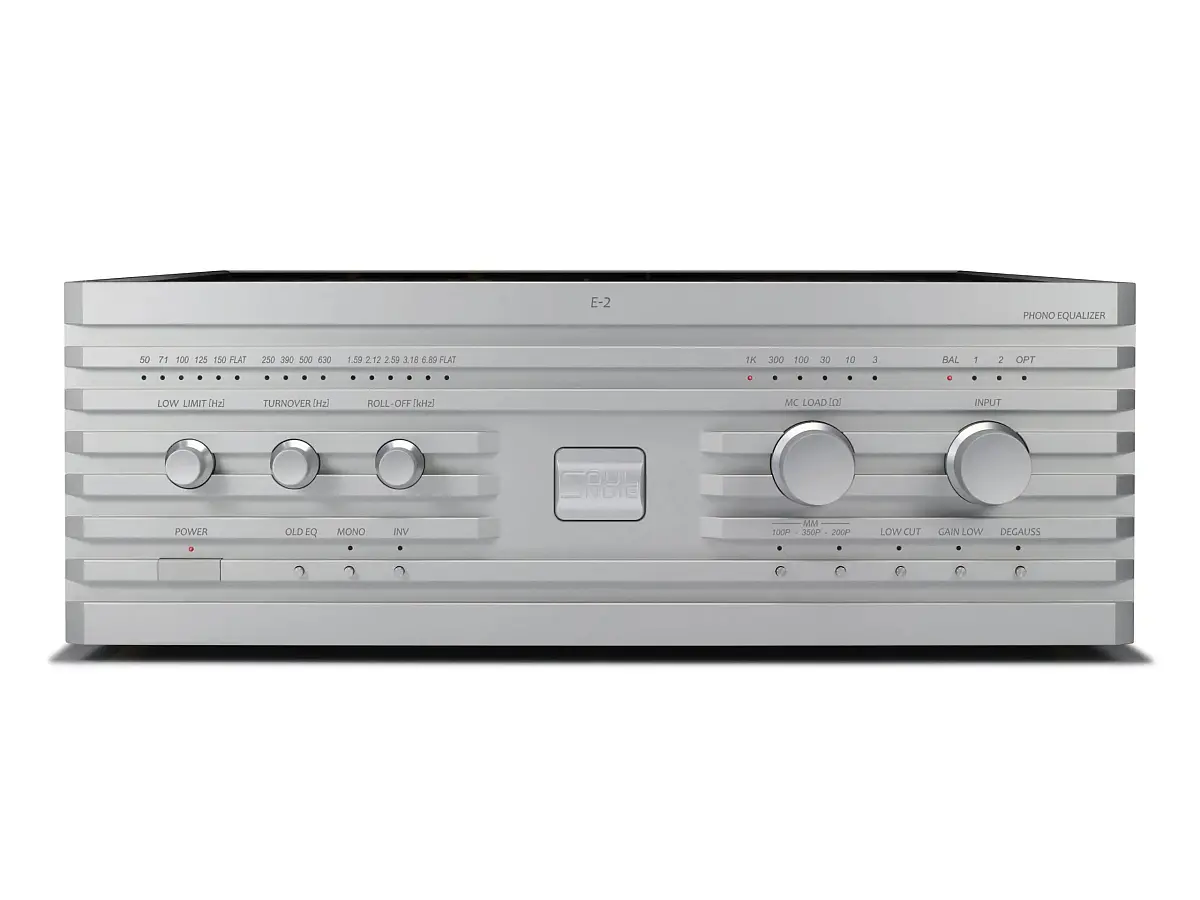

SOUL NOTE E-2 SILVER
Pre phono
Code: 64653939
All our products are covered by Italian warranty.
The SOULNOTE E-2 model is a phono equalizer designed to deliver maximum compatibility with a wide range of cartridges, including both traditional MC/MM types and the advanced DS Audio photoelectric cartridges, thanks to a technical collaboration with DigitalStream. This all-in-one device allows for full utilization of any kind of phono cartridge, offering an exceptionally accurate and immersive sound reproduction experience.
At the core of its design are perfectly balanced non-NFB circuits, specifically developed for photoelectric cartridges, which are not subject to the typical limitations of coil or magnetic systems, such as weight and inductive resistance. These circuits feature differential channels with emitter bypass, significantly reducing circuit impedance and delivering outstanding transient response. The result is a vivid and dynamic soundscape. Each channel—left and right—is mounted on a fully independent board, while the dual mono configuration enhances spatial precision to an extraordinary degree.

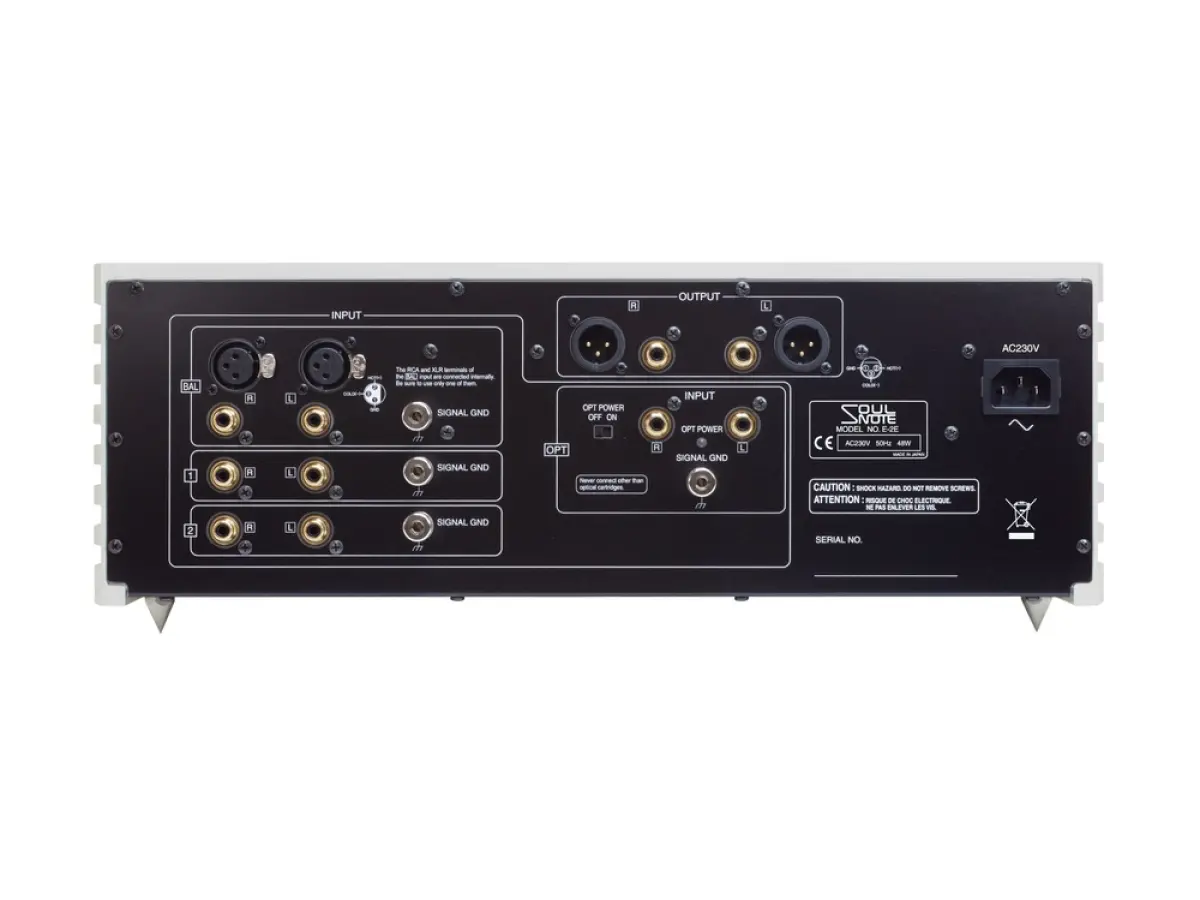

The unit includes six selectable load impedance values for MC cartridges, ensuring optimal synergy with any model. Input connectivity supports four different system configurations: balanced MC inputs, two types of unbalanced inputs for MC/MM, and dedicated inputs for photoelectric cartridges. For MM cartridges, a three-step load capacitance switching function is available, designed to fully bring out the potential of even the most demanding moving magnet designs.
The E-2 also offers exceptionally wide support for vintage equalization curves that predate the RIAA standard. Users can choose from six types of Roll-Off (high-frequency attenuation), four Turn Over settings (low-frequency amplification), and six Low Limit options (ultralow frequency cutoff), all independently adjustable, for a total of 144 curve combinations. This makes it possible to faithfully reproduce rare and historical records, including the earliest SP recordings with flat response. All adjustments are made through mechanical relays, maintaining a strong focus on sound quality.
Power is delivered by a massive 400 VA toroidal transformer with bifilar winding, revealing the full potential of the grounding and power supply systems. The combination of multiple small-capacity capacitors in parallel, along with a high-speed non-NFB regulator, ensures a delicate and detailed playback capable of capturing even the most subtle nuances, like the air rising from the stage.
Additional features include a phase inversion function for balanced signals to correct polarity-induced distortions, a low gain mode to match preamplifiers with limited headroom, and a mono mode for combining both channels into a single output—ideal for monophonic recordings. The degaussing function short-circuits the inputs, reducing residual magnetism from the cartridge during playback, and also serves as a MUTE at the beginning of record play. The balanced output is powered by a fully balanced, non-NFB buffer amplifier, powerful enough to drive loudspeakers directly, embodying SOULNOTE’s philosophy of delivering uncompromising sonic purity in every detail.
Technical Specifications:
- Input sensitivity: MC: 0.4mV / MM: 4mV / OPT: 50mV
- Gain: MC: 72dB / MM: 52dB / OPT: 30dB
- Rated output: Balanced output: 2.8V / Unbalanced output: 1.4V
- RIAA deviation: ±0.2dB
- MC load resistance: 3ohm, 10ohm, 30ohm, 100ohm, 300ohm, 1kohm
- MM load capacitance: 100P, 200P, 350P
- MM load resistance: 47kohm
- Equalizer frequency ROLL-OFF [KHz]: 1.59, 2.12 (RIAA), 2.59, 3.18, 6.89, FLAT
- Equalizer frequency TURNOVER [Hz]: 250, 390, 500 (RIAA), 630
- Equalizer frequency LOW LIMIT [Hz]: 50 (RIAA), 71, 100, 125, 150, FLAT
- Power voltage: 230V AC 50Hz
- Power consumption: 48W
- Maximum external dimensions: main unit 430(W) × 160(H) × 410(D)mm
- Weight: 20kg
- Included accessories: spikes, power cord
