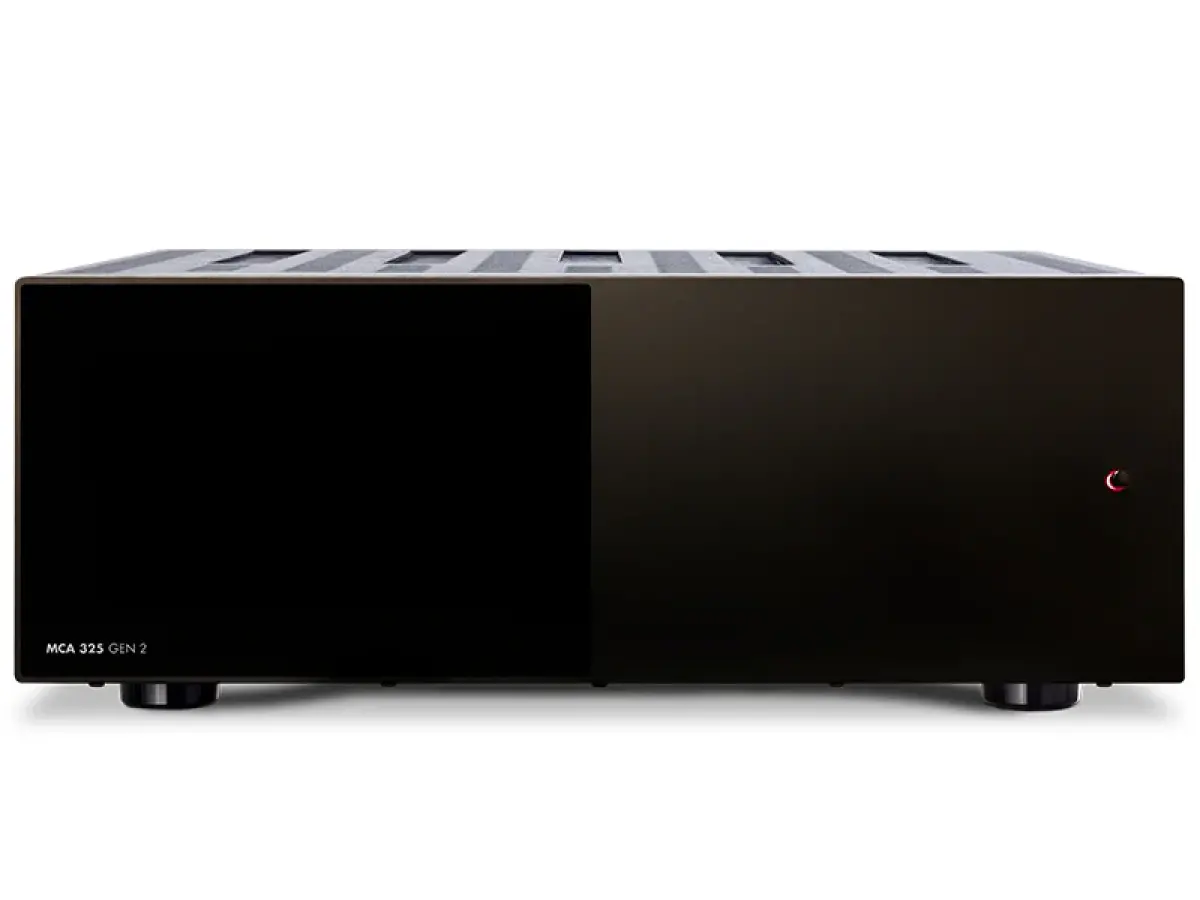

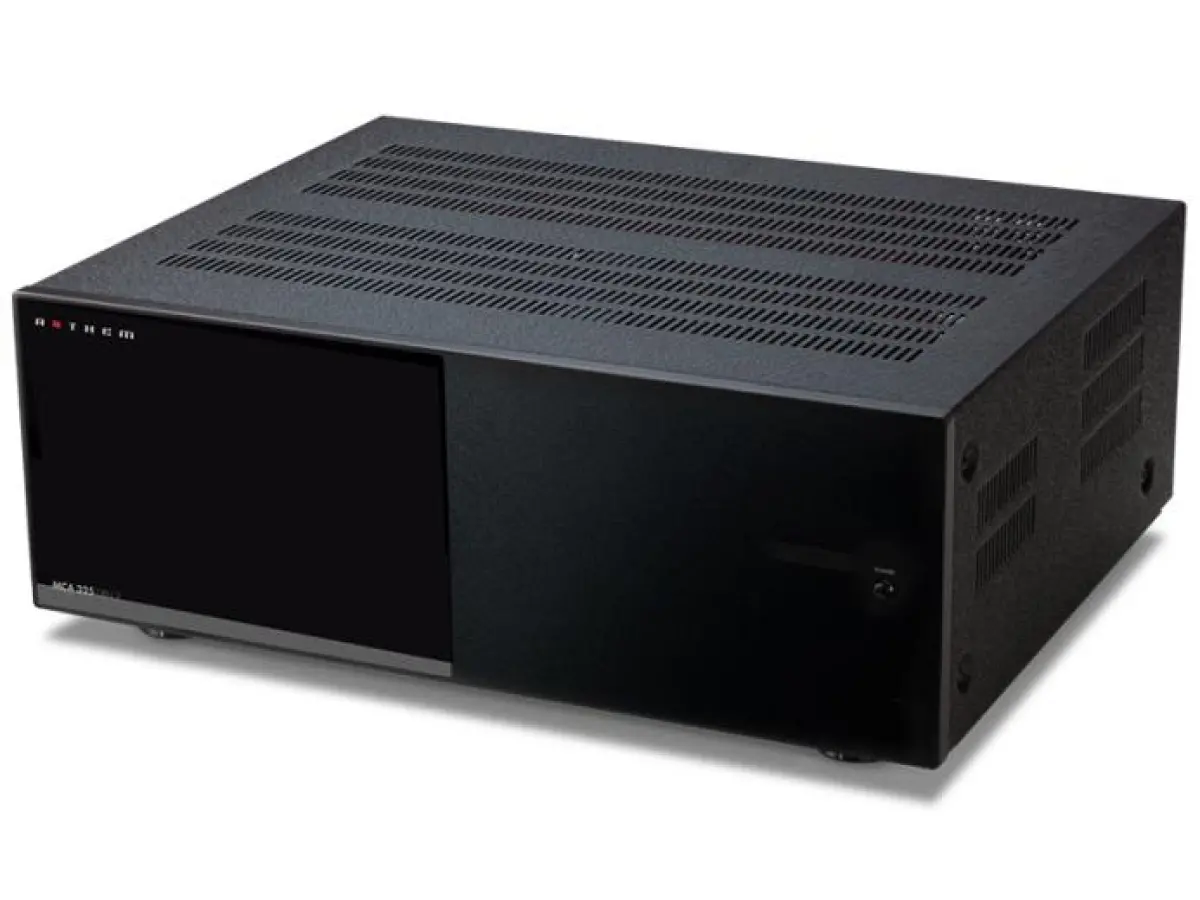

ANTHEM MCA 325 GEN 2

The Anthem MCA 325 GEN 2 is a three-channel power amplifier designed for those seeking exceptional audio performance in compact, reliable multichannel configurations. Designed and assembled in Canada, this amplifier represents the culmination of over fifteen years of research and development, combining carefully selected components with advanced circuit topologies to deliver detailed, transparent, and powerful sound across the full frequency spectrum.

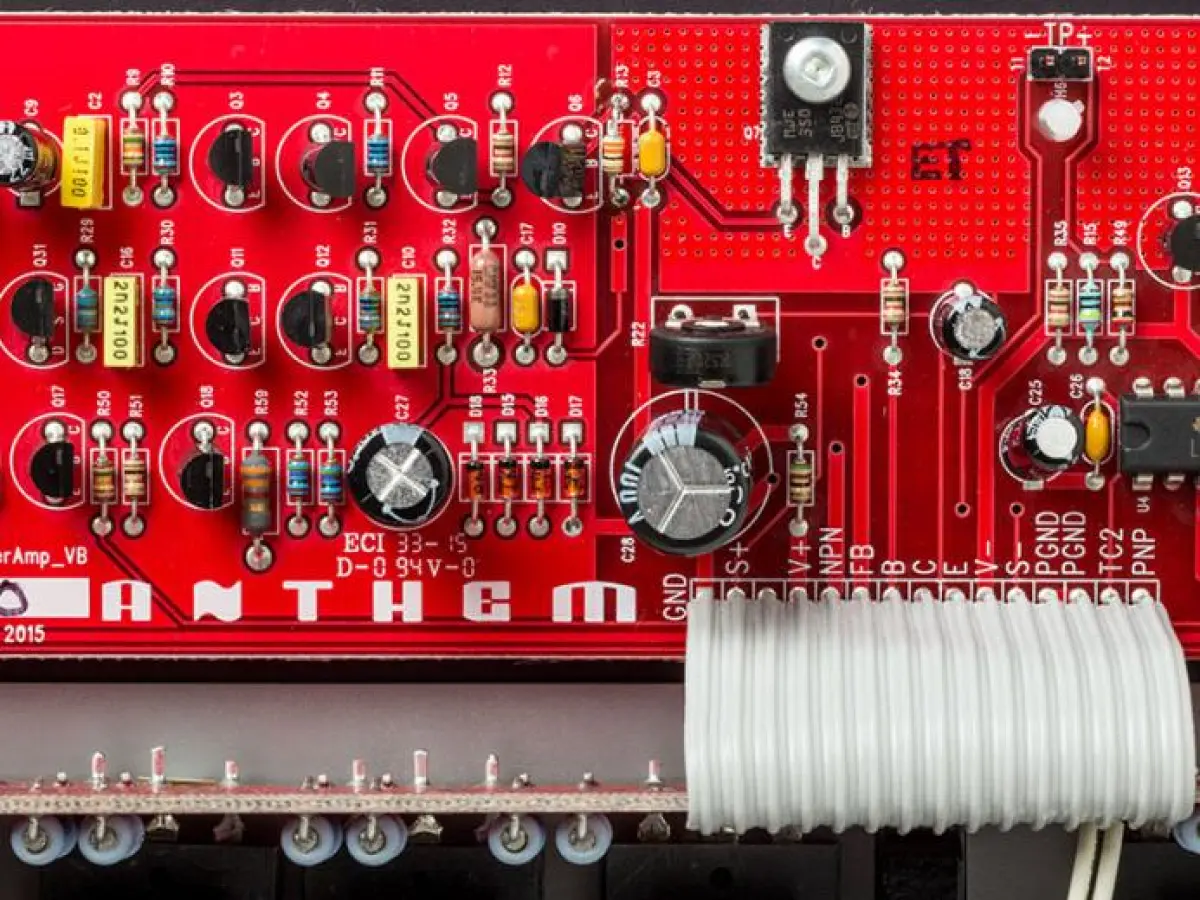

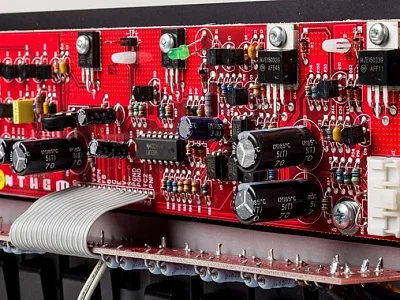

The GEN 2 series design minimizes internal cabling, providing a direct, unobstructed signal path. Low-flux toroidal transformers and improved input transistors enhance clarity and precision even with dynamically complex material. With a wide frequency response, high slew rate, and a signal-to-noise ratio of 120 dB, the MCA 325 GEN 2 produces natural audio with virtually no background noise and minimal harmonic distortion.

Power is evenly distributed across all three channels, delivering instant dynamic bursts without compromising channel separation. Oversized binding posts ensure a secure and stable connection with speaker cables, while the “green” standby mode keeps power consumption between 1 and 2 W without sacrificing readiness. Advanced Load Monitoring™ technology continuously monitors temperature, current, and voltage to protect the amplifier and speakers, intervening only in extreme conditions without interrupting unaffected channels.

Compact yet powerful, the MCA 325 GEN 2 is ideal for advanced stereo setups, three-channel surround systems, or expanding a home theater, providing stable performance even with low-impedance loads. Its robust construction, combined with a sleek, modern design, makes this amplifier reliable and long-lasting, capable of transforming every listening session into an engaging, precise, and uncompromising audio experience.

Designed to integrate seamlessly with AVM 70 and AVM 90 processors, the MCA 325 GEN 2 supports complex multichannel configurations, delivers ample power to demanding loads, and maximizes the benefits of ARC Genesis room correction. Low-flux toroidal transformers ensure quiet, precise performance, while custom-designed binding posts provide efficient signal transmission, making the MCA 325 GEN 2 the reliable heart of a high-end audio system.

Technical Specifications:

• Power output per channel (Continuous RMS, 20 Hz – 20 kHz, <1% THD): 8Ω 225 W; 4Ω 400 W; 2Ω 600 W

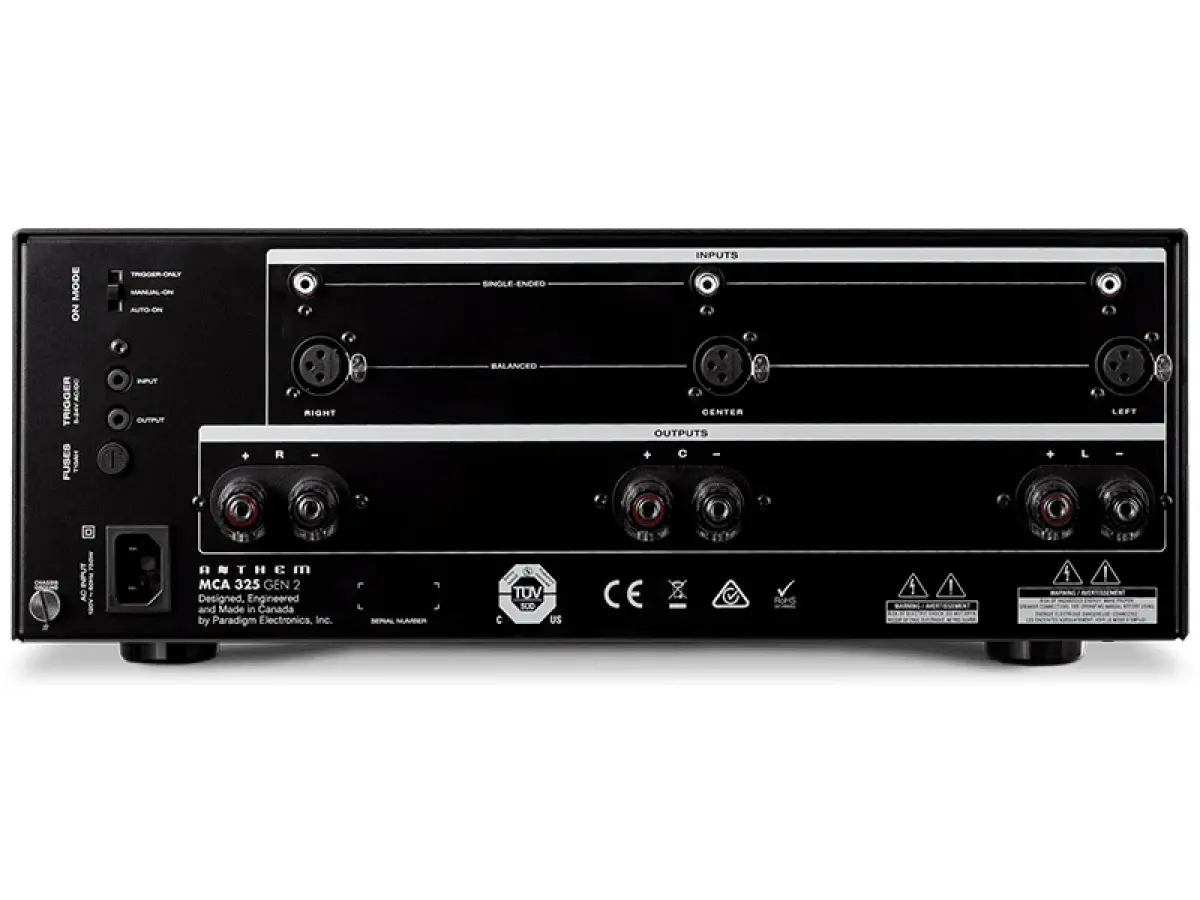

• Inputs: Single-Ended; Balanced; Relay Trigger (3.5 mm Mono Jack)
• Outputs: Speaker Binding Posts; Relay Trigger (3.5 mm Mono Jack)
• Front panel switch: Power On/Off

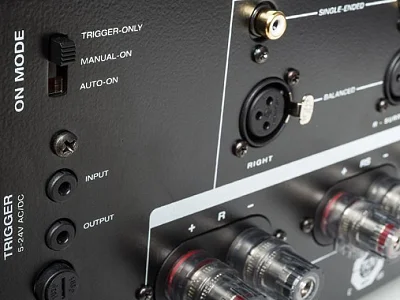

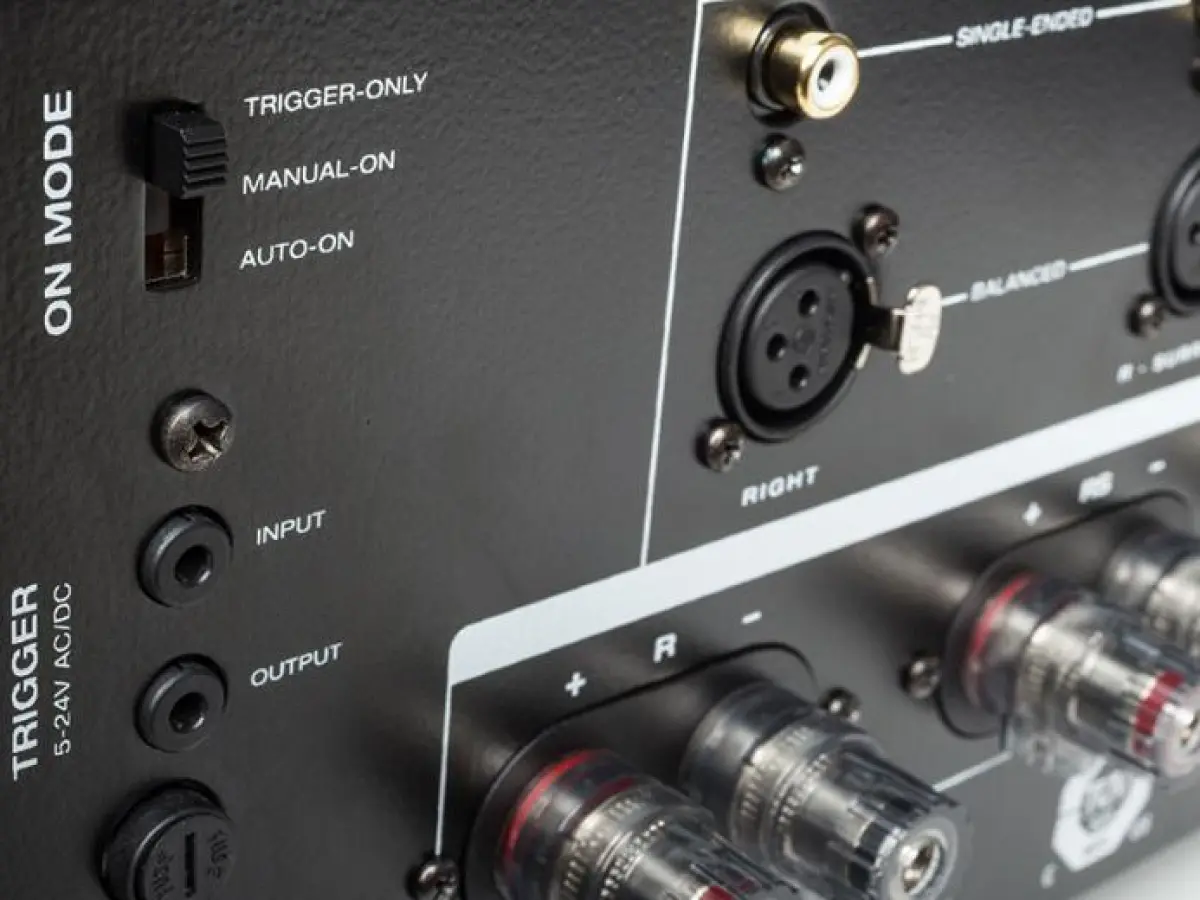

• Rear panel switch: 3 On/Off Modes (Trigger, Manual, Auto)
• THD at 100 W: 1 kHz 0.001%; 20 kHz 0.015%
• IMD at 100 W: ITU-R (19 kHz + 20 kHz) 0.0005%; SMPTE (60 Hz + 7 kHz) 0.002%
• Frequency response 20 Hz – 20 kHz: open circuit ±0.1 dB; 8Ω ±0.1 dB; 4Ω ±0.1 dB; 2Ω ±0.2 dB
• Signal-to-noise ratio: IEC-A, ref. 225 W 120 dB
• Power bandwidth: -3 dB at 200 W into 8Ω 90 kHz
• Slew rate: 30 V/μs
• Damping factor: 20 Hz – 1 kHz 300
• Channel separation: 100 Hz – 10 kHz >65 dB
• Input impedance (RCA / XLR): 10 kΩ / 15 kΩ
• Input sensitivity: 1.5 Vrms for 225 W @ 8Ω
• Voltage gain: 29 dB
• Power consumption: standby 1.4 W; idle 47 W; typical 350 W; full output 750 W
• Power requirements: 120 V version: 108–132 V, 60 Hz; 220–240 V version: 198–264 V, 50 Hz
• Dimensions: height 16.9 cm; height with rack kit 4U; width 43.9 cm; depth 46 cm
• Weight: 19.5 kg
