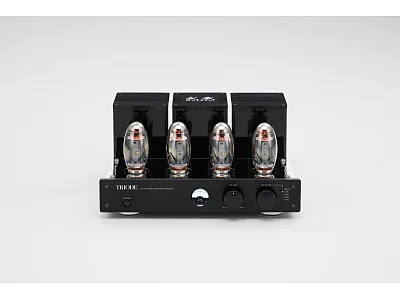

TRIODE MUSASHI

Integrated amplifier

Circuit system     KT150 class AB push-pull integrated amplifier
Tubes     KT150 x 4, 12AU7 x 4
Bias     Fixed bias, adjustable with bias meter
Output power     100W+100W at 8 ohms
Frequency response     8Hz-70kHz(-3dB)
S/N ratio     93dB
Input sensitivity     LINE 480mV, MM 2.5mV, MAIN IN 920mV
Input impedance     LINE 100k ohm, MM 47k ohm, MAIN IN 10k ohm

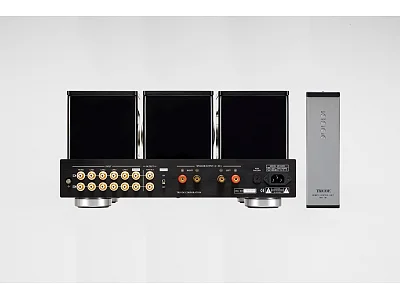

Input terminals     RCA unbalanced x 6(LINE1-4 , MM x 1, MAIN IN x 1)
Output terminals     TAPE OUT x 1(RCA unbalanced)
Speaker output terminals     4???8 ohms
Equipped components     High quality speaker terminal
Other functions     Remote control (Volume , Mute, Input select)
Bias adjuster with bias meter
Power consumption     520W (190W/No signal)
Dimensions     W440mm x D370mm x H220mm
Weight     34.5kg
Accessories     Tube cover , Remote control
