GRYPHON DIABLO 333

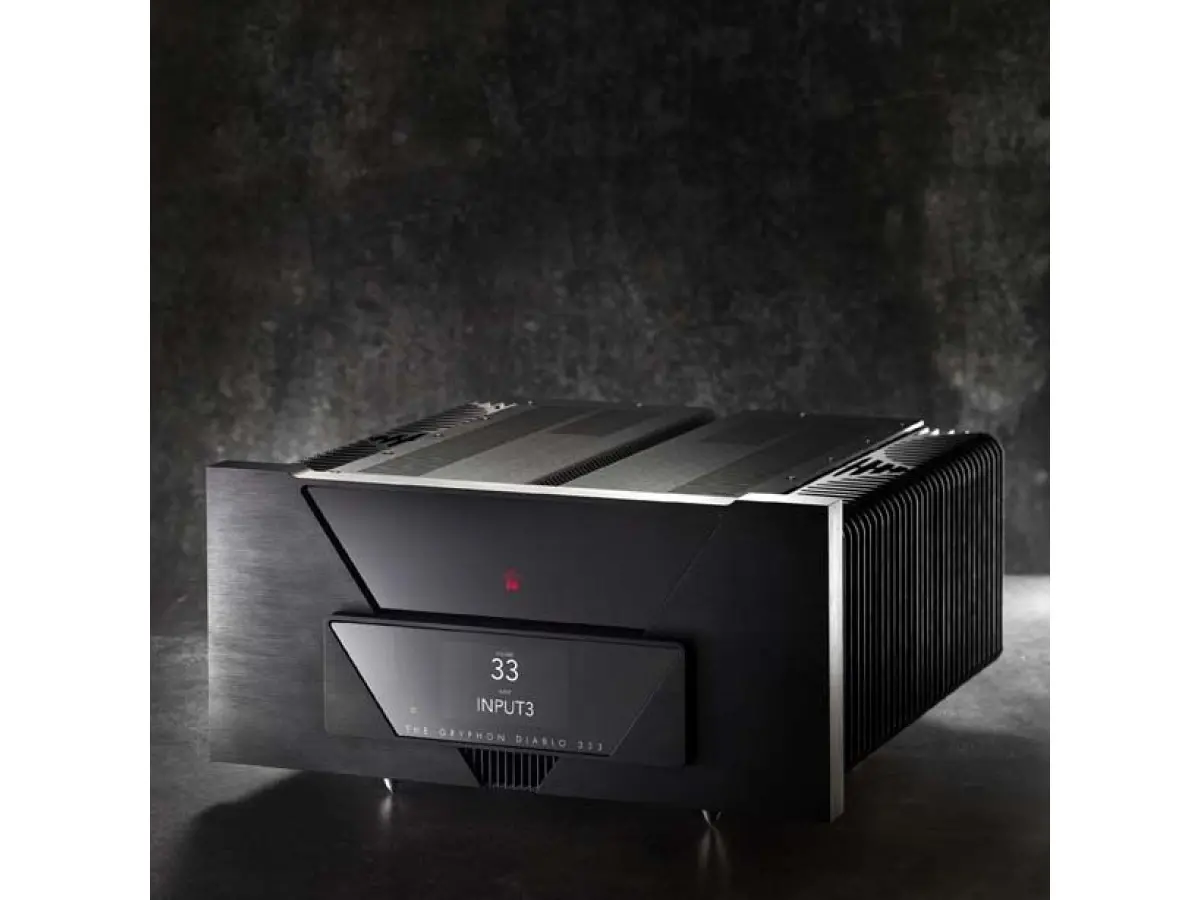

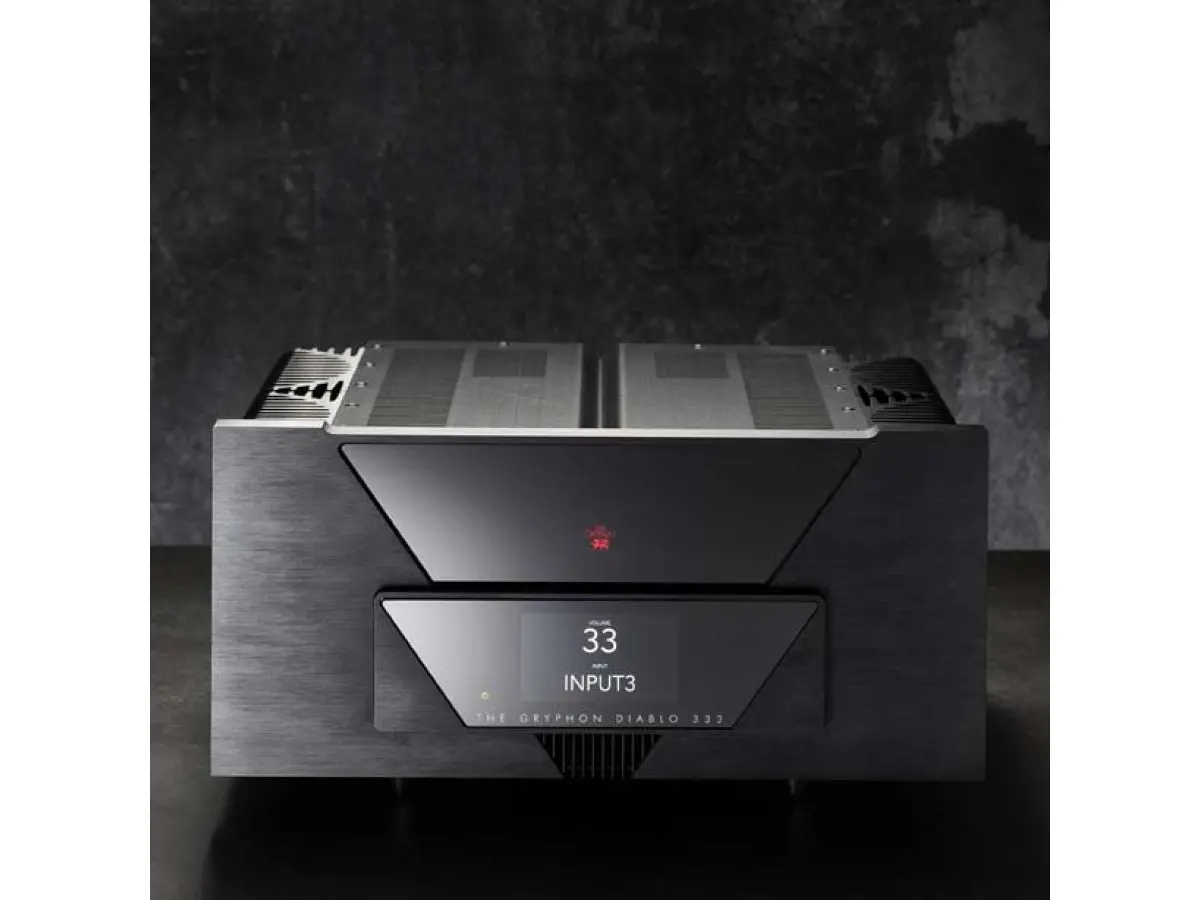

New Gryphon Diablo 333, created to surpass the legendary Diablo 300, the new Diablo 333 positions itself as a new benchmark in integrated amplifier performance.

In the eight years since the introduction of the Diablo 300, advances in component technology and intensive engineering research have identified areas for improvement. Key elements from the circuitry of the new Apex and Commander—Gryphon’s flagship amplifier and preamplifier—have been incorporated into the Diablo 333, which delivers 10% more output power than its legendary predecessor. The new ultra-fast, low-capacitance preamplifier transistors provide enhanced musicality and superior measured performance.

Surpassing the perfection achieved by the legendary Diablo 300 was no easy task: introduced at High End Munich 2015, the Diablo 300 set a new benchmark in integrated amplification performance. With unanimous acclaim from the high-end audio press and thousands of units sold, the Diablo 300 maintained its “Best-in-Class” status for nearly a decade, repeatedly outperforming newer and more expensive competitors.

However, over the past eight years, new technologies and intensive engineering research have suggested further areas for improvement. The Diablo 333 is based on the technologies used in the circuitry of Apex and Commander, Gryphon’s flagship amplifier and preamplifier, delivering 10% more power than its predecessor. It employs new ultra-fast, low-capacitance transistors that enable superior performance both musically and on the test bench.

Technical specifications:

» 2 x 333 Watts @ 8 ohm, 2 x 666 Watts @ 4 ohm, 2 x 1,100 Watts @ 2 ohm
» True Dual Mono configuration
» Zero negative feedback
» 43-step microprocessor-controlled volume control, only 1–2 resistors in series with the signal at any level
» Shunt regulators for optimal noise suppression

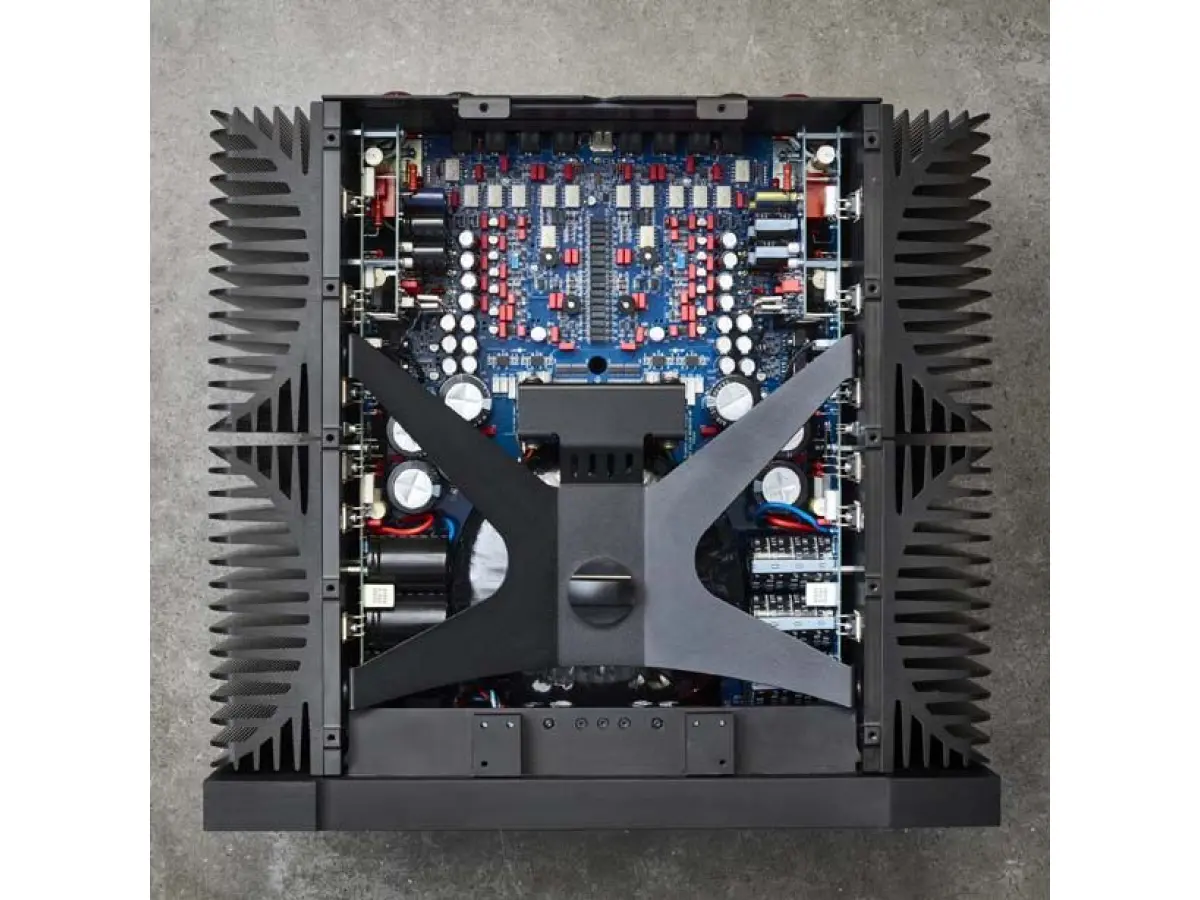

» Ten high-power transistors per channel
» Ultra-fast, low-capacitance pre-driver transistors
» Polypropylene capacitors for local power supply decoupling
» Optional PS3 MM/MC phono stage
» Optional DAC3 D/A module (inputs: 1 x USB, 2 x SPDIF, 1 x AES, 1 x OPT)
» Ultra-short signal path
» Minimal internal wiring
» Four-layer PCB with 70µ copper
» Holmgren Dual Mono toroidal transformer

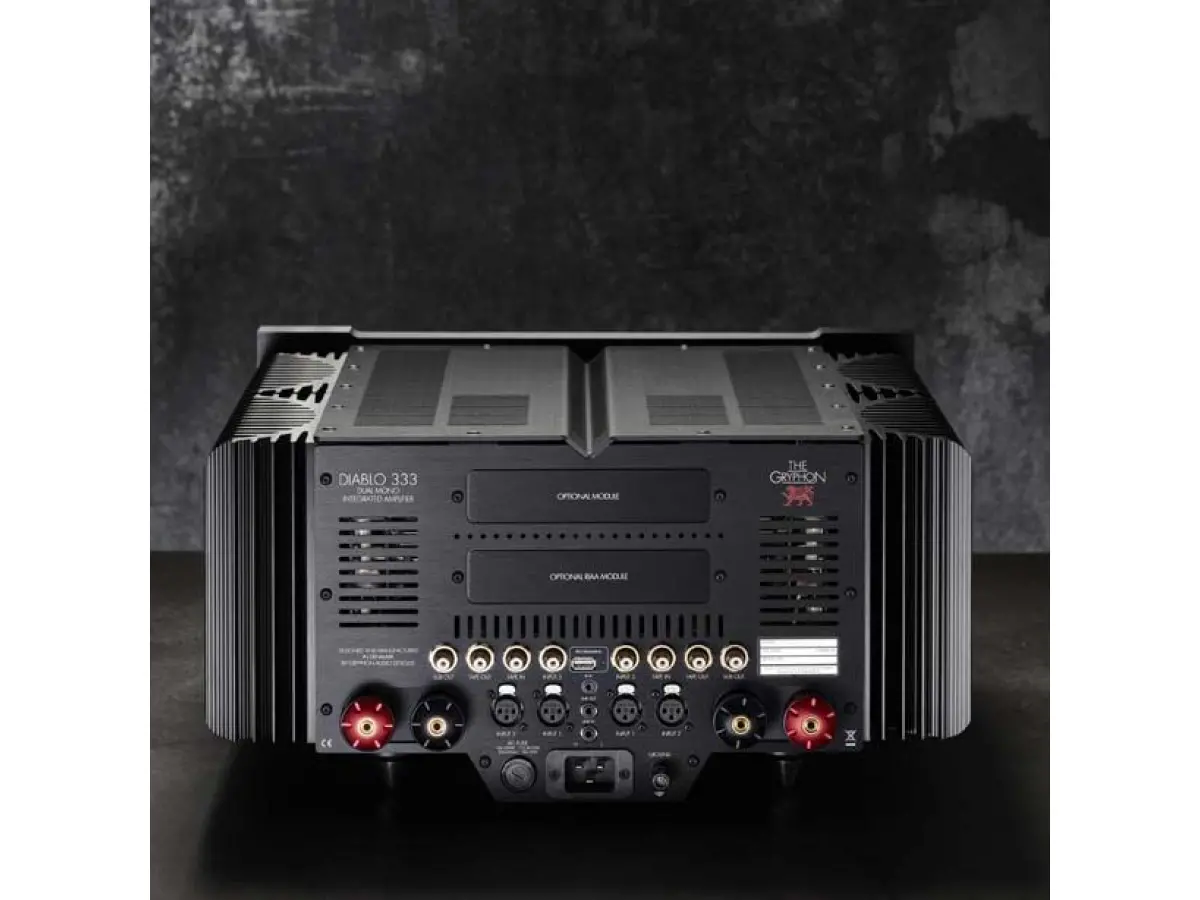

» Connectors mounted directly on PCBs to eliminate wiring and shorten signal paths
» Gold-plated Neutrik XLR connectors for two balanced inputs
» Gold-plated RCA connectors with Teflon insulation for two inputs and two single-ended outputs

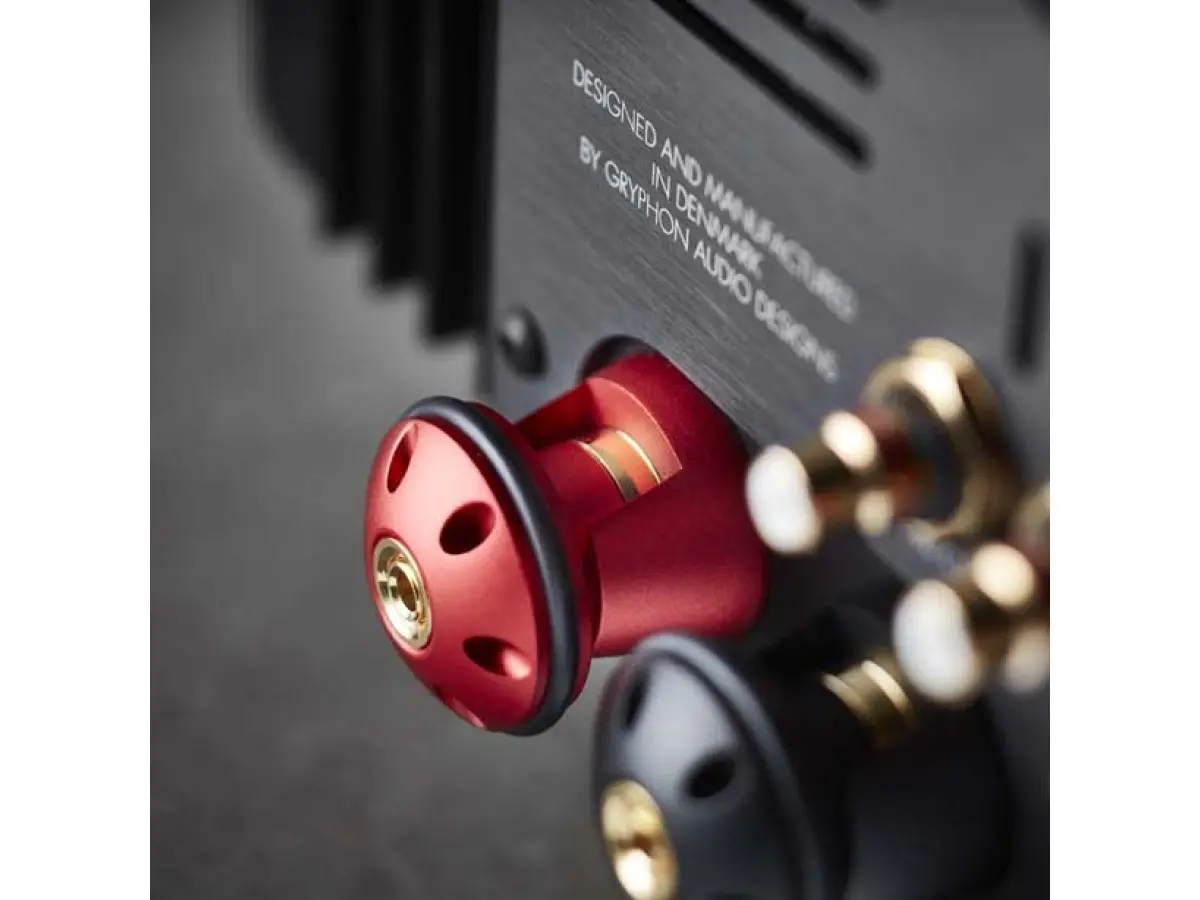

» Custom Gryphon gold-plated binding posts
» Fixed-level AV throughput for seamless home theater integration
» Source level matching

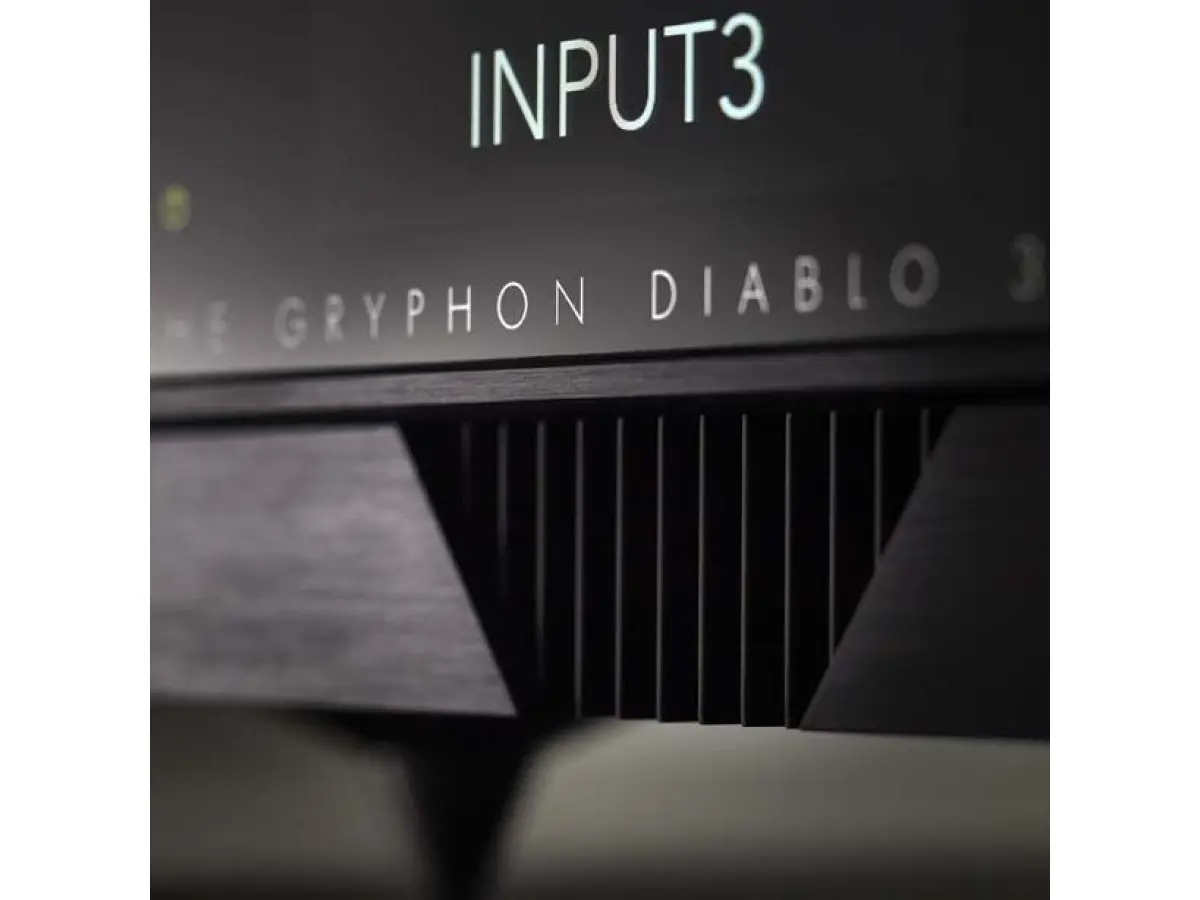

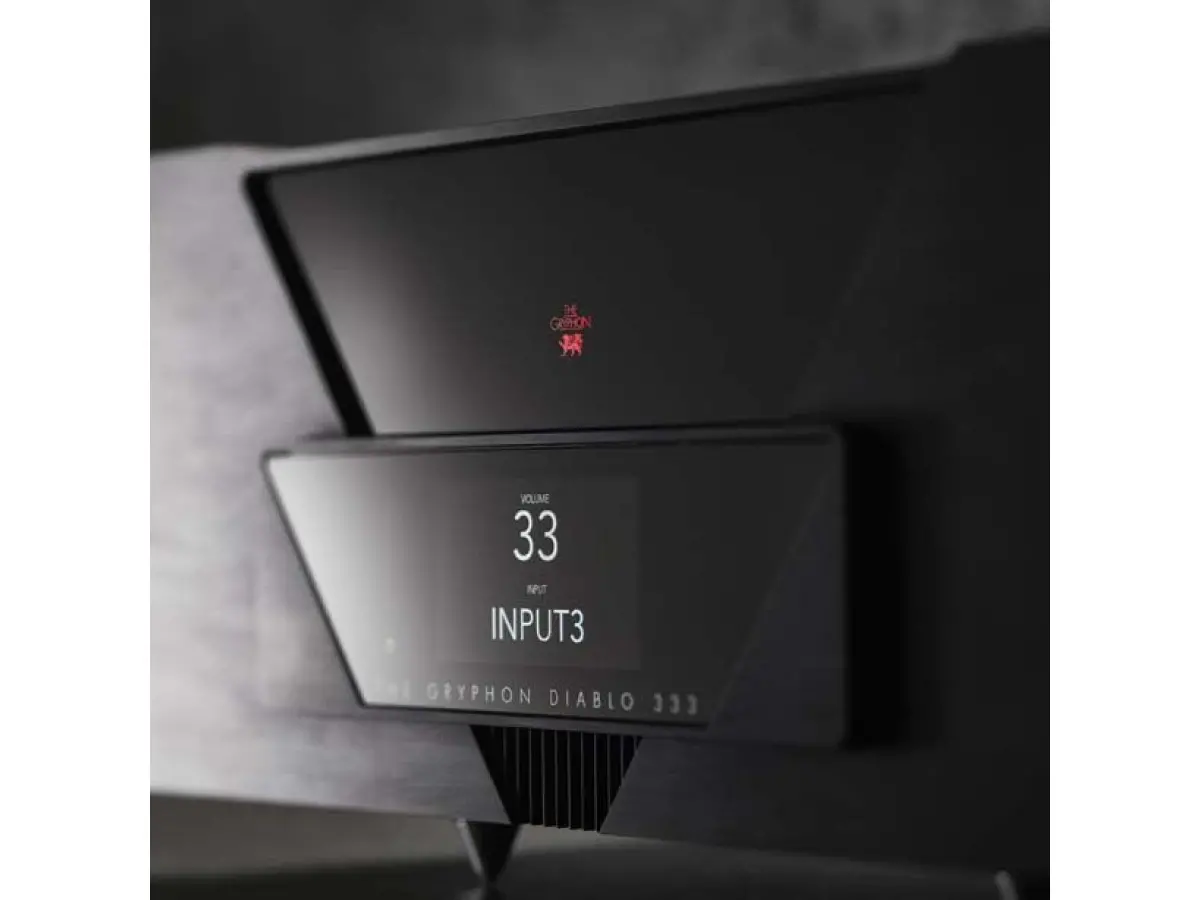

» 4.3-inch TFT touch display with 4mm reinforced front glass
» Intuitive menu structure
» 12V DC trigger input and output
» Infrared receiver input
» Firmware upgradeable via rear USB 2.0 port
» Non-intrusive protection system
» Gain: +38 dB
» Bandwidth (-3 dB): 0.1 Hz – 350 kHz
» Input impedance: 50 kOhm (balanced) / 30 kOhm (single-ended)
» Output impedance: 0.015 Ohm
» Standby power consumption: < 0.5 W
» Dimensions (WxHxD): 468 x 472 x 245 mm
» Weight: 50.6 kg
» Designed and built in Denmark
» Aesthetics by Flemming E. Rasmussen
» Electronic design by Tom Møller
