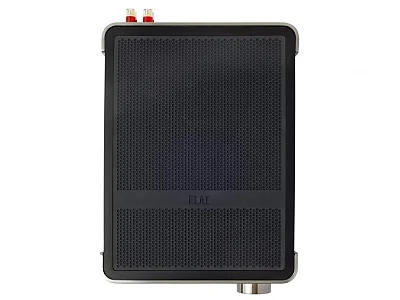

ELAC EA-101EQ-G

80-Watt per Channel Integrated Amplifier with DSP

This integrated amplifier marks ELAC’s return to the amplifier category.
The EA101EQ-G model solves two major challenges in two-channel audio: the proper integration of a subwoofer with main speakers and acoustic correction in a listening room. Our advanced DSP and innovative smartphone app provide the tools needed to give anyone access to a high-end audio system at a competitive price.

Technical Specifications

• Amplifier: BASH Digital Fidelity Tracking Amplifier
• Continuous power output: 2 x 80 Watts with 2 channels into 4Ω at 1kHz
• Continuous power output: 2 x 40 Watts with 2 channels into 8Ω at 1kHz
• Continuous power output: 2 x 70 Watts with 2 channels into 2Ω at 1kHz
• Burst power output (CEA 2010*): 120 Watts with 1 channel into 4Ω at 1kHz
• Burst power output (CEA 2010*): 65 Watts with 1 channel into 8Ω at 1kHz
• Burst power output (CEA 2010*): 170 Watts with 1 channel into 2Ω at 1kHz
• Power and THD+N at 1kHz: 70 Watts into 4Ω @ 0.07%
• Power and THD+N at 1kHz: 40 Watts into 8Ω @ 0.03%
• Signal-to-noise ratio (full power digital input): 101dB
• Broadband frequency response: 20Hz – 40kHz ±1.8dB
• Analog inputs: 2
• Digital inputs: 3 total; 2 optical / 1 coaxial (192kHz 24-bit)
• USB input: asynchronous 192kHz 24-bit
• Subwoofer output: 1
• Headphone output: 1 (100mW @ 16 ohms)
• Bluetooth audio: Yes, with aptX
• Audio decoding: Dolby Digital
• Display: OEL
• App control: Yes, iOS and Android control app (Android app available now, iOS app available mid-December; Bluetooth 4.0 low-energy Android or iOS device required)
• Room correction: ABC (Auto Blend & Calibrate)
• Power consumption (power off, 120Vac): 0.86W
• Power consumption (auto standby, 120Vac): 5.45W
• Output power: 160W (80W per channel into 4Ω at 1kHz) – 80W (40W per channel into 4Ω at 1kHz)
• Connectivity: Bluetooth
• Connections: two analog inputs, two optical inputs, one coaxial input, USB, headphone output, subwoofer pre-out
• SNR: 101dB
• Frequency response: 20Hz – 40kHz
• Dimensions: 838 x 213 x 116 mm
• Weight: 2.27 kg
