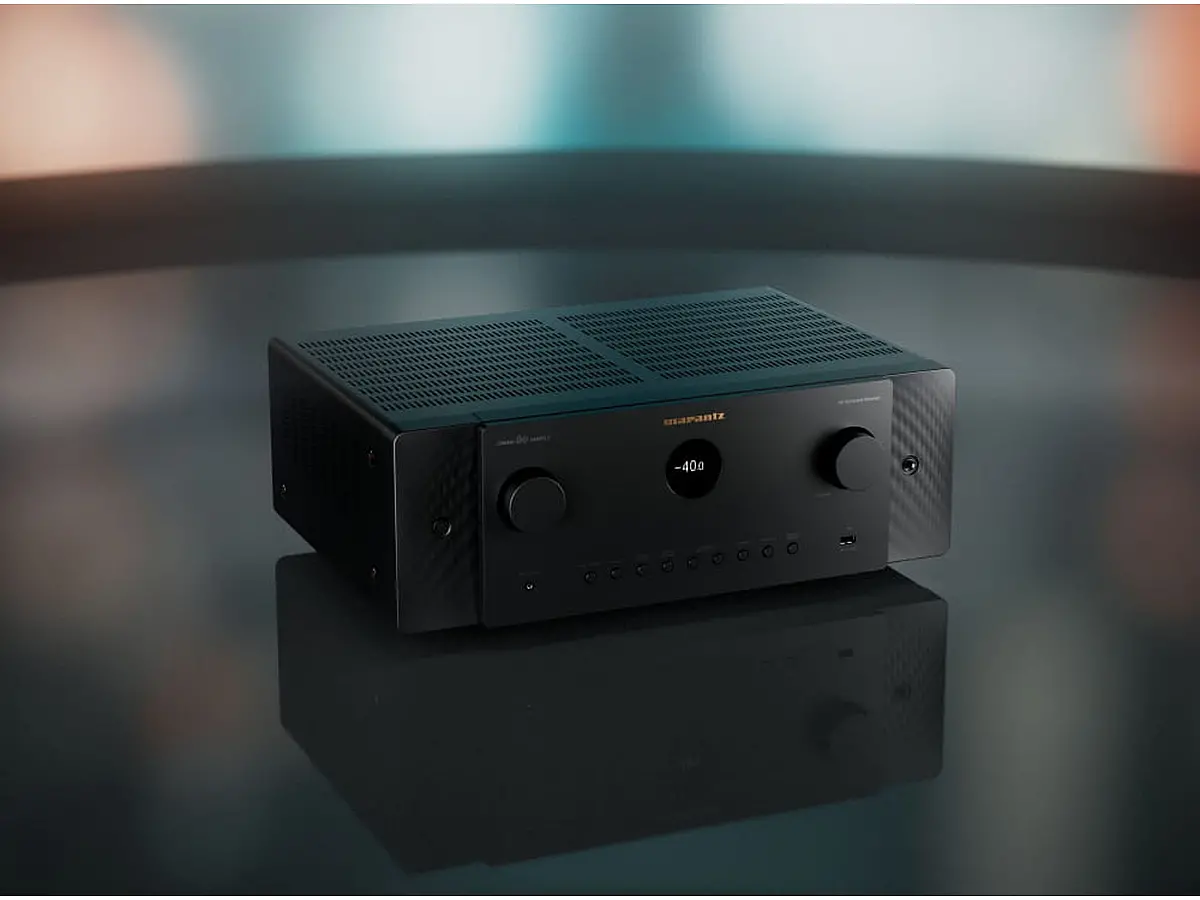

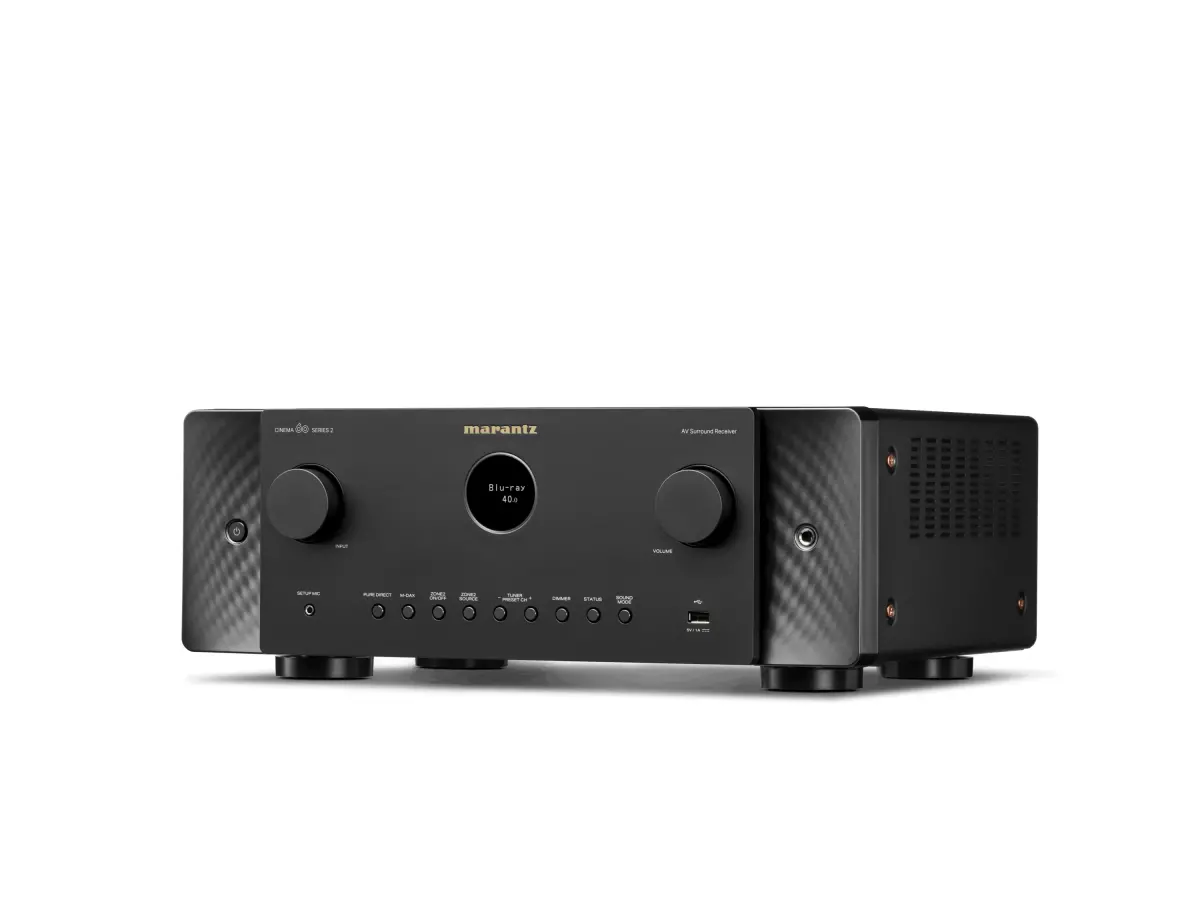

MARANTZ CINEMA 60 S2

The Marantz CINEMA 60 Series 2 is a 7-channel AV receiver designed for home cinema systems and for the playback of movies, music and video games. It delivers 100 W per channel and incorporates multichannel processing with Dolby Atmos support, allowing surround configurations with dedicated speakers for effects coming from the vertical plane.

The digital section uses a new-generation 32-bit, 8-channel DAC designed to improve the clarity, resolution and dynamic range of signals from different sources. The circuitry uses selected components and draws on Marantz's experience in the design of audio and AV electronics, with a configuration intended for the reproduction of films, music and video games.

Connectivity includes seven HDMI ports with HDMI eARC support, allowing TVs, streaming devices and other audio and video sources to be connected. The video section also supports the use of two displays, allowing the AV receiver to be integrated into configurations with multiple display devices.

The HEOS platform integrates wireless music streaming and allows the CINEMA 60 Series 2 to be used as part of compatible multi-room systems. Sources can therefore include both directly connected devices and music content available over the network, with centralised system management.

The system is designed to simplify both initial setup and everyday operation. The on-screen interface guides the main setup procedures, while automated management functions allow the various modes and sources to be used without requiring continuous adjustment of the unit's settings.

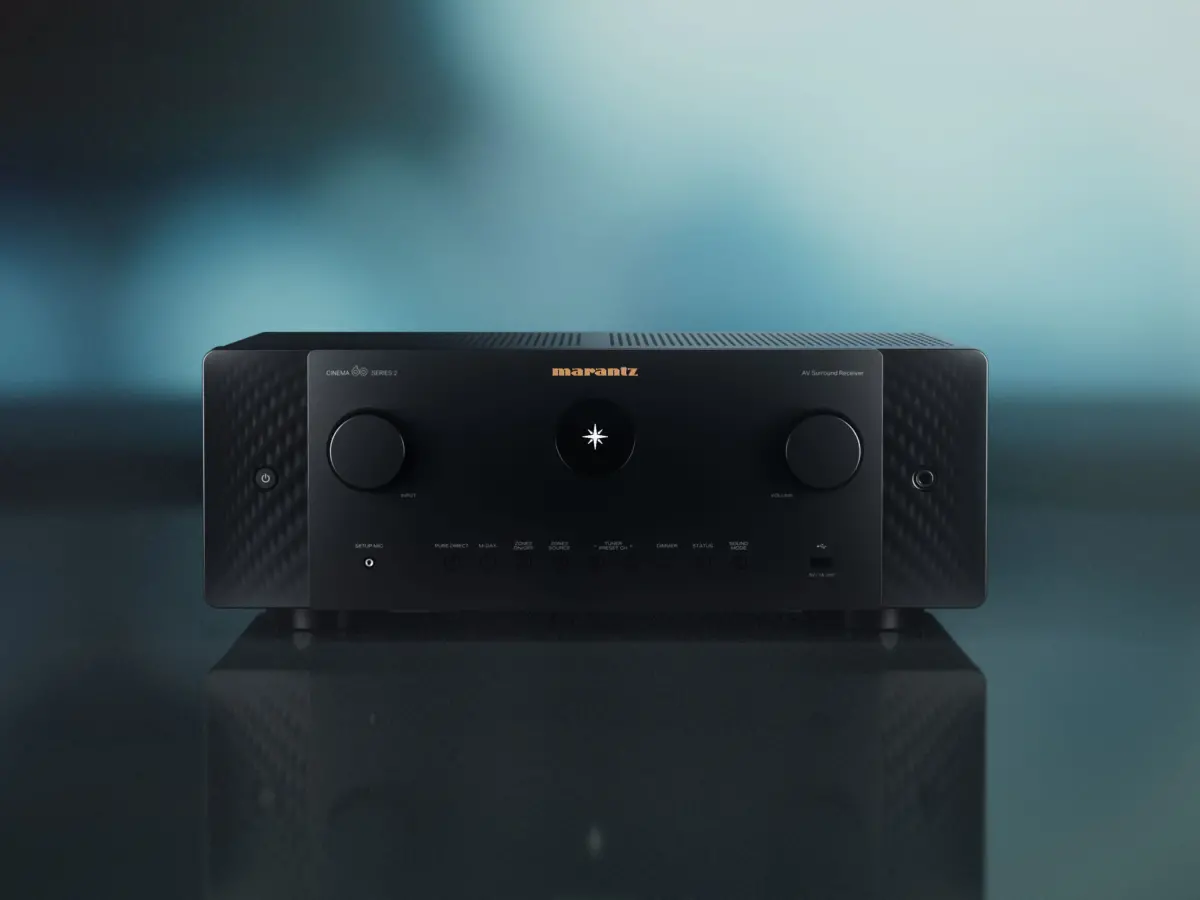

The chassis incorporates the characteristic elements of the CINEMA series design, with an approach intended to integrate into contemporary living spaces. The front panel combines the main controls with distinctive Marantz design elements, maintaining an orderly and functional layout.

The audio section is tuned by the Marantz Sound Master according to the company's principles of clarity, balance and musicality. The CINEMA 60 Series 2 can therefore be used for movies, video games and music, combining signal processing, channel amplification and source connectivity in a single unit.

Technical specifications:

• Type: 7-channel AV receiver; 7.1 processing channels; 7 power amplifiers; discrete power amplifiers
• Output power: 100 W/channel into 8 Ω, 20 Hz - 20 kHz, 0.08%, 2 channels; 140 W/channel into 6 Ω, 1 kHz, 0.7%, 2 channels
• DTS decoding: DTS-HD: Yes; DTS:X: Yes; DTS:X Pro: No; DTS Neo:6: No; DTS Neural:X: Yes; DTS Virtual:X: Yes
• Dolby and surround decoding: Dolby TrueHD: Yes; Dolby Atmos: Yes; Dolby Atmos Height Virtualization: Yes; Dolby Atmos Music: Yes; Dolby ProLogic II: No; Dolby Surround: Yes; IMAX Enhanced: No; Multichannel Stereo: Yes
• Audio circuitry: Current Feedback Topology; HDAM-SA2; Pure Direct; EI transformer; non-copper-plated chassis
• Room correction: Audyssey MultEQ XT; Audyssey Dynamic EQ; Audyssey Dynamic Volume; Dirac Live upgradable
• Subwoofer management: Standard mode; Directional mode: No; variable crossover; Optimized Bass Redirection; Bass Sync: No
• Audio processing: MDAX2; Network Audio Sharing; DSD Audio Capability: No
• Streaming and multi-room: HEOS; AirPlay 2; Spotify Connect; Tidal Connect; Qobuz Connect; TuneIn; Pandora; SiriusXM; Amazon Music; Amazon Music HD; TIDAL; Deezer; iHeart Radio; SoundCloud; Mood Mix; Roon Ready
• Audio formats: MP3; WMA; AAC; FLAC up to 192 kHz/24 bit; WAV up to 192 kHz/24 bit; ALAC up to 192 kHz/24 bit; DSD 2.8/5.6 MHz; gapless playback for FLAC, WAV, ALAC and DSD
• Wireless and network connectivity: Wi-Fi; Bluetooth; Ethernet; Bluetooth retransmission for headphones; Bluetooth transmitter volume control
• HDMI inputs: 6 rear; HDMI 2.1; HDCP 2.3; 8K/60 Hz: Yes; 4K/120 Hz: Yes; 8K/60 Hz and 4K/120 Hz pass-through: 3 inputs/2 outputs up to 40 Gbps
• HDMI outputs and video functions: 2 Main; ARC/eARC; 1080p/4K to 8K upscaling; HDR; HLG; Dolby Vision; HDR10+; Dynamic HDR; 3D pass-through; HDMI pass-through in standby; HDMI Zone: No
• Gaming functions: ALLM; Variable Refresh Rate; Quick Frame Transport; Quick Media Switching: No; AMD FreeSync on HDMI 4-6
• Video and synchronisation functions: CEC; Auto LipSync; Picture Adjust: No; Noise Reduction: No
• Multi-room: 2 zones; integrated HEOS Multi-Room; Zone sources: optical/coaxial, network/USB and analogue; Zone speaker and pre-out outputs
• Control and integration: IP; Web; App; RS-232: No; Marantz AVR Remote; HEOS; IR Flasher; Marantz Remote Bus; 1 DC Trigger output
• Setup and interface: Setup Assistant; Smart Select; Modern HD GUI; 3 languages; firmware updates via network and USB

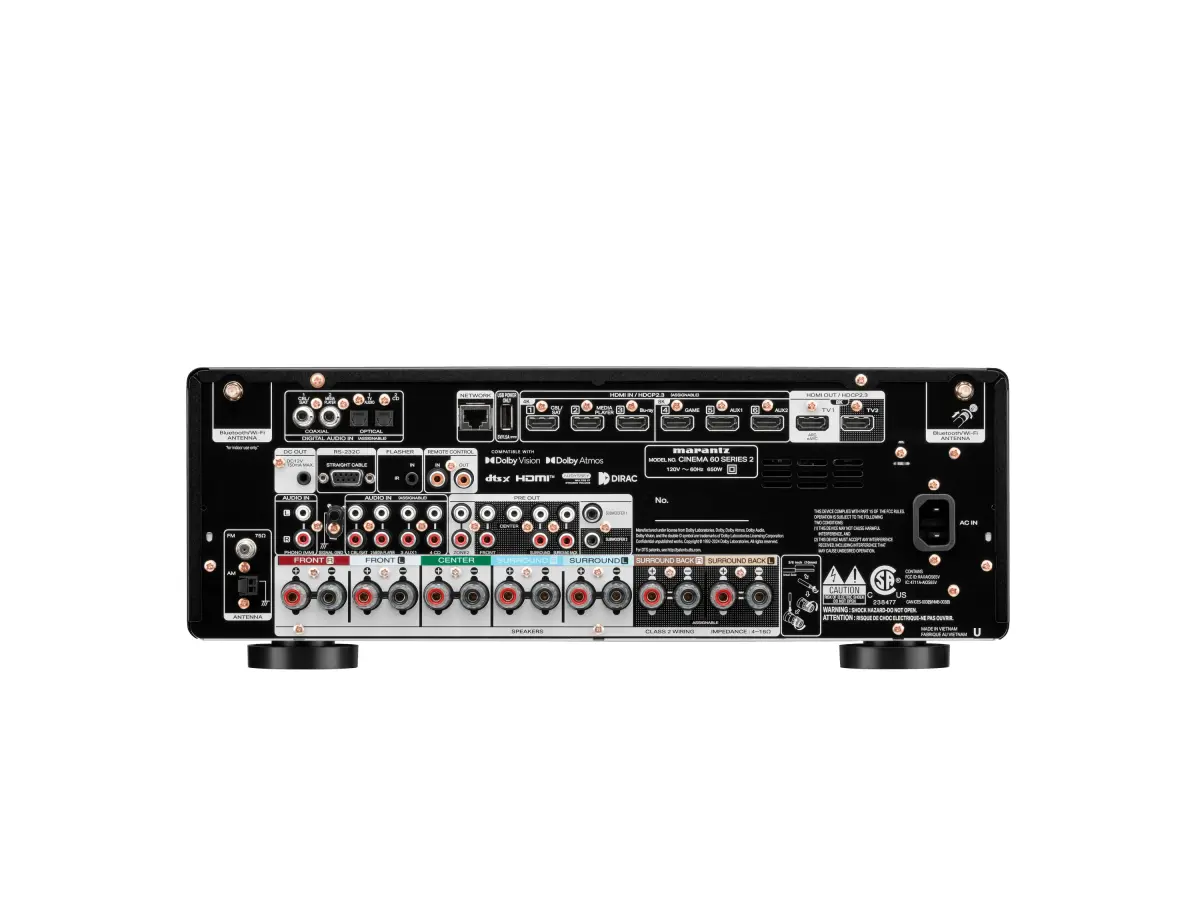

• Audio inputs: 4 analogue; 2 optical; 2 coaxial; 1 MM phono; 1 front USB-A
• Audio outputs: 7.2-channel multichannel pre-outs; 2 subwoofer outputs; 1 analogue multi-room output
• Speaker connections: 7 terminals; standard screw terminals; Speaker A/B assignable; bi-amping assignable; multi-room speaker terminals assignable
• Tuner and other functions: AM/FM; USB Audio; rear USB power supply; HDMI diagnostics; ECO mode; Auto Power Off; Sleep Timer
• Display and remote control: circular OLED display; RC054SR remote control; non-metal front panel
• Dimensions: 442 × 353 × 165 mm (W × D × H) with antennas horizontal; 442 × 353 × 236 mm with antennas vertical; 442 × 343 × 165 mm without antennas
• Weight: 10.9 kg
