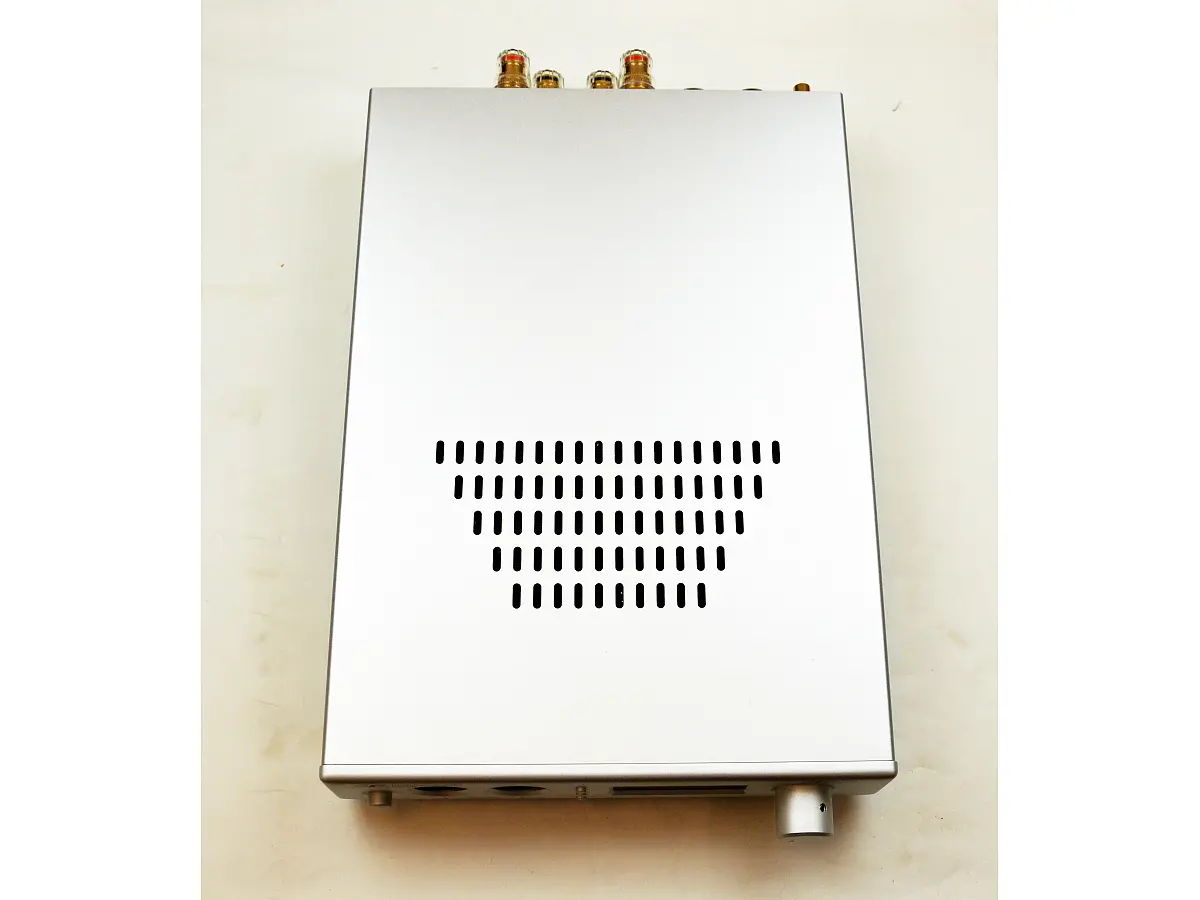

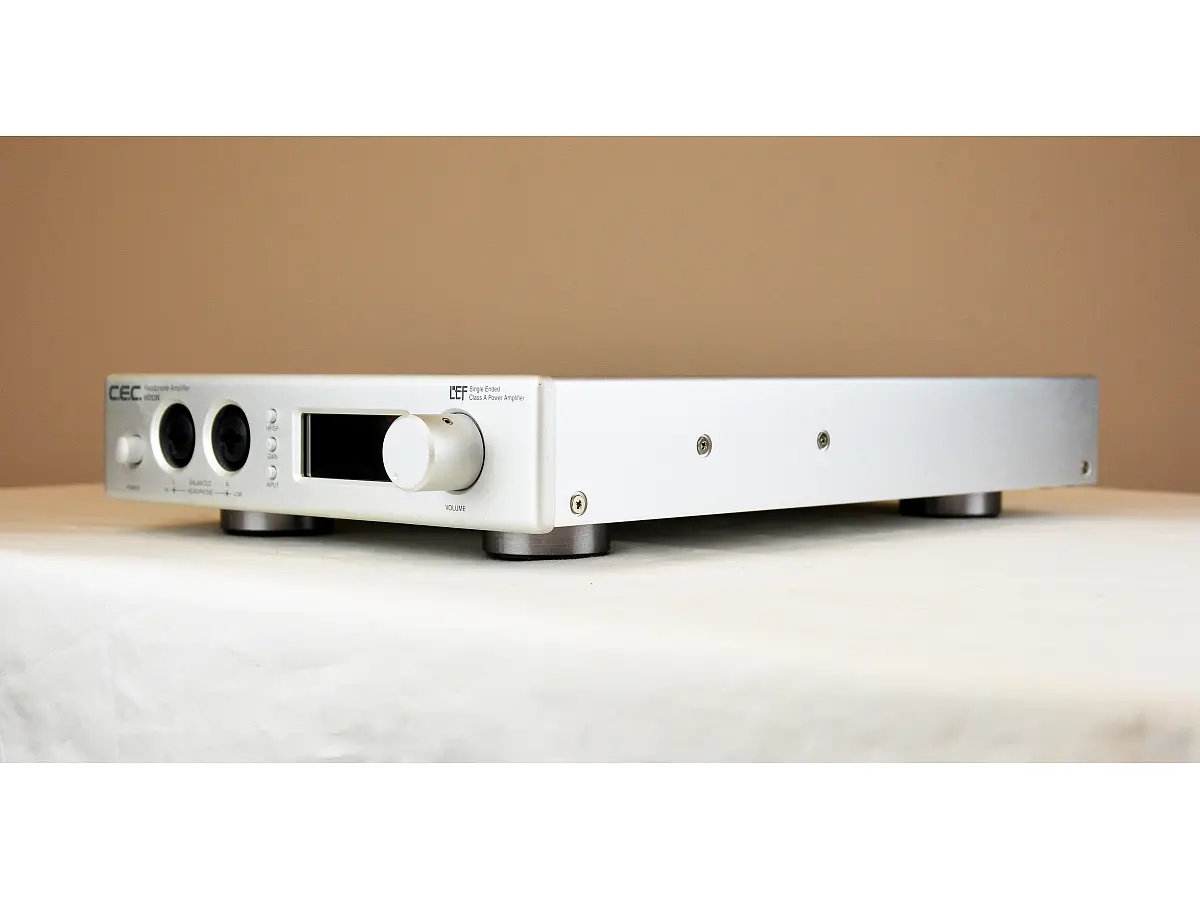

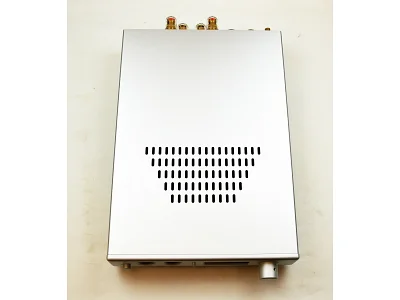

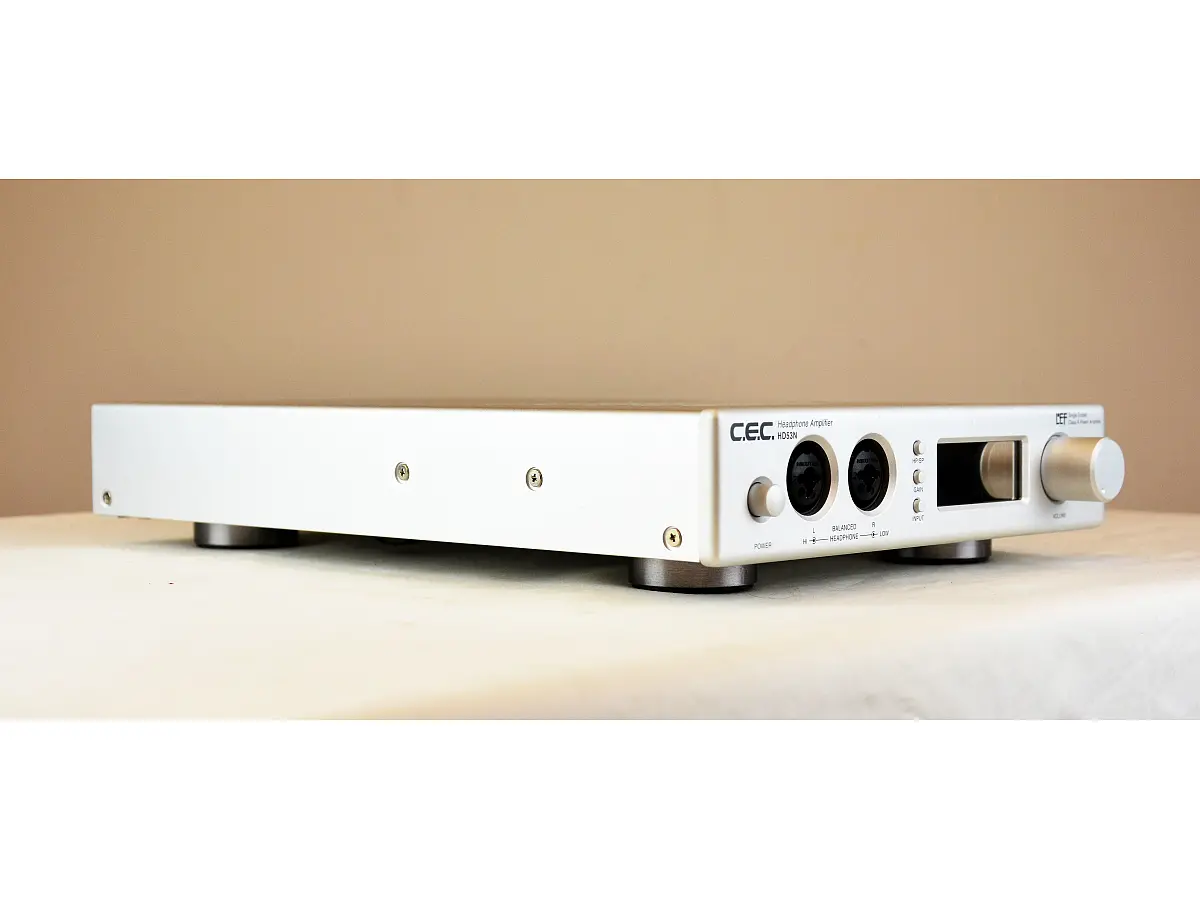

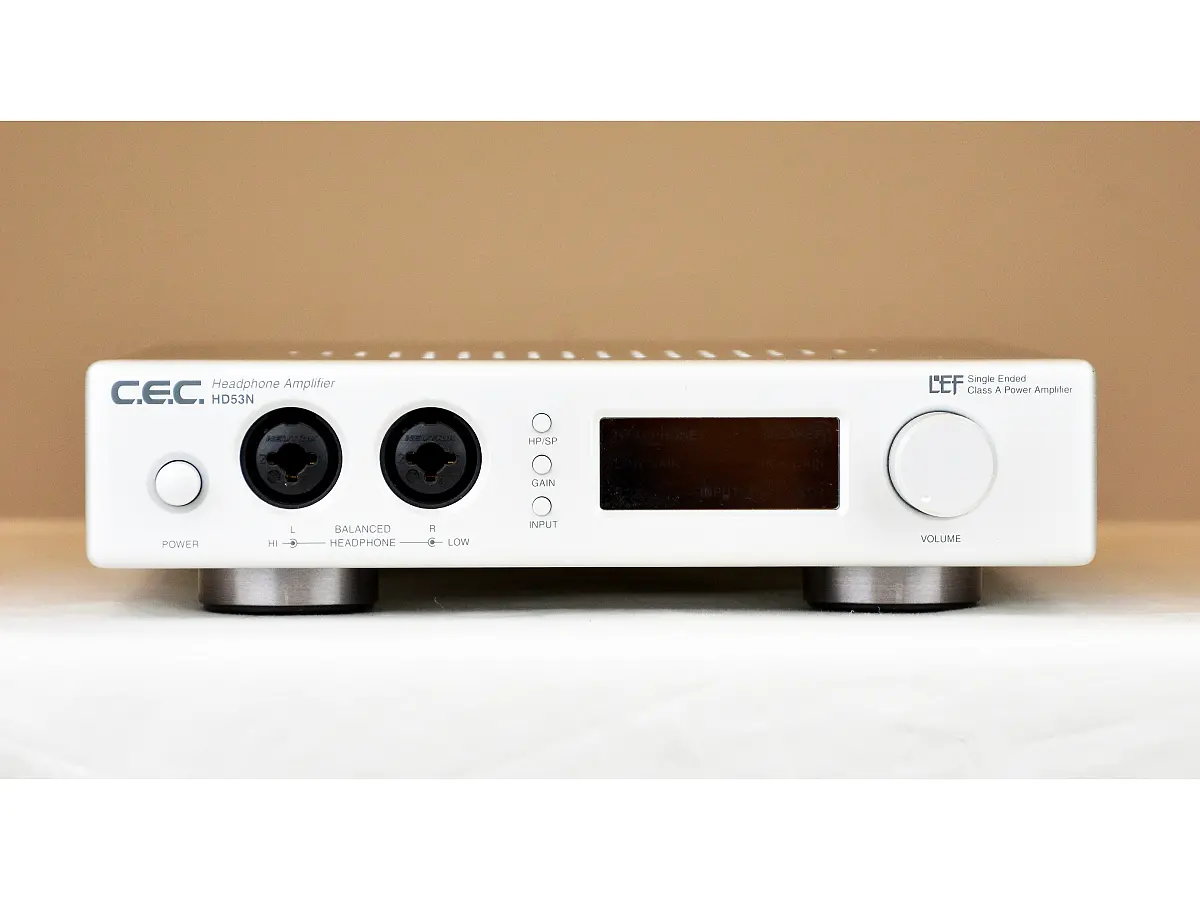

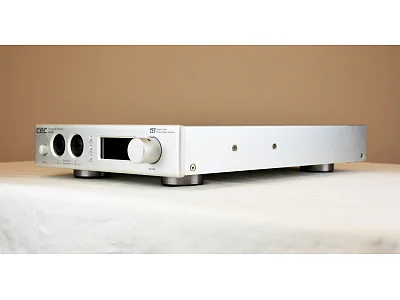

C.E.C HD53N

Second-hand, in mint condition, without obvious signs of wear. With its original package and manual.

The C.E.C. HD53N is a high-quality headphone amplifier, with preamplifier functionality and a dual mono construction, designed for those seeking precision, dynamics, transparency and musicality in headphone sound reproduction.

It is designed according to a dual mono architecture, in which the left and right channels are completely separated at the electrical level. This construction choice allows to minimize interference and crosstalk, ensuring cleaner and more precise reproduction. The input stage uses discrete J-FETs, while the output stage relies on MOSFETs, all without global feedback: a solution that favors a more natural, fluid and coherent sound output.

The separate power supply is completely shielded, uses dedicated toroidal transformers for each channel, to guarantee stability and operational silence at the highest levels.

There is also an amplified output, 13 Watts per channel on 8 Ohm, ideal for connection to passive speakers, thus offering greater versatility of use.

The sound performance of this amplifier is distinguished by excellent stereo separation, wide dynamics and an extremely linear frequency response, which return every detail with great precision. The sound is transparent and well-articulated, free from any harshness, but still manages to retain considerable warmth and engaging musicality.

Main specifications
- Headphone amplifier that has LEF (Load effect Free) technology.
- Compact but unique and complete in its category.
- Input signal gain control. Presence of two separate headphone outputs, one for high impedance headphones, the other for low impedance headphones.
- Balanced headphone output that uses 2 XLR connectors combined with 2 6.3mm stereo jacks.
- It has unbalanced headphone outputs with low and high efficiency.
- Volume adjustment.
- Possibility of selecting high or low gain.

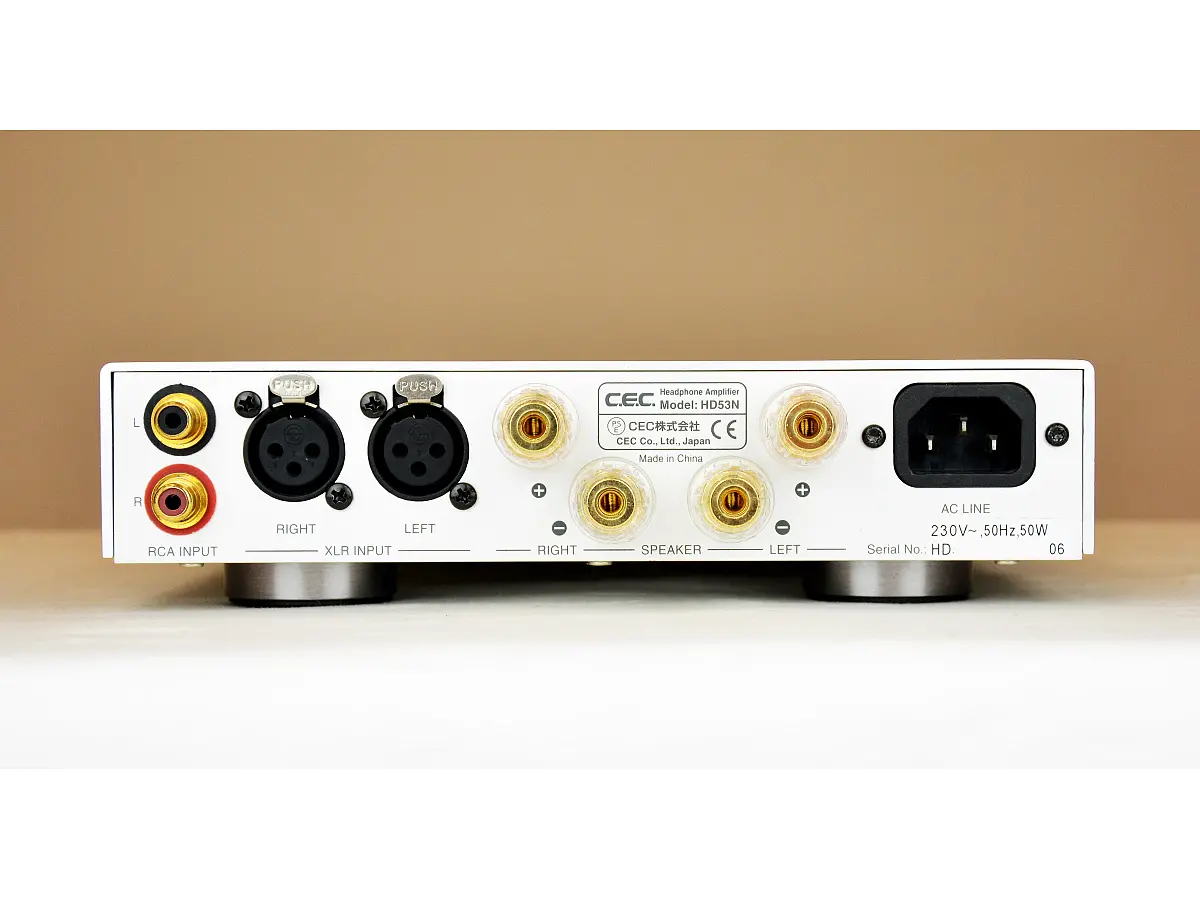

- Amplification for passive speakers with connection on the rear panel.

Technical Specifications
Frequency Response: 10Hz – 200kHz, +/-0.5dB
S/N Ratio:
Headphones LOW/HI: 103dB; Balanced headphones. 110DB
Speakers(8 Ohm): 103dB (Input 2Vrms/Output 10W)

THD:
Headphone Low/HI: 0.06%(Input 1Vrms/Output 0dBu)
Balanced Headphone: 0.009% (Input 1Vrms/Output +3dBu)
Speakers: (8 Ohm): 0.03(Input2Vrms/Output 10W)

Output Power:
Headphone Low : 1.15W x 2 (32 Ohm)
Headphone HI: 0.25W x 2 (32 Ohm)
Balanced Headphone: 4.7W x 2 (32 Ohm)
Speakers: 13W x 2 (8 Ohm), 18W x 2 (4 Ohm)

Impedance load: Headphones: 16 Ohm-2kOhm / Speakers 4 Ohm – 8 Ohm
Sensitivity: High/Low (selectable)
Inputs: 1 balanced, 1 unbalanced
Headphone output: 1 Balanced
Power supply: 120/230V 50/60Hz
Consumption: Stand by. 14W Headphones: 23W Speakers: 50W
Dimensions: 218 (D) 354 (L) 58 (H)mm
Weight: 3.2 Kg

Finish: Silver
