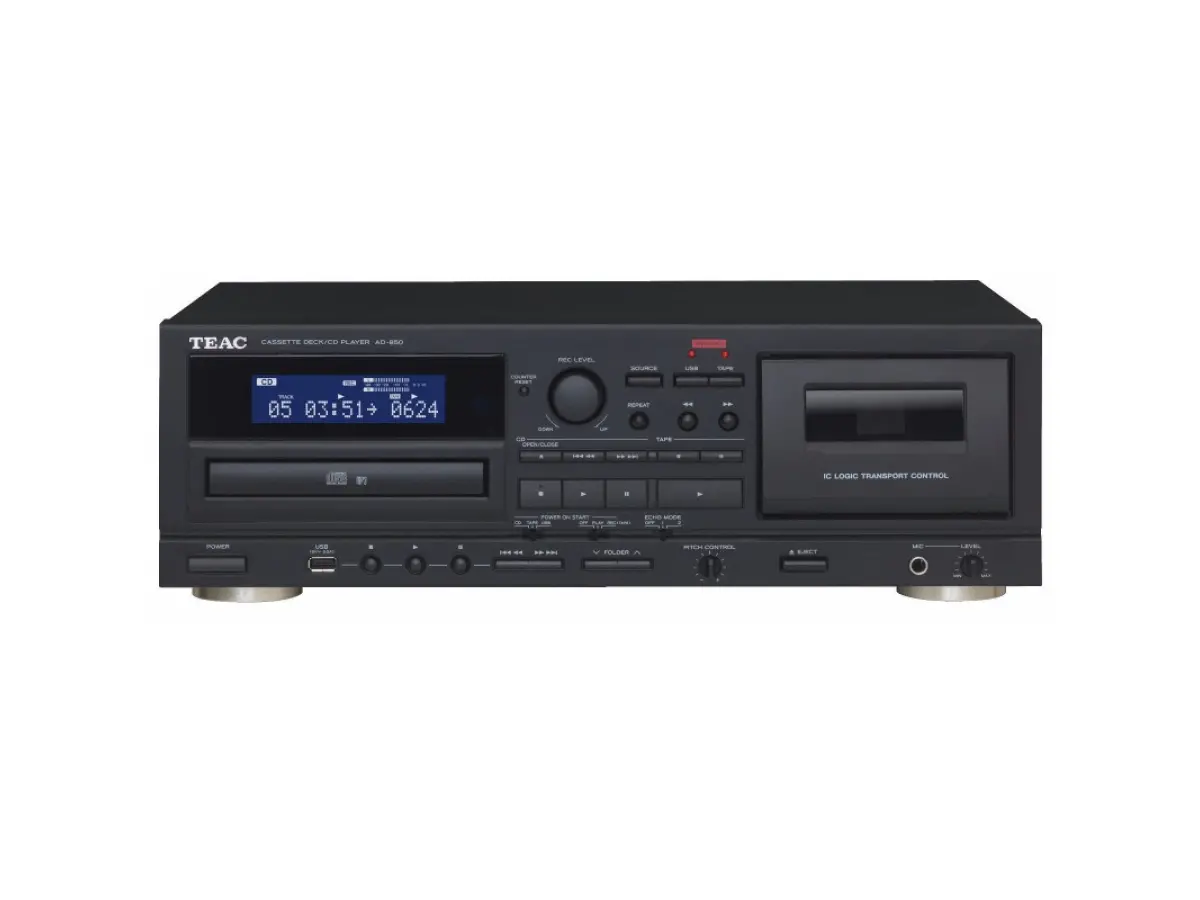

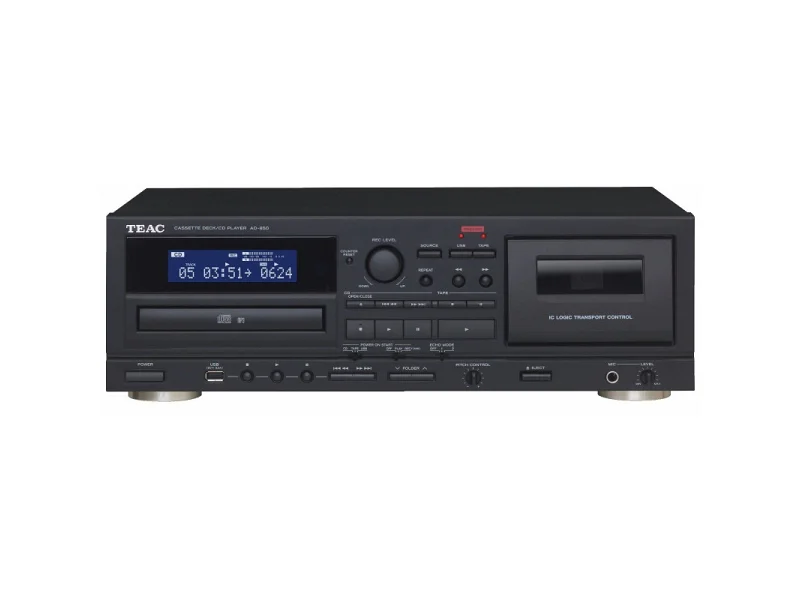

TEAC AD-850 SE

The AD-850-SE is a combined cassette deck and CD player that can also record to USB flash drives.

USB Flash Drive Recording and Playback Supported
In addition to recording from CDs, cassettes, and external input devices to USB flash drives (as MP3 files), CDs, MP3 files on USB flash drives, and external input devices can also be recorded to cassettes. Recorded files will be saved in automatically generated folders based on the source (CD, LINE, or TAPE) on USB flash drives, allowing for easy digital-to-analog conversion without the need for a computer.

Built-in Microphone Input
A built-in microphone input is located on the front of the unit, allowing you to record a microphone connected to the unit. You can also mix the microphone signal during playback and recording from CDs, cassettes, and USB flash drives.
* Microphone sound cannot be recorded when recording from a CD to a USB flash drive.

Echo Effect
Echo can be added to the sound of a microphone connected to this unit. The front panel switch can be used to set the effect to two levels or to turn it off. With the AD-850-SE and a microphone, you can easily enjoy karaoke.
* A separate amplifier and speakers are required for karaoke.

Echo Explained
It adds reverberation to the original sound. The original sound is repeated with varying amounts of delay and dampening over time to produce an almost natural reverberation sound, similar to that heard in a hall or studio.

The cassette deck features all the basic features.
The cassette deck uses a unidirectional dual-head design for recording and playback. It supports cassettes with normal, chrome, and metallic (playback only) placements. This model features all the basic features, including pitch control with a +/-10% adjustment range and timer recording and playback.

The CD player supports CD-R/RW discs and MP3 playback.
In addition to audio CDs, the CD player can play CD-R/RW discs containing MP3 files. During MP3 playback, information such as ID3 tags and file names* are displayed. Various playback modes include program, random, and repeat (one track, all tracks, or program).
* File name display supports half-width English letters and numbers (single-byte characters). Names using full-width characters (double-byte characters), including Japanese, cannot be displayed correctly.

Recording and playback functions on USB flash drives
The repeat playback function can be used in conjunction with various other playback modes, including continuous, random, and program. The synchronized start function, which automatically starts playback of the audio source (CD or tape), makes recording to USB flash drives much easier.

Convenient timer function
A timer can be used to start cassette recording and playback, as well as CD and USB flash drive playback.
* A commercially available timer must be purchased separately.

Specifications
Cassette tape
Track system: 4-track, 2-channel stereo
Head construction: Record/playback head x 1, erase head x 1
Tape type: C-46/C-60/C-90
Tape speed: 4.76 cm/s
Motor: DC servo motor x 1
Pitch control: Approx. +/- 10% (playback only)
Wow and flutter: 0.25% (W.RMS)
Frequency response (overall): ;
Chrome: 50 to 12,000Hz +/-3dB
Normal: 50 to 12,000Hz +/-3dB
S/N Ratio (overall): 59dB (3% THD WTD level)
Rewind Time: Approximately 120 seconds (C-60 tape)
Line Input (RCA): 462mV (50kΩ or higher input impedance)
Line Output (RCA): 462mV (50kΩ or higher impedance load)
CD Player
Pickup: 3-beam semiconductor laser
Digital Filter: 8x oversampling digital filter
Frequency Response: 20Hz to 20kHz +/-2dB
Total Harmonic Distortion: 0.02% or less (1kHz)
S/N Ratio: 87dB or higher (IHF-A)
Analog Output (RCA): 2.0V
USB
Interface: USB 1.1 FULL SPEED (12Mbps)
Playback:
Format: MP3
Frequency Response: 20Hz to 20,000Hz (+/-2dB)
S/N Ratio: 85dB or less
Playback Bit Rate: 8kbps to 320kbps
Recording:
Format: MP3
Frequency Response: CD → USB 20Hz to 15,000Hz (+/-3dB), LINE IN → USB 100Hz to 15,000Hz (+/-3dB)
S/N Ratio: 85dB or more
Bit Rate: 128kbps
Microphone Input
6.3mm (1/4") Connector: Mono Phone Jack
Nominal Input Level: 0.78mV (−60dBm)
Input Impedance: 47kΩ or more
Power Supply: None

Other
Power Supply: 100V AC, 50/60Hz
Europe AC: 230V, 50Hz
USA/Canada AC: 120V, 60Hz
Japan AC
