ONIX DAC 25A
D/A converter
Code: V5Kzwjok
All our products are covered by Italian warranty.

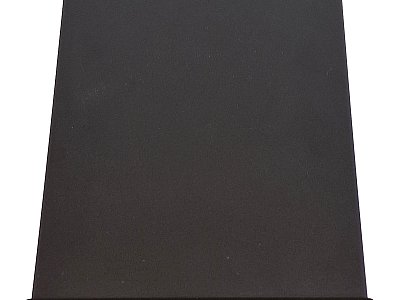

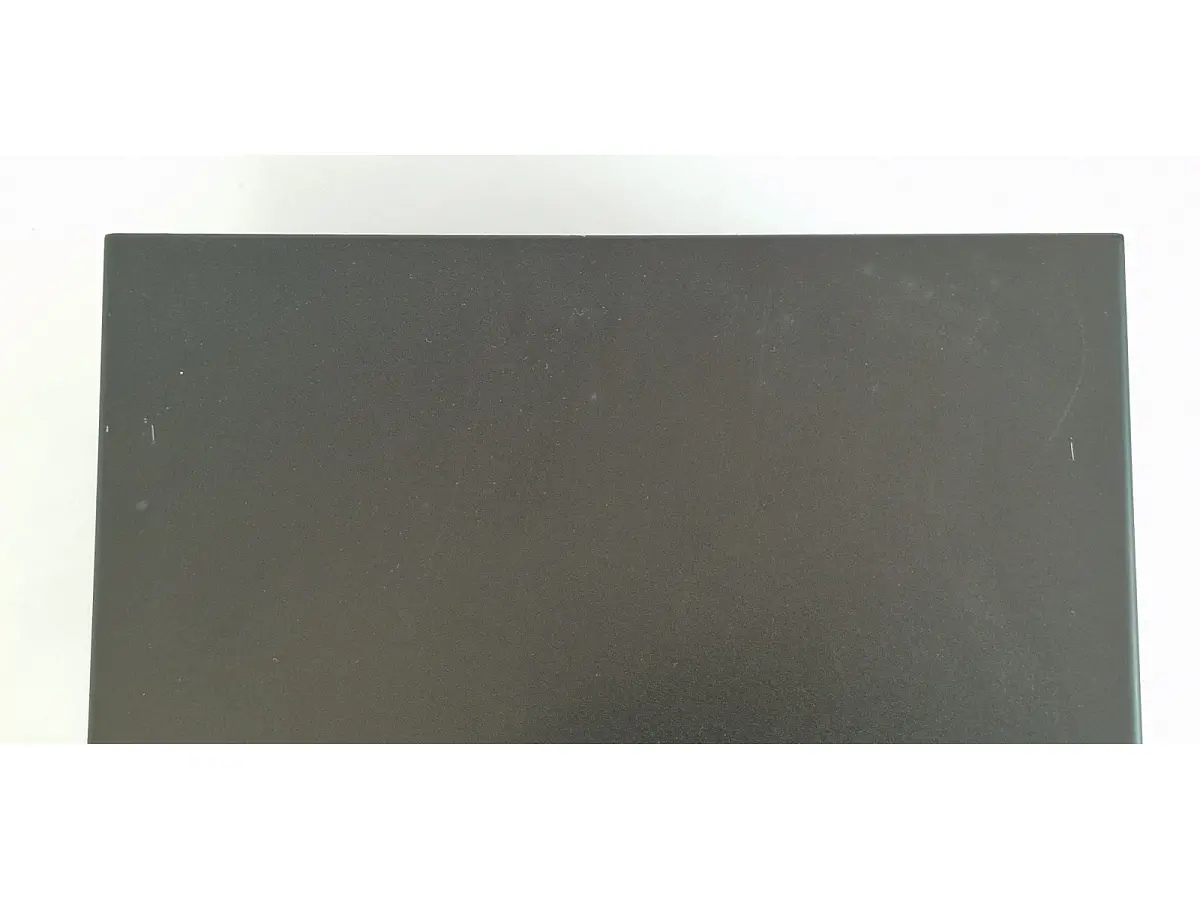

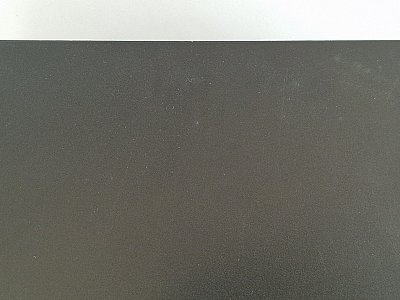

Second-hand, in good condition, it has some very small scratches (see pictures). Without its original package.
D/A converter
Features:
1. Use 24bit/192KHz high precision DAC chip
2. Use asynchronous sampling chip to raising frequency at 192KHz with lower jitter
3. High precision clock system, it has Reclock function and reduce error code efficiently
4. USB input connect to the PC and realize the hi-fi sound through PC
5. Digital input plus pulse transformer as a good separation
6. Analog balance output
7. Headphone amplifier monitor
Specifications:
1. Dynamic range: (24bit) > 120dB
2. Signal noise rate: > 112dB(RCA); > 125dB(XLR)
3. THD+N: < 0.001%(20Hz-20KHz)
4. Output amplitude: 2VRMS
Main materials:
1. PCM2704 as USB sound card chip
2. PCM1792 24bit/192KHz DAC chip
3. SRC4192 upsamping chip
4. 3pcs OPA2134 op-amps
5. CS8416 digital receiver chip
6. R style transformer
Dimensions: (W x D x H): 215 x 450 x 100 mm
Weight: 7
