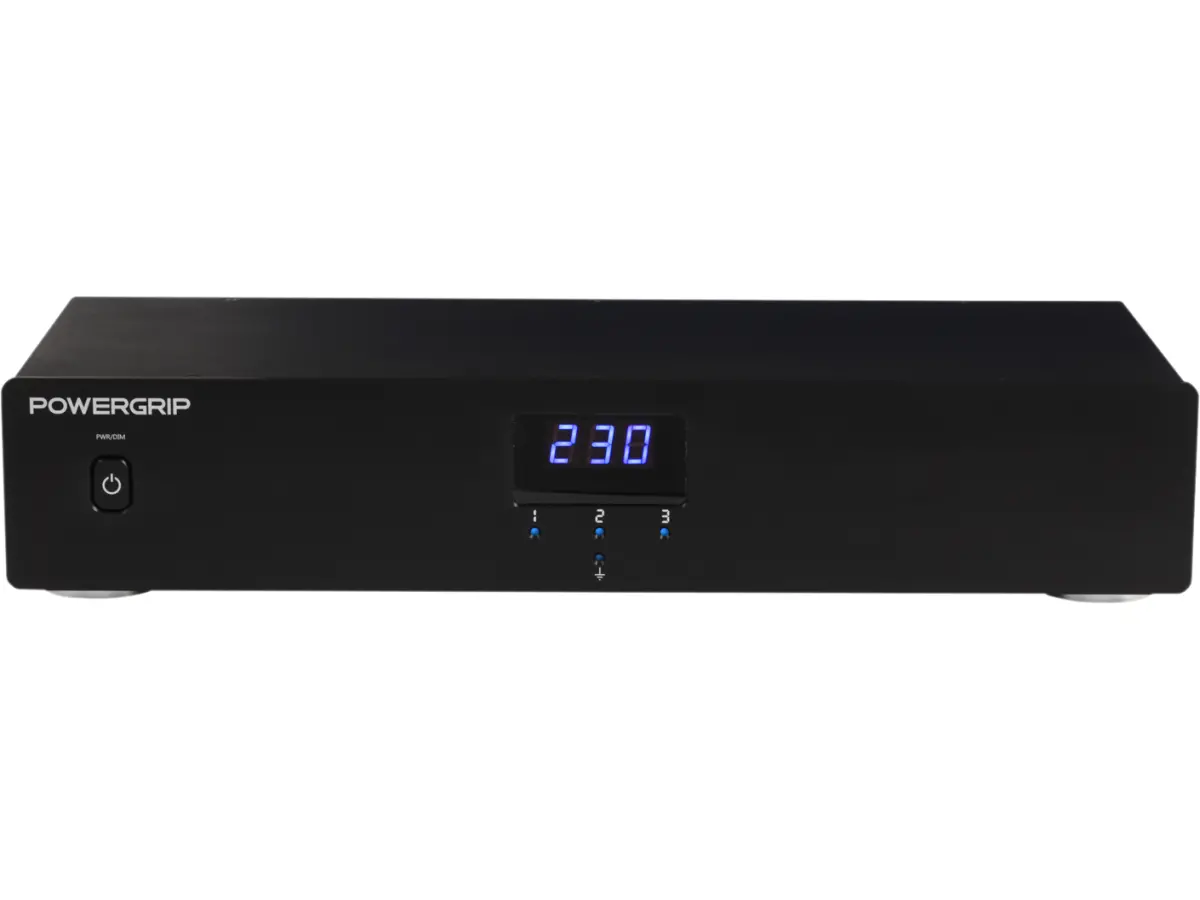

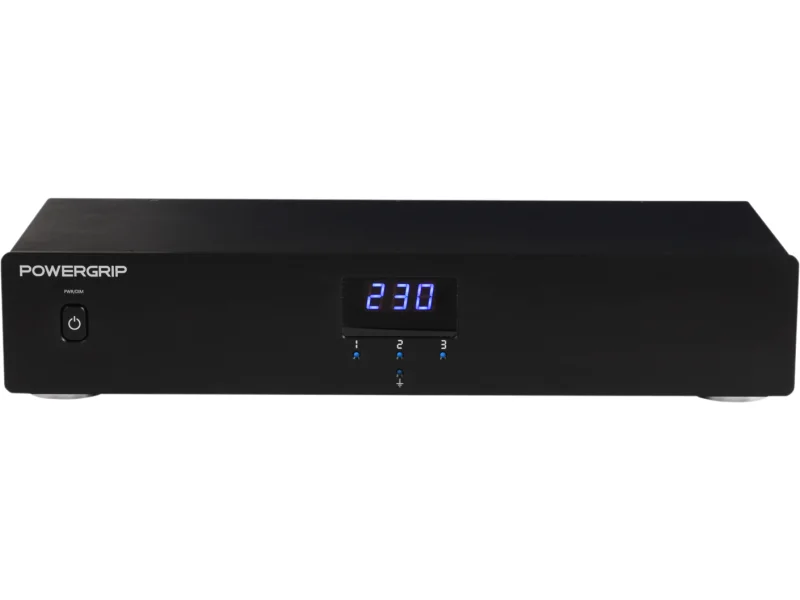

POWERGRIP YG-2

SMALL SIZE – BIG POWER
Owing to its compact sized small case (with a height of just 80 mm and a depth of only 185 mm, the YG-2 fits into almost any system, offers 6 outlet sockets – yet offers the same power capacity as its big brother, the YG-1.

HIGH CAPACITY

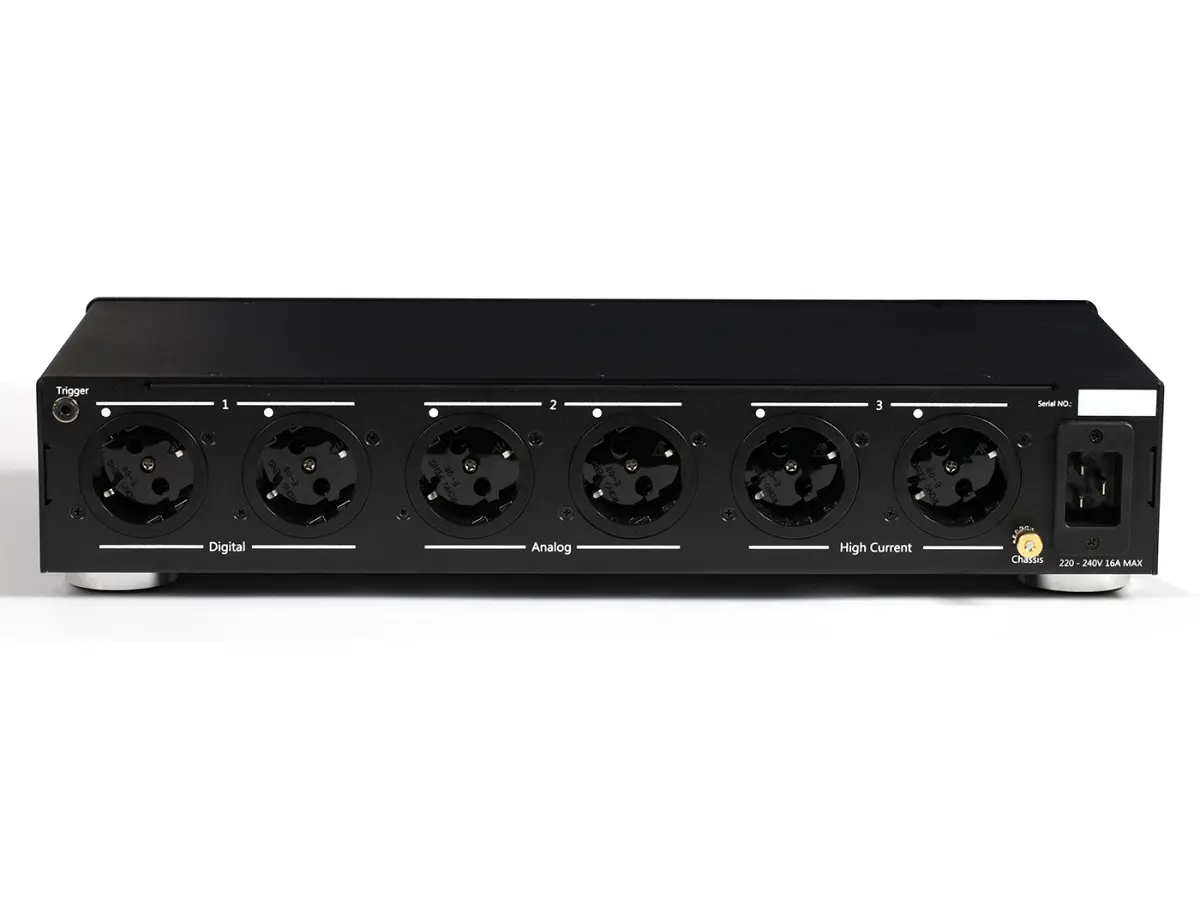

3680 Watt @ 230 V, 16 Amps. The Total capacity of YG-2 is the same as the top-of-the-line YG-1 and is sufficient to clean and protect the power supply for most high quality stereo or home theatre systems. The outlet sockets are split into three groups.

EASE OF USE
The front panel touch sensor enables you to control several different functions, which you can change in the settings menu. For example you can switch between groups or display other information like voltage or distortion.

ELECTRICAL CHARACTERISTICS
Voltage     190 - 256V
Capacity (at 230V)     3.680W
Rated current     16A
Own power consumption     10 W (all outlet groups are turned on), 1 W (all outlet groups are turned off)

Protected lines
220V AC Socets     6

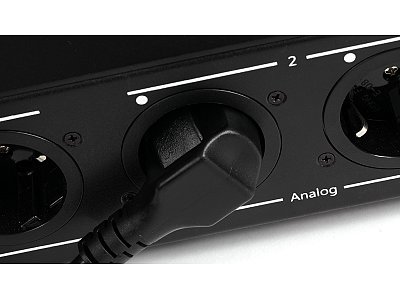

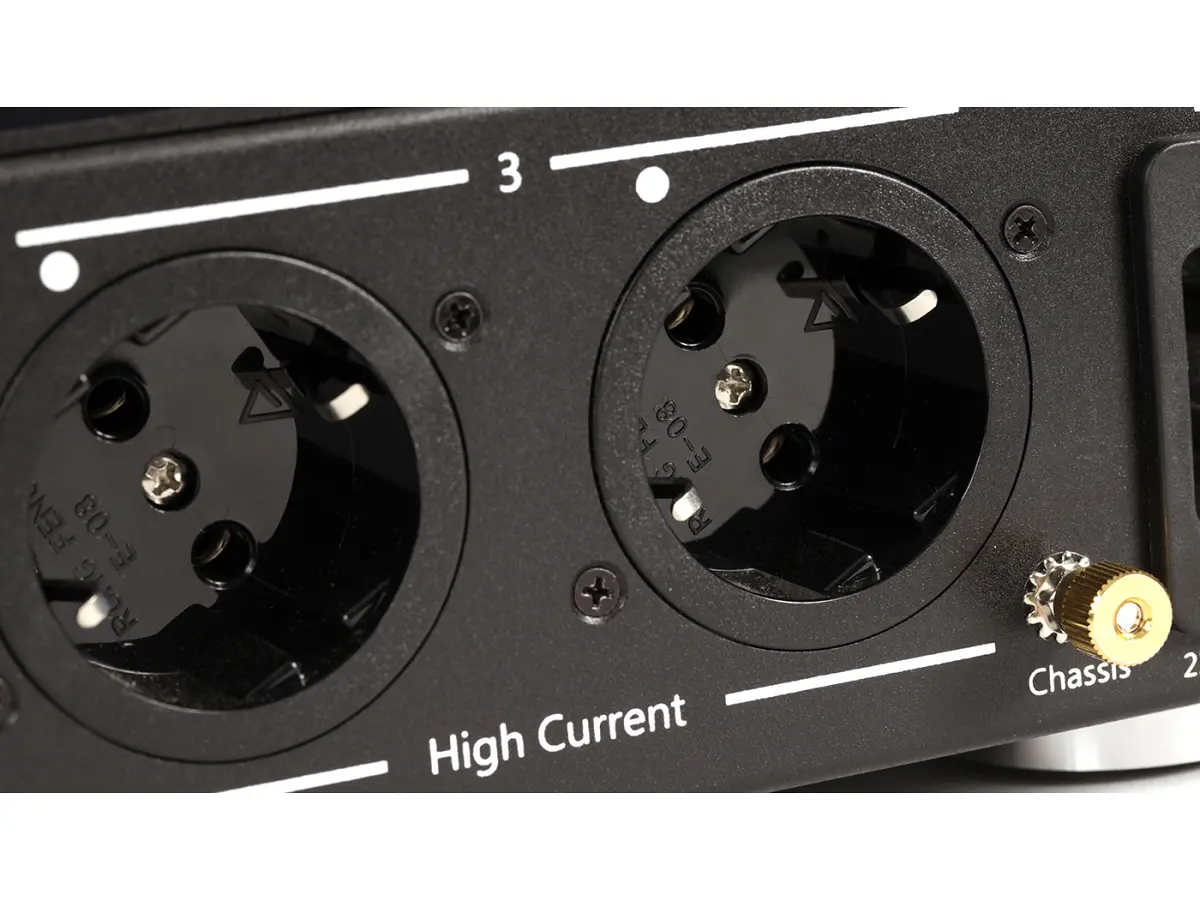

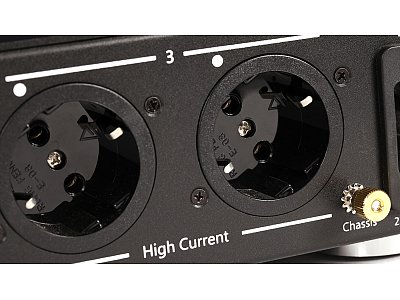

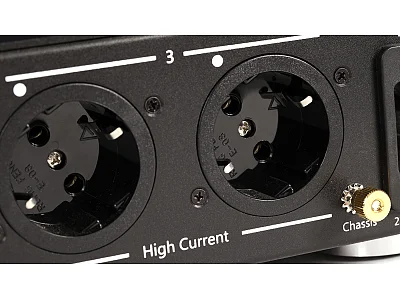

AC line types     Analog, Digital, High Current
COAX lines     1

PROTECTION PARAMETERS
Emergency limits     ? 190 ± 4V / ? 256 ± 4V
Peak current     65.000A

Setup and control
Manual control     Multifunctional button on face-plate and touch sensor
ON/OFF scenarios     Adjustement of delays between socket groups
12V trigger     IN / OUT
RS232 integration     Control4, Crestron, AMX etc.

Package includes
AC power cord     1.5 m (optionally - 3 m)
19” rack mounts     Included

General data
Faceplate material     Brushed 4mm aluminum
Overall dimensions (WxHxD)     440 x 80 x 185 mm
Weight     4.8 kg
