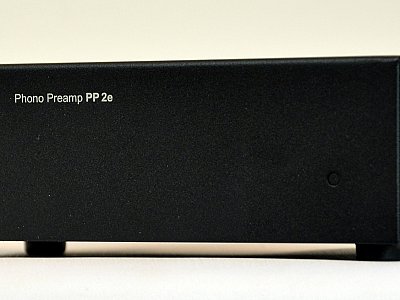

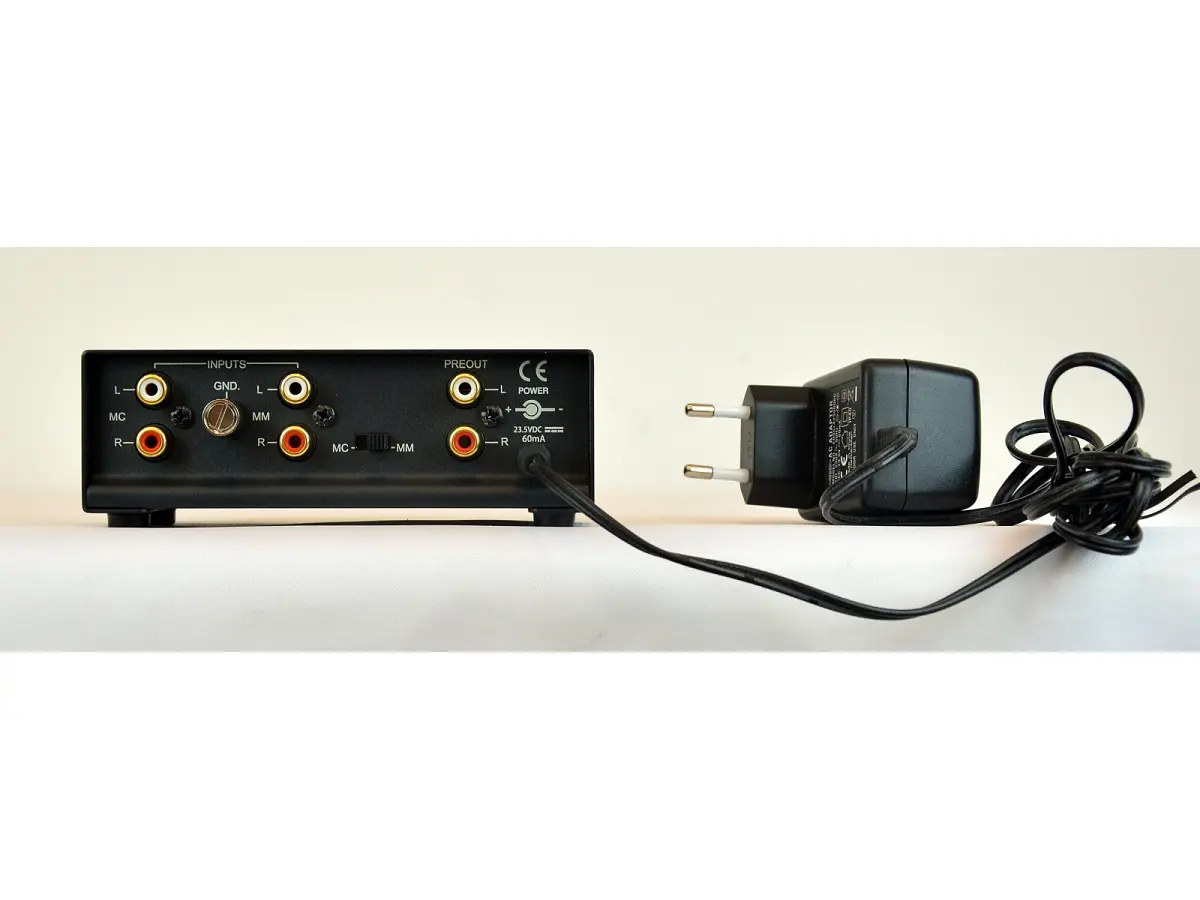

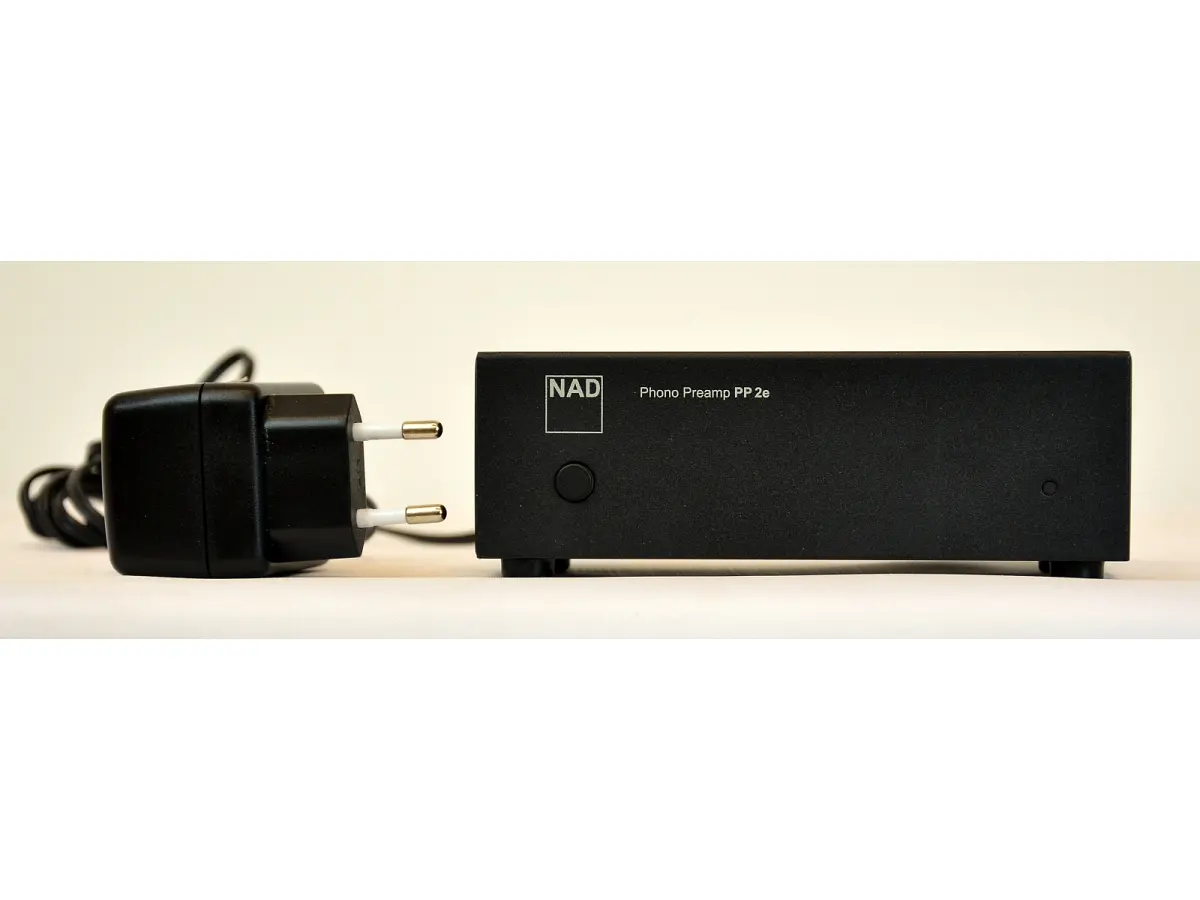

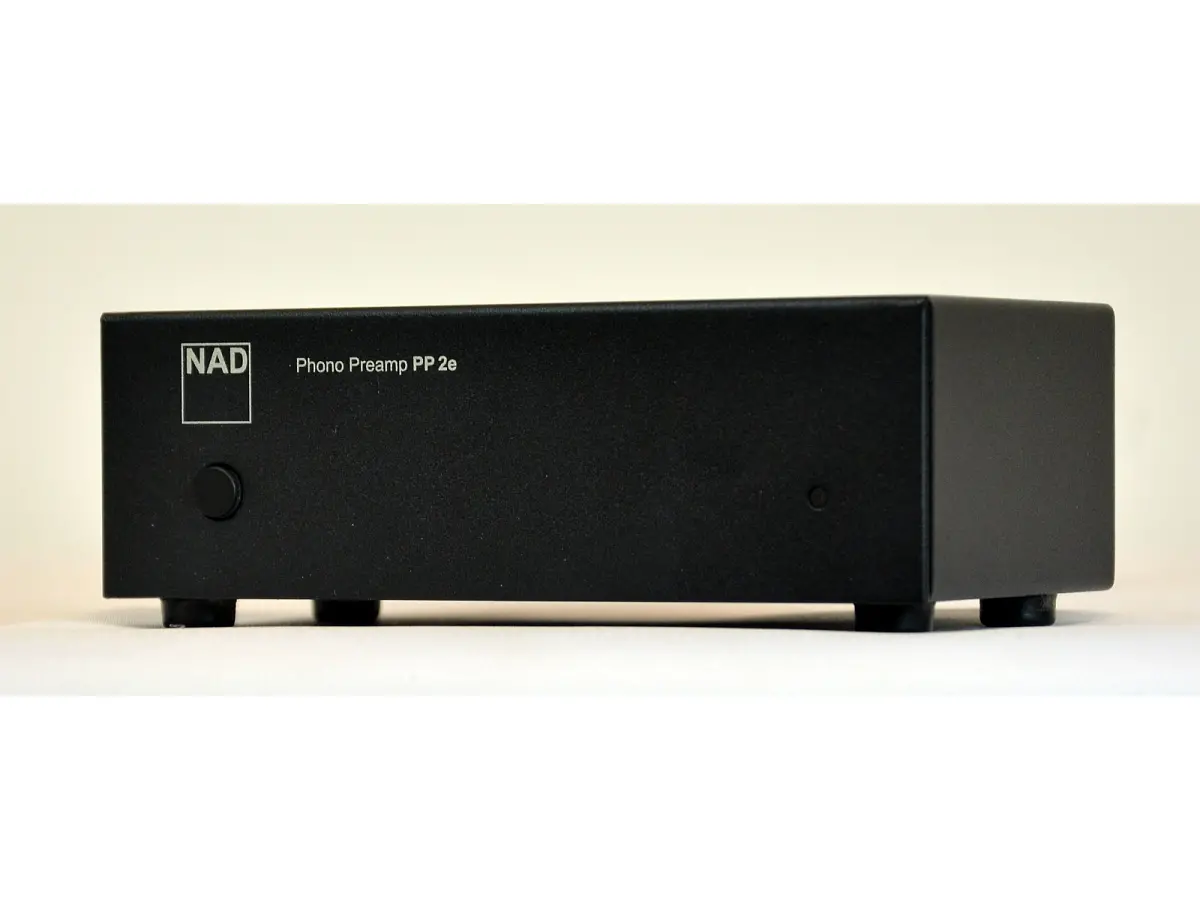

NAD PRE PHONO PP2 E

Usato, in ottime condizioni, privo di segni di usura evidenti. Senza imballo originale.

Pre phono

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. This allows the PP 2e to be paired with any turntable, giving consumers unlimited choice in building their system. The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use. Built to be the best companion to one’s turntable setup, the PP 2e breathes life back into the vinyl you love.

MC
Input Impedance (R and C)
100 Ohm + 180pF
Gain at 1kHz 60dB
Input Sensitivity (ref. 200mV output) 0.3mV
Signal to Noise Ratio 78dB (A weighted, with cartridge connected)
Input Overload (20Hz/1kHz/20kHz) 0.8/9/84mV
Rated Distortion (THD 20Hz – 20kHz) <0.03%
RIAA Response Accuracy ±0.3dB

MM
Input Impedance (R and C) 47 kilohm + 200pF
Gain at 1kHz 35dB
Input sensitivity (ref. 200mV output) 2.5mV
Signal to Noise Ratio 80dB (A weighted, with cartridge connected)
Input overload (20Hz/1kHz/20kHz) 10/102/950mV
Rated Distortion (THD 20Hz – 20kHz) <0.03%
RIAA response accuracy ±0.3dB

Line Out
Output Impedance 100 Ohm
Maximum Output Level 5.3V

General Specifications

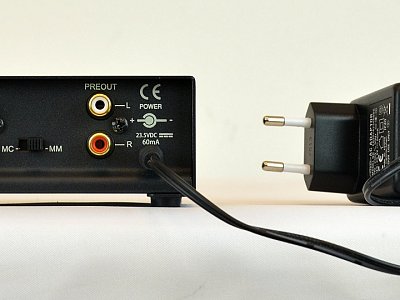

AC Supply
External 23.5V DC
Dimensions excl. Power supply (W x H x D)
135 x 49 x 72mm
5 5/16 x 1 15/16 x 2 7/8?
