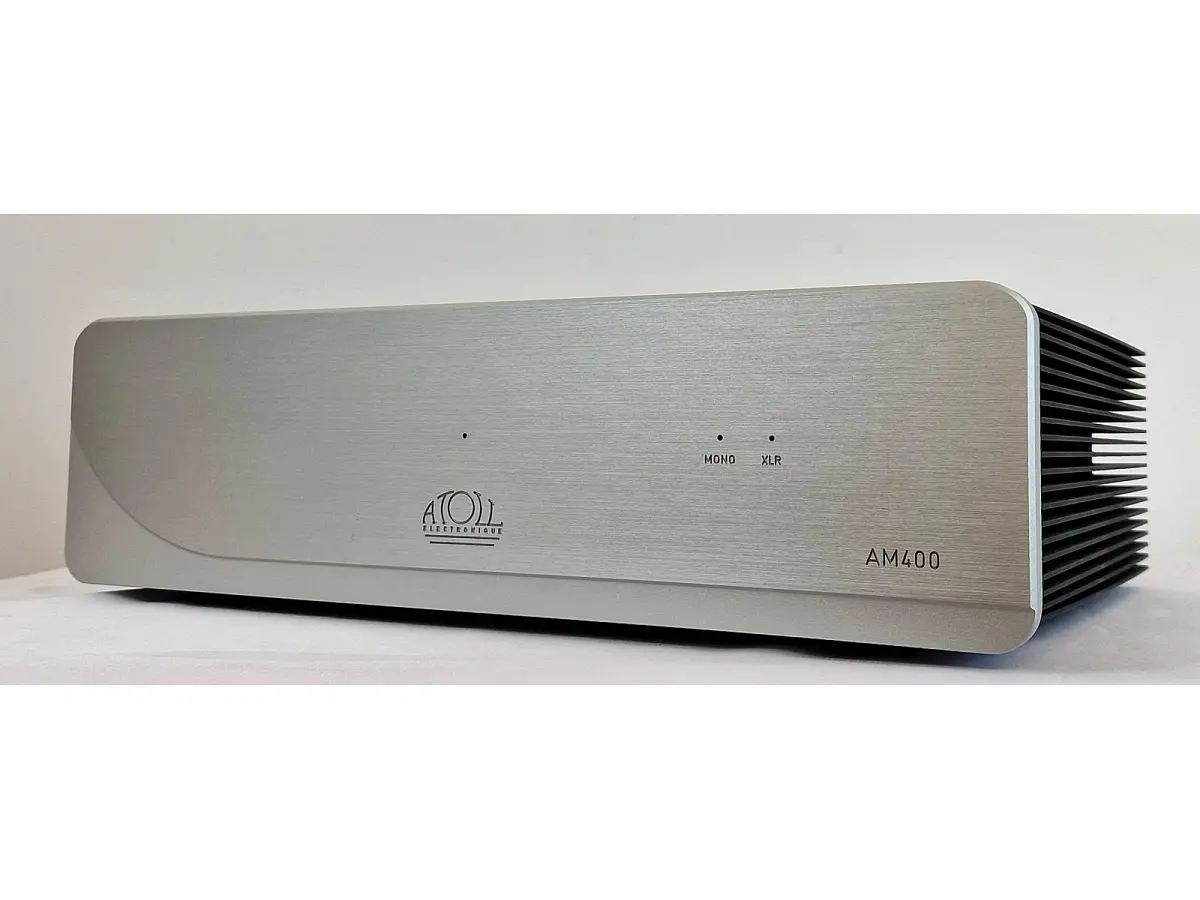

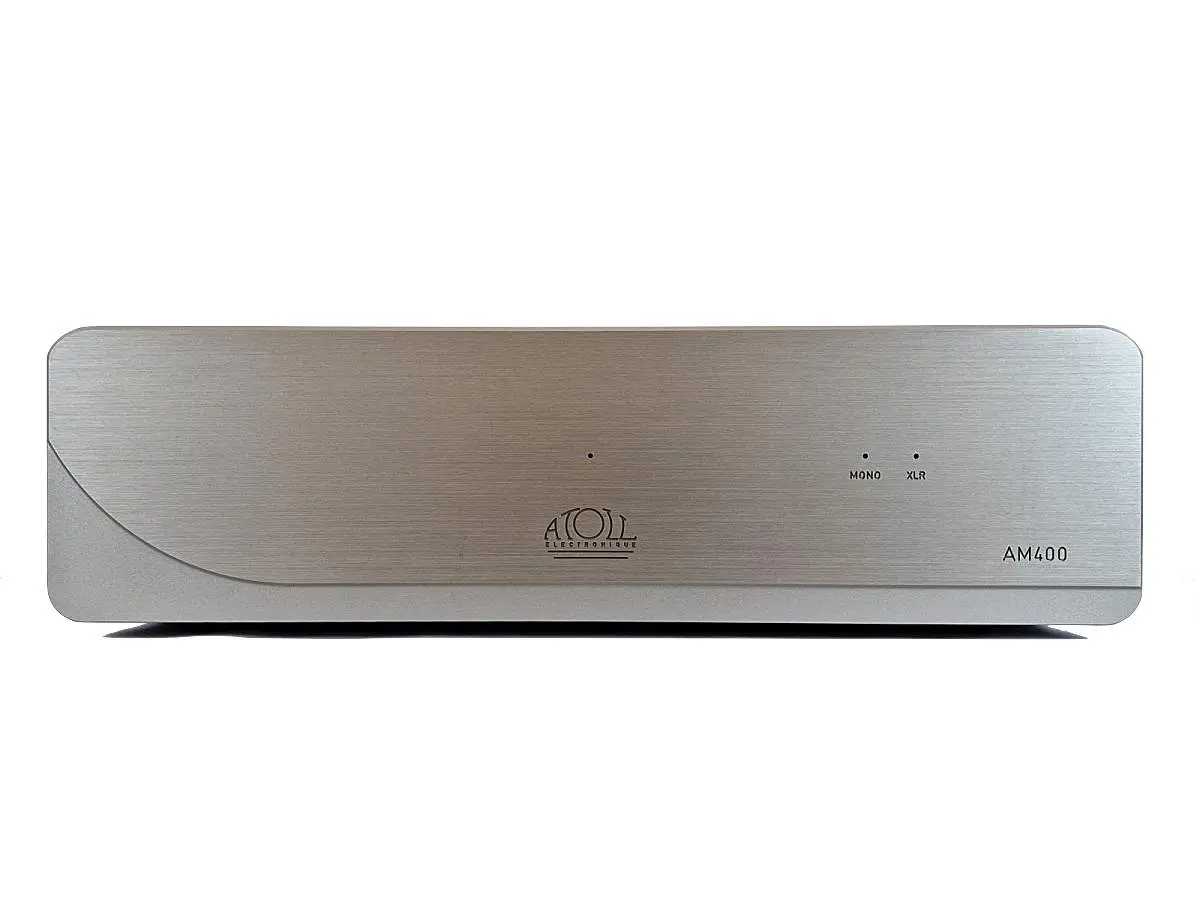

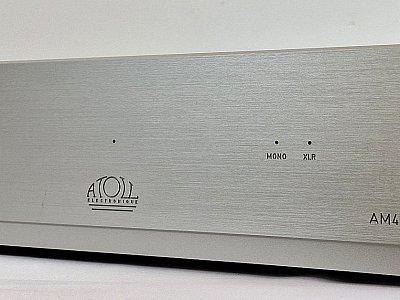

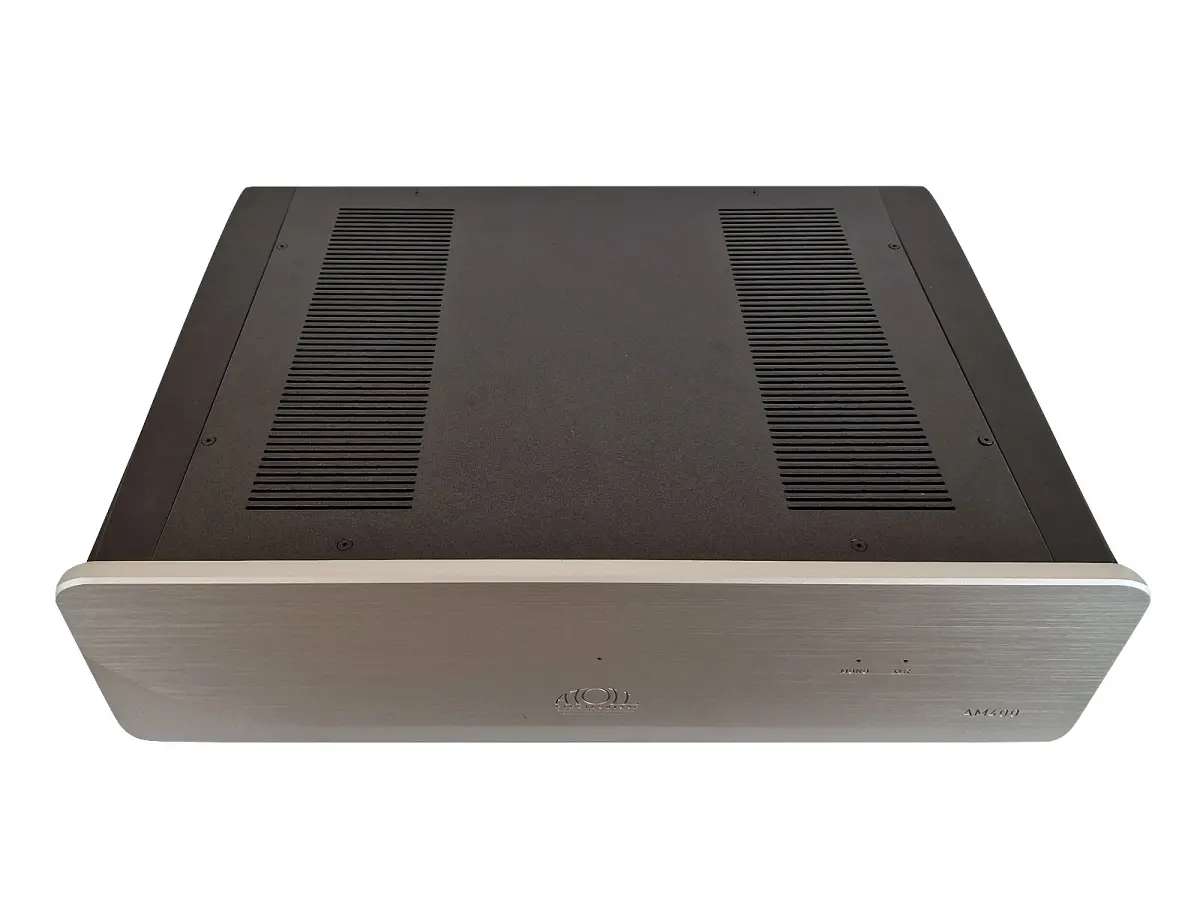

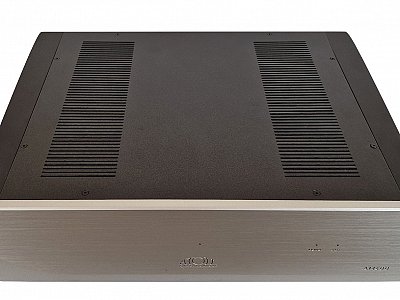

ATOLL AM400

Usato, in buone condizioni, privo di segni di usura evidenti. Dotato di imballo originale.

Finale di potenza

The gold-plated loudspeaker output plugs have been selected for their ability to transmit without alteration all the energy and the micro-details of the electrical signal. The polypropylene film structure link capacitors have been selected for listening in the high-end series of the largest manufacturers. In bridged mono mode, the energy gain is colossal: this operation is suitable for all systems where high power is required. The differential structure diagram makes it possible to carry out this transformation without altering the nuances of the musicality, the gain in ?sound material? makes listening even more realistic.

10 mm brushed aluminium front.
2 mm steel frame.
Linear power supplies based on toroidal transformers.
Symmetrical stages with discrete components.

XLR balanced inputs.
RCA inputs (selectable on the rear panel).
Mono block bridgeable amplifier (switch facing the rear).
Integral dual mono structure.

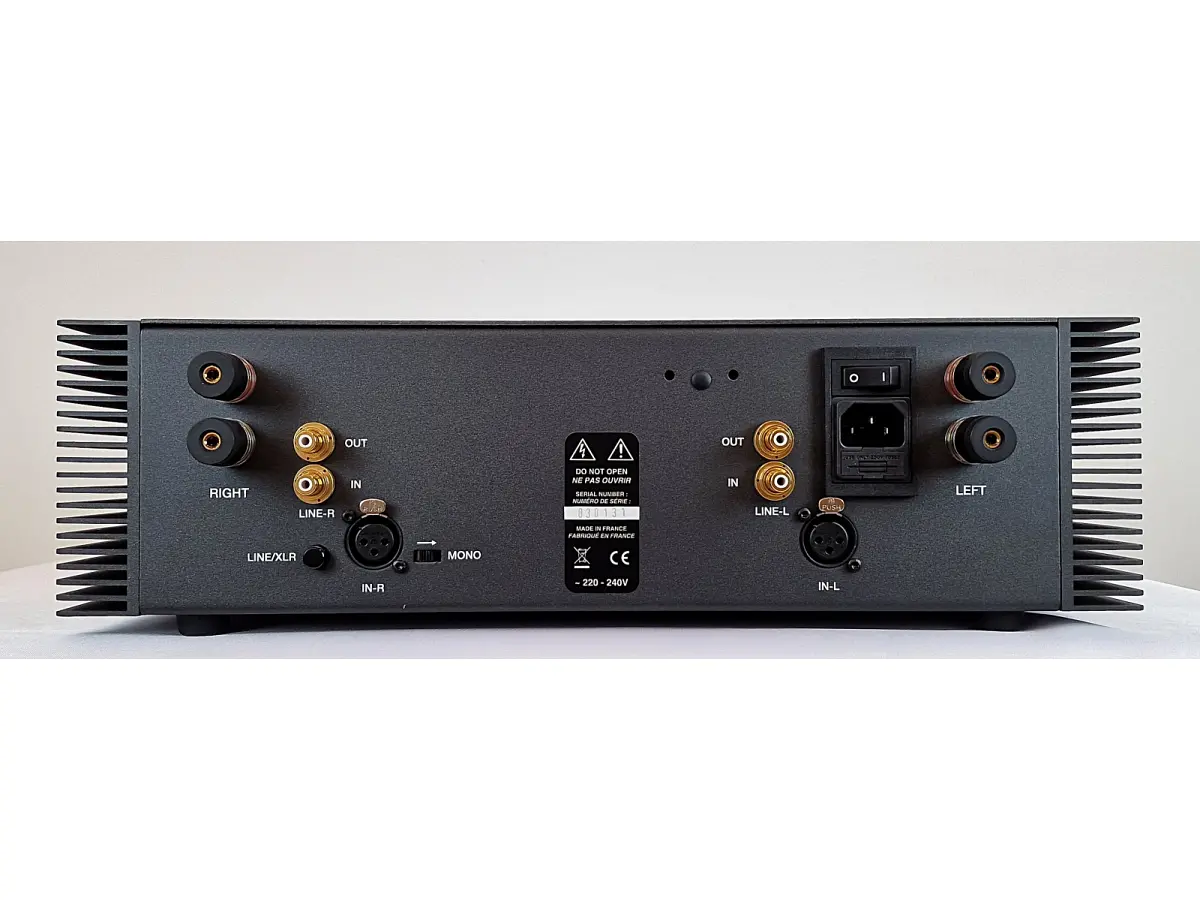

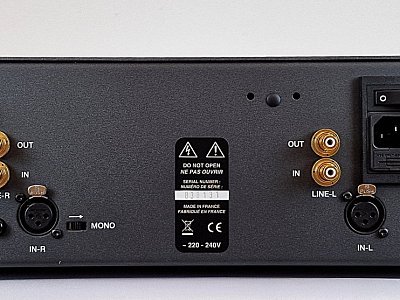

Audio inputs
1 Stereo line input.
1 Stereo XLR input.
1 Trigger input 12V.

Audio outputs
1 Stereo line output.
1 Stereo speaker output.
Input type selector:
? Line: button up.
? XLR: button pressed.

Various
1 Mono bridge switch.

TECHNICAL DATA
Power Wrms/8 ?: 160 W
Power Wrms/4 ?: 300 W
Power in bridged mono/8 ? mode: 600 W
Power supply: 1050 VA
Total of capacitors: 111 300 ?F
Input impedance: 220 k?
Sensitivity: 1,7 V
Signal/Noise ratio: 100 dB
Distortion at 1 kHz: 0,005%
Bandwidth: 5 Hz ? 200 kHz
Rising time: 1,5 ?s
Dimensions (mm): 440?370?130
Weight: 19 Kg
