SME MODEL V-12

12

€ 8.015,00
Immediate availability

Code: 93709306

All our products are covered by Italian warranty.

Nuovo
Wishlist

Based on the multi-award winning Series V pick-up arm, the Series V-12 incorporates the same design and engineering that have made SME a byword for excellence. Coherent musical control is held over the entire frequency range in terms of tonal quality, stability and stereo imaging. Startling dynamic range, neutrality, structurally inert, the Series V-12 embodies every worthwhile feature in a pick-up arm.
The 12 inch tone-arm is pressure die-cast in magnesium complete with an Integrated headshell to eliminate tone-arm resonances in the audio spectrum and offers a 27% reduction in maximum angular error distortion over 9 inch models. Listening: the benefits of minimal tracking error and harmonic distortion are clearly revealed.

Build
- The 12in pressure die-cast tone-arm utilises the advantages of magnesium and exploits the reduction in maximum tracking error/distortion afforded by the greater arm length when compared with 9in models.
- Stainless steel cross shaft, ground and thread ground. Carried in massive yoke on Ø10mm precision ball races. Axes at record mean level to minimise warp-wow.
- Dynamic balance. Graduated vertical tracking force control applies up to 3.0g x 0.125g VTF through resonance controlled spring.
- Stainless steel vertical shaft, ground and thread ground, with integral Ø16mm flange to couple shaft and yoke.
- Ø23mm steel pillar, heat treated, ground and honed, carries two Ø17mm precision ball races, widely spaced to resist tilt.
- Underslung weight housing corrects centre of gravity and provides non-reflective tone-arm termination.

Damping
- Internal constrained layer damps minute residual vibration leaving the tone-arm acoustically inert.
- Fine machined cartridge platform, enamel free to avoid interface resonance.
- Swivelling, damped output socket minimises vibration transmission in sub-chassis use.
- Tungsten-alloy balance carried on two-point suspension. Extra-low inertia design assists warp riding.
- Subsonic lateral-mode damper can be instantly adjusted or cancelled.

Adjustements
- Anti-skate control operates through tension spring and filament. Dial corresponds with VTF and has a positive OFF position.
- Lowering/raising control gives smooth positive action. Height of lift can be adjusted.
- Dual-lock base provides movement control with high rigidity.
- Fine adjustment of horizontal tracking angle (HTA).
- Reference lines on tone-arm facilitate VTA setting.
- Fine adjustment of horizontal tracking angle (HTA).

Specifications
Effective mass 12.0g
Cartridge balance range 5.0 – 32.0g
+ One accessory weight – up to 26.5g
+ Two accessory weight – up to 32.0g
Maximum tracking error 0.009°/mm
Null points Inner 66.04mm
Outer 120.90mm
Internal wiring Ultra-flexible Silver litz
Audio lead Length 1.2m
Weight net 815.0g







Potrebbe interessarti anche

Alphason ALPHASON DESIGNS DELTA

Alphason ALPHASON DESIGNS DELTA

€ 550,00
Helius HELIUS SCORPIO

Helius HELIUS SCORPIO

€ 650,00

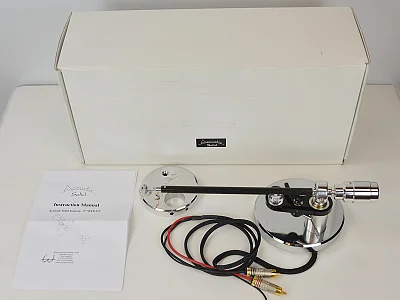

Acoustic Solid ACOUSTIC SOLID TONEARM 9

Acoustic Solid ACOUSTIC SOLID TONEARM 9

€ 700,00

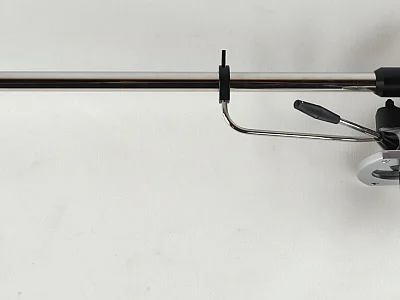

Sme SME M2-12

Sme SME M2-12

€ 1.150,00

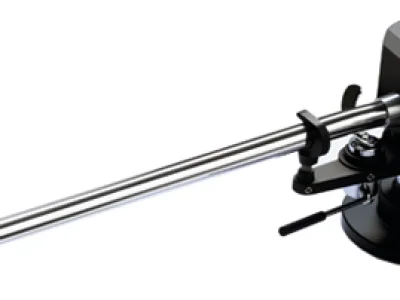

Ortofon ORTOFON RS-309 D

Ortofon ORTOFON RS-309 D

€ 2.500,00 € 2.000,00

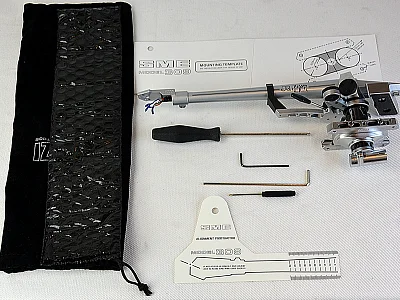

Sme JL TRANSROTOR SME 309
