Audiolab AUDIOLAB 8300A

AUDIOLAB 8300A

Integrated amplifier

€ 1.469,00 € 1.320,00
Immediate availability

Code: 12983868

All our products are covered by Italian warranty.

Colori

Nuovo
Wishlist


Completely redesigned from scratch, our new integrated amplifier, the 8300A is miles ahead of what was already an industry-leader. Higher power, an additional phono stage and new Audiolab styling means the amplifier is more stylish and more versatile than ever. Most importantly it's new, ultra-efficient circuitry and streamlined components create a listening experience which brings new definition to your favourite music.


General description Integrated Amplifier
Design philosophy and core technology Dual Mono Power Amp Design
Display OLED 128x64 pixels 2.7"
Controls Logarithmic Ladder Volume Design
Finish Fine Textured Aluminium (Black / Silver)
Standby Features Yes
12V Trigger Yes
Phono Yes (MM/MC)
Balanced XLR Input Yes
Pre-amplifier Section
Inputs CD, Video, Tuner, Aux 1, Aux 2, XLR (Balanced) & Phono
Outputs 2 x RCA
Input sensitivity (Phono RIAA) 50K // 100pF
Input impedance (line inputs) 50K // 100pF
Input impedance (phono inputs) 47K // 100pF (MM), 100R // 1.5nF (MC)
Output voltage 2.3V max. (< 0.02% THD)
Output impedance 120 ohm
Frequency response (Line) +/- 0.1dB (10Hz - 20kHz)
+/- 3.0dB (1Hz - 100kHz)
Frequency response (Phono RIAA) +/- 1.0dB (20Hz - 20kHz)
Channel Imbalance < 0.2dB (10Hz - 20kHz)
Total harmonic distortion (THD) Line 109dB(A-weighted)
Signal-to-noise ratio Phono (MM) > 73dB
> 78dB(A-weighted)
Signal-to-noise ratio Phono (MC) > 68dB
> 73dB(A-weighted)
Crosstalk < 80dB (L-> R & R->L @10KHz)
Power amplifier Section
Gain 29dB (20Hz-20KHz)
Input Sensitivity 840mV (Power Out = 70W into 8ohm)
Input impedance 15K // 100pF
Rated max power output THD < 1% 2 x 75W RMS (8 ohm) , 2 x 115W (4 ohm)
(Vmains = 230V , THD < 1%)
Peak output current +/- 15A
Frequency response +/- 0.1dB (10Hz - 20KHz)
+/- 3.0dB (1Hz - 100KHz)
Channel Imbalance < 0.2dB (10Hz - 20kHz)
Total harmonic distortion (THD) 107dB (BW = 20 - 20KHz )
>109dB(A-weighted BW = 20 - 20KHz)
Damping factor >100 (8ohm Load @ 1kHz)
Inputs 1 x RCA
Outputs Speaker Binding Post Terminals
Dimensions 80 x 444 x 330.3mm
Net weight 7.8kg

Potrebbe interessarti anche

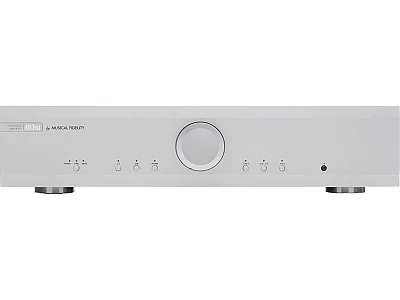

Musical Fidelity MUSICAL FIDELITY M3si
